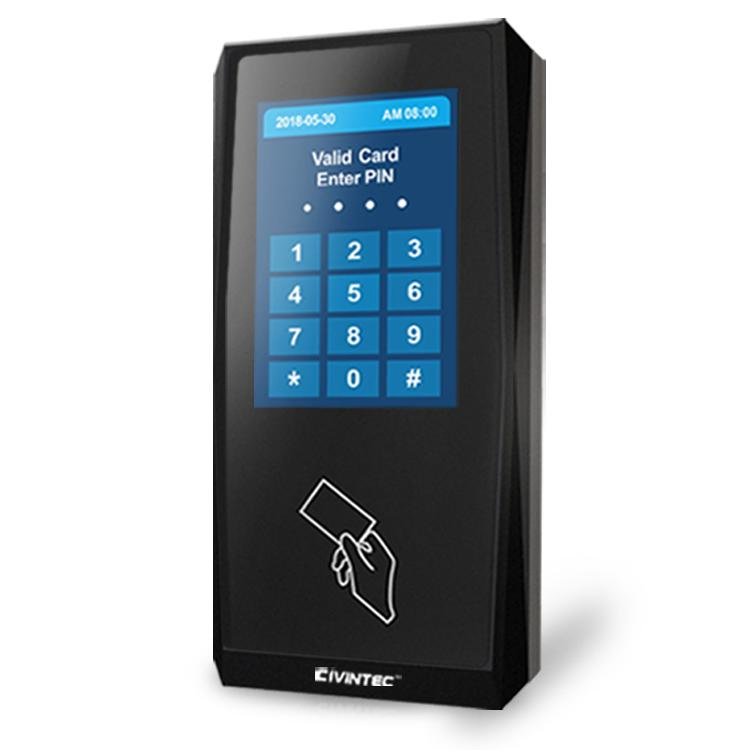

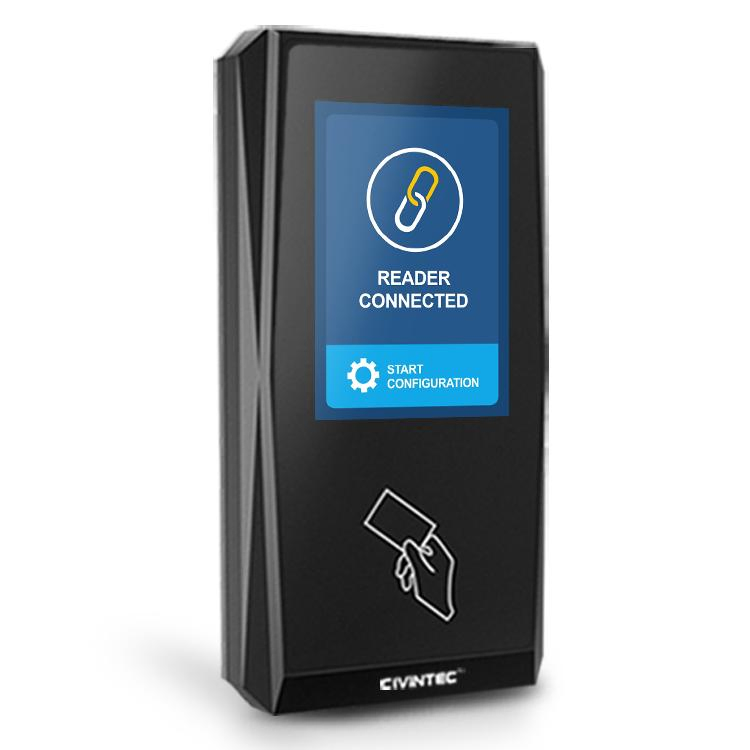

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is perfectly suited for both LAN and Internet cloud server software communication, featuring embedded relays to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile devices.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream barcodes. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T), ISO14443B, HID Prox and iCLASS®. |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2. |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit. |
| Capacity | 10,000 users / 50,000 logs. |
| Protection | IP65 outdoor/indoor use, UV-resistance. |

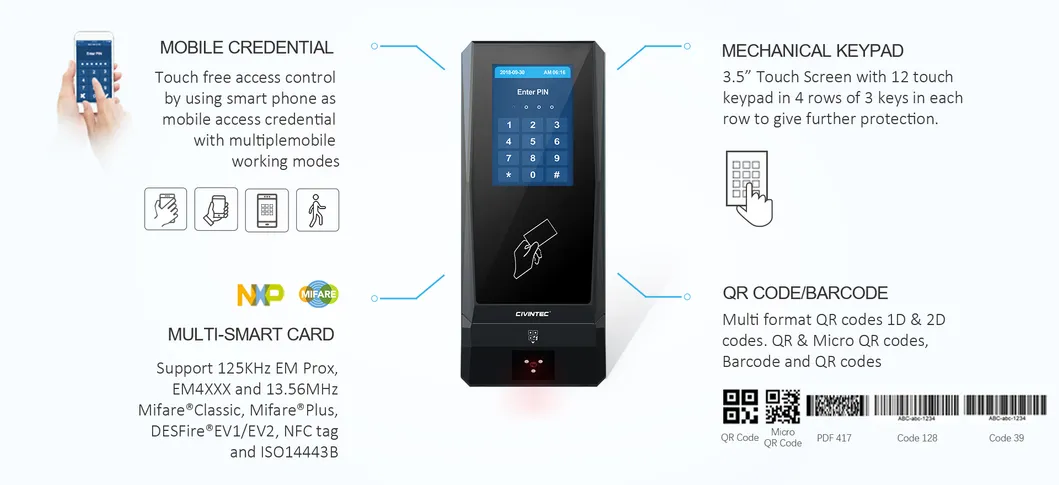

Multiple Access Credentials

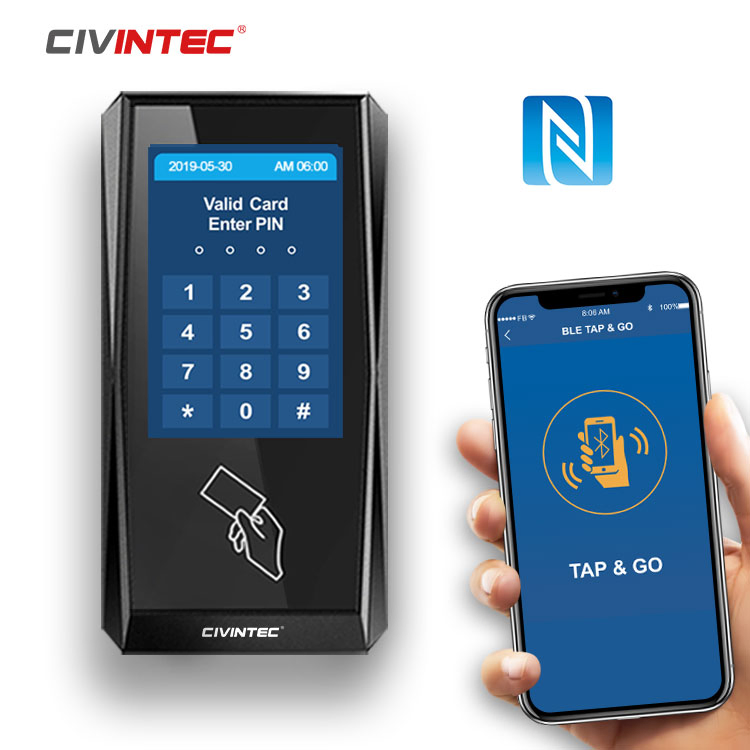

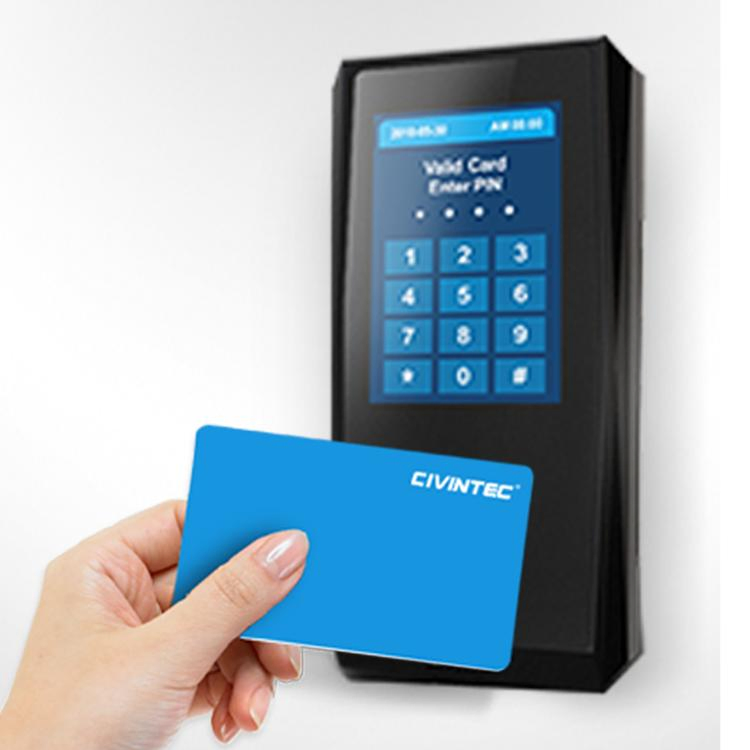

Incorporates 5-in-1 technologies: touch keypad, RFID dual-frequency smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.
Cloud Server Remote Control

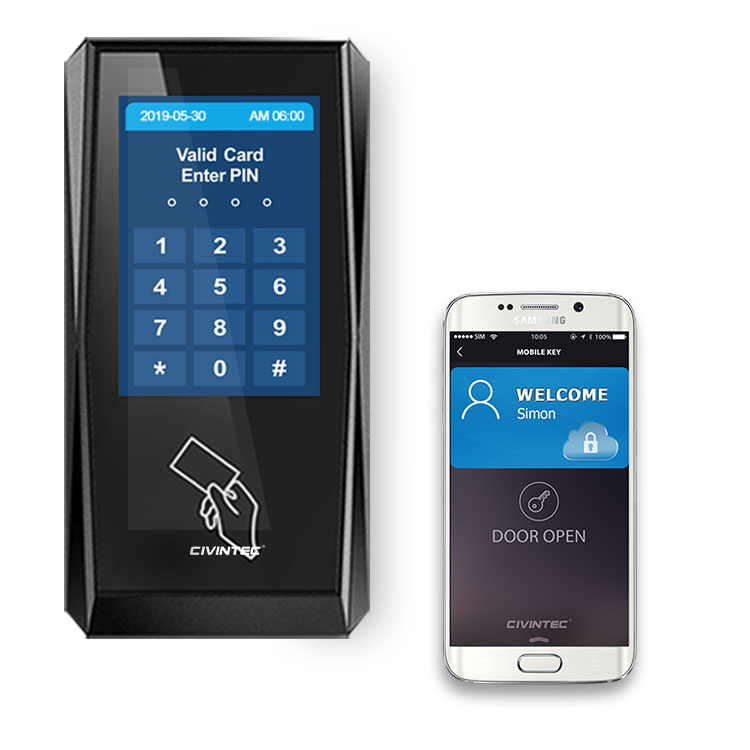

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.
Weather-Resistant Protection
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and various rugged environments.
We offer comprehensive ODM customization on hardware, reader housing, firmware, and software design services to meet specific project requirements.
Users can program and display their own logos on the 3.5" touch screen. We also offer OEM logo printing on the reader body.
