TCP/IP Smart Card Fingerprint Biometric RFID Door Access Control System

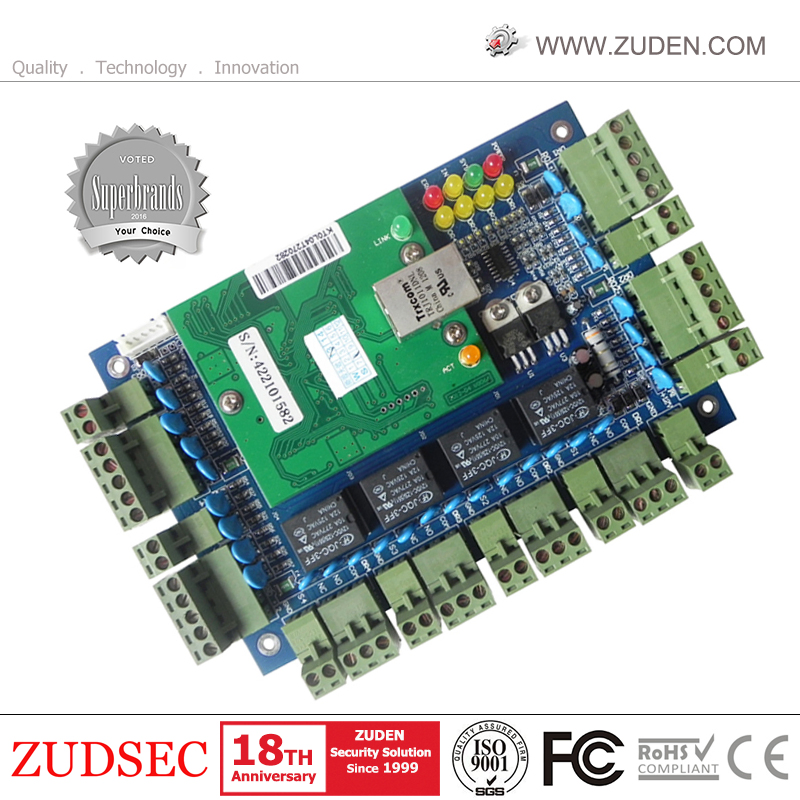

The ZD8000 Series Professional Smart Card Access Controller adopts a 32-bit CPU and international advanced Hi-Speed operation circuit level, combined with superior mass memory storage technology. As a 13th-generation product, it offers mature performance and reliability for various project requirements.
This system integrates and optimizes automated access control for diverse client demands, including Premises Access Control and Visitor's Management. It features user-friendly multi-language software that requires no professional knowledge for fast installation and supports open data communication protocols for easy integration.
Offline operation, real-time supervision, photo display, mass storage, and flexible user privilege setup. Supports remote unlocking, multi-user supervision, quick settings, and exportable Excel reports. Includes alarms for long-time unclosing, invalid card swiping, and illegal break-ins.
Designed for high-security environments like banks, telecom stations, and prisons. Features interface locking, intimidation alarms, integrated fire control, anti-passback, anti-tailing, interlocking, multi-card unlocking, and indoor population checking.
Integrates time attendance management (normal and multi-shifts), fixed ration dining management, meeting attendance tracking, online patrol management, and security alarm management systems.

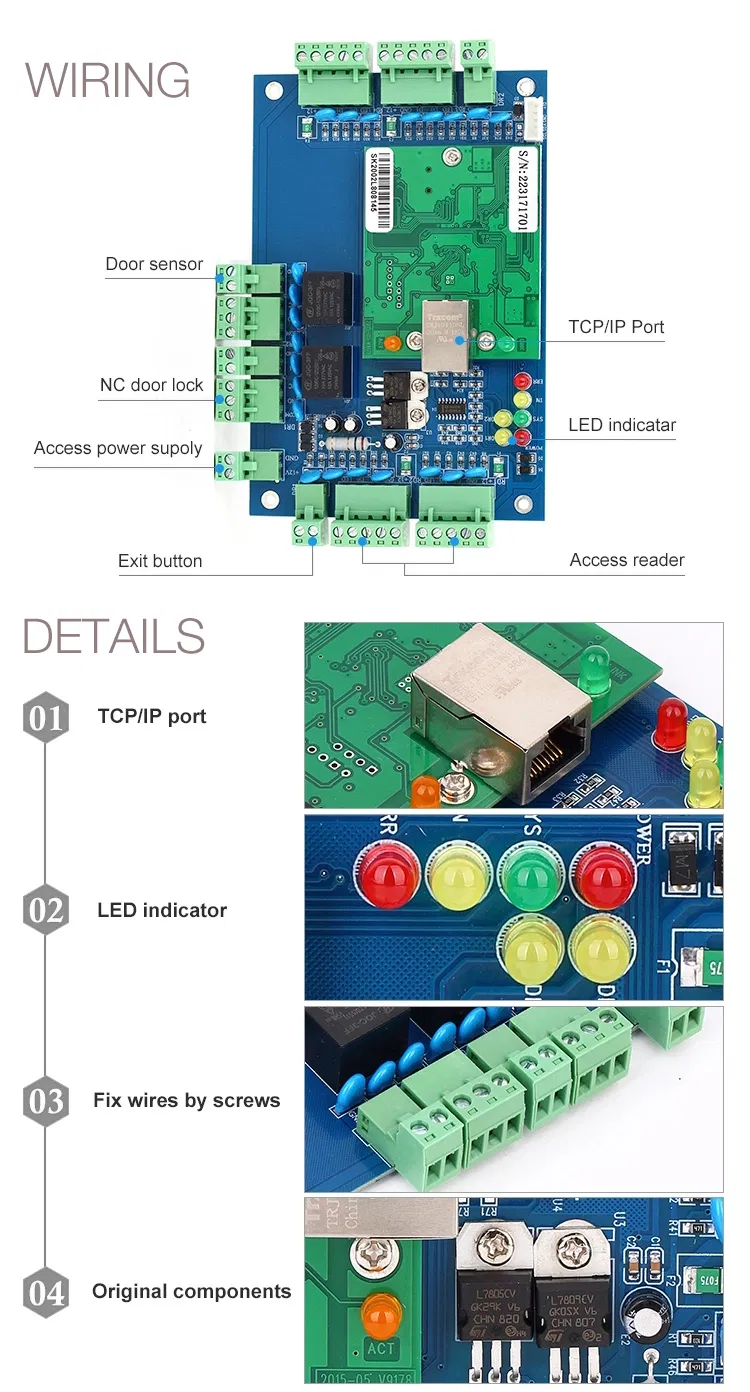

| Parameter | Single Door (ZD8001-TCP/IP) | 2-Door (ZD8002-TCP/IP) | 4-Door (ZD8004-TCP/IP) |
|---|---|---|---|
| Communication | TCP/IP 10M/100M adaptive | ||
| Door Controlled | 1 Door | 2 Doors | 4 Doors |
| Qty of Relay | 1 pc | 2 pcs | 4 pcs |
| Qty of Reader | 2 readers | 4 readers | 4 pcs |
| PCB Size | 160mm * 106mm | 160mm * 106mm | 218mm * 106mm |
| Power Supply | 12VDC 4-7A | ||

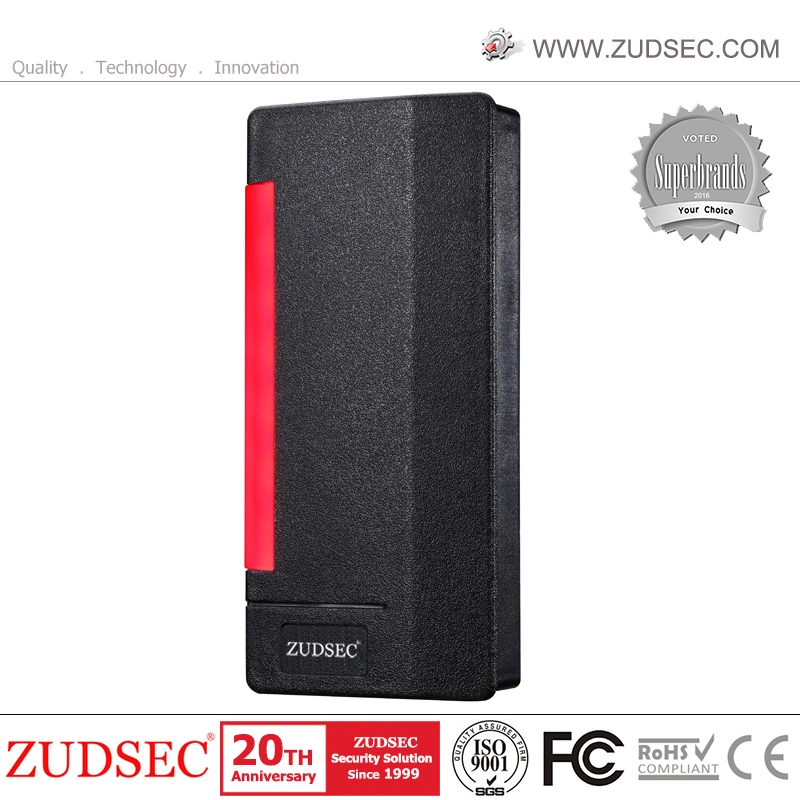

| Reader Input | Wiegand 26 (Compatible with HID, EM, Mifare one, etc.) | ||
| User Capacity | 20,000 Users | ||
| Event Buffers | 100,000 Offline event buffers | ||
