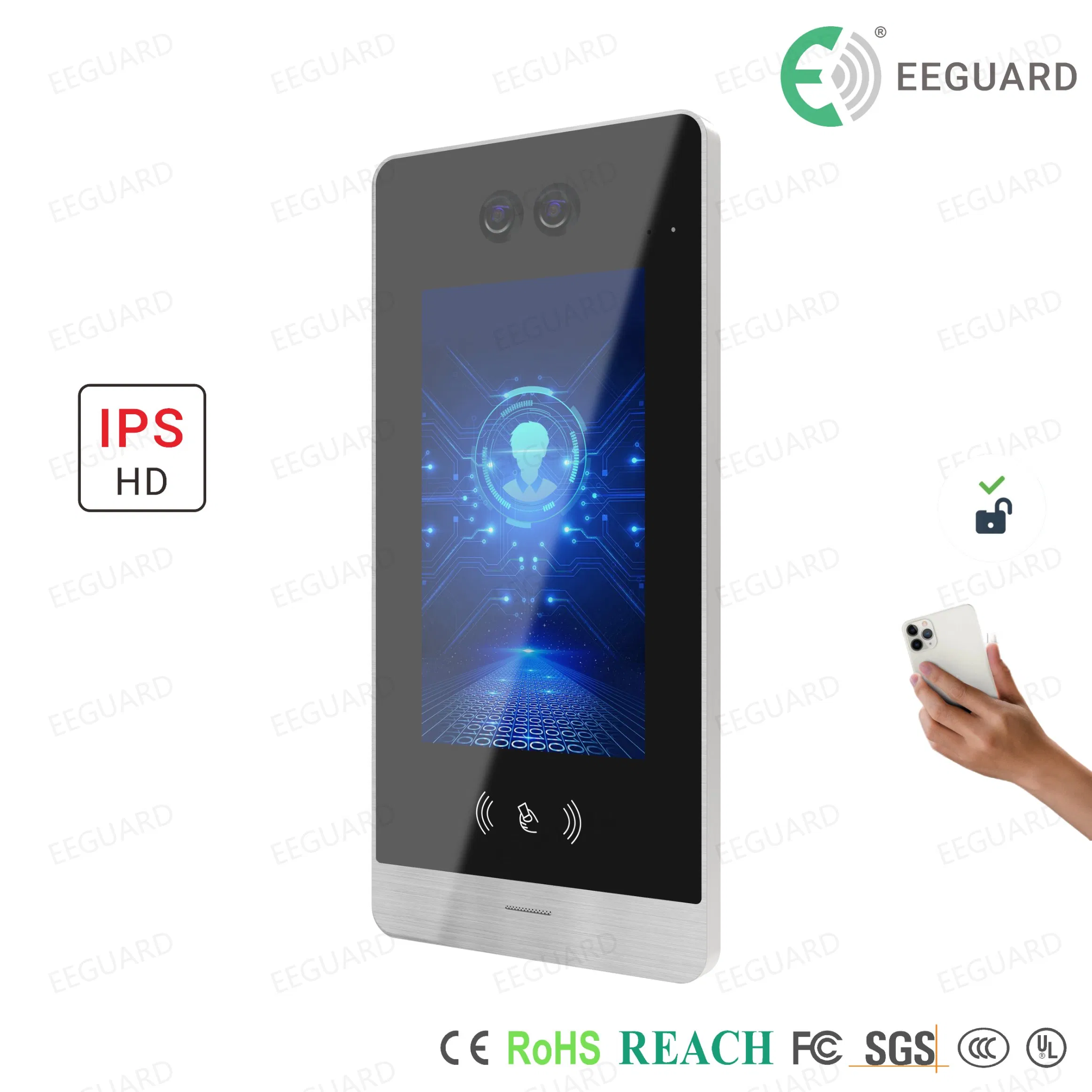

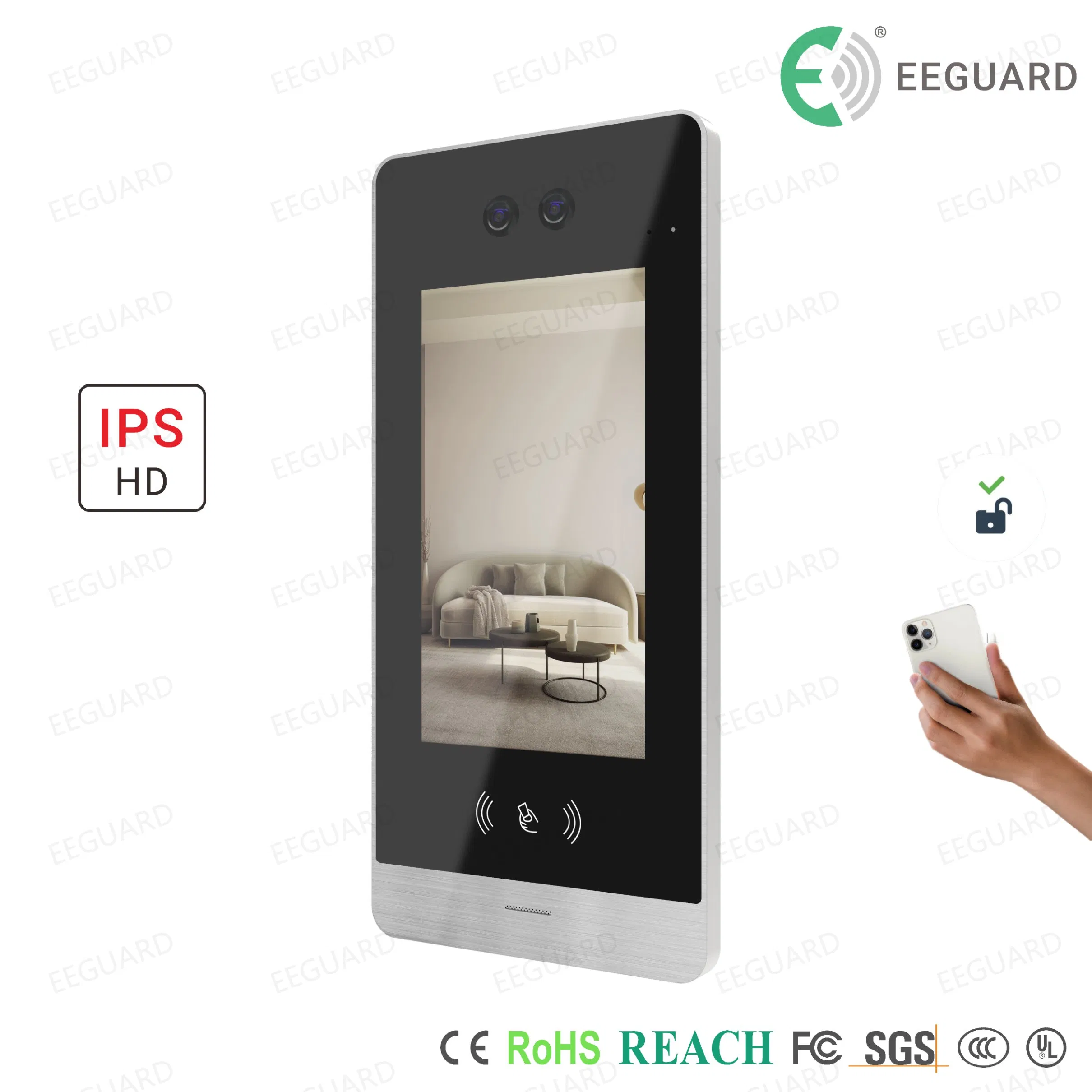

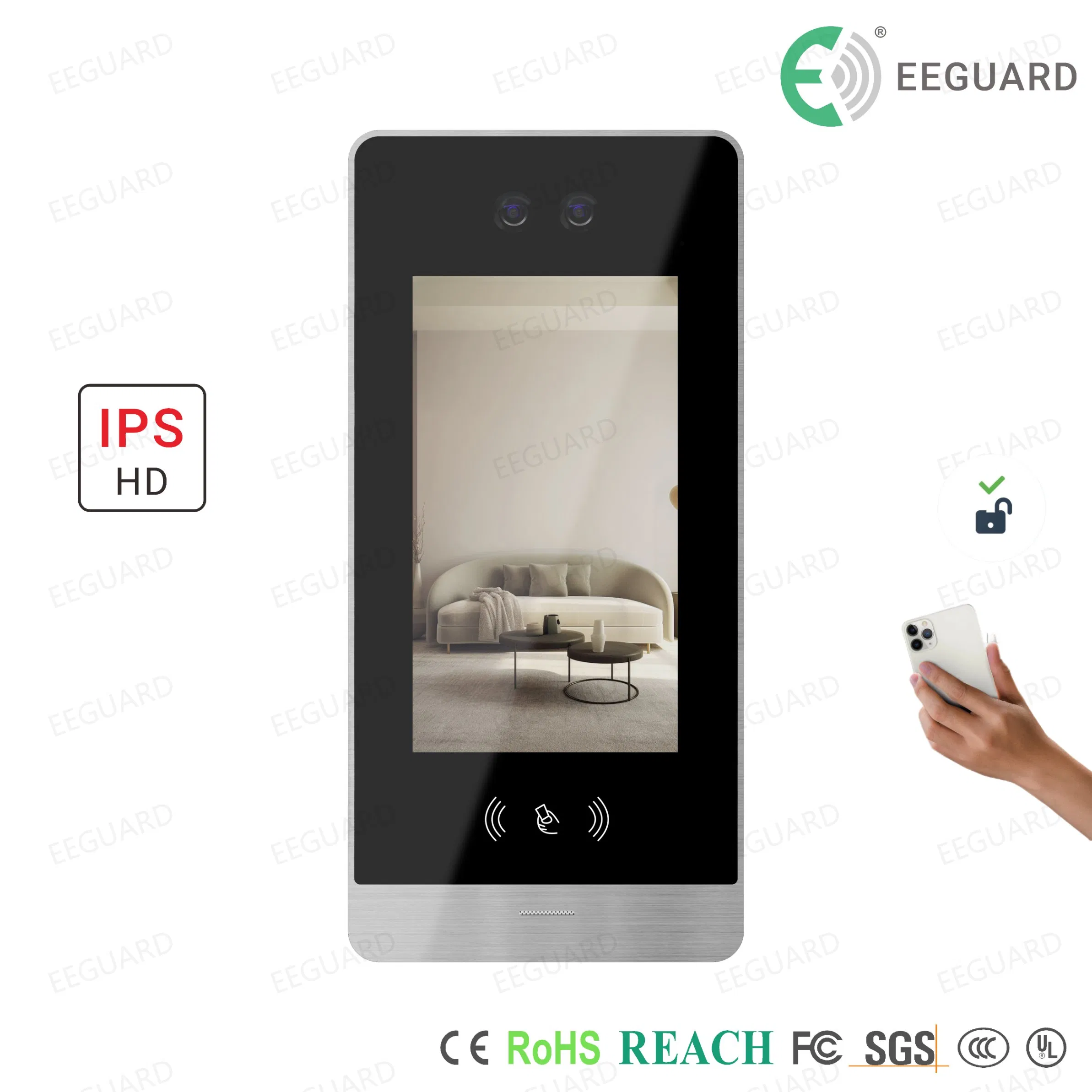

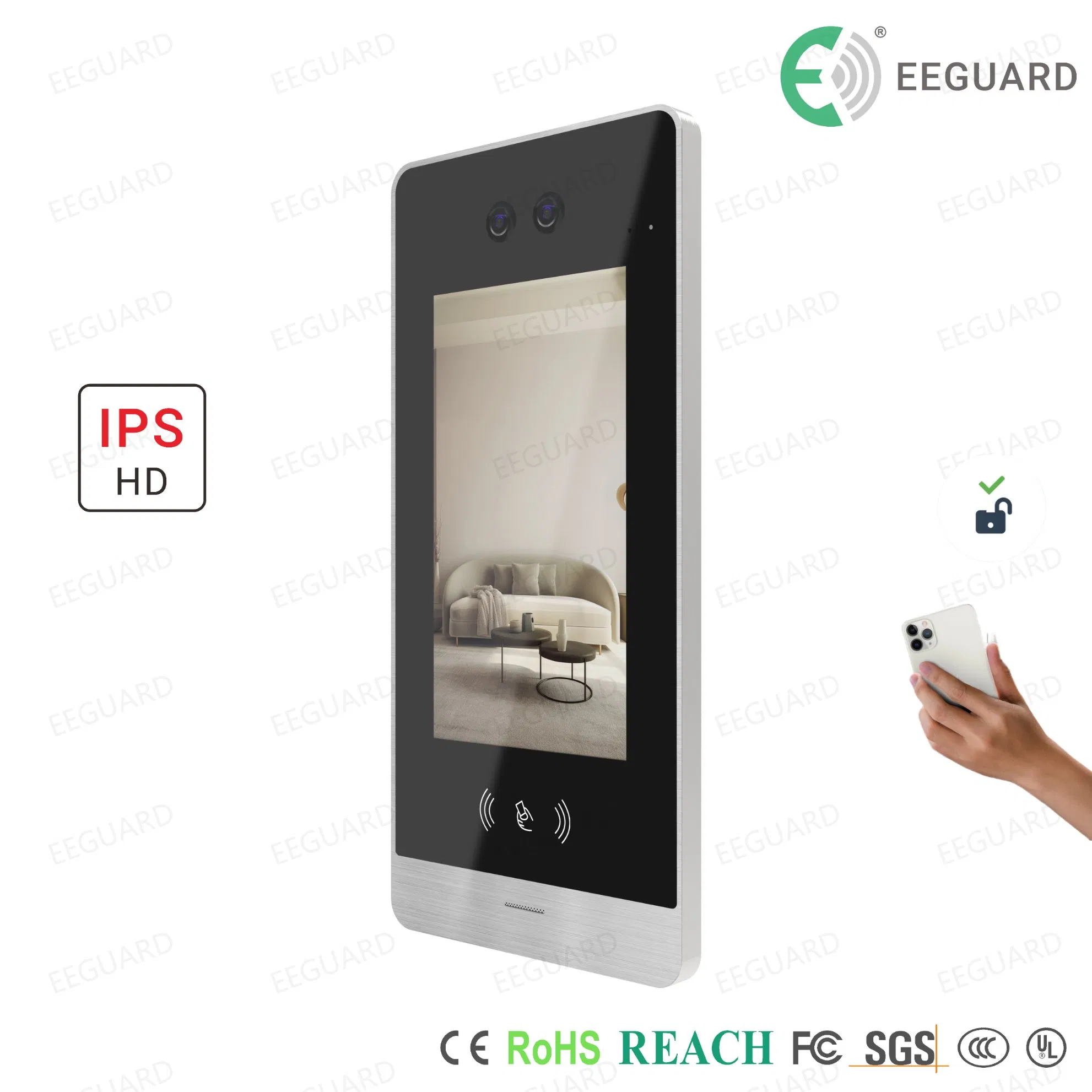

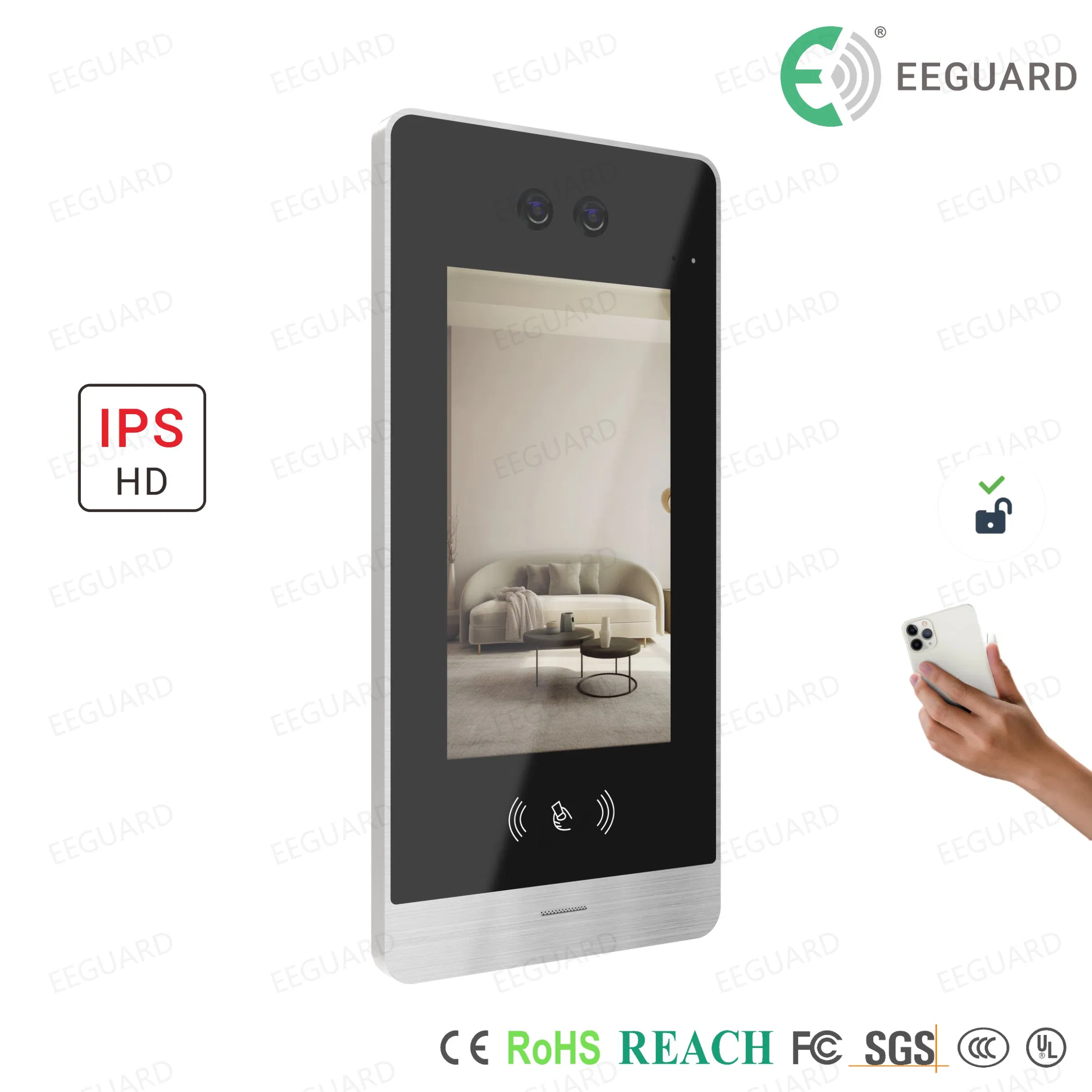

Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
1 / 5
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock
Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock

Multi-Apartment Video Intercom System with 7-Inch Touchscreen and Qr Unlock

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

★ Basic Information
Model NO.
ED006AF
Color
Silver
Resolution
1920X1080 (2MP HD)
Installation
Flush / Surface Mounted
Waterproof
IP65 / IK07
View Angle
125 Degree
Operation System
Embedded Linux
Apartments Support
Up to 9999
Certifications
RoHS, CCC, FCC, CE, SGS
Power Supply
DC24-36V, 8W
⚙ Product Description
Smart 2-Wire IP Video Intercom Doorbell ED006AF

A professional-grade 2-wire digital video intercom panel designed for multi-family complexes, combining high security with user convenience.

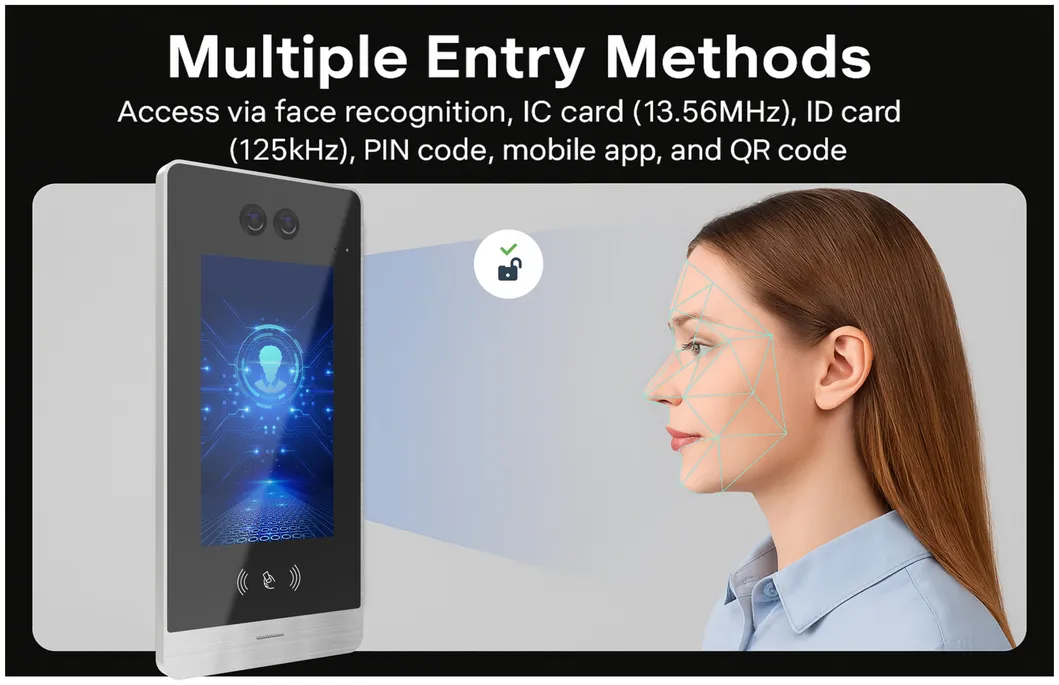

Video Intercom System Overview Intercom Touchscreen Display
  • 7" IPS Touchscreen with 1024x600 resolution.
  • Dual 2MP HD cameras with 125° wide viewing angle.
  • WDR Technology for balanced image quality in all lighting.
  • Multiple Entry: Face Recognition, IC/ID Card, PIN, Mobile APP, and QR code.
  • Large Capacity: Supports 10,000 faces and 200,000 cards.
  • Full Duplex Communication for clear two-way audio.
  • Anti-Spoofing protection against photo/video fraud.
  • Durable Metal body with tempered glass (IP65 & IK07).

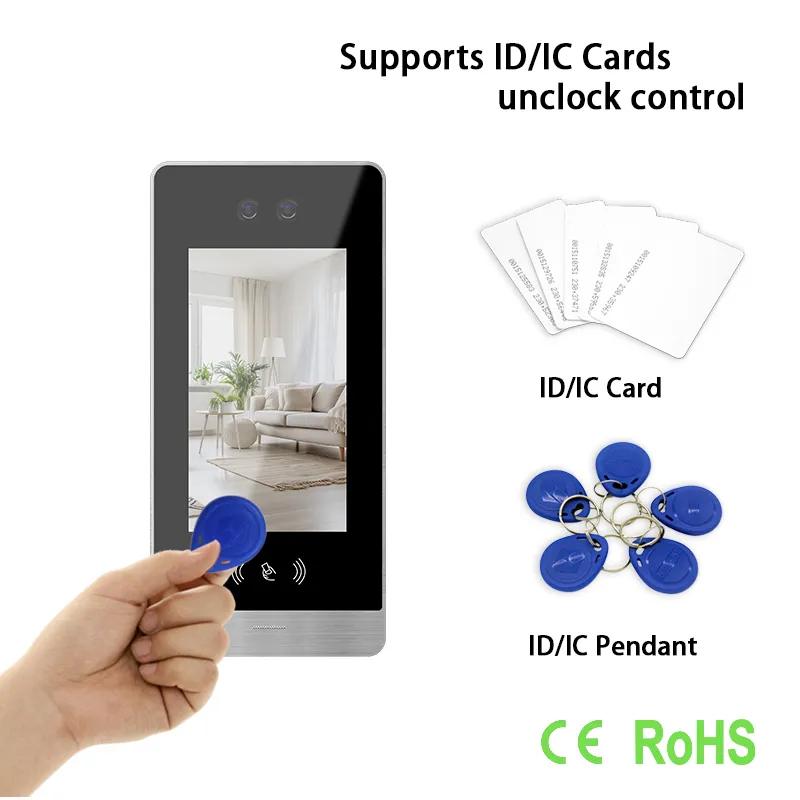

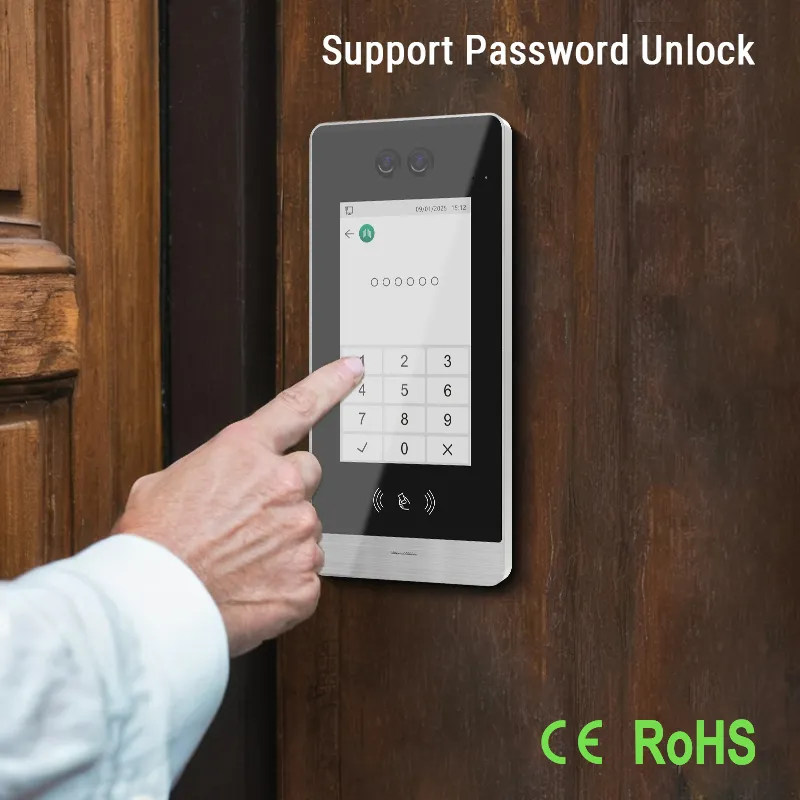

Intercom System Features Entry Methods Security Design

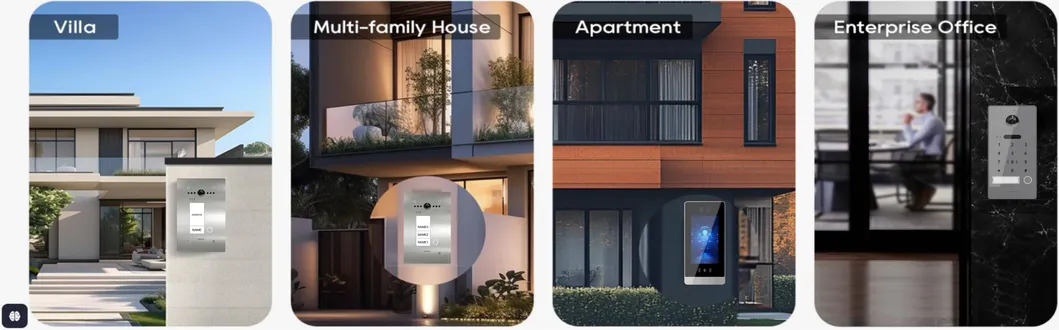

Product Banner
📷 Detailed Photos

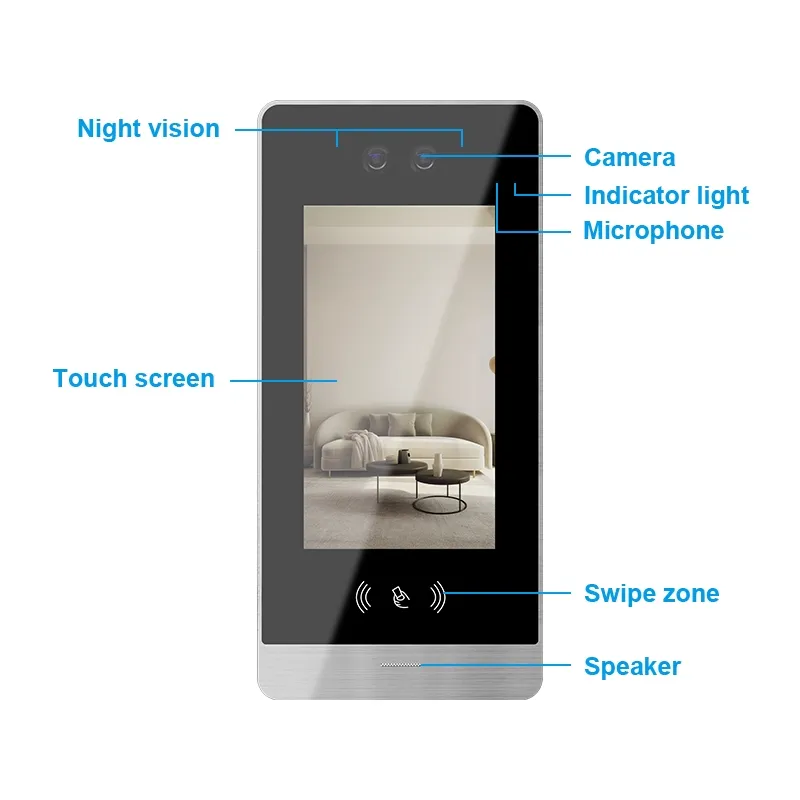

Detailed View 1 Detailed View 2
📊 Product Parameters
Supplement LightSmart IR
RFID SupportEm marine & Mifare
Video CompressionH.265 (default), H.264
Gate ControlNO (MAX AC/DC30V 4A)
Lock ControlNO/NC (MAX AC/DC30V 4A)
Ethernet10M/100Mbps
MaterialsStainless Steel + Tempered Glass
Working Temp-30°C to +60°C

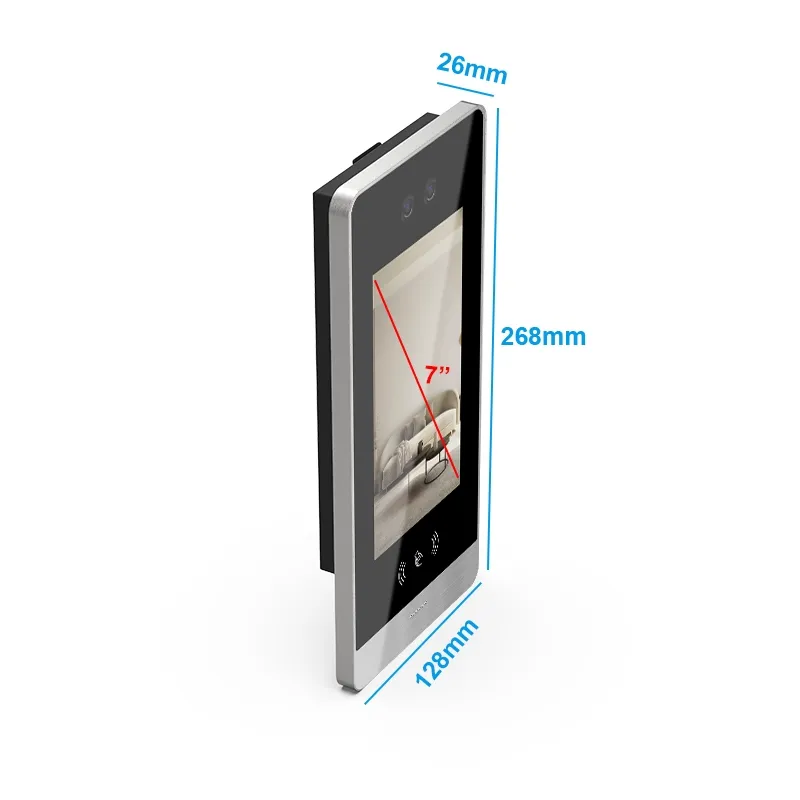

Dimensions268x128x26mm
ProtectionIP65 Waterproof, IK07 Vandal-proof
🛠 Installation & Certifications

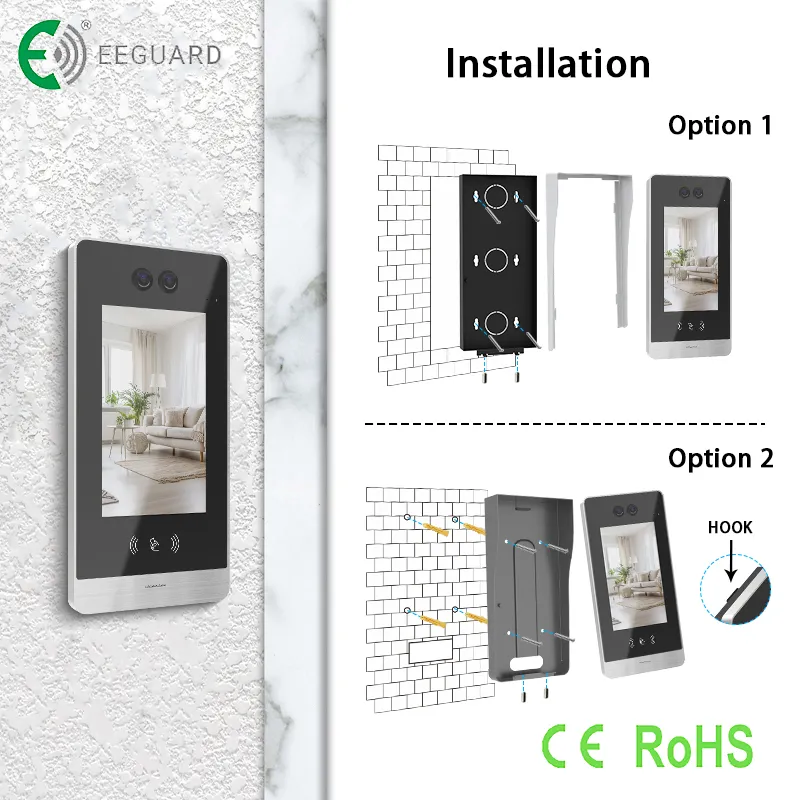

Installation Instructions Product Certifications

All models are in compliance with CE, RoHS, and REACH standards.

🏭 Quality & Manufacturing

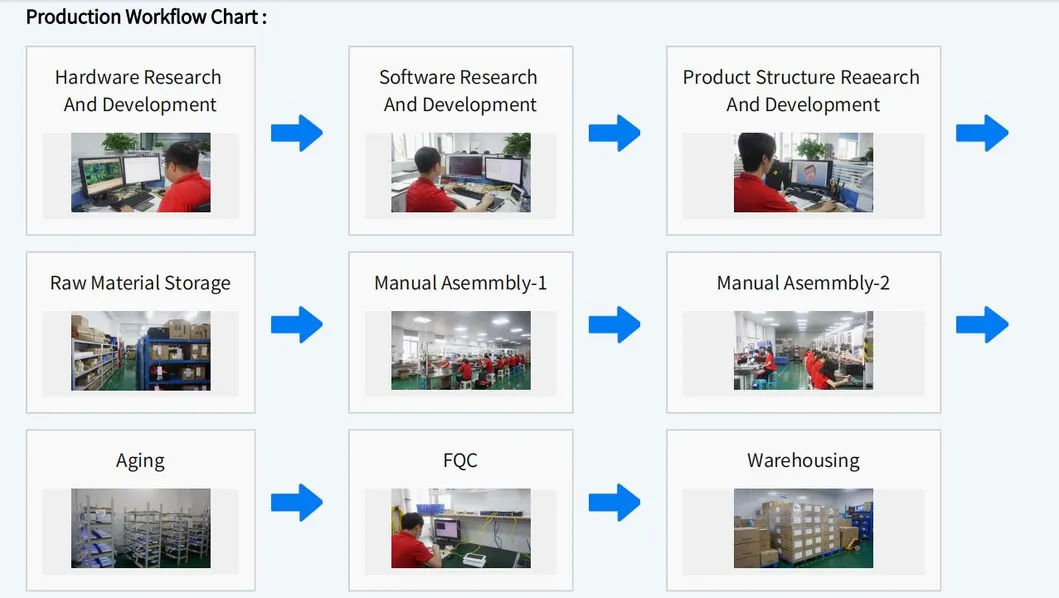

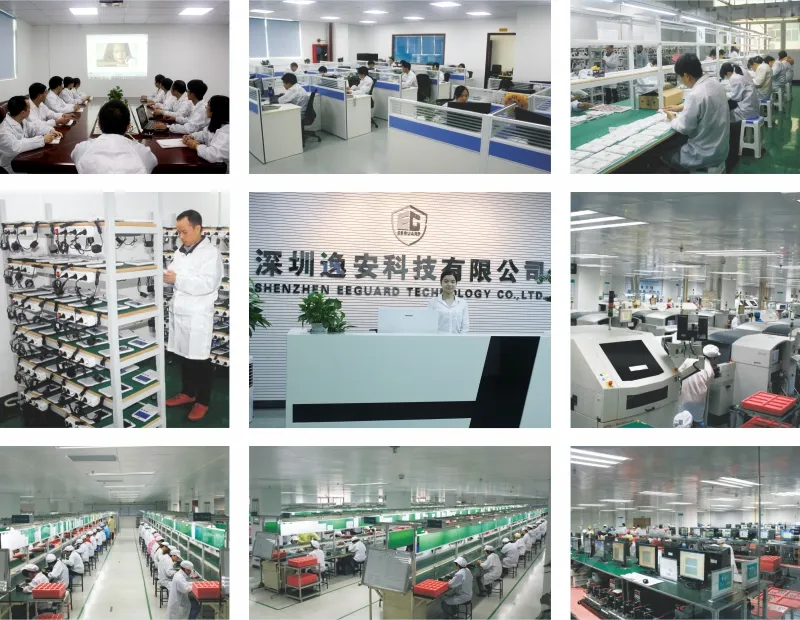

Quality Control Production Line
Industrial Design
❓ Frequently Asked Questions
Can I get a sample to test first?
Yes, samples are available for quality testing at any time.
Do you provide OEM / ODM services?
Yes, we provide full OEM & ODM services, including customized logos, gift box designs, and UI adjustments.
What is the Minimum Order Quantity (MOQ)?
There is no MOQ for neutral models. For customized logos and packaging, the MOQ is 300 pieces per model.
What is the lead-time for orders?
Samples typically take 2-5 days. Bulk orders are processed in approximately 25 working days after deposit confirmation.
What is the warranty period for your products?
We provide a 2-year warranty starting from the date of shipment.
Is the system compatible with mobile apps?
Yes, the system supports unlocking via mobile app and QR codes for convenient remote access.
