Product Overview
Product Name:

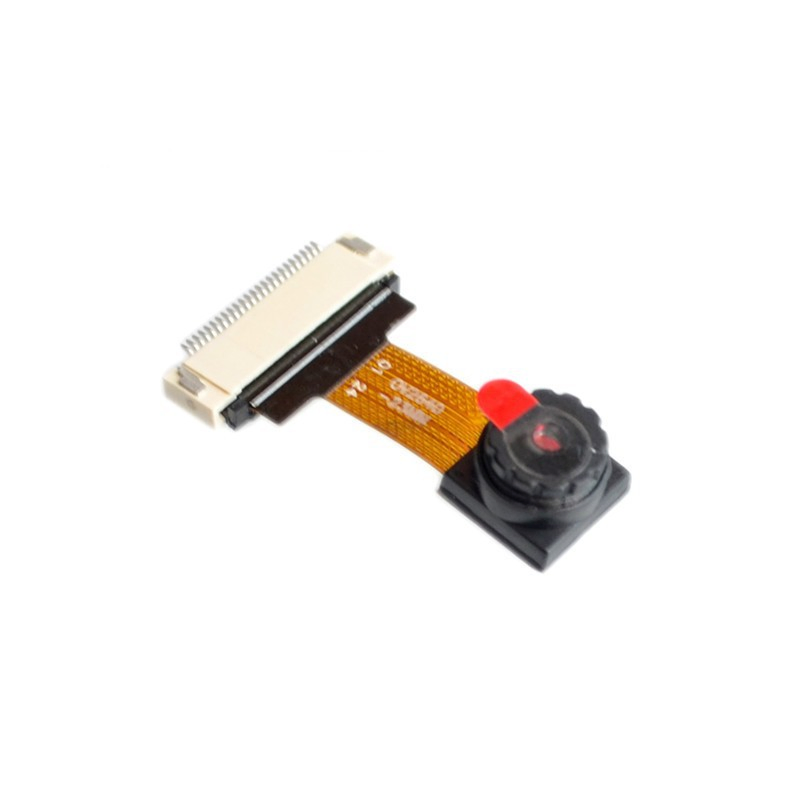

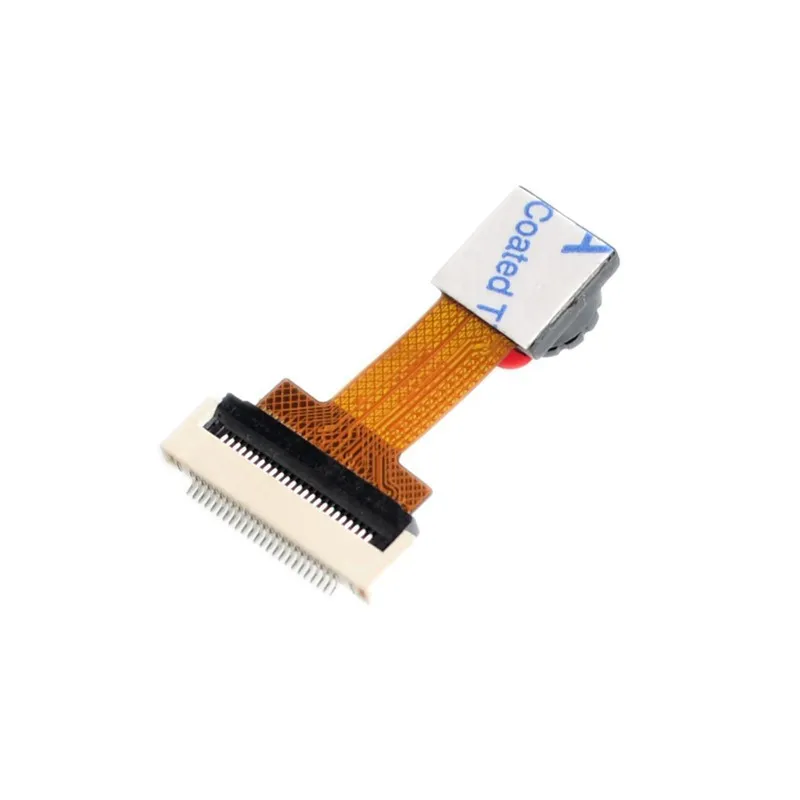

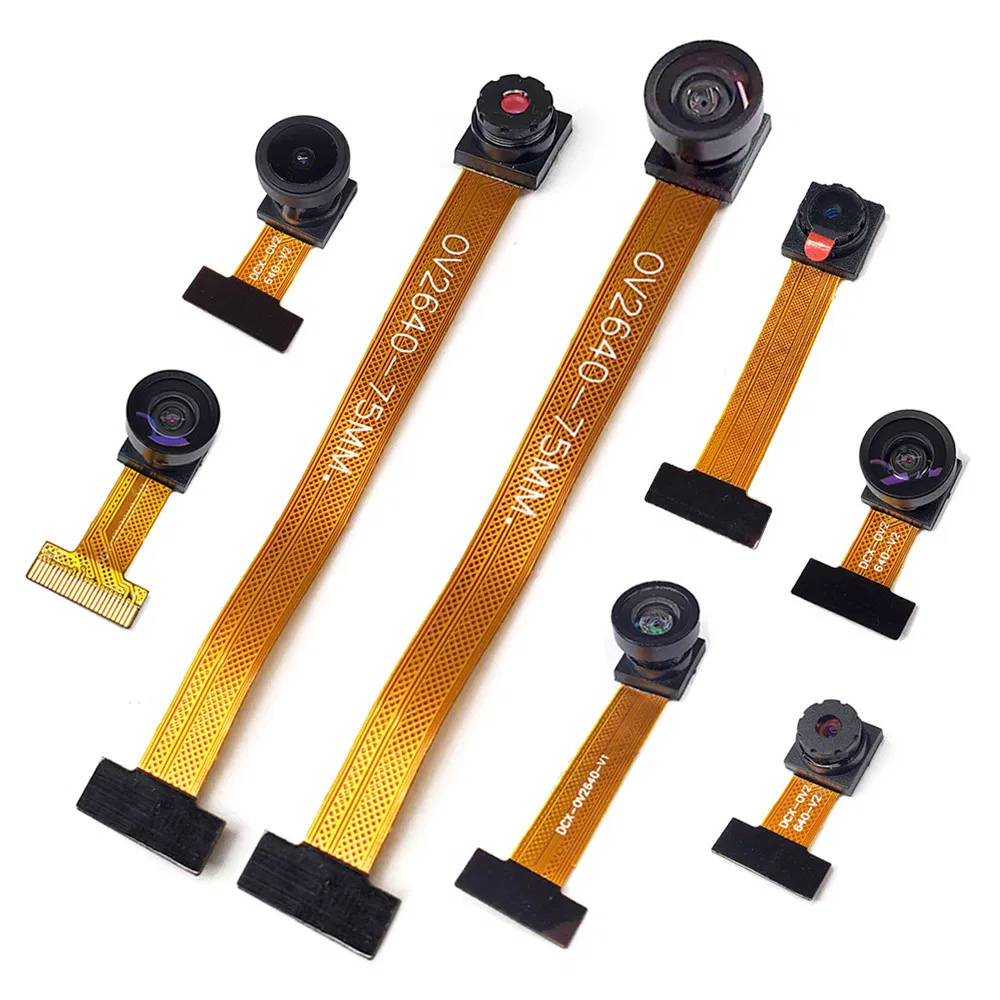

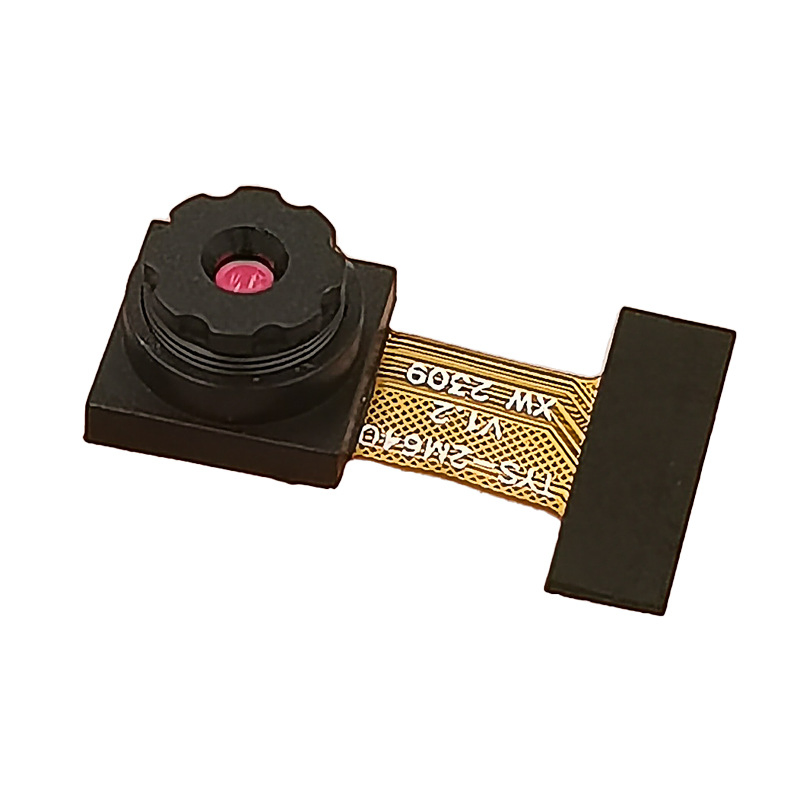

OV2640 160° Ultra-Wide-Angle Camera Module - 75mm Focal Length, 20mm Lens (Compatible with TTGO ESP32 & Sipeed Boards)
Engineered for embedded vision applications, this high-performance camera module integrates the industry-proven OmniVision OV20640 CMOS image sensor with a custom 160-degree ultra-wide-angle lens. Designed for seamless compatibility with popular development platforms such as TTGO ESP32-CAM, Sipeed Maix series, and other ESP32-based boards, it delivers exceptional field-of-view coverage in a compact form factor.
Frequently Asked Questions

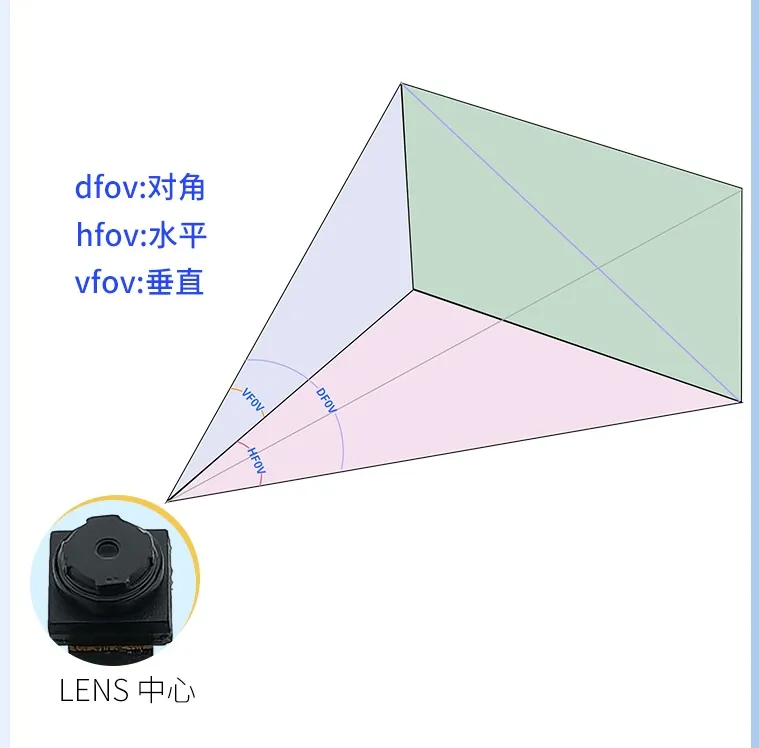

What is the main benefit of the 160° lens compared to standard modules?

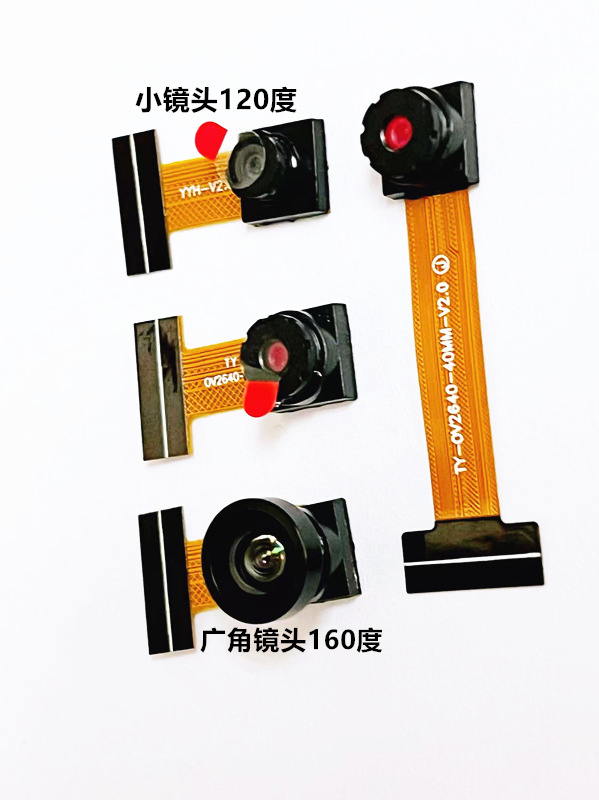

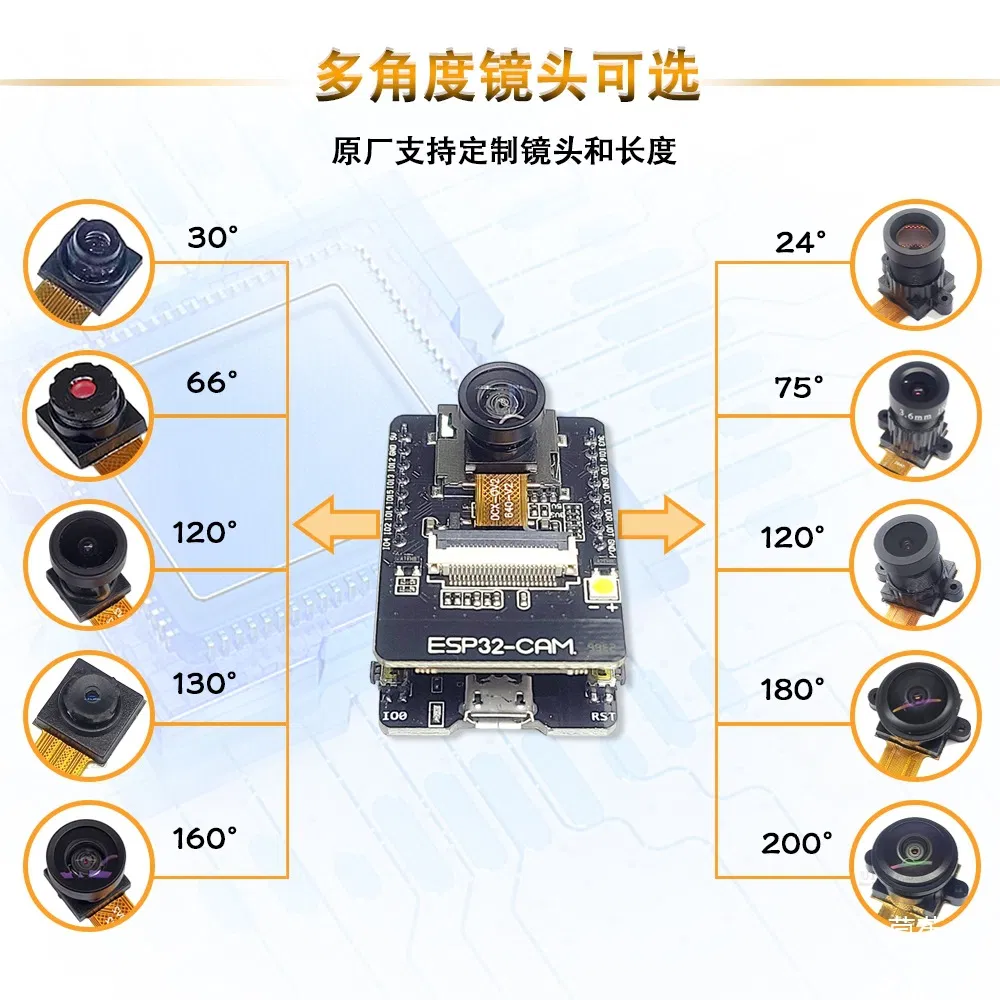

The 160° ultra-wide-angle lens captures significantly more of the scene, making it ideal for panoramic monitoring and tight spaces where a standard 120° lens would miss critical details.
Is this module compatible with the ESP32-CAM AI-Thinker board?

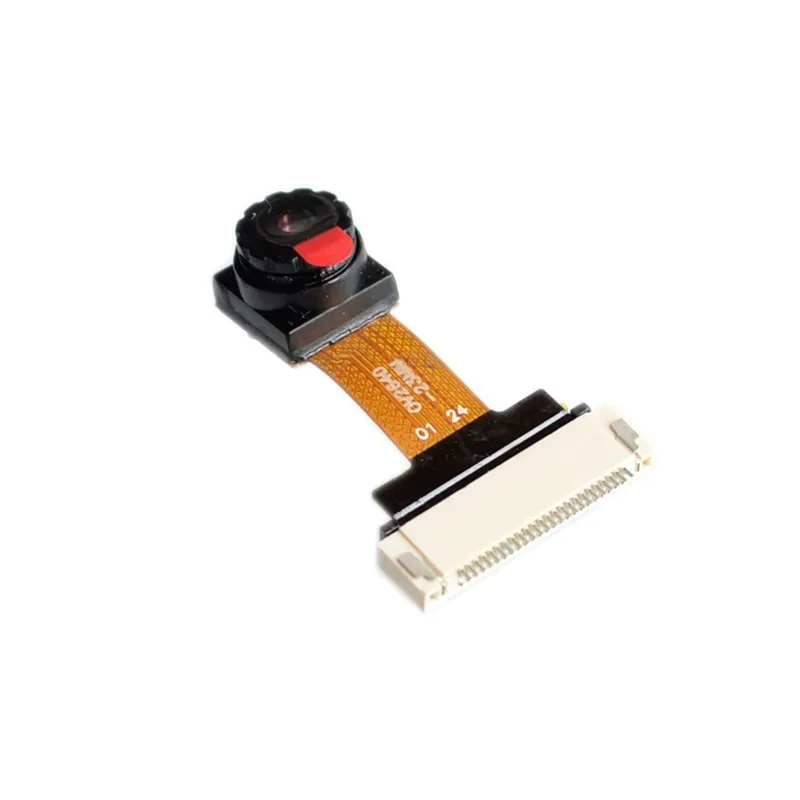

Yes, it is fully compatible and designed with a standard pinout that matches the TTGO and AI-Thinker ESP32-CAM footprints.
What image output formats does the OV2640 sensor support?
The sensor supports various formats including JPEG, YUV (422/420), RGB565, RGB555, and 8-bit compressed data.
Does the module require a separate power supply?
No, it operates on a standard 3.3V power supply provided by the development board, making it suitable for battery-powered IoT devices.
Can this camera be used for FPV drones?
Yes, its lightweight design and wide field of view make it a popular choice for DIY FPV drones and robotics navigation.
What is the maximum image resolution?
The module supports resolutions up to 2 Megapixels, which corresponds to 1600 x 1200 pixels.
