Product Description

i

Basic Specifications

Model NO.
2640
Type
CCTV Camera
Sensor
CMOS
HDMI Format
960P
Horizontal Resolution
520tvl
Kind
Manual Focus Lens
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001
Effective Distance
≧30m
Sensor Size
1/3 inch
Sensor Model
Ov2640
Compatible With
Esp32
Package Weight
0.180kg
Origin
China
HS Code
8525891200
★

Product Description

Product Name:
OV2640 160° Ultra-Wide-Angle Camera Module - 75mm Focal Length, 20mm Lens (Compatible with TTGO ESP32 & Sipeed Boards)

Overview:
Engineered for embedded vision applications, this high-performance camera module integrates the industry-proven OmniVision OV20640 CMOS image sensor with a custom 160-degree ultra-wide-angle lens. Designed for seamless compatibility with popular development platforms such as TTGO ESP32-CAM, Sipeed Maix series, and other ESP32-based boards, it delivers exceptional field-of-view coverage in a compact form factor—ideal for IoT, robotics, surveillance, smart home devices, and DIY maker projects.

Key Features:
  • Sensor: OV2640 CMOS image sensor
  • Resolution: Up to 2 Megapixels (1600 × 1200)
  • Field of View (FoV): 160° ultra-wide angle
  • Lens Specification: Fixed-focus glass lens, 20mm diameter, ~75mm focal length
  • Output Formats: Supports JPEG, YUV, RGB565/555, and GRB422
  • Interface: Standard 8-bit parallel camera interface (DVP)
  • Power Supply: 3.3V (low power consumption)
  • Temperature Range: -20°C to +70°C

Applications:

  • Smart doorbells & home security cameras
  • FPV drones and robotics navigation
  • Panoramic image capture & VR content
  • Industrial inspection & machine vision
  • Educational kits and AIoT prototyping
Compatibility:
  • TTGO T-Journal ESP32 Camera Board
  • ESP32-CAM (AI-Thinker version)
  • Sipeed Maixduino / Maix Bit (with appropriate adapter)
  • Any ESP32 development board with DVP interface support
📷

Product Gallery

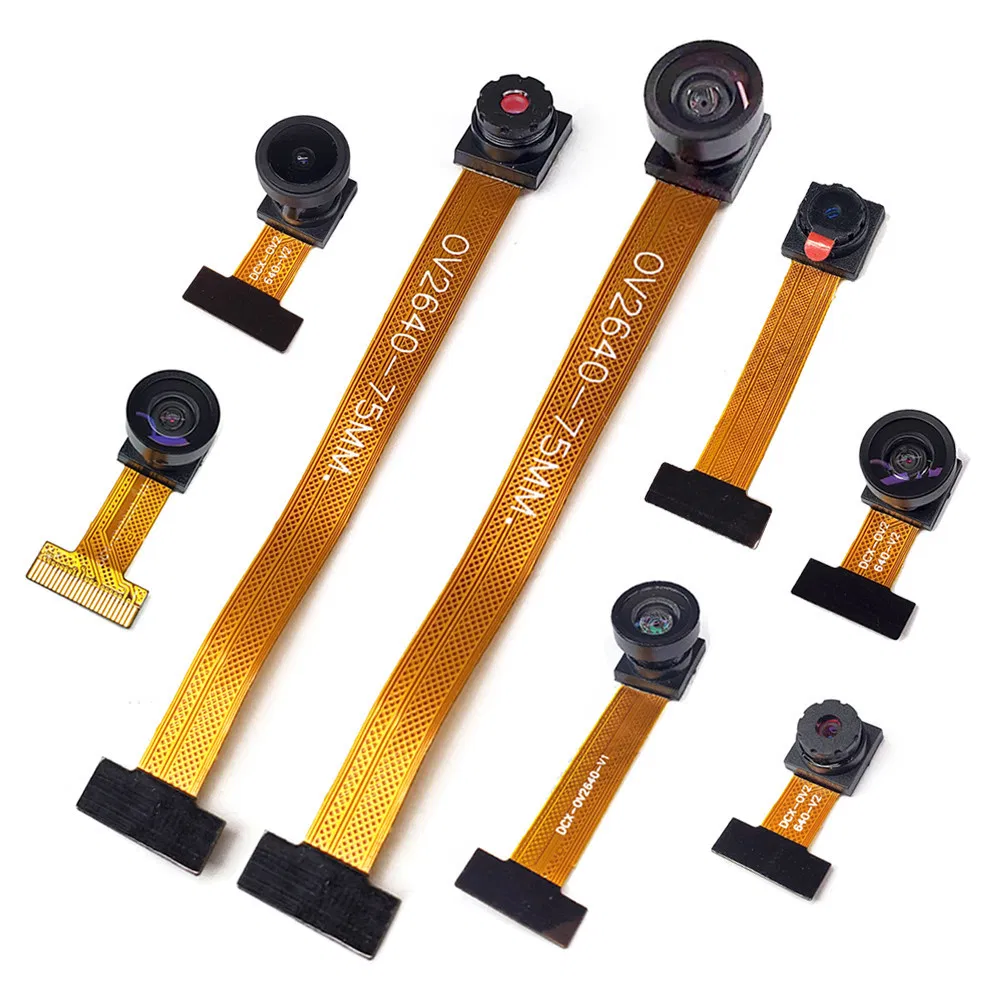

OV2640 Module View 1

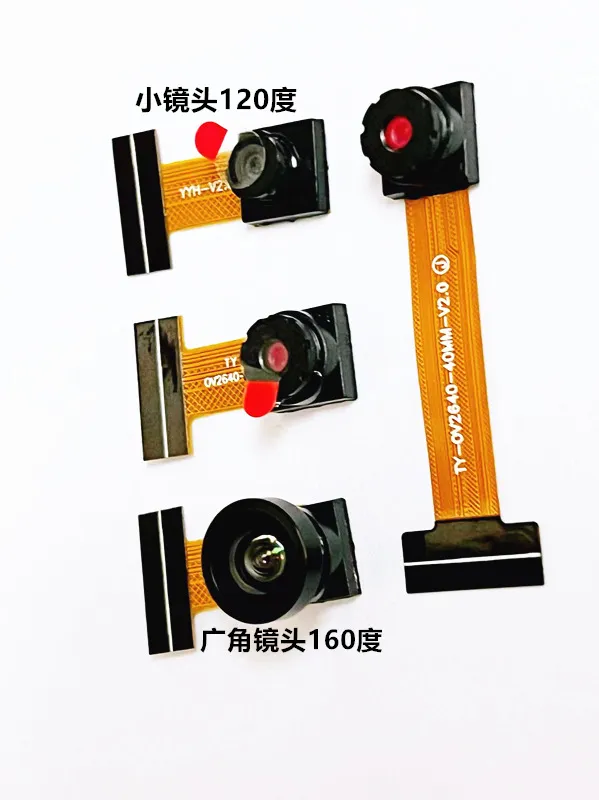

OV2640 Module View 2

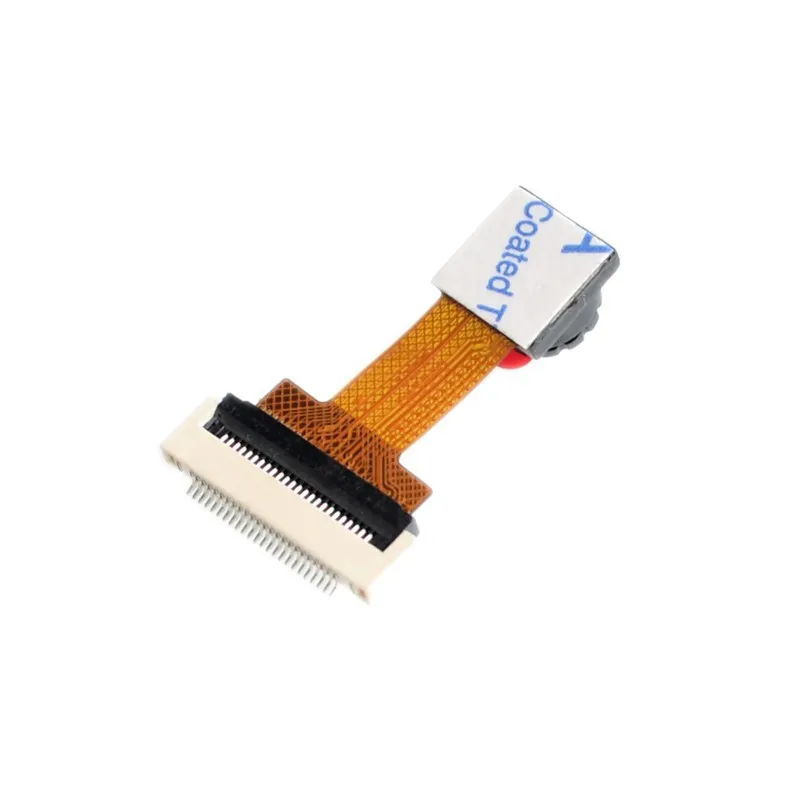

OV2640 Module View 3
OV2640 Module View 4

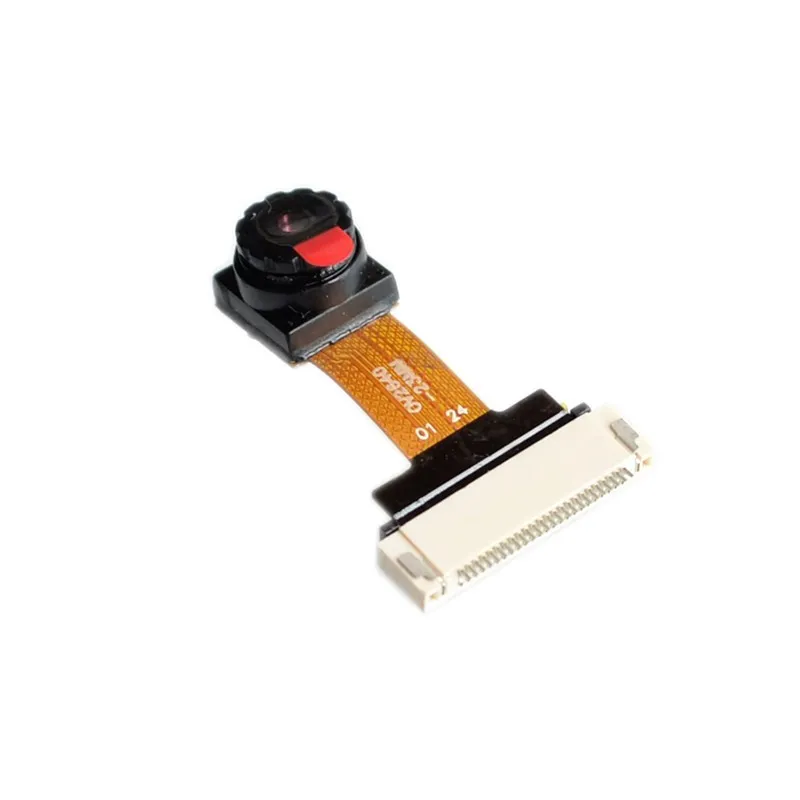

OV2640 Module View 5

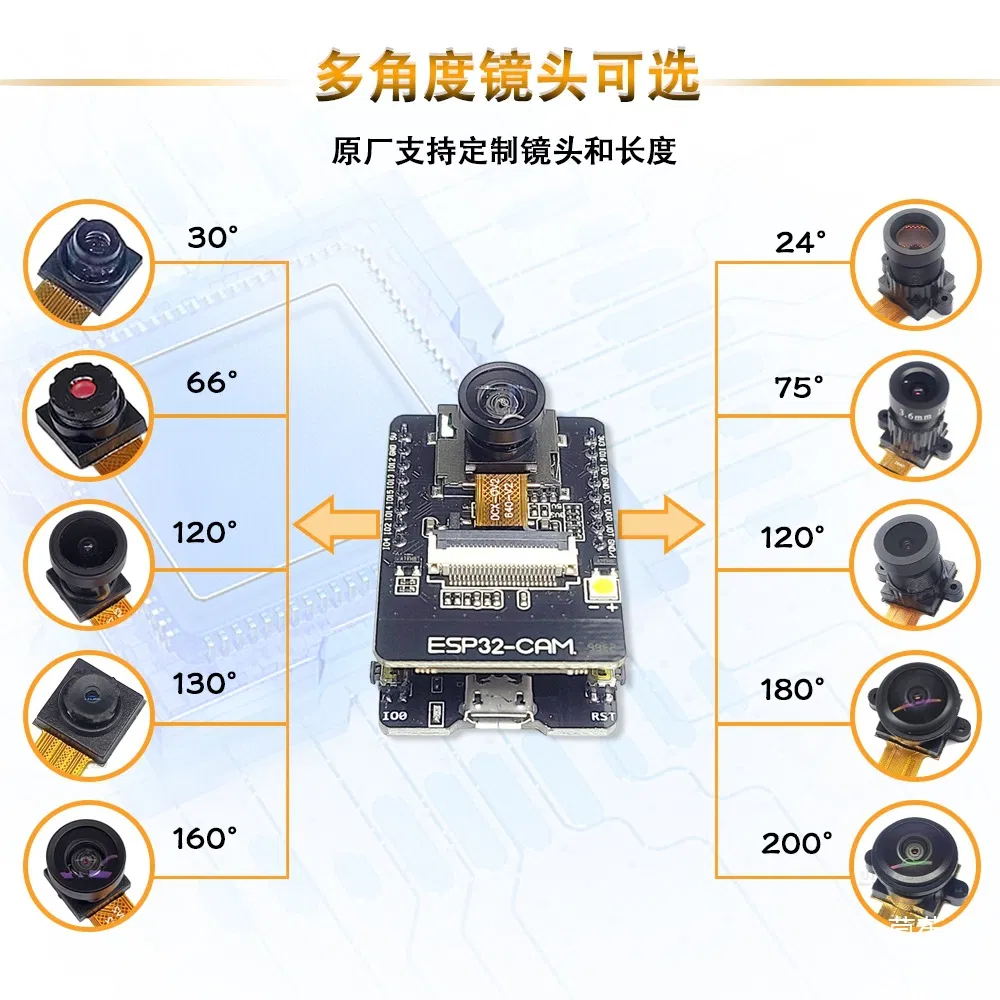

OV2640 Module View 6

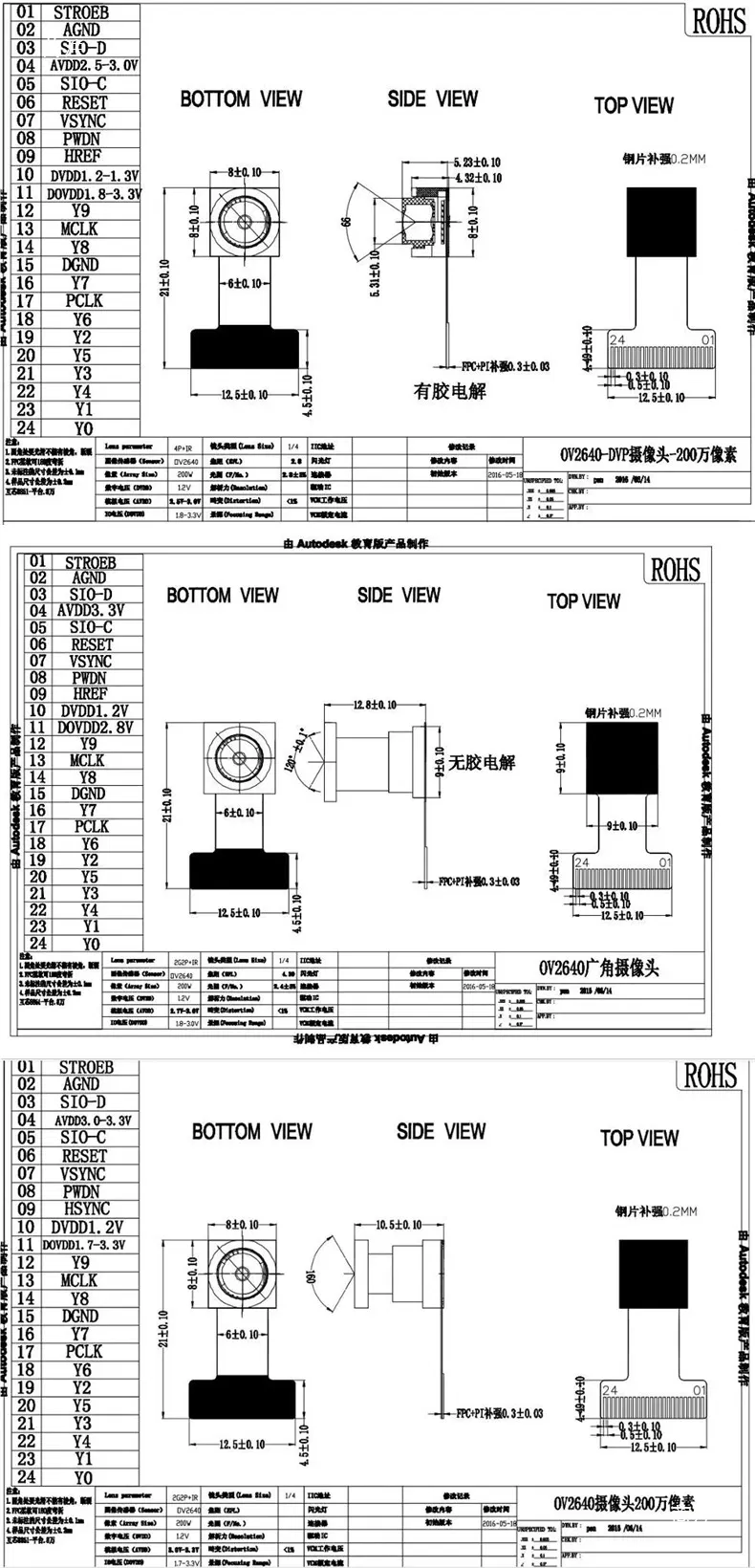

OV2640 Module View 7

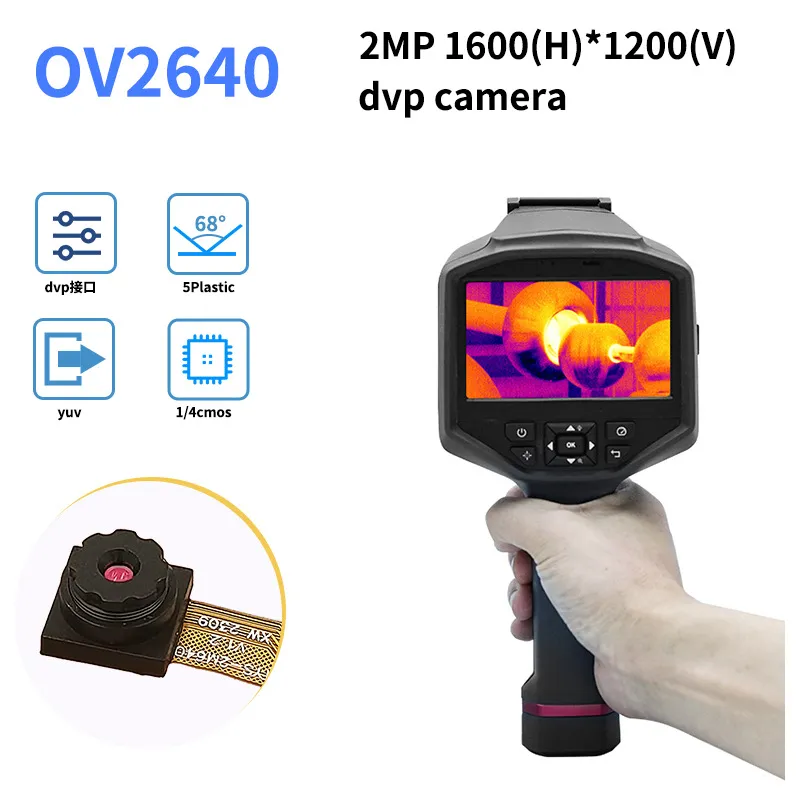

OV2640 Module View 8

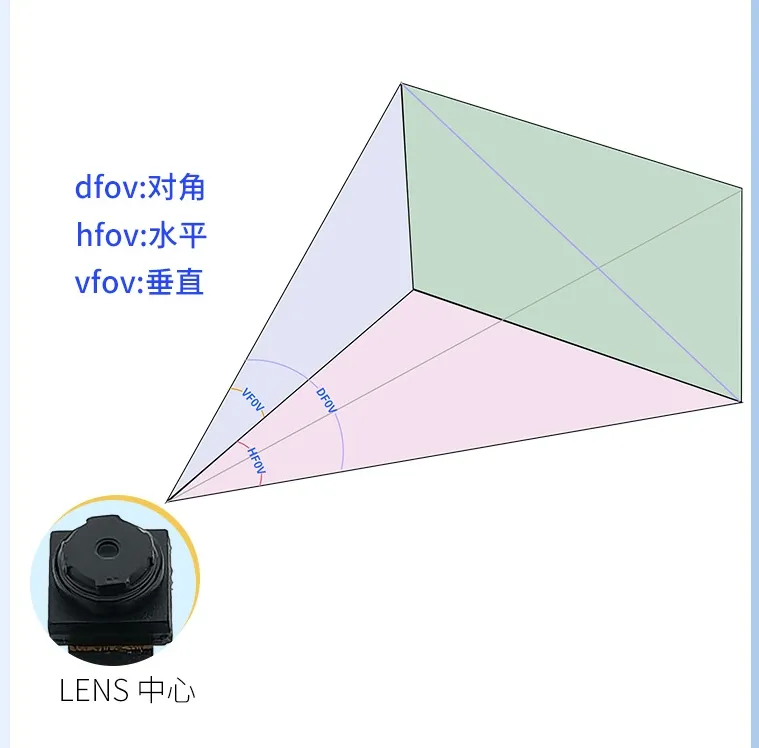

OV2640 Module View 9

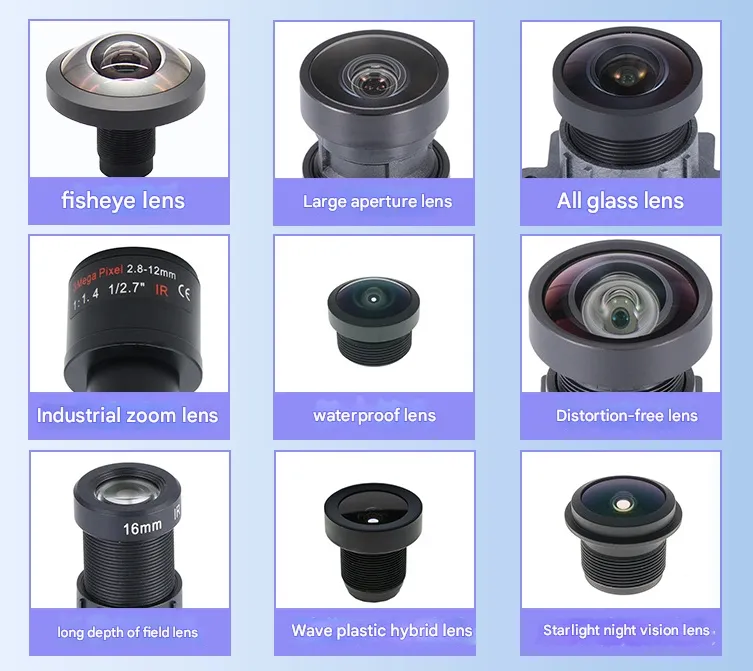

OV2640 Module View 10
OV2640 Module View 11
OV2640 Module View 12
?

Frequently Asked Questions

What is the field of view for this camera module?
This module features a 160-degree ultra-wide-angle lens, providing a significantly broader perspective than standard 120-degree cameras.
Is it compatible with the ESP32-CAM development board?
Yes, it is fully compatible with the ESP32-CAM (AI-Thinker version) and TTGO T-Journal boards using the standard DVP interface.
What is the maximum resolution supported by the OV2640?
The OV2640 sensor supports a maximum resolution of 2 Megapixels (1600 x 1200 pixels).
Does this module require a specific voltage?
Yes, the module operates on 3.3V, making it suitable for low-power and battery-operated IoT devices.
What image output formats does the module support?
It supports various formats including JPEG, YUV (422/420), RGB565, RGB555, and 8-bit compressed data.
Can this be used for robotics and FV navigation?
Absolutely. Its wide-angle coverage and compact size make it ideal for drone navigation, robotics vision, and panoramic monitoring applications.
