| Model NO. | CT9 PRO |
| Interface | Serial Port, 4G, WiFi, TCP/IP, RS485, Wiegand |
| Reading Distance | 10cm - 15m |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Operating System | Linux OS |
| Display | 3.5" Touch Display with Touch Pincode |
| Mobile Credential | BLE, NFC, QR Code, Barcode |

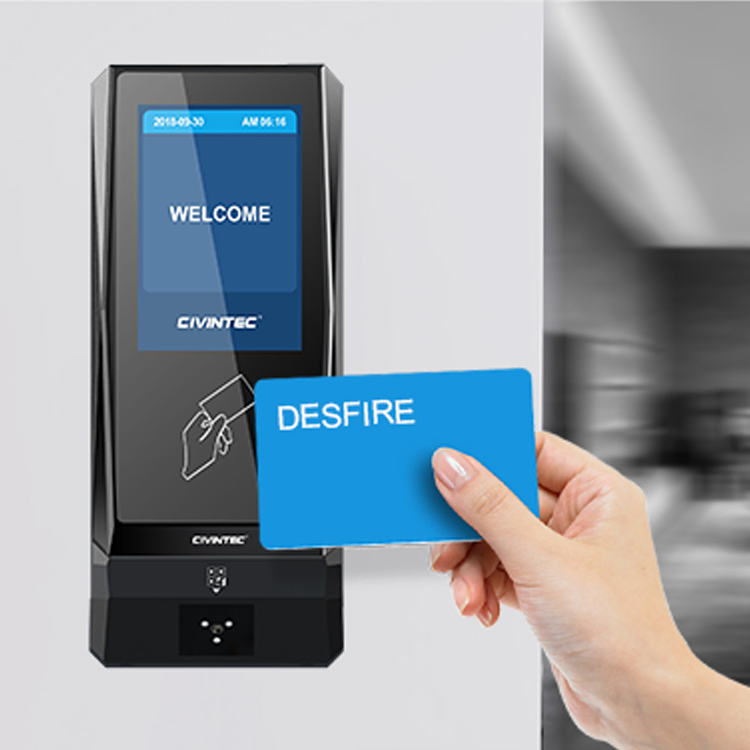

| RFID Compatibility | MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b |
| User/Log Capacity | 10,000 Users / 50,000 Logs |
| Protection | IP65 Waterproof |
| Certification | CE, FCC |

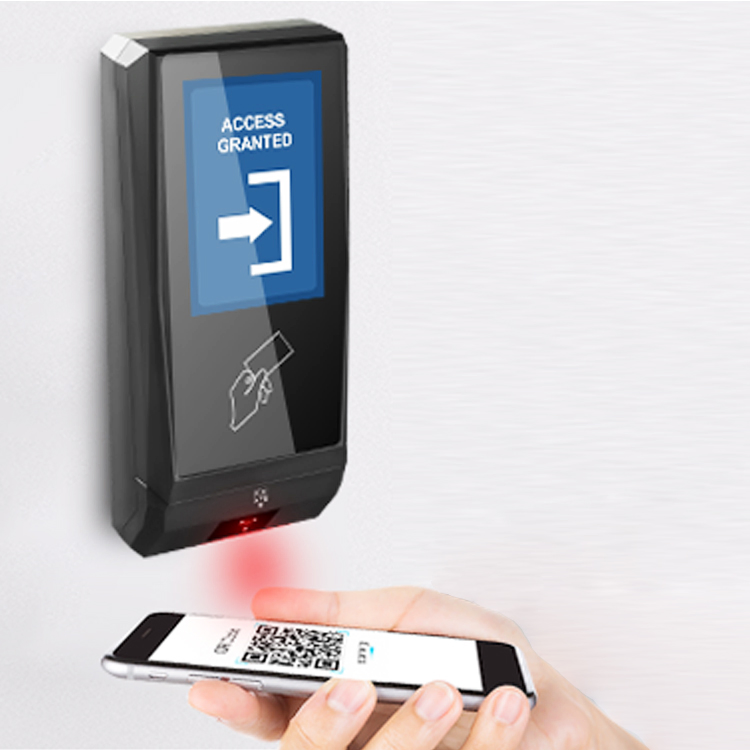

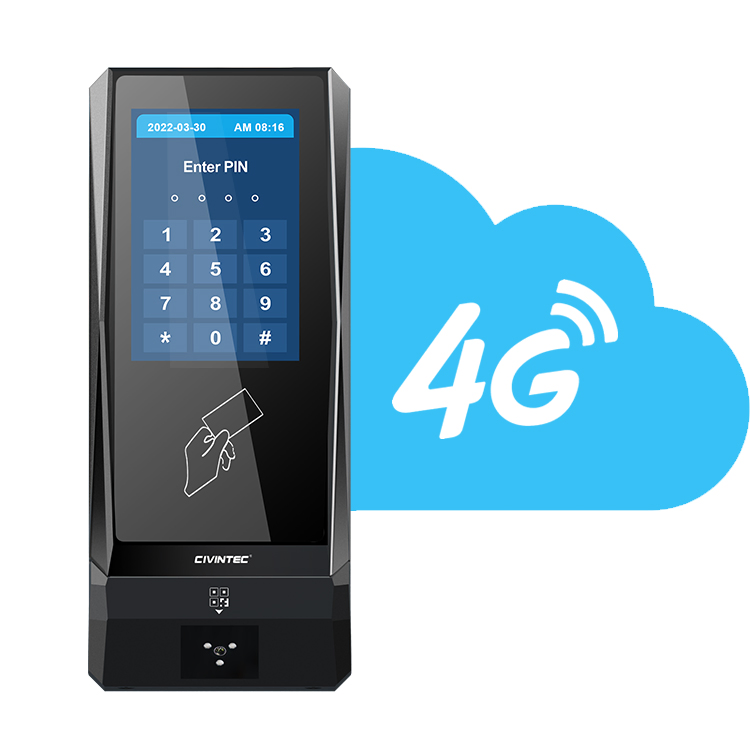

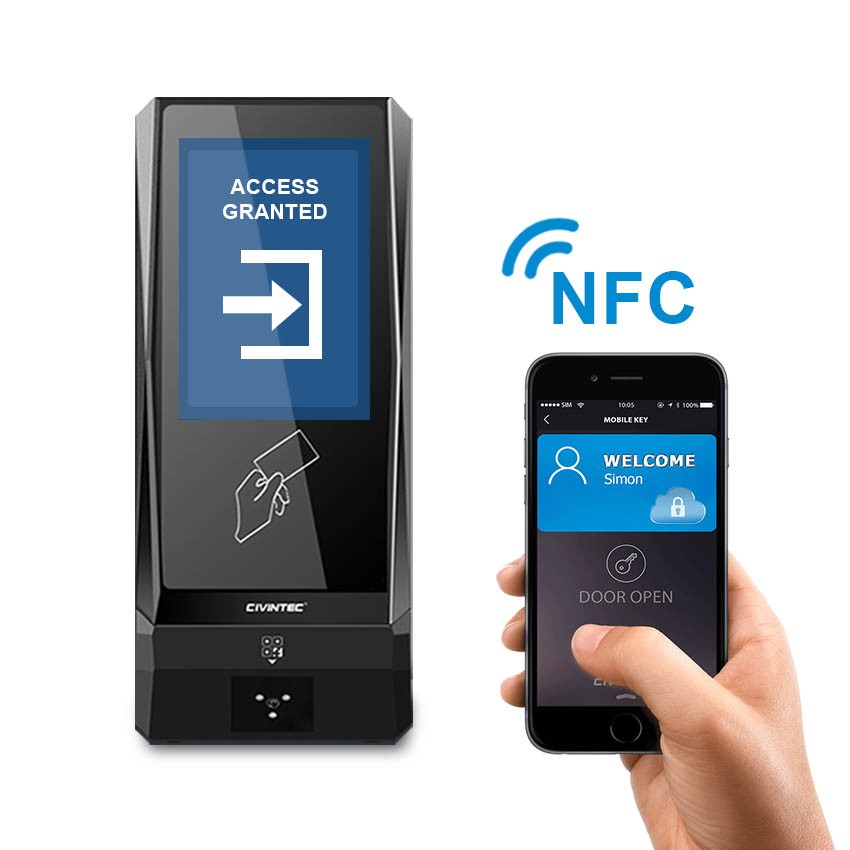

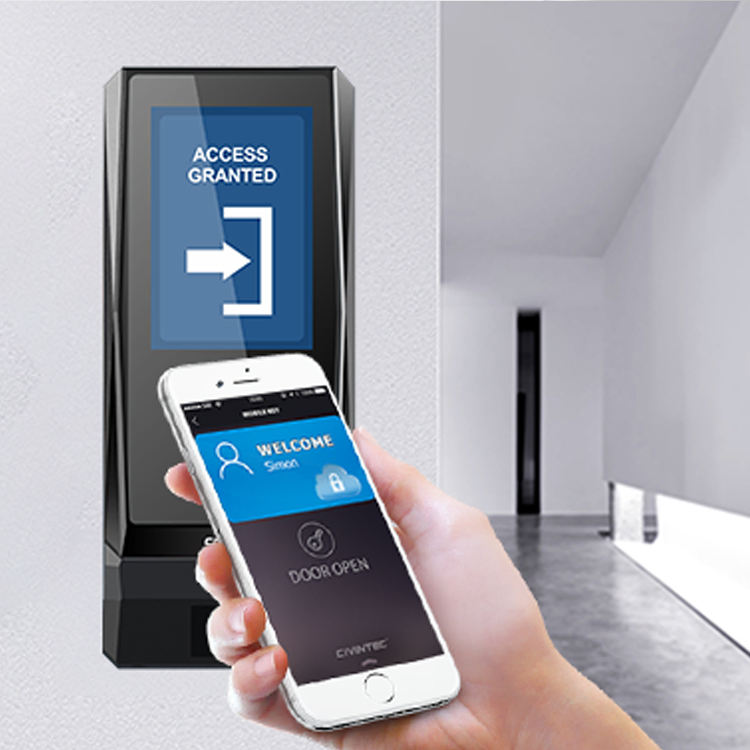

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. With an embedded relay, it builds versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.

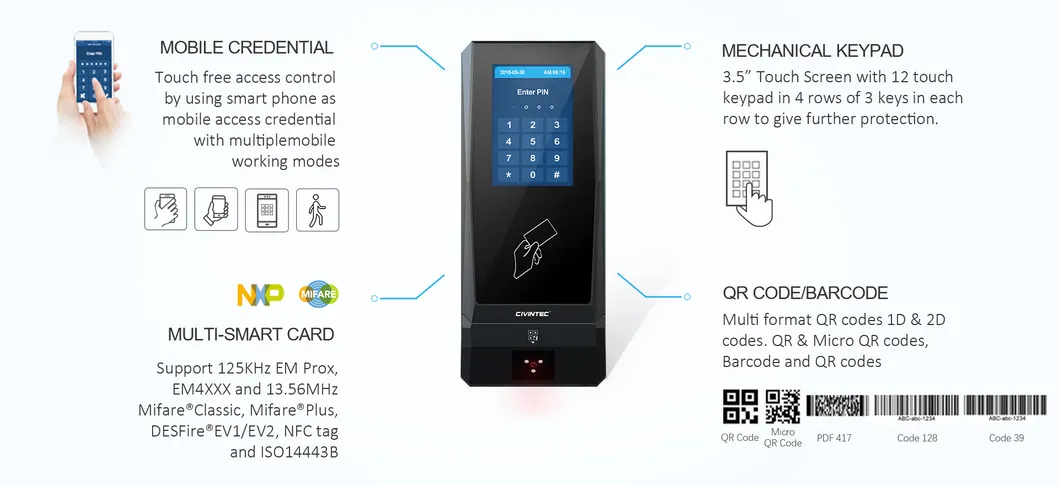

Multiple Access Credentials: CT9 Pro incorporates 5-in-1 technology: touch keypad, RFID dual smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.
Cloud Server Remote Control: Bi-directional communication via standard HTTP & HTTPs between the terminal and server allows for remote door control and facility management.
IoT Application Solutions: Remotely controlled by cloud web-based software in real-time, the terminal uses encrypted communication and an embedded relay to manage access status (Granted/Denied).
We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen. OEM logo printing on the reader body is also available.
