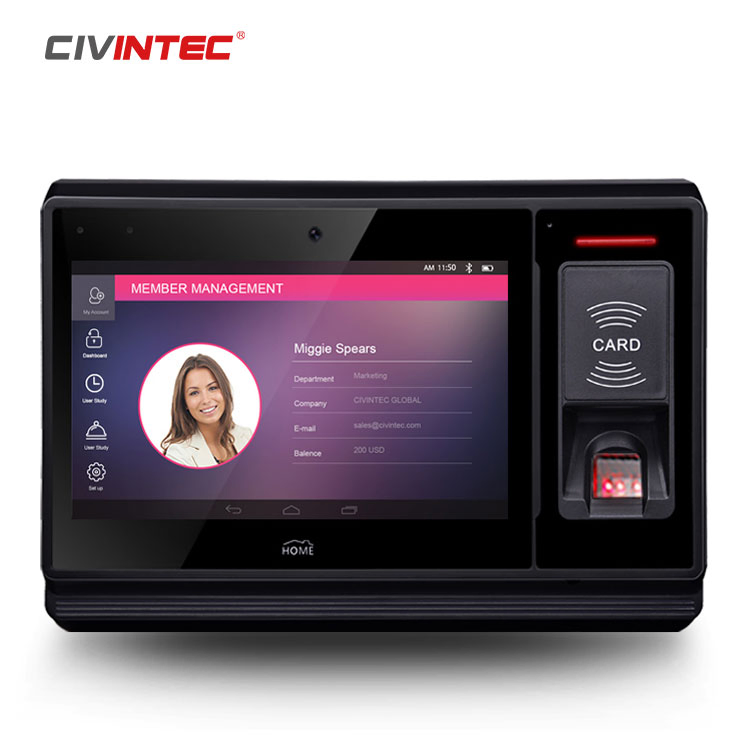

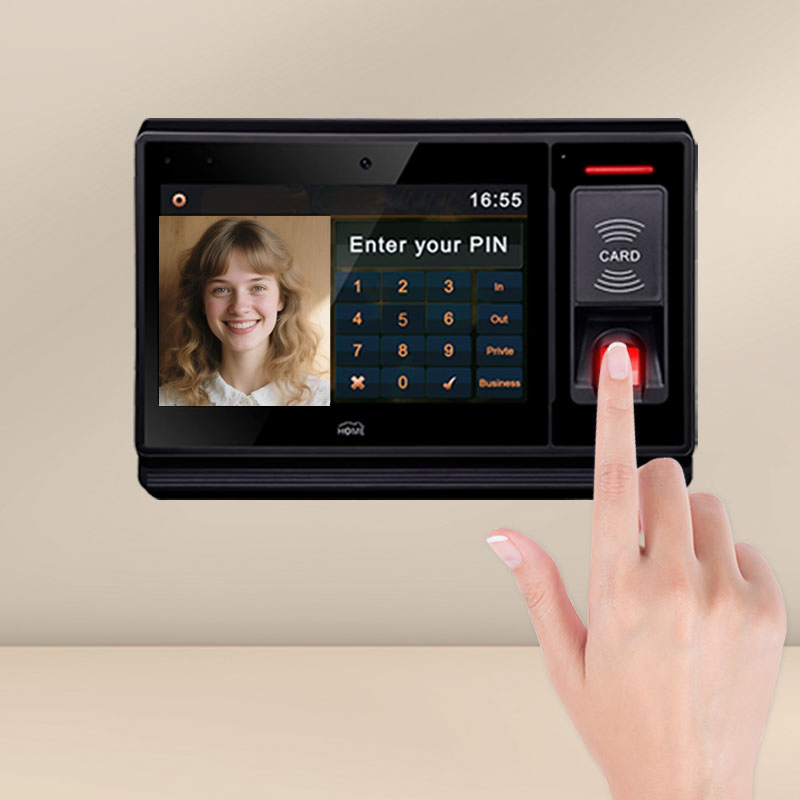

Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
1 / 5
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader
Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader

Cloud Web Based 9500 User APP Easy Operated RFID Access Control Time Attendance Management with Smart Card Reader

Customization: Available
Voice Service: Without Voice Service
Clock: With Clock
Send Inquiry

Product Description

Basic Information

Model NO.: CN8
Product: Biometric Access Control Terminal
Display: 7" Color Touch Screen
Dual OS: Android or Linux Embedded OS
Fingerprint Capacity: 25,000
Interfaces: RS485, RS232, USB, TCP/IP, WiFi, 4G, Wiegand

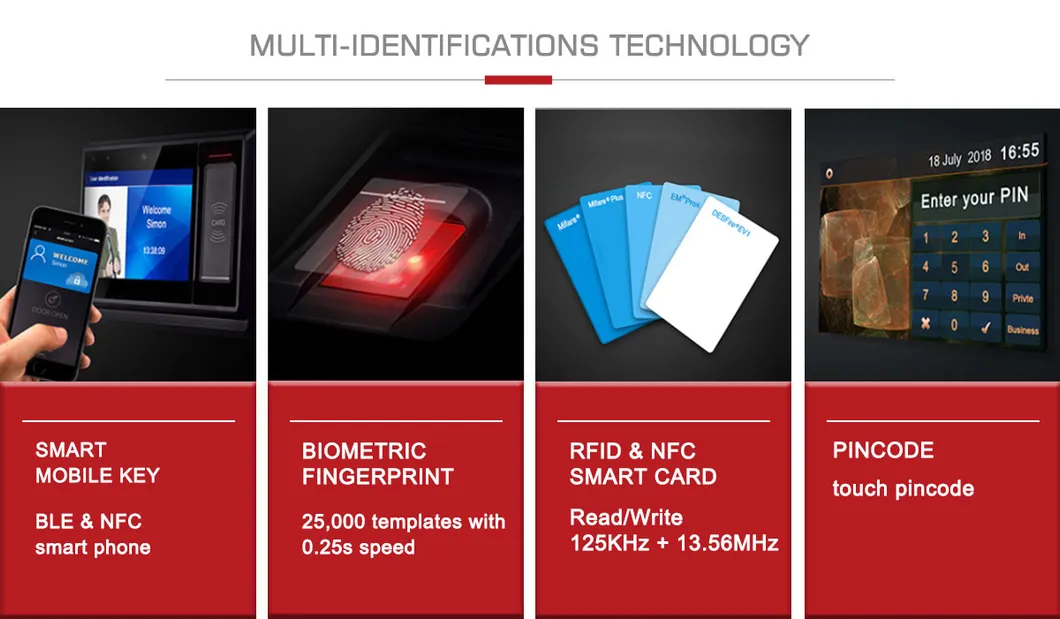

Identification: Fingerprint, RFID Tag, Mobile ID, Password
RFID Frequency: 13.56MHz & 125kHz
Mobile Credential: NFC, BT
Camera: 5.0 Megapixel Auto Focus

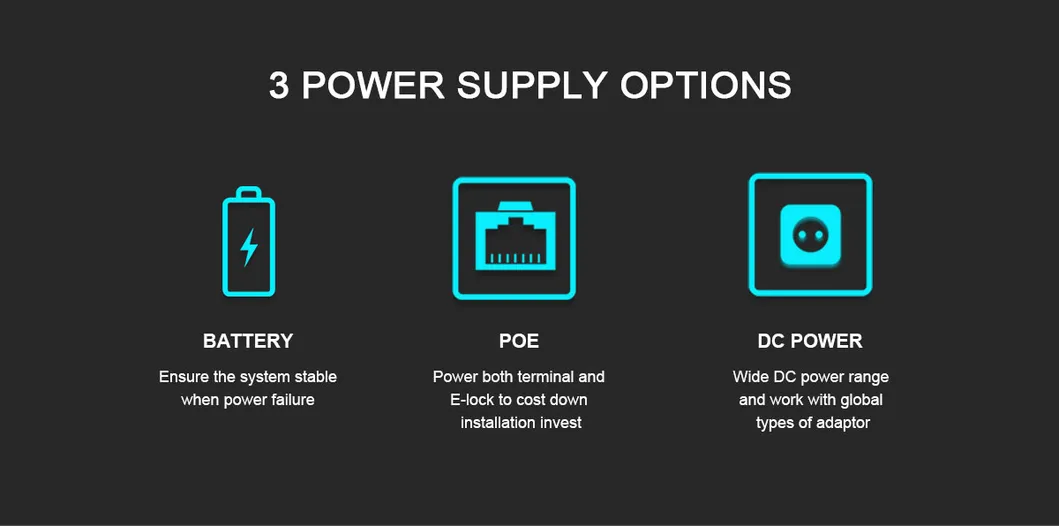

Power Supply: PoE, 9-24VDC, Battery
Dimensions: 160mm(H) x 230mm(W) x 45mm(D)

Product Gallery

Access Control Terminal

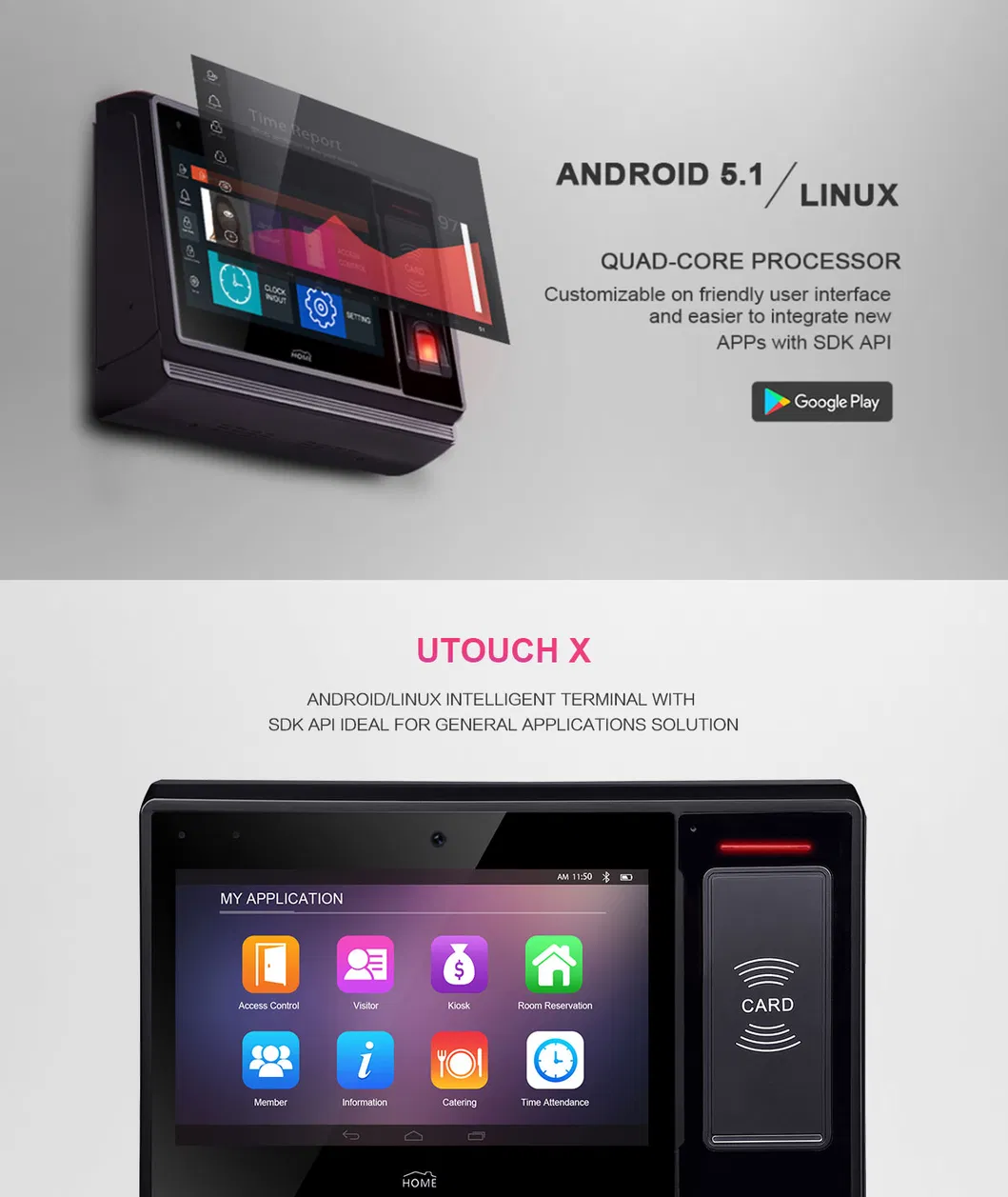

Device Features
Device Interface
Separator
Model CN890 SERIES
Operation System ANDROID & LINUX
Display 7.0" capacitive touch screen
Smart Card Interface
ISO-protocol 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC
Contact smart card ISO7816 (T=0,T=1) 1 SAM module
Biometric Fingerprint Reader
Fingerprint sensor 500 dpi optical sensor
Template capacity 1:1 (100,000); 1:N (25,000)
General Features
Communication interfaces 4G, WiFI, BT, TCP/IP, RS232, RS485/OSDP, Wiegand, USB2.0
Power supply 9-24V DC, Power over Ethernet, Battery
Camera Auto focus 5.0 megapixel digital camera
Certification CE, FCC
Access Control Solution

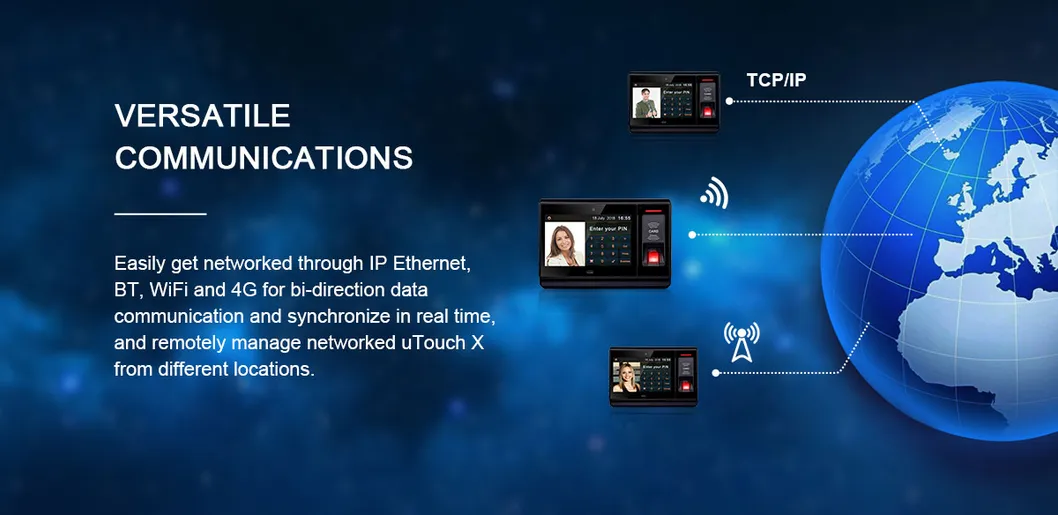

System Architecture
Application Scenario 1
Application Scenario 2
Multi-functional Support Connectivity Options Product Dimensions

Frequently Asked Questions

What operating systems does the CN8 terminal support?
The CN8 series features a dual OS design, supporting both Android and Linux embedded operating systems to suit different software integration needs.
What types of identification methods are available?
The device supports multiple identification options including biometric fingerprint scanning, RFID tags (125KHz & 13.56MHz), mobile credentials via NFC/Bluetooth, and traditional password entry.
Does the device support Power over Ethernet (PoE)?
Yes, the terminal supports PoE, as well as a 9-24V DC power supply and an optional battery backup for flexible installation.
What is the fingerprint capacity of this terminal?
The device can store up to 25,000 fingerprint templates in 1:N mode and up to 100,000 templates in 1:1 mode.
Which wireless communication interfaces are built-in?
The CN8 terminal is fully equipped with 4G, WiFi, and Bluetooth (BT) for wireless connectivity, alongside wired options like TCP/IP and RS485.
What are the camera specifications?
The terminal includes a high-quality 5.0 Megapixel digital camera with auto-focus capabilities for facial capture or security monitoring.
