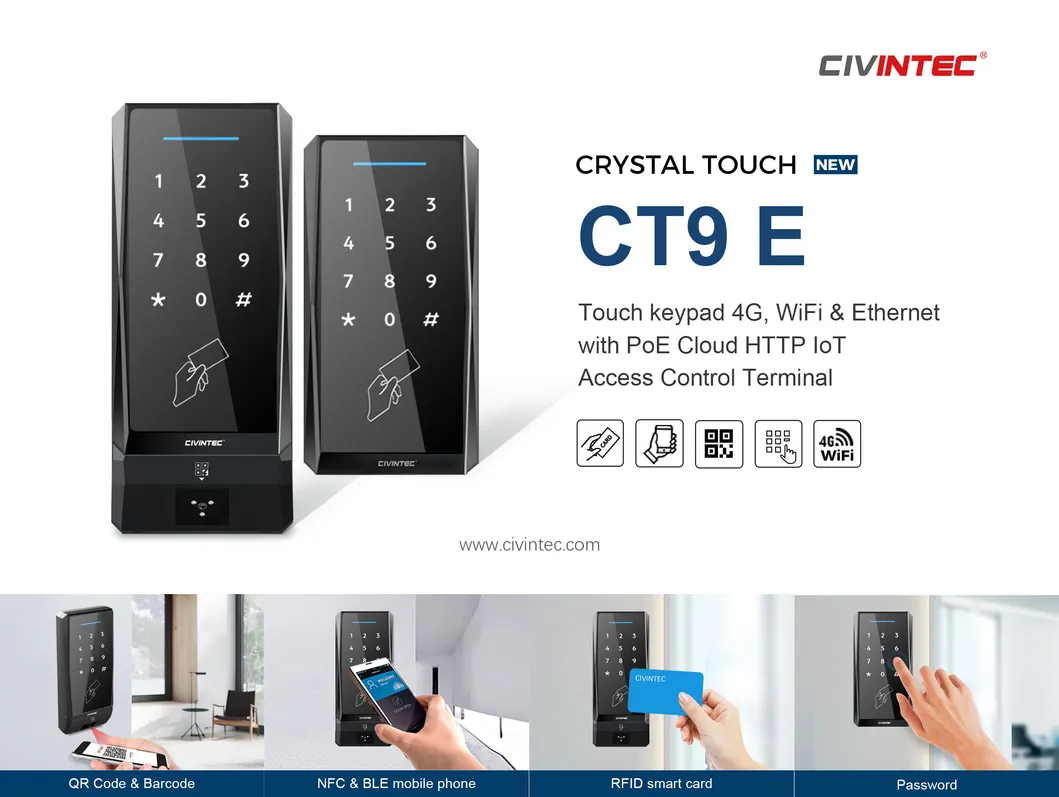

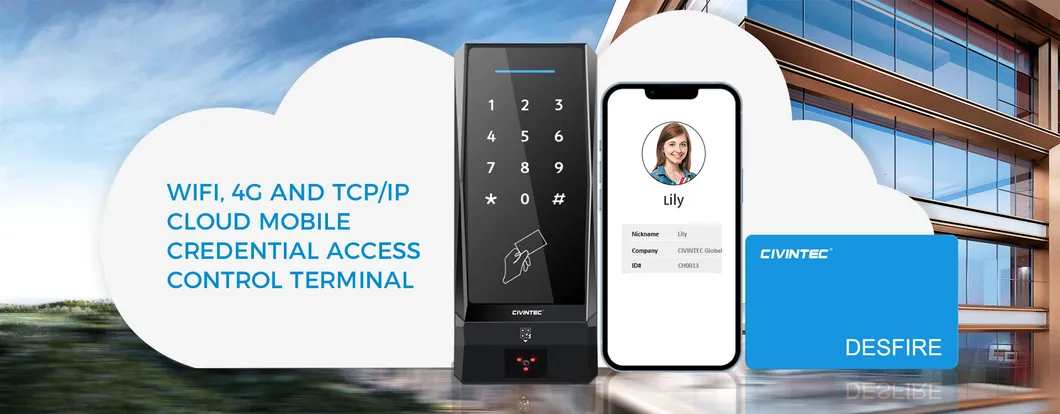

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal. Featuring wireless WiFi, 4G, and TCP/IP Ethernet, it is designed for both LAN and Internet cloud server communication. It builds versatile IoT and security solutions with an embedded relay.

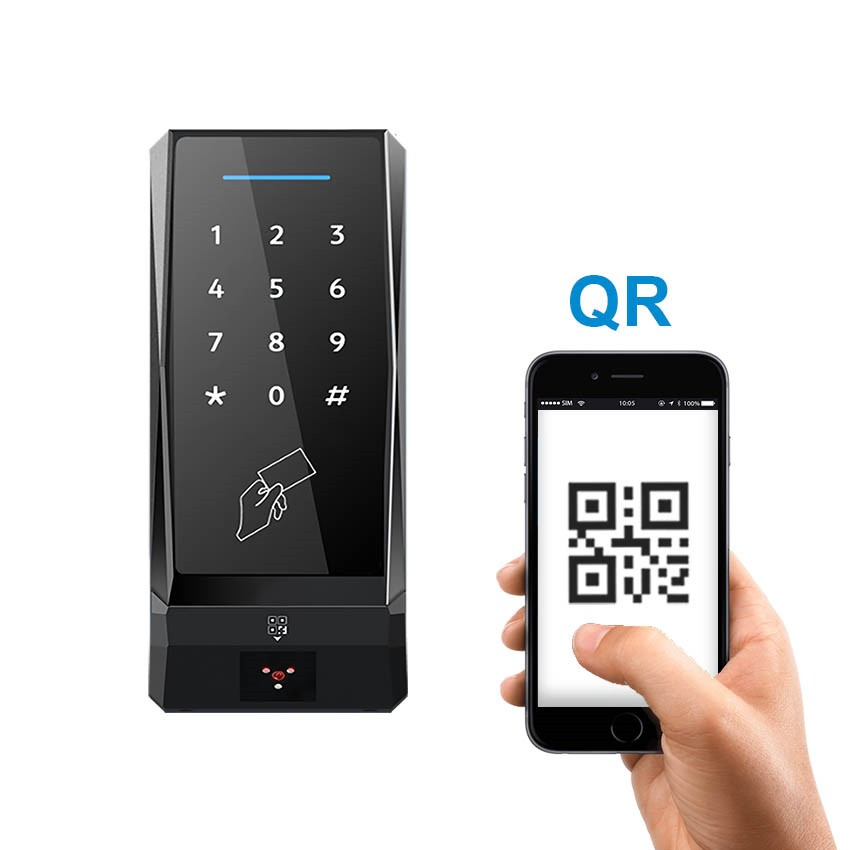

Supporting 5-in-1 multiple access credential technologies, it includes a touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.
| CATEGORY | CT9 E SPECIFICATIONS |
|---|---|
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare Classic, Ultralight, Mifare Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR Scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| INTERFACE | |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |

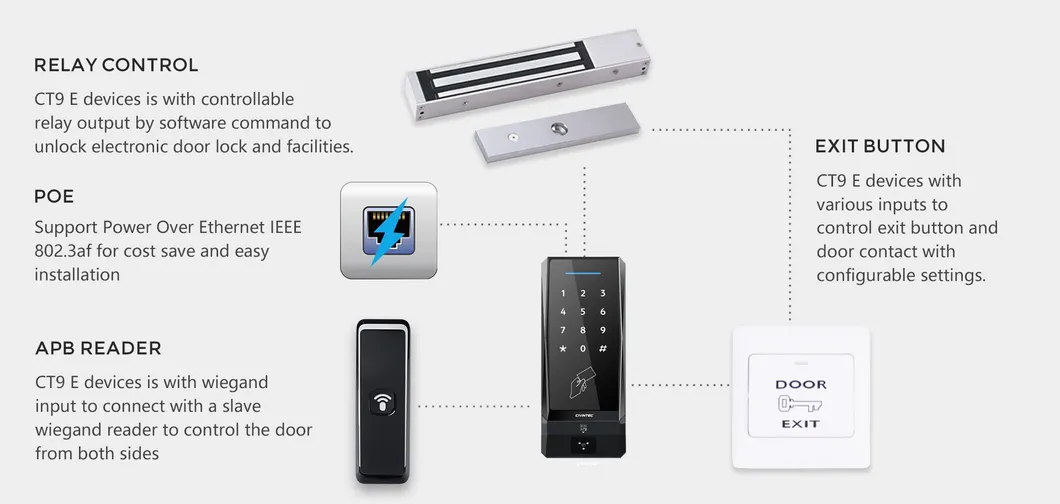

| I/O Ports | Door contact, Exit button, Buzzer control, Fire alarm, Tamper switch, 1-2 relay outputs |
| GENERAL | |
| Operating System | LINUX |
| Keypad | 12-digit Touch keypad with backlit |
| Capacity | Unlimited (Online) / 10,000 users (Offline) |
| Protection Class | IP65 electric epoxy potted, UV resistant |

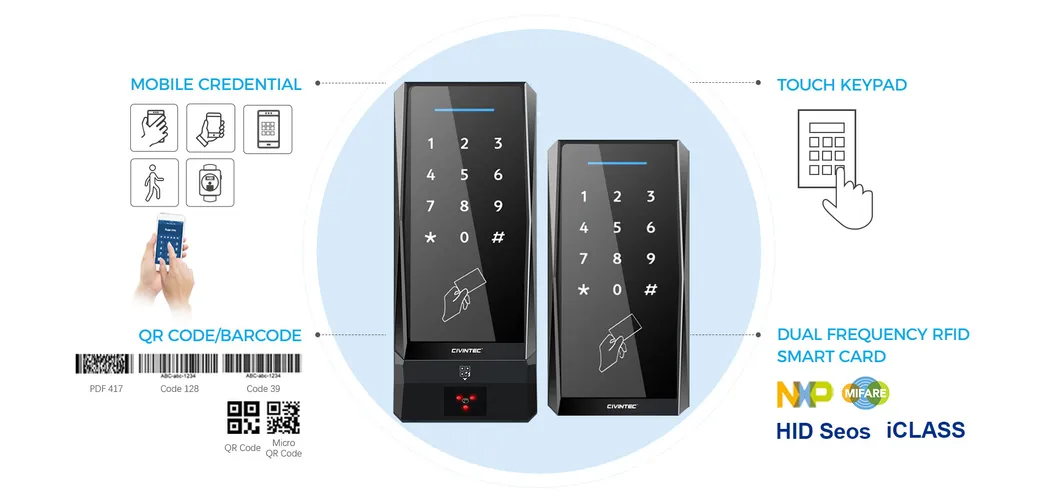

Incorporate 5-in-1 technologies: Touch keypad, RFID dual frequency, BLE & NFC mobile access, and QR code scanning for visitors.

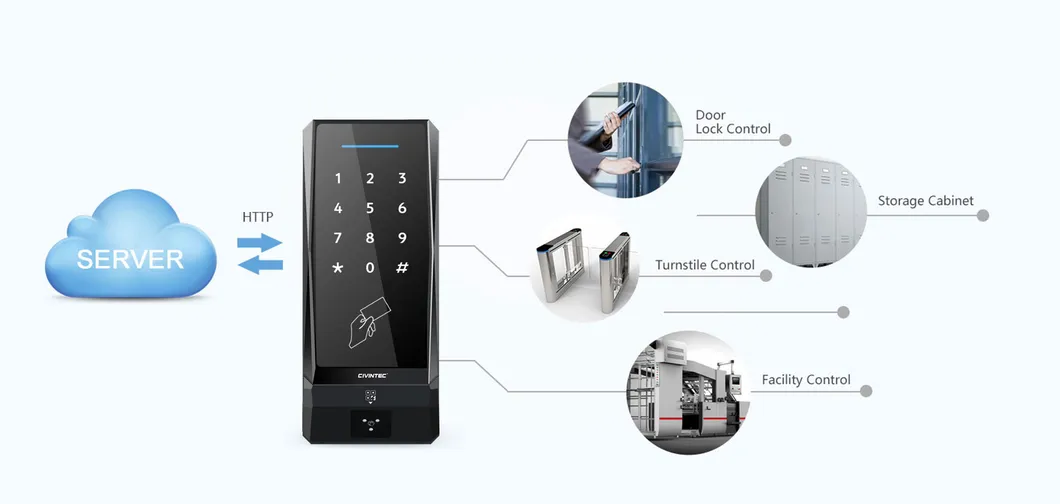

Bi-directional communication via standard HTTP & HTTPs for remote door lock control and IoT facility management.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer comprehensive customization options including hardware, housing, firmware, and software design services. Users can program and display custom logos on the 3.5" touch screen.
