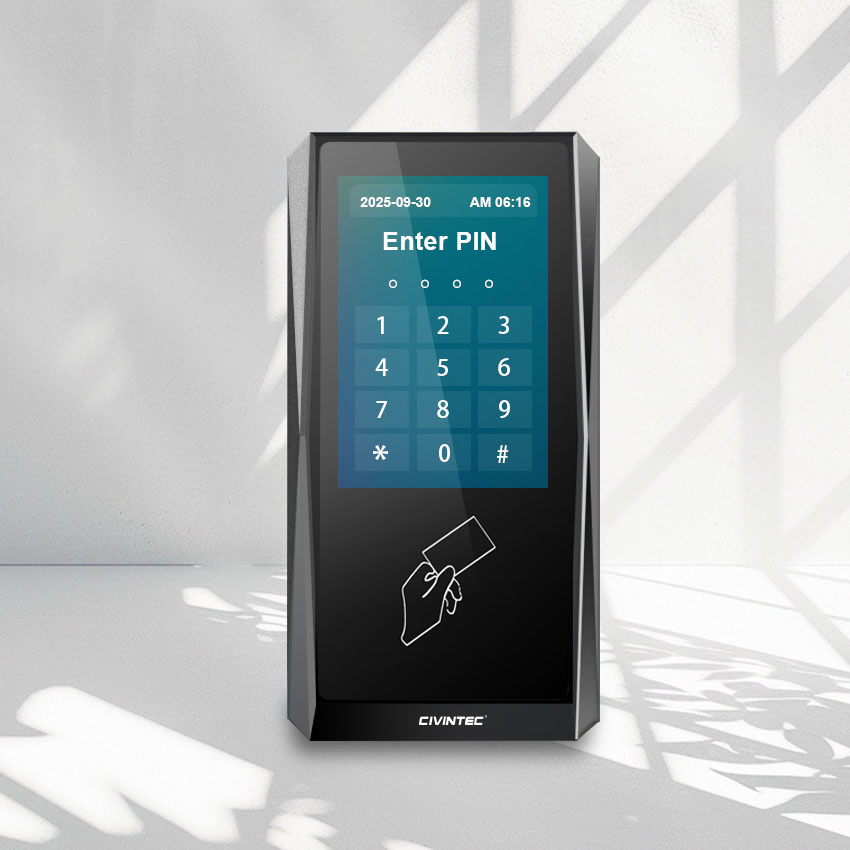

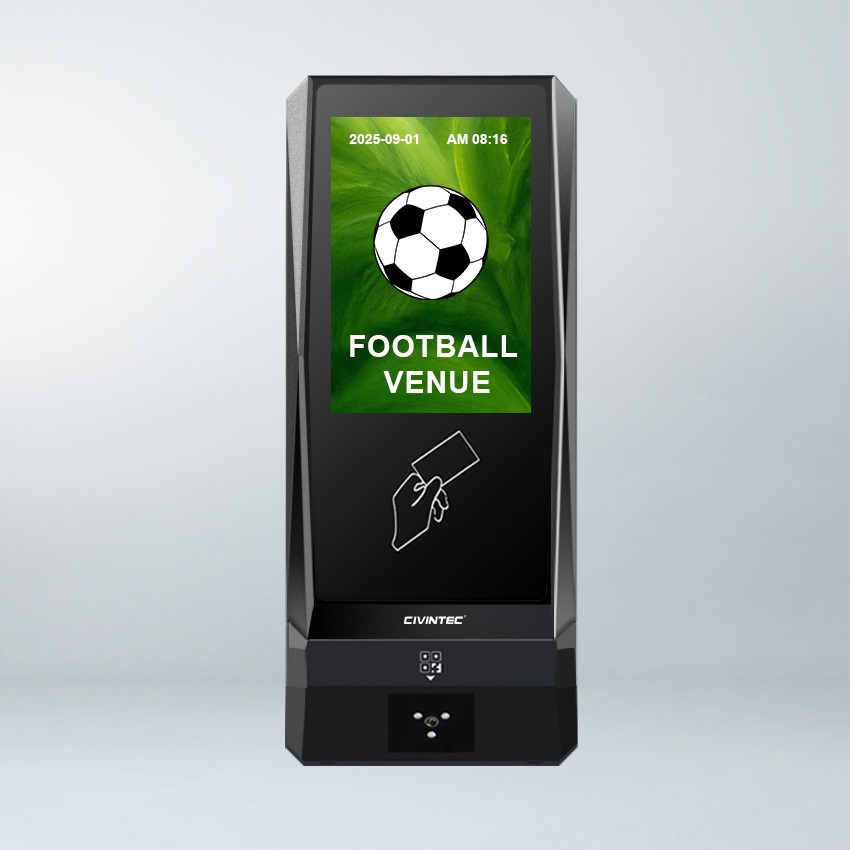

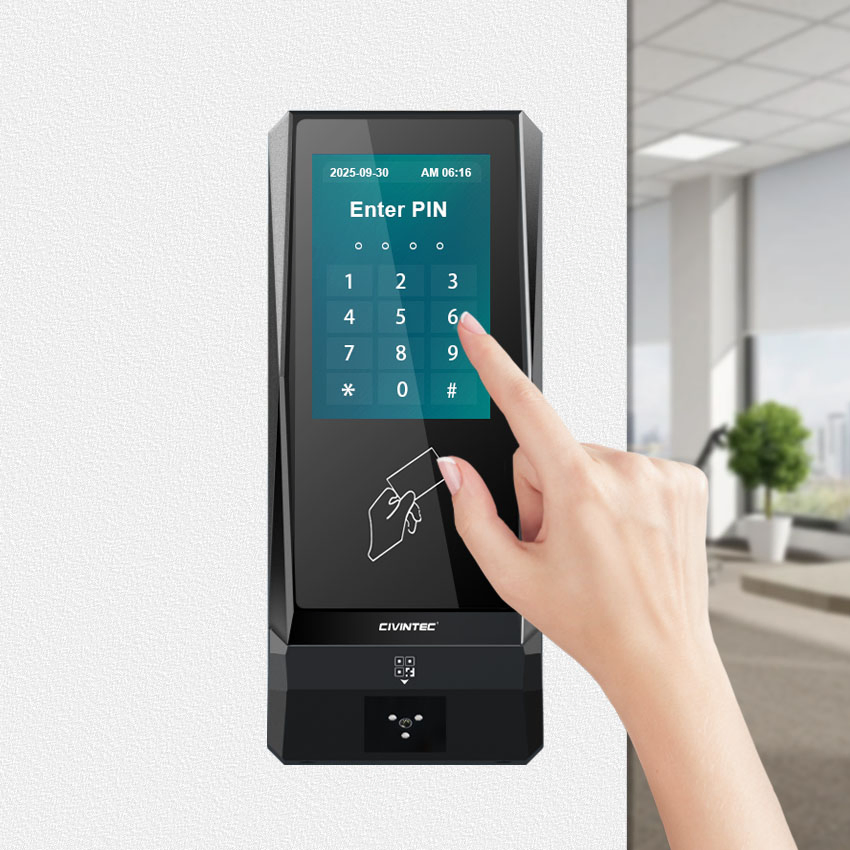

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |

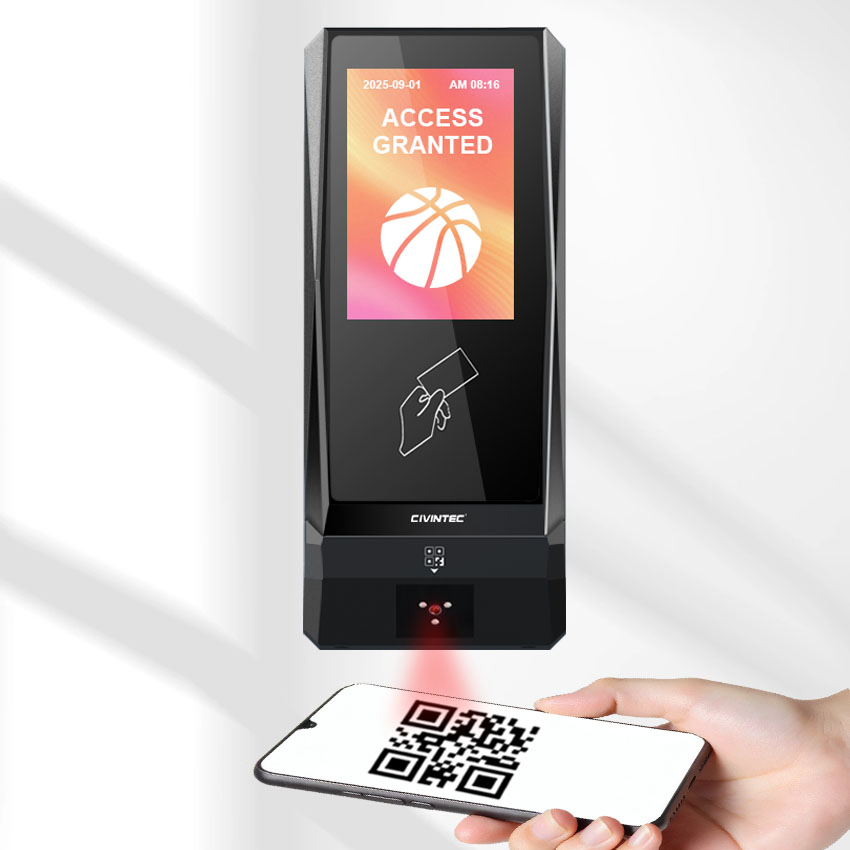

| QR code | Supported (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |

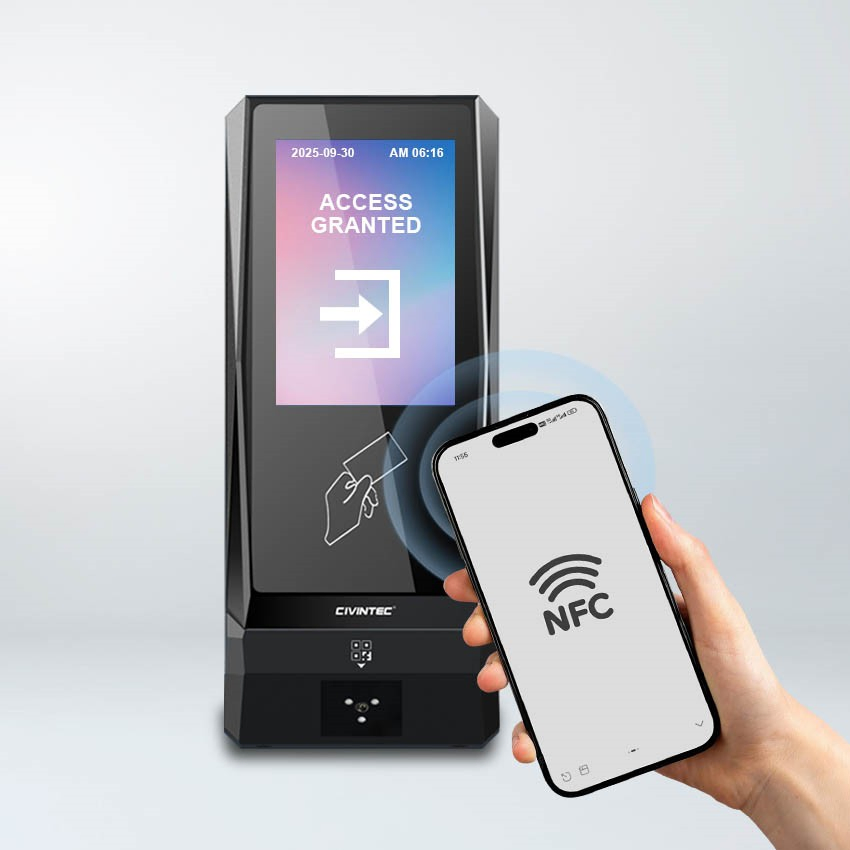

| Mobile ID | BLE (iOS), NFC/BLE (Android) |
| RFID Smart Card | 125KHz & 13.56MHz (Mifare Classic, Plus, DESFire EV1/EV2/EV3, Seos) |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP |
| I/O Port | 1~2 relay outputs, Tamper switch, Door contact, Exit button |
| Protection | IP65 outdoor/indoor use, UV-resistance |

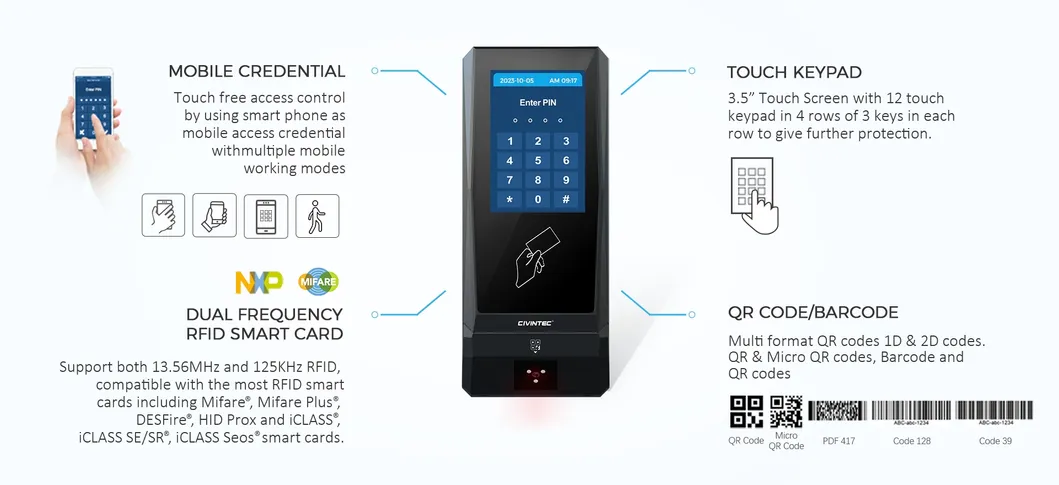

Incorporates 5-in-1 technologies: touch keypad, RFID dual frequency smart cards, BLE & NFC mobile access, and QR code/barcode scanning for comprehensive visitor management.
Bidirectional communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and various IoT facilities.
Remotely controlled by cloud web-based software in real-time. Embedded relay outputs handle "Access Denied" or "Access Granted" states for door control and facility management.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
We offer comprehensive customization on hardware, housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen.
