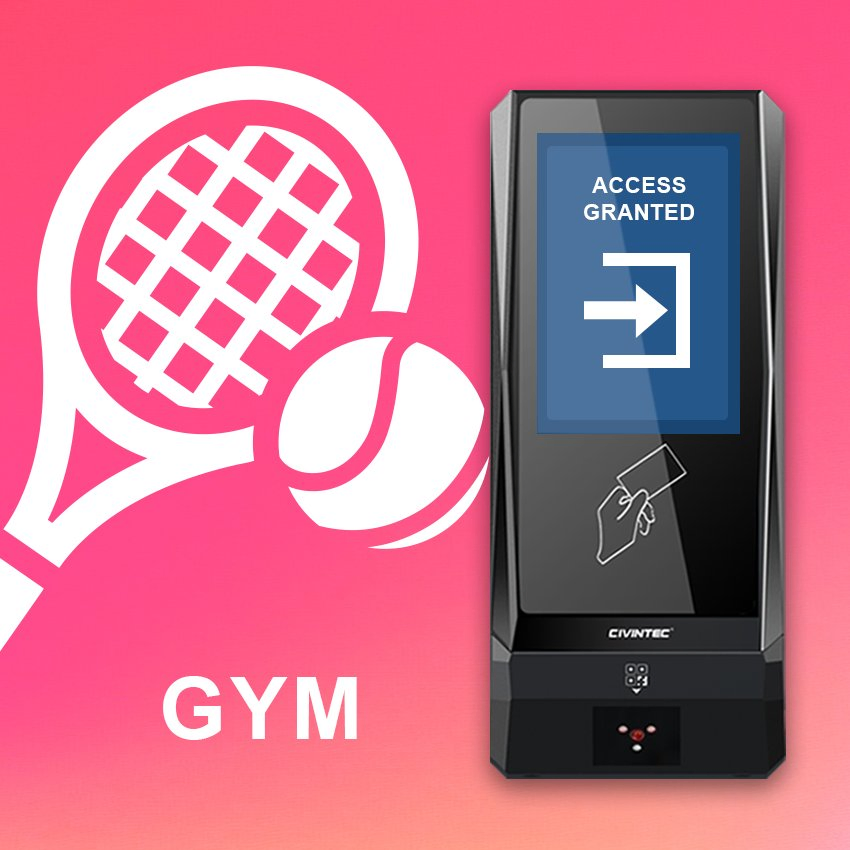

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions.
| QR code | Multiple formats: QR Code, Micro QR code, PDF417, Code 128, Code 39, and most 1D/2D barcodes. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID Card | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags, Seos® smart cards. |
| SAM Slot | ISO7816 (T=0, T=1) 1 SAM module |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit, Buzzer control |
| Capacity | 10,000 users / 50,000 logs (expandable) |
| Protection | IP65 outdoor/indoor use, UV-resistance |

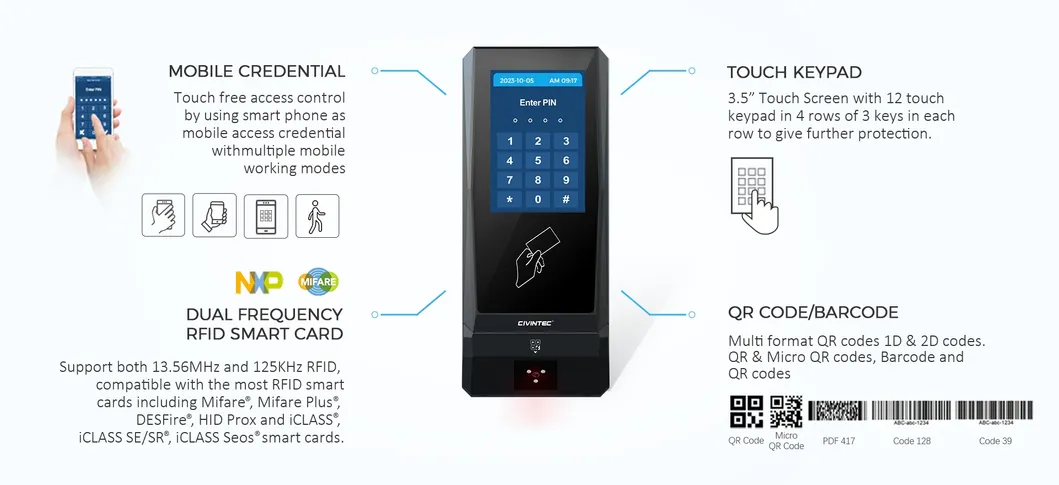

Multiple Access Credential
Incorporates 5-in-1 technologies: touch keypad, RFID dual-frequency smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPS between CT9 Pro and the server to remotely control door locks and various IoT facility management.
Weather-Resistant Protection
With IP65 ratings, CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
We offer customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen.
