Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
1 / 5
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module
Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module

Customized Ov2640 Dvp High-Definition Camera Module with Esp32 Module

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Product Specifications
Model NO.
OV2640
Type
CCTV Camera
Sensor
CMOS
HDMI Format
960P
Resolution
520tvl
Lens Type
Manual Focus
Certification
CE, FCC, CCC, RoHS, ISO9001
Sensor Size
1/3 inch
Effective Distance
≧30m
Compatibility
ESP32 / DVP Interface
Origin
China
HS Code
8525891200
Product Overview

OV2640 160° Ultra-Wide-Angle Camera Module

Engineered for embedded vision applications, this high-performance camera module integrates the industry-proven OmniVision OV20640 CMOS image sensor with a custom 160-degree ultra-wide-angle lens. Designed for seamless compatibility with popular development platforms such as TTGO ESP32-CAM, Sipeed Maix series, and other ESP32-based boards.

Key Features
  • Sensor: OV2640 CMOS image sensor
  • Resolution: Up to 2 Megapixels (1600 × 1200)
  • Field of View: 160° ultra-wide angle
  • Lens Spec: 20mm physical diameter, 75mm focal length
  • Output Formats: JPEG, YUV, RGB565/555, GRB422
  • Interface: Standard 8-bit parallel (DVP)
  • Temp Range: -20°C to +70°C
  • Power: Low consumption 3.3V supply

Applications: Smart doorbells, home security, FPV drones, robotics navigation, panoramic capture, and industrial inspection.

Tested Compatibility: TTGO T-Journal, ESP32-CAM (AI-Thinker), Sipeed Maixduino, and DVP-supported ESP32 boards.

Detailed Visuals

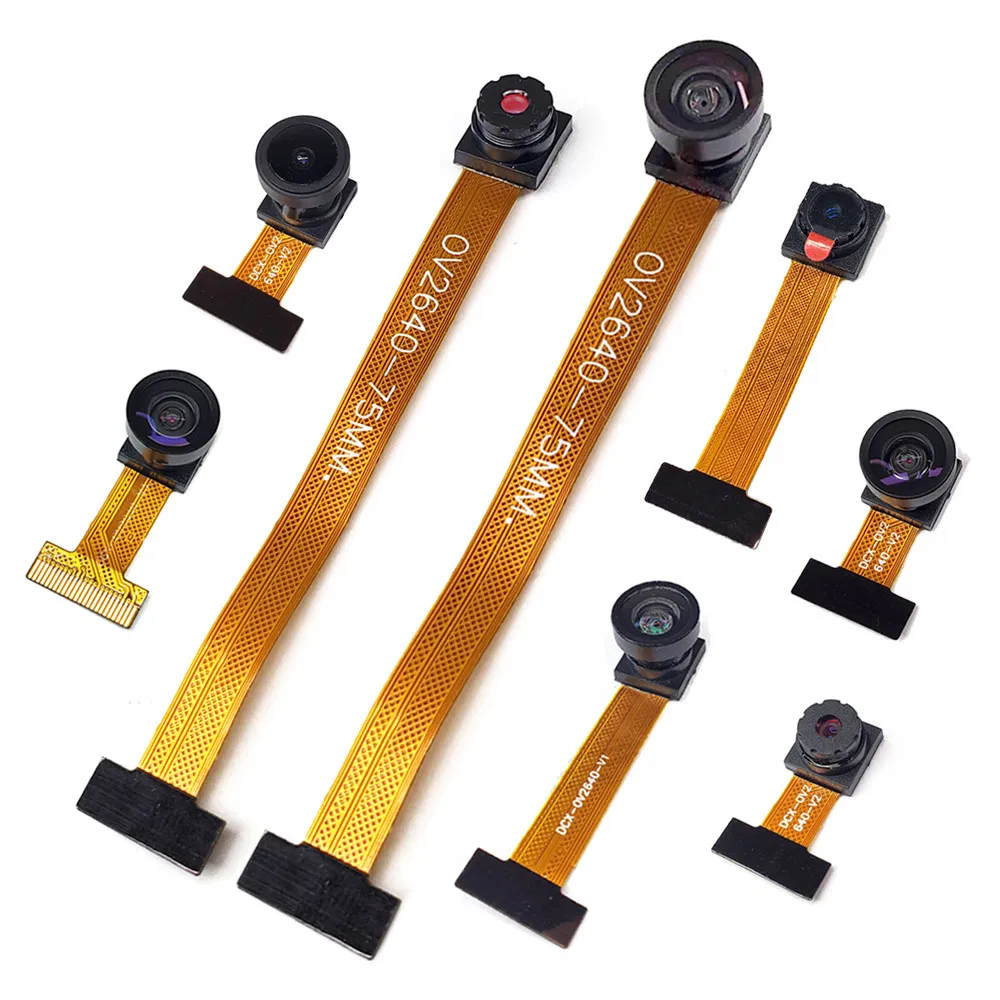

Camera Module Wide View

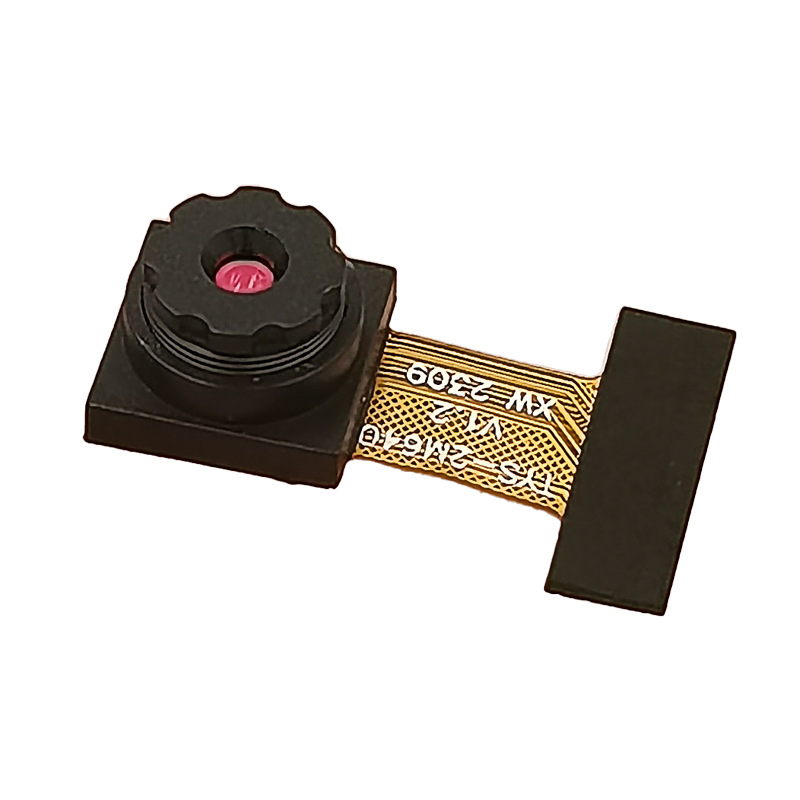

Camera Module Front

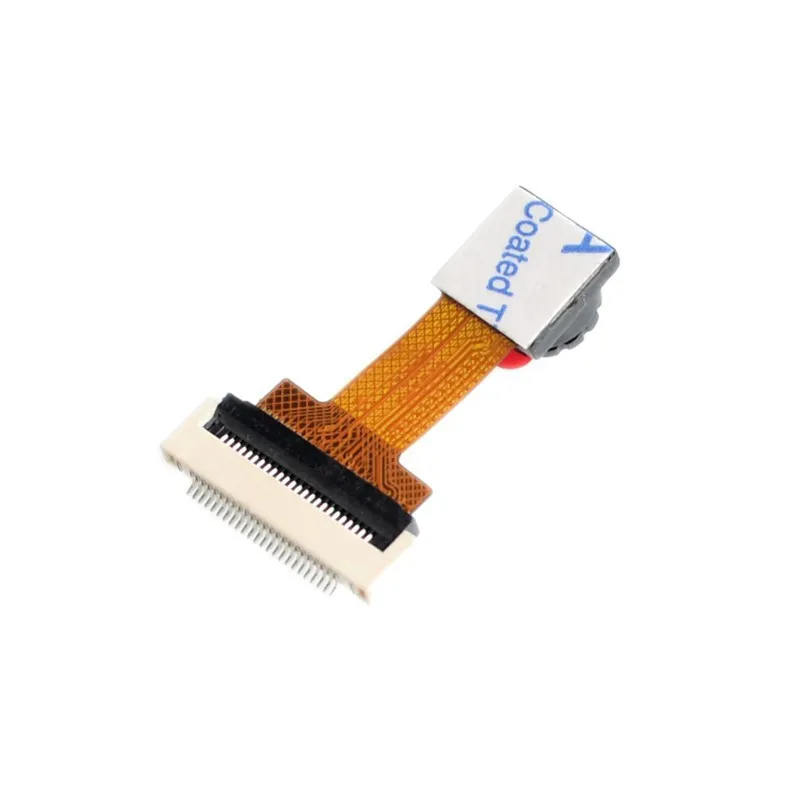

Lens Detail

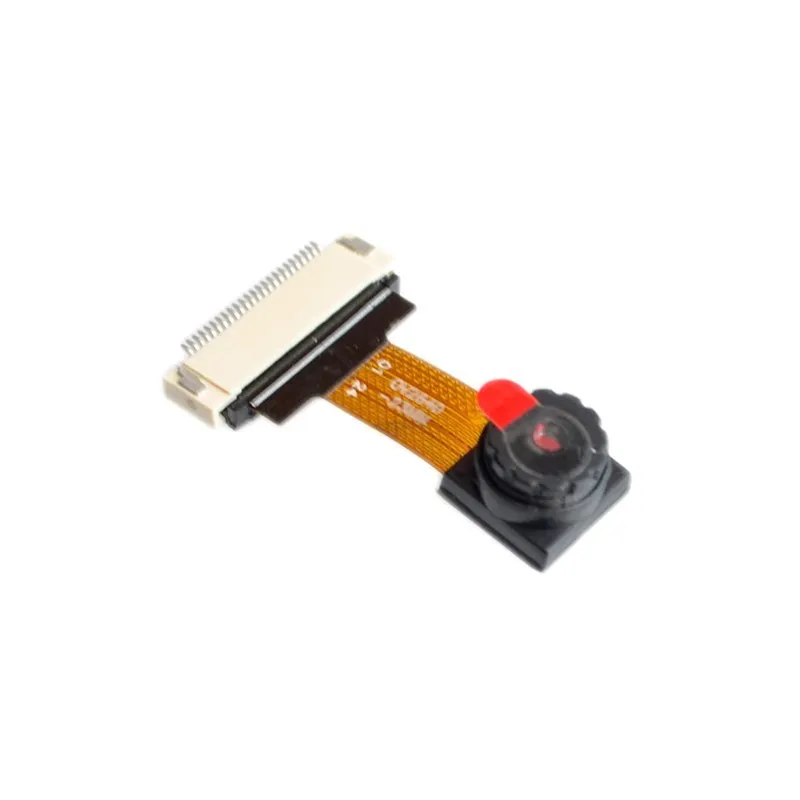

Module Side View

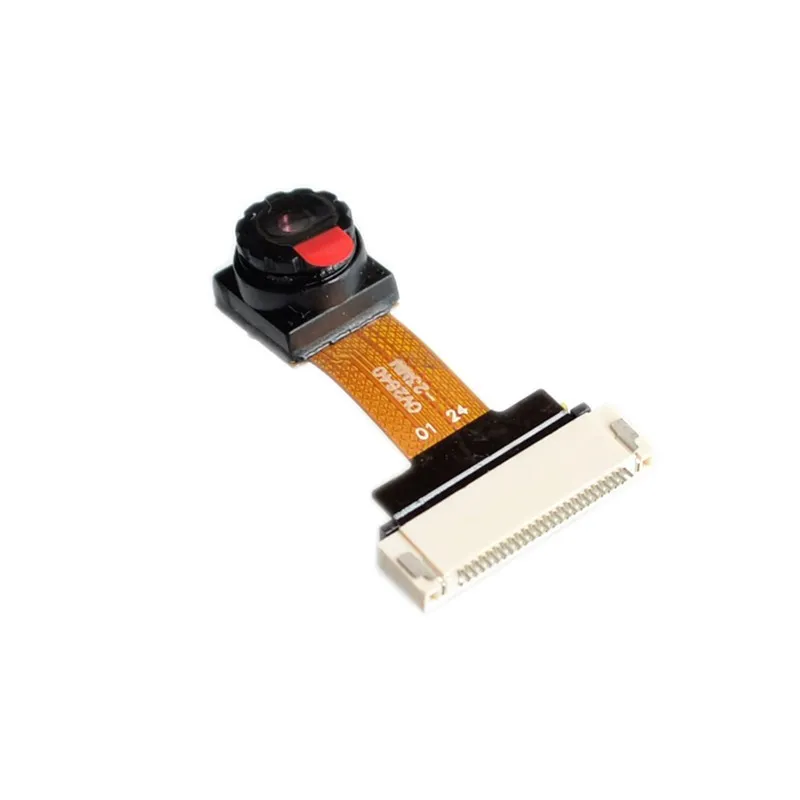

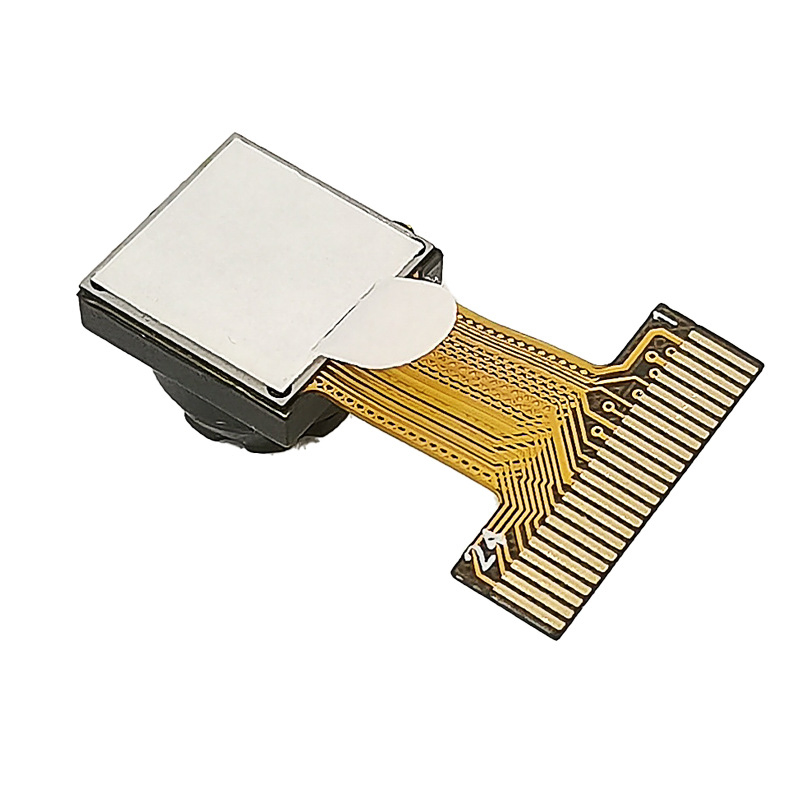

PCB Components

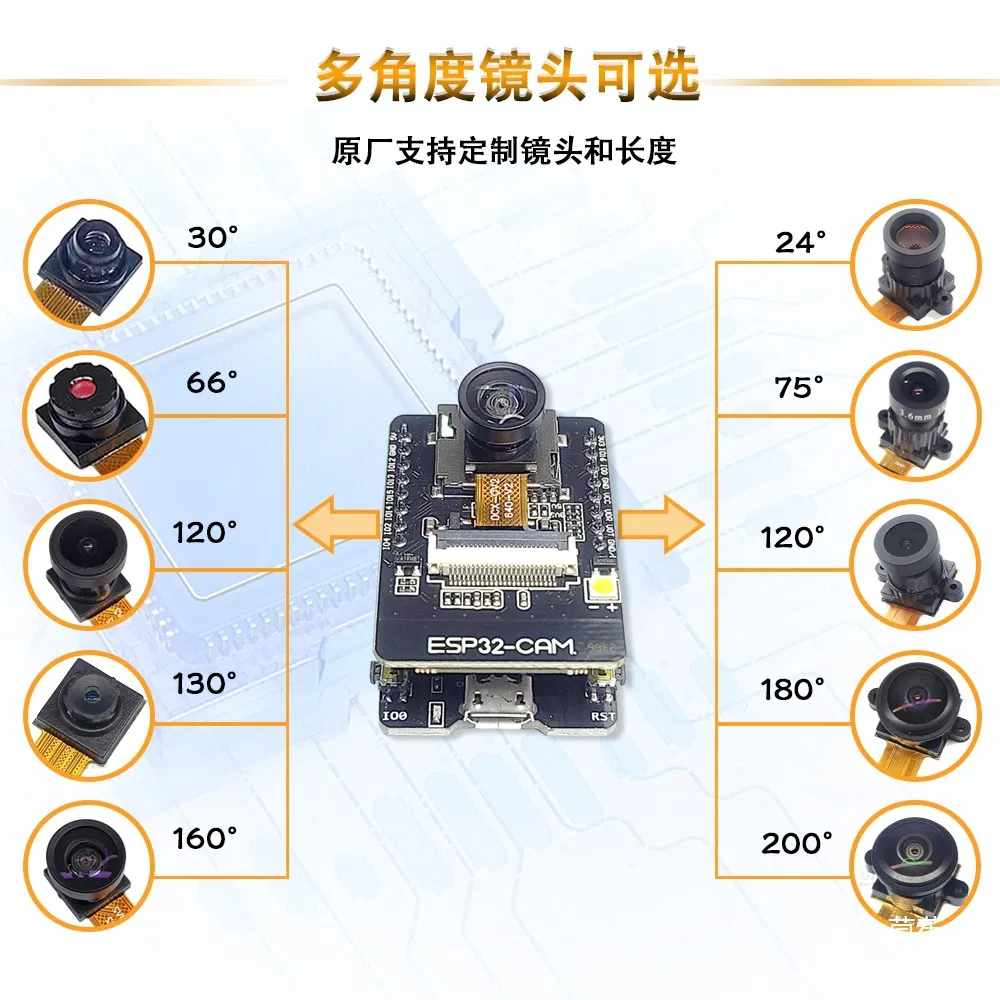

Module Connection

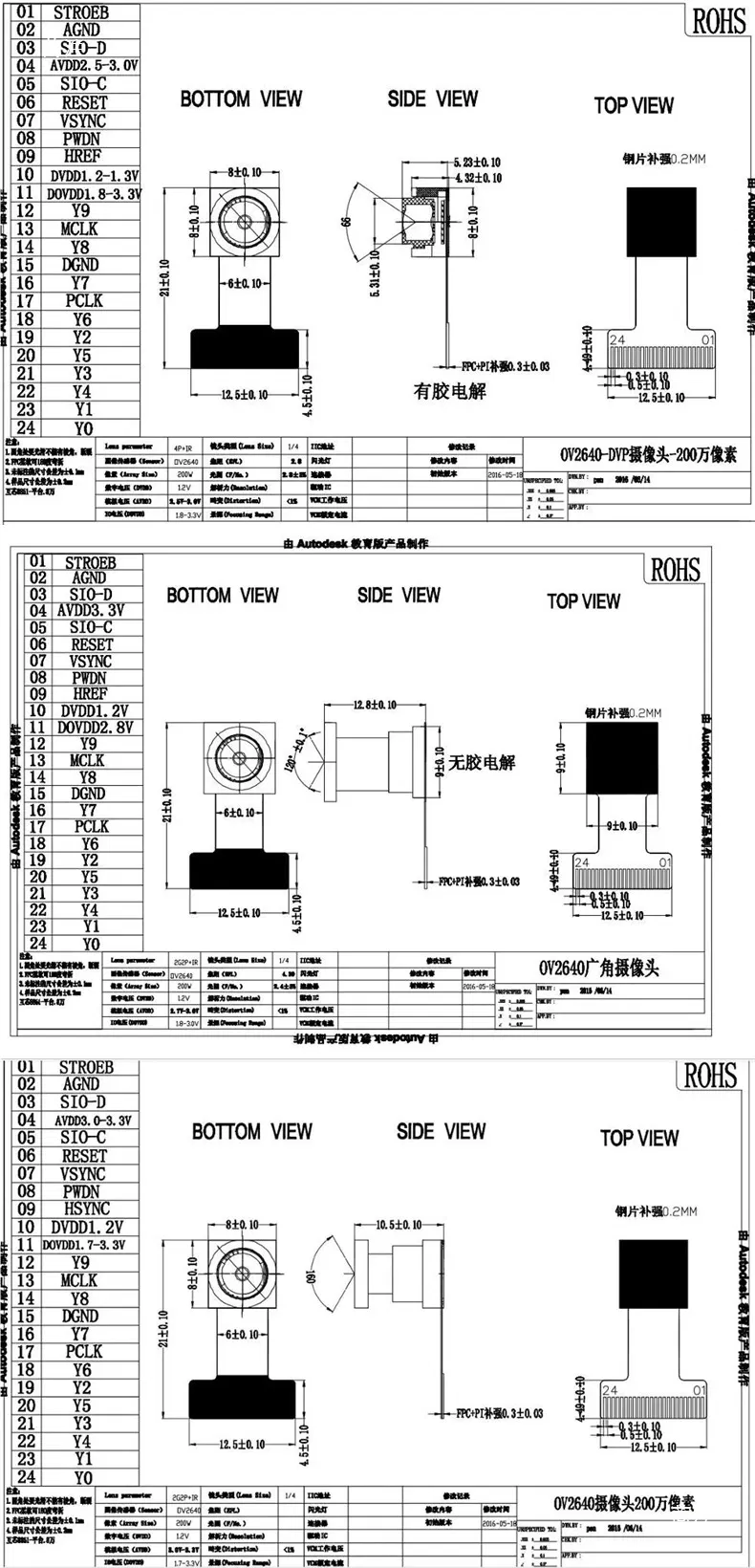

Technical Layout
Dimensions Profile
Sensor Close-up
Installation Guide
Application Scenario
Packaging Detail

Note: For optimal performance, ensure your host board provides sufficient power delivery and supports the OV2640 driver stack.

Frequently Asked Questions
What is the field of view for this OV2640 module?
This module features a 160-degree ultra-wide-angle lens, allowing for much broader coverage compared to standard modules.
Is this camera compatible with Arduino ESP32-CAM?
Yes, it is fully compatible with the ESP32-CAM boards and other modules supporting the standard 8-bit DVP camera interface.
What is the maximum output resolution?
The OV2640 sensor supports a maximum resolution of 2 Megapixels (UXGA 1600 x 1200 pixels).
Does this camera module support JPEG output?
Yes, it supports hardware-encoded JPEG output as well as YUV and RGB formats.
Can this module be used for outdoor weather-resistant devices?
The module features waterproof and weatherproof characteristics, making it suitable for protected outdoor applications like smart doorbells.
What power supply does the module require?
The module operates on a standard 3.3V power supply, which is ideal for low-power IoT and battery-operated projects.
