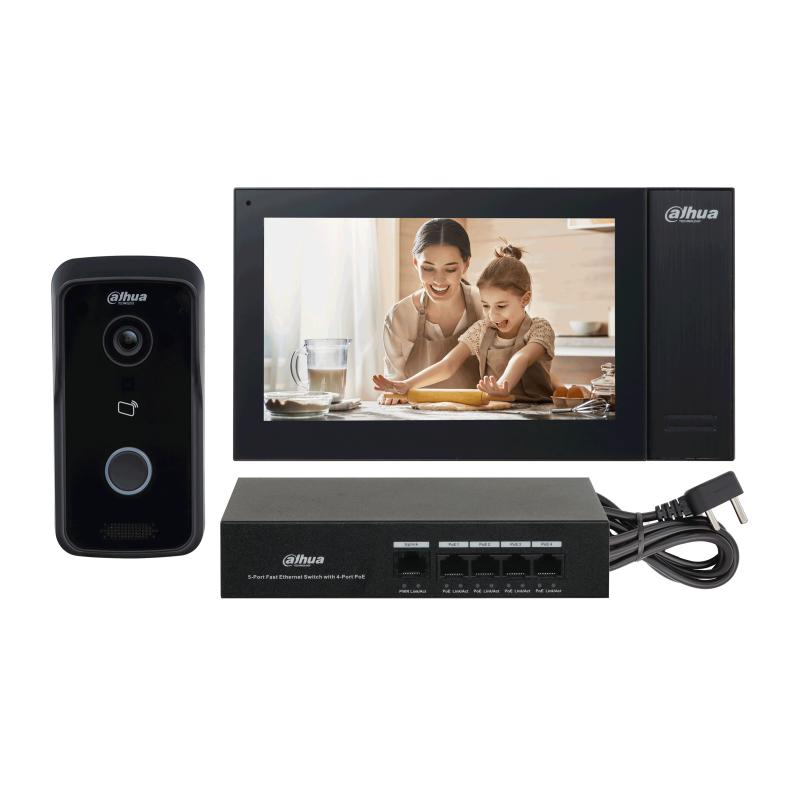

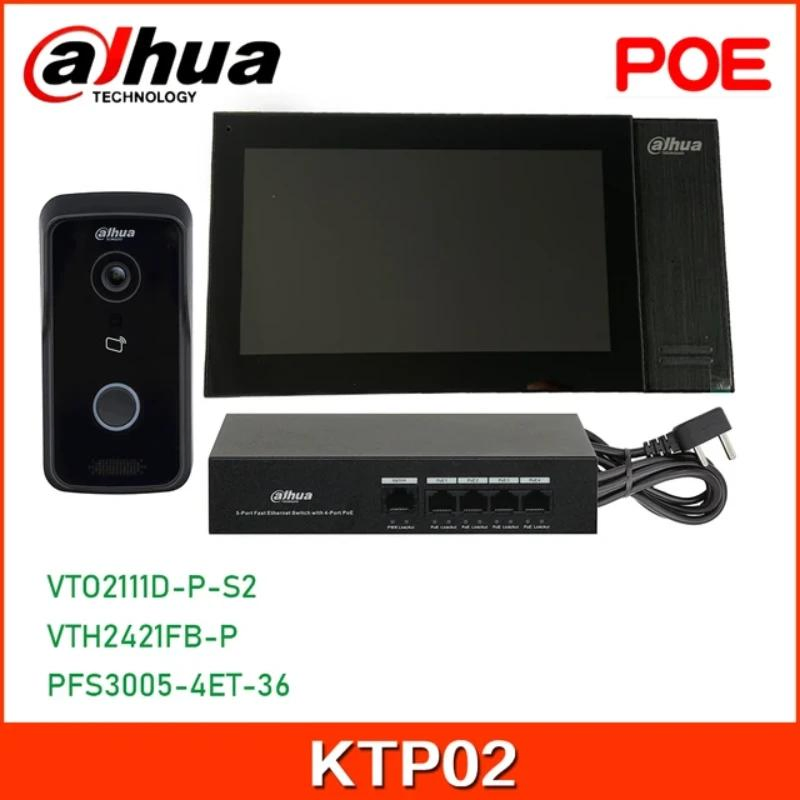

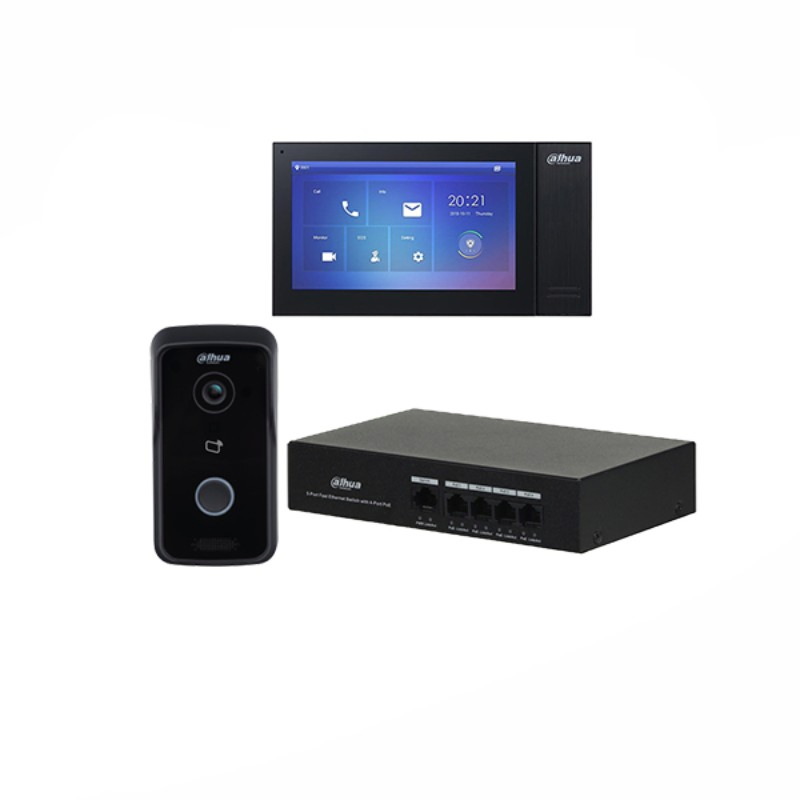

Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
1 / 5
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP
Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP

Dahua Ktp02 IP Villa Door Station & Indoor Monitor Video Intercom Kit 2-Wire Poe IP

Customization: Available
Certification: RoHS, CCC, FCC, CE
Model: Dhi-Vto2111d-P-S2
Send Inquiry

Product Description

Basic Information

Model NO.
KTP02
Main Processor
Embedded Processor
Operating System
Embedded Linux
Button Type
Mechanical
Interoperability
Onvif
Internet Protocol
SIP; P2p; Ipv4; DNS; Rtsp; Rtp; TCP; UDP
Basic Camera
1/4" 1MP CMOS High Definition
WDR
120 dB
Video Compression
H.264
Origin
China

Product Description

IP Villa Door Station & Indoor Monitor Kit

IP Villa Door Station Features:

  • High definition camera with 120dB WDR
  • Operating temperature: -30°C to 60°C
  • IP65 Weatherproof rating
  • Supports Auto IR illumination and D/N
  • Card/App remote/Indoor monitor unlock
  • Two-way voice calls and Tamper Alarm
  • Standard PoE power supply support

IP Indoor Monitor Features:

  • IPC surveillance & Alarm integration
  • High performance with 7-inch TFT screen
  • Embedded 8GB SD card
  • Quick configuration without computers
  • Support standard PoE
IP Villa Door Station & Indoor Monitor Kit

Technical Specifications

Door Station Specification (DHI-VTO2111D-P-S2)
System
Main ProcessorEmbedded processor
Button TypeMechanical
Basic
Camera1/4" 1MP CMOS high definition, color/IR
Angle of ViewHorizontal: 107°; vertical: 61°; diagonal: 122°
Video ResolutionMain stream: WVGA, 720P, D1; Sub stream: CIF, WVGA, 1080P
Audio ModeTwo-way voice call
Performance
Card Type / CapacityIC Card / 10,000
Protection GradeIP65 (Silicone sealant required)
Power Supply12 VDC, 1 A / Standard PoE
Indoor Monitor Specification (DHI-VTH2421FB-P)
Display
Screen Type7-inch TFT Capacitive screen
Resolution1024 × 600
Performance
Audio CompressionG.711A, G.711U, PCM
Alarm Input/Output6-channel input / 1-channel output
StorageMicro SD, max 32G (8G included)
InstallationWall mount

Packaging & Shipping

Package Size
15.00cm * 10.00cm * 35.00cm
Gross Weight
5.000kg

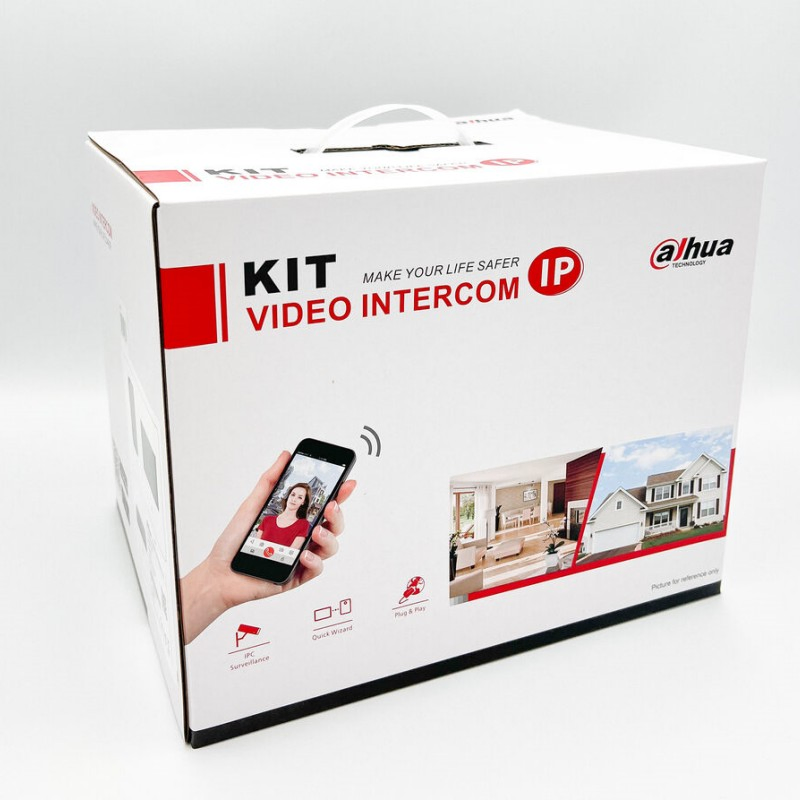

Packaging Box Detail
Kit Components Display

FAQ

1) Why should I choose this video intercom kit?
We provide high-quality security solutions by working directly with top-tier manufacturers. This ensures you receive original products with professional technical support at a competitive price point.
2) When will my order be shipped?
Due to the high demand for these popular models, inventory levels fluctuate daily. Please confirm the exact shipping date with our team before completing your payment.
3) Is it possible to install these cameras myself?
Yes! The kit is designed for straightforward installation. Every package includes a comprehensive user manual, and the standard PoE support simplifies the wiring process significantly.
4) What is the warranty policy for these products?
Standard products come with a 2-year warranty from the date of receipt. Some specific items may offer extended coverage up to 3 or 5 years; please check your specific model for details.
5) How are shipping costs calculated?
Shipping costs are based on the total weight and volume of the package. we utilize cost-effective logistics partners to ensure safe and affordable delivery to your location.
6) Do you offer wholesale opportunities?
Yes, we serve both retail and wholesale customers globally. For bulk orders or business partnerships, please reach out to our team for the latest inventory and pricing.
