📋Basic Info.
Usage
Radio, Television, Observatory, Plane, Ship, Car
Information
Text, Picture, Video, Audio
Modulation
Bpsk/Qpsk/6qam/64qam
Network Size
10nodes(Customizable)
Specification
300*238*133mm
🔍Product Description

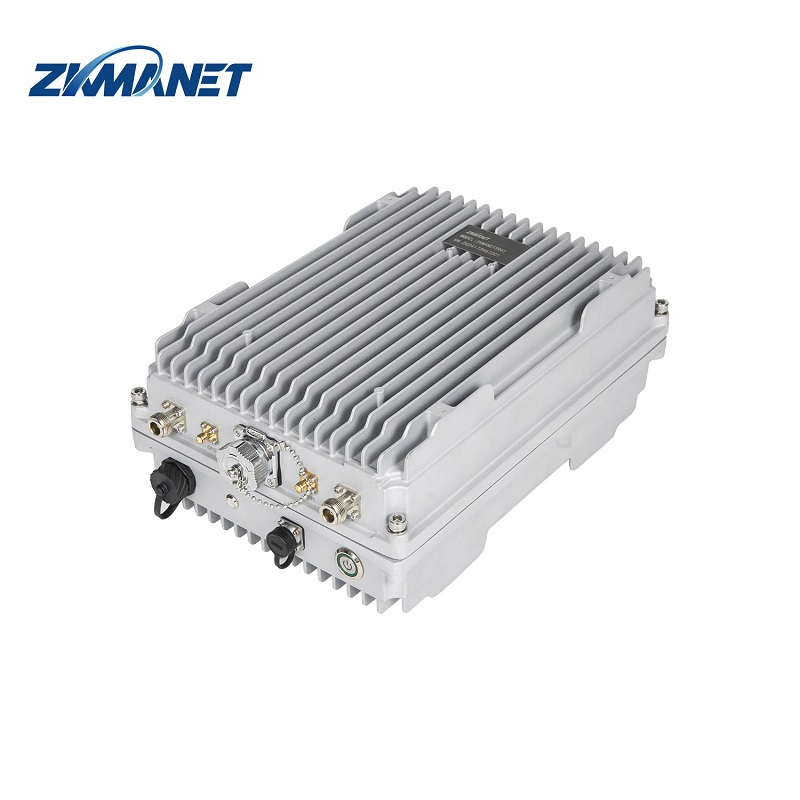

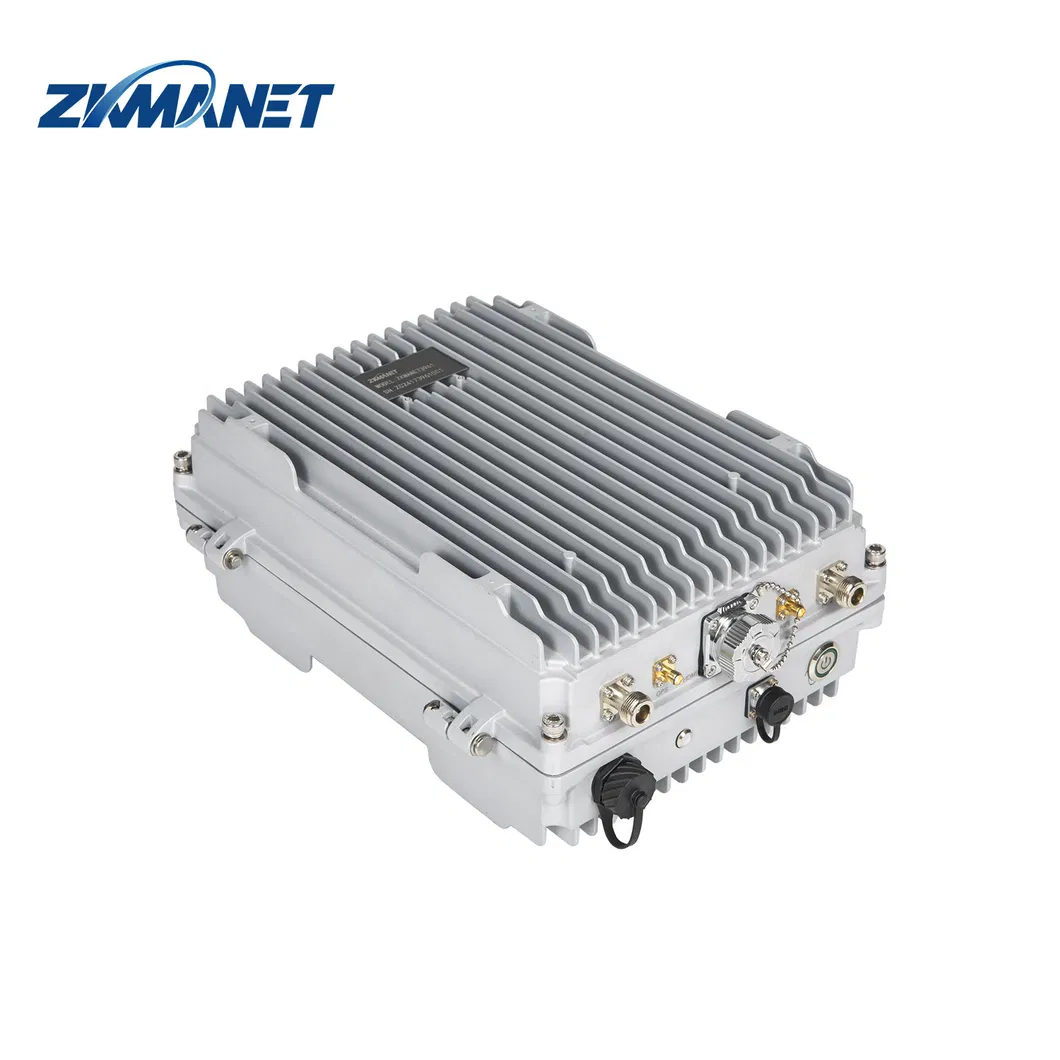

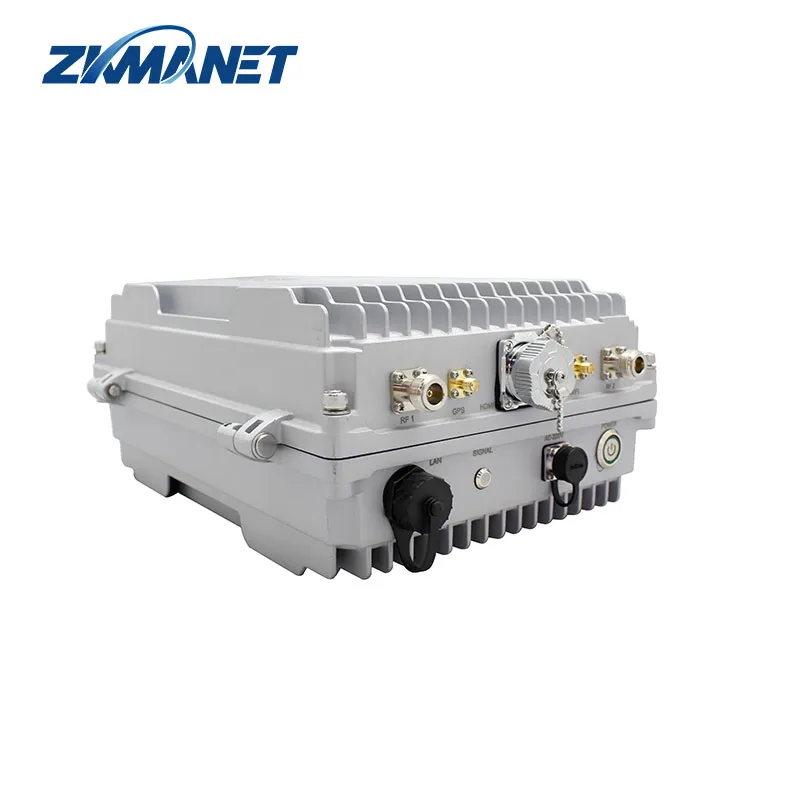

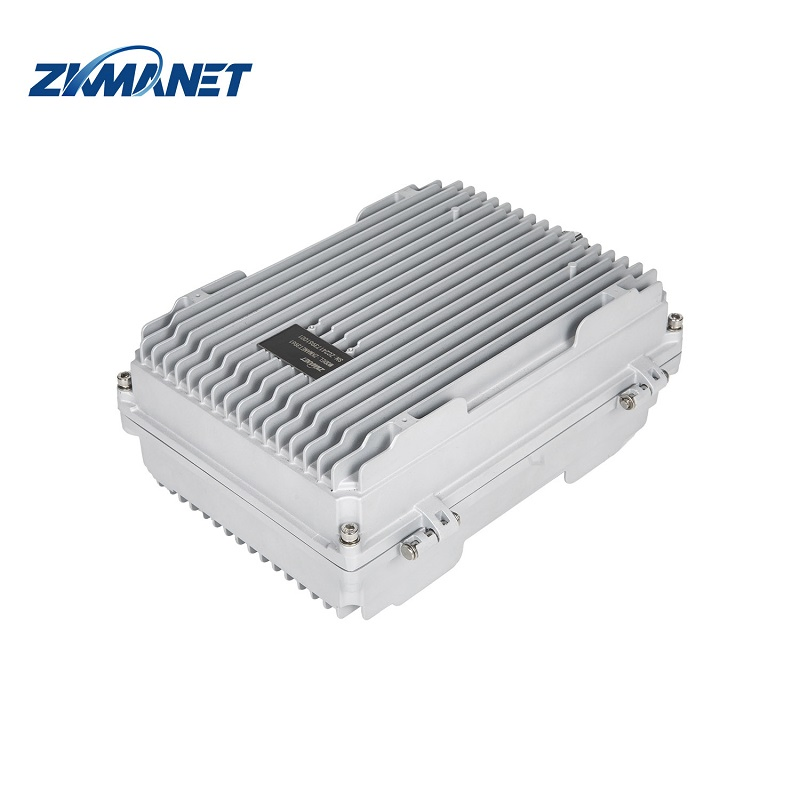

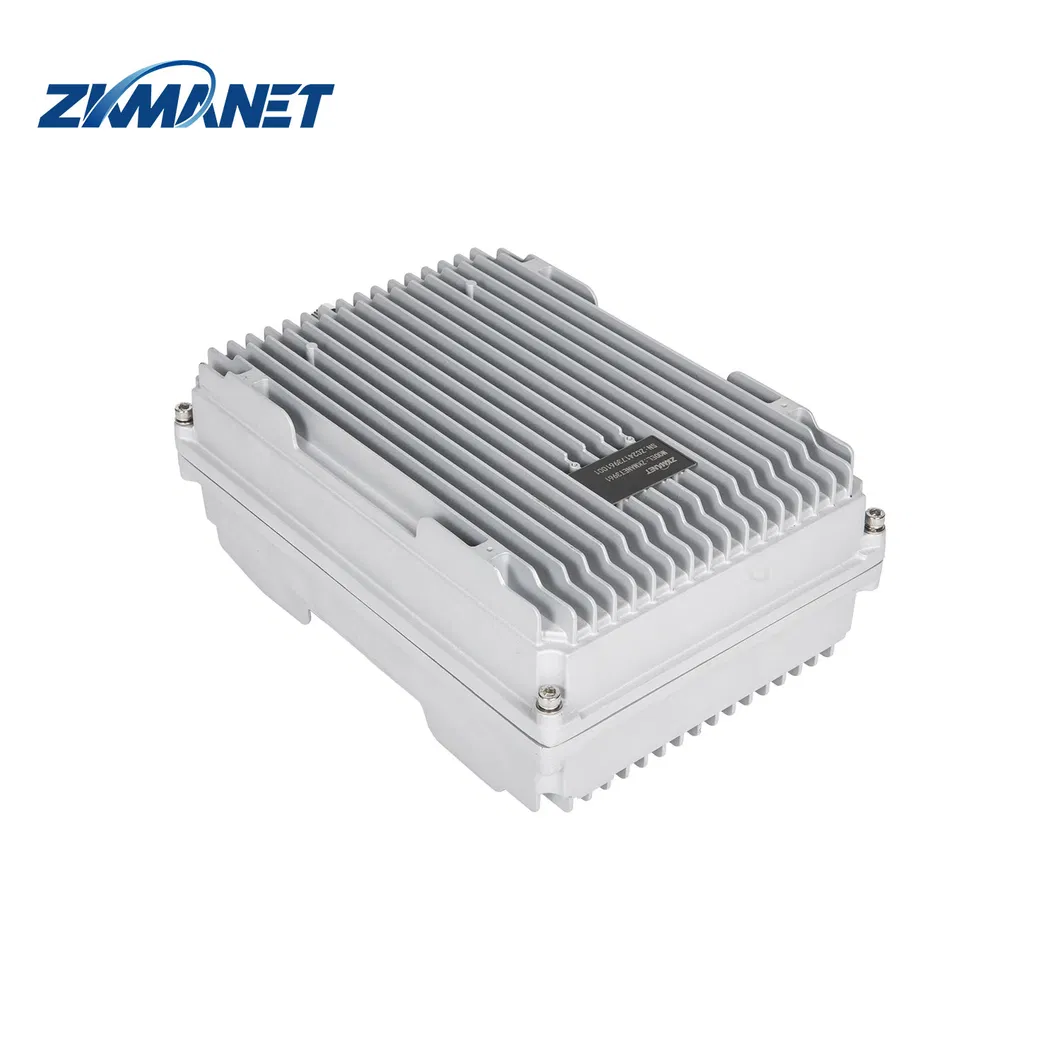

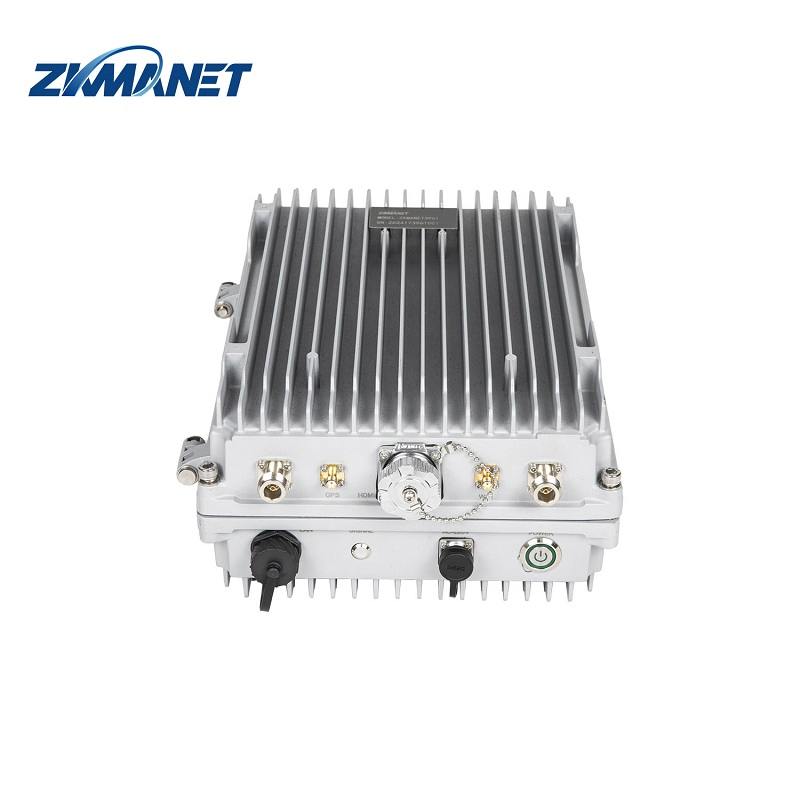

ZKMANET3561 is a high-power MESH self-organizing outdoor base station product utilizing an FPGA solution. The device can be fixedly installed using pole mounts, wall mounts, or brackets, primarily deployed at outdoor fixed points. The IP rating is IP67. With high transmission power and long coverage distance, it integrates data transmission, dynamic routing, and relay forwarding into one unit. It quickly self-organizes with other node devices to form a wireless multi-hop broadband network, providing users with wireless transmission services for voice, data, and video multimedia services. It is particularly suitable for applications such as long-distance communication coverage, information aggregation and feedback, regional coverage support, elevated point coverage enhancement, and relay transmission nodes.
⭐Key Features
Frequency: 1300-1500MHz (70MHz-6GHz customizable)
Power: 43dBm High power output
Speed: Data rate up to 56Mbps
Voice: Supports two-way voice intercom
Connectivity: Supports WIFI & IP data transparent transmission
Navigation: Supports GPS/BD/GLONASS
Input: Supports HDMI input
Security: AES256 Encryption, FHSS and IFS support
Ruggedness: Industrial Rugged IP67 housing
📊Technical Parameters
| RF Parameters |
|---|
| Default Frequencies | 1300-1500MHz (Customizable) |
| Channel Bandwidth | 2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform | TDD-COFDM (2T2R) |
| Output Power | 43dBm, 1dBm step adjustable |
| Receive Sensitivity | -103dBm@5MHz |
| Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
| Network & Electrical |
|---|
| Network Size | Up to 32 nodes |
| Multi-hop Capability | 15 hops (msg); 10 hops (voice); 8 hops (video) |
| Movement Speed | >1000km/h |
| Working Voltage | 100-240VAC |
| Power Consumption | ≤95W |

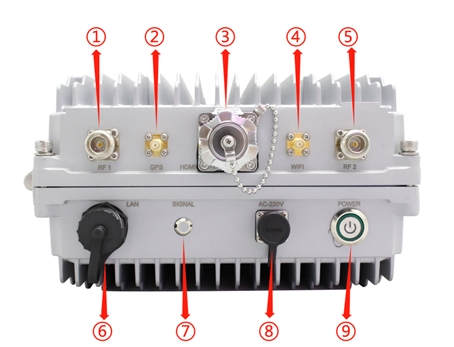

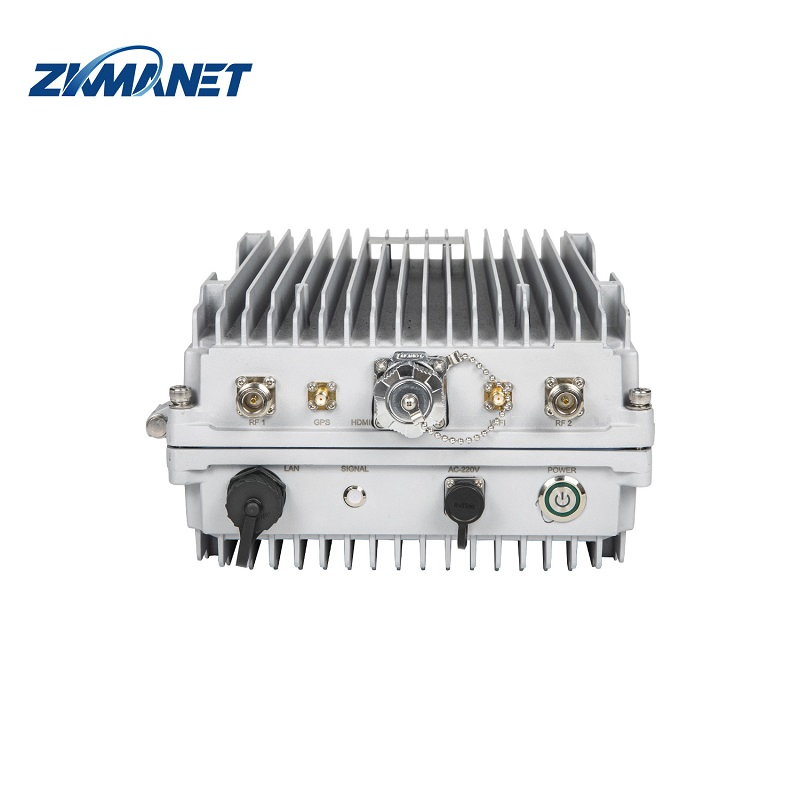

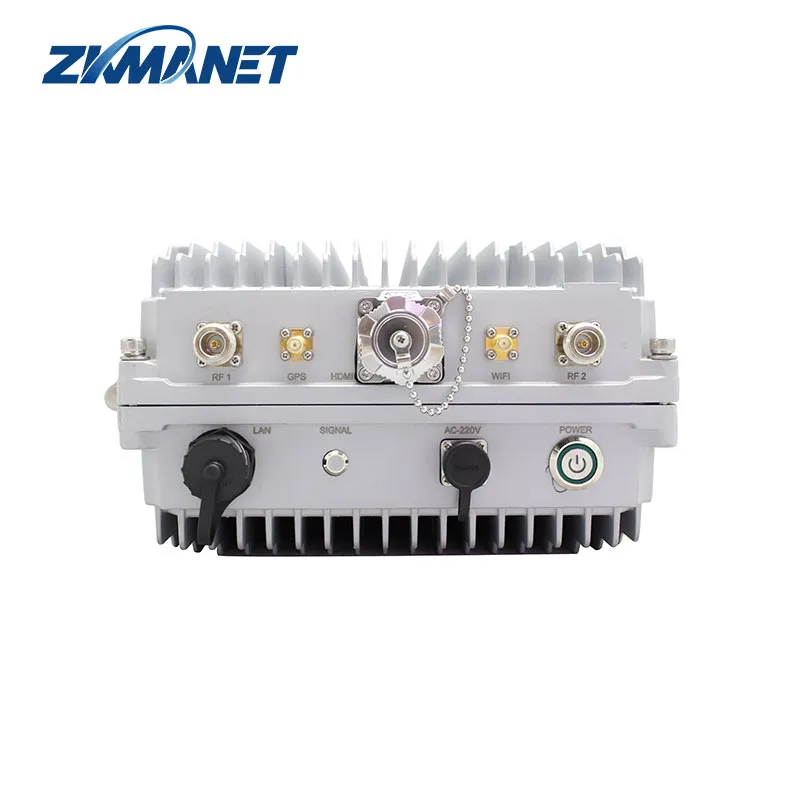

🔌Panel Interface Description
- 1. MESH antenna interface-1 (N-F)
- 2. GPS/BD antenna interface (SMA-F)
- 3. HDMI input interface type A (Optional)
- 4. WIFI antenna interface-1 (SMA-F)
- 5. MESH antenna interface-2 (N-F)
- 6. LAN interface (RJ45)
- 7. MESH signal indicator
- 8. Power input port (3-pin)
- 9. Power push button

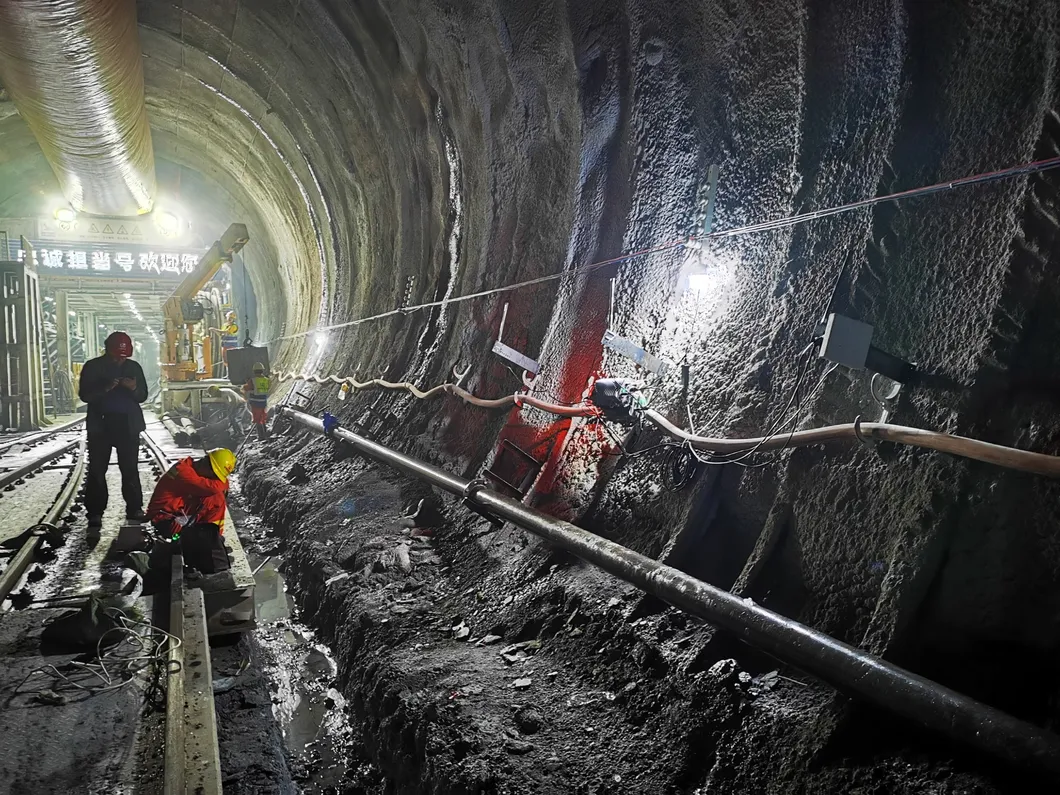

🌐Application Scenarios
🏢Manufacturer Profile
Established in 2013, we are a high-tech research and development enterprise. We are market-oriented, focusing on developing products suitable for emergency communication, non-combat mission communication systems for special robot intelligent communication products, and auxiliary decision-making systems. We are dedicated to providing customers with wireless broadband communication products and research production under complex conditions.
❓Frequently Asked Questions
Q: What is the maximum transmission power of the ZKManet3561?
A: The device features a high power output of 43dBm, which is adjustable in 1dBm steps.
Q: Is the device suitable for extreme outdoor weather?
A: Yes, it has an IP67 rugged housing and can operate in temperatures ranging from -40°C to 70°C.
Q: How many nodes can be supported in a single mesh network?
A: The system supports up to 32 nodes, making it ideal for multi-point broadband coverage.
Q: Does it support video input directly?
A: Yes, it includes an HDMI input interface for direct video transmission.
Q: What is the typical start-up time for the base station?
A: The system is designed for rapid deployment with a start-up time of approximately 27 seconds.
Q: Can the frequency be customized?
A: While the default is 1300-1500MHz, the frequency is customizable from 70MHz up to 6GHz.
