Fingerprint RFID Access Control System Flush Mount 12V DC 18V DC IP66

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
EL014
Suitable for
Office
Usage
Commercial, Household, Industrial
Name
Access Control System
Finish
SSS
Specification
(W x H x D) 40 x 115 x 25 mm
Origin
China
Customized
Available

Product Description

Fingerprint/RFID Access Control System Flush Mount 12V-18V DC IP66

Access only for authorized persons. Whether in company buildings, leisure facilities such as fitness centers or in smart homes: The RFID/Fingerprint Access S prevents unauthorized entry. Access to the secured building or site can be done with one of the 3000 RFID cards. Furthermore, 100 fingerprints can be read in as proof of authorization.

The access control, which can also be installed outdoors, has an anti-vandalism metal housing and is weather-proof according to IP66. For repeated passes, for example during loading or unloading, a locking mode is available that keeps the door or gate open. A tri-color LED display indicates the current status of the system.

Technical Specifications

TypeFingerprint Lock
MaterialZinc Alloy / Stainless Steel
User Capacity100 Fingerprints & 3000 Cards
Reader Type125 kHz Transponder
Operating Voltage12V DC - 18V DC
Protection RatingIP66 Weather-proof

Key Features

  • Anti-vandal stainless steel housing
  • Large capacity: 100 fingerprints and 3000 cards
  • One programmable relay operation
  • Latch mode to hold door or gate open
  • Tri-color LED status indicator
  • Weather-proof IP66 design for outdoor use

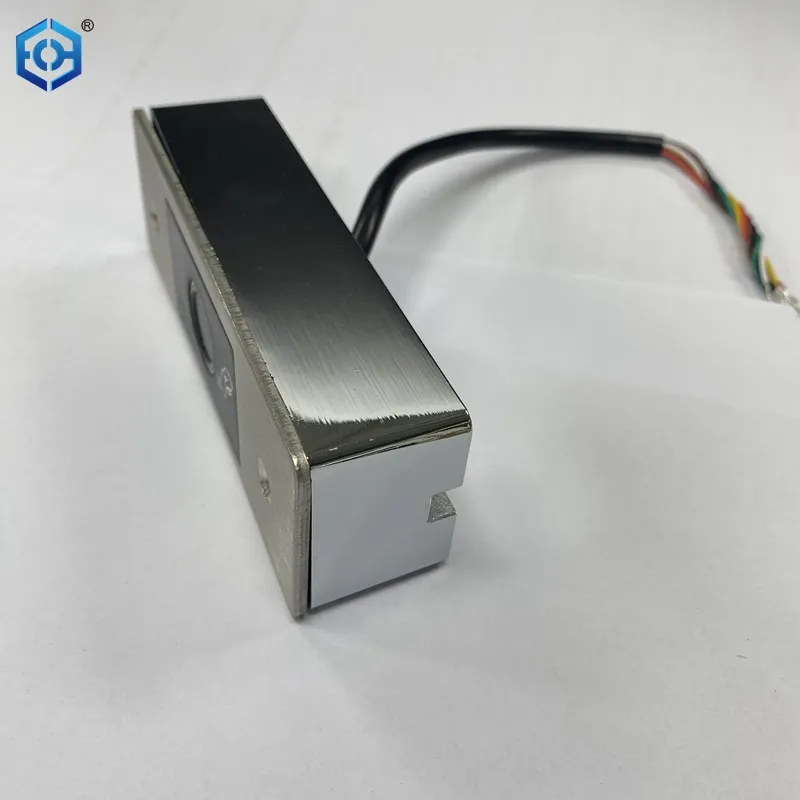

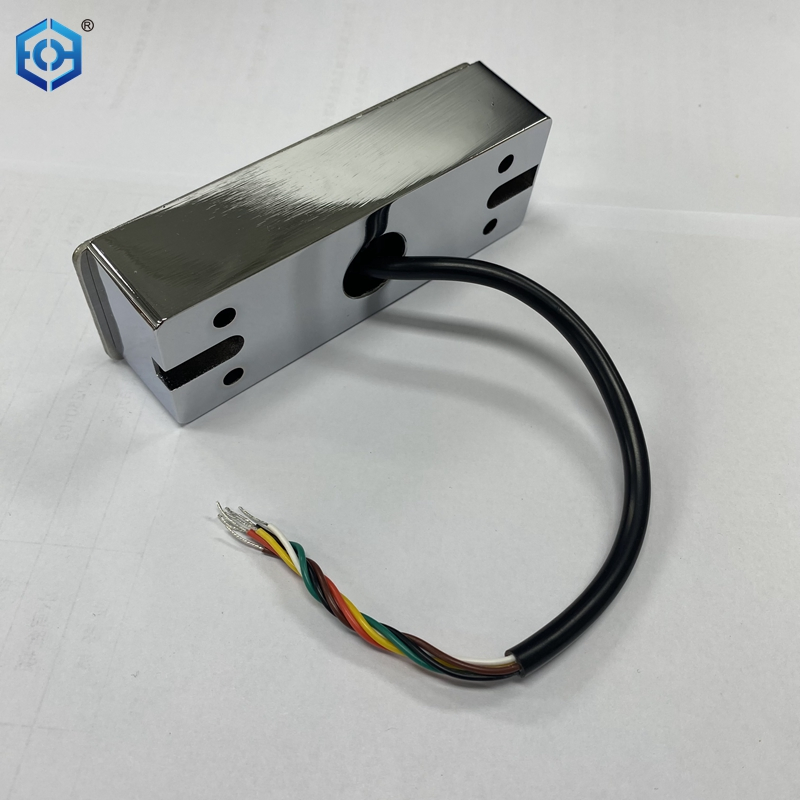

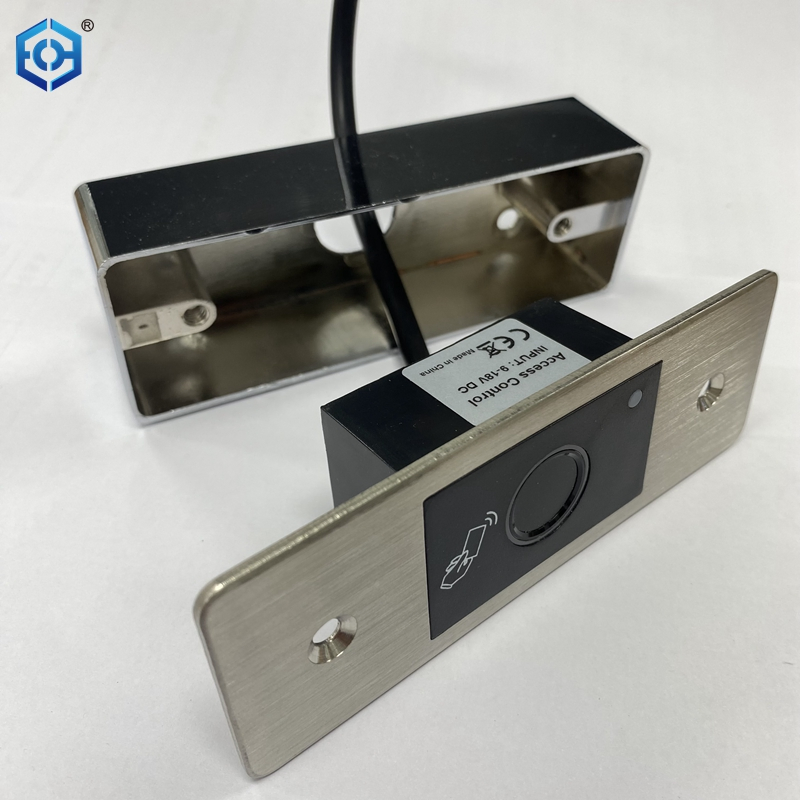

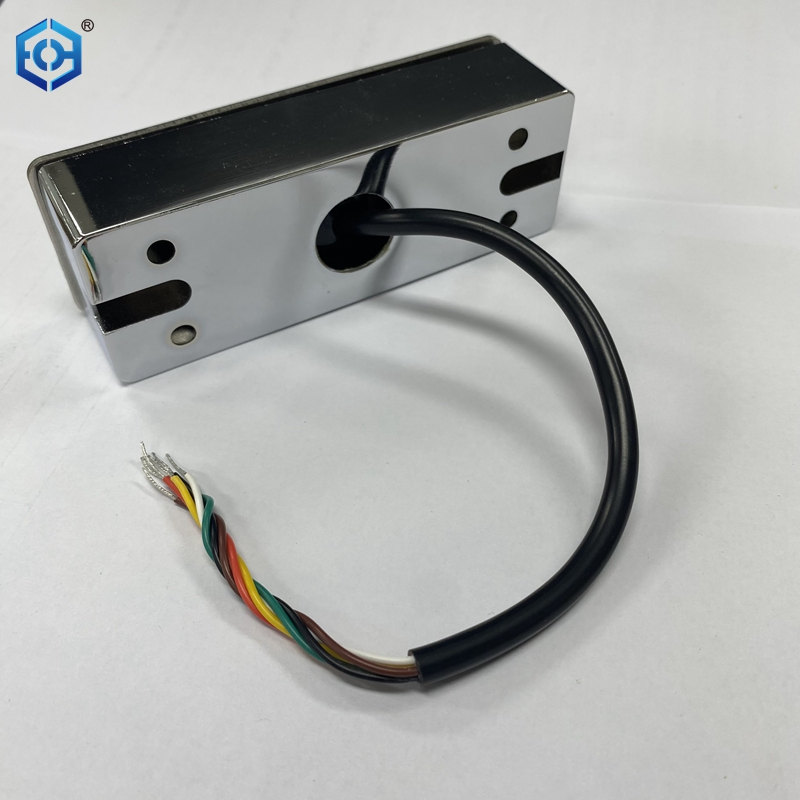

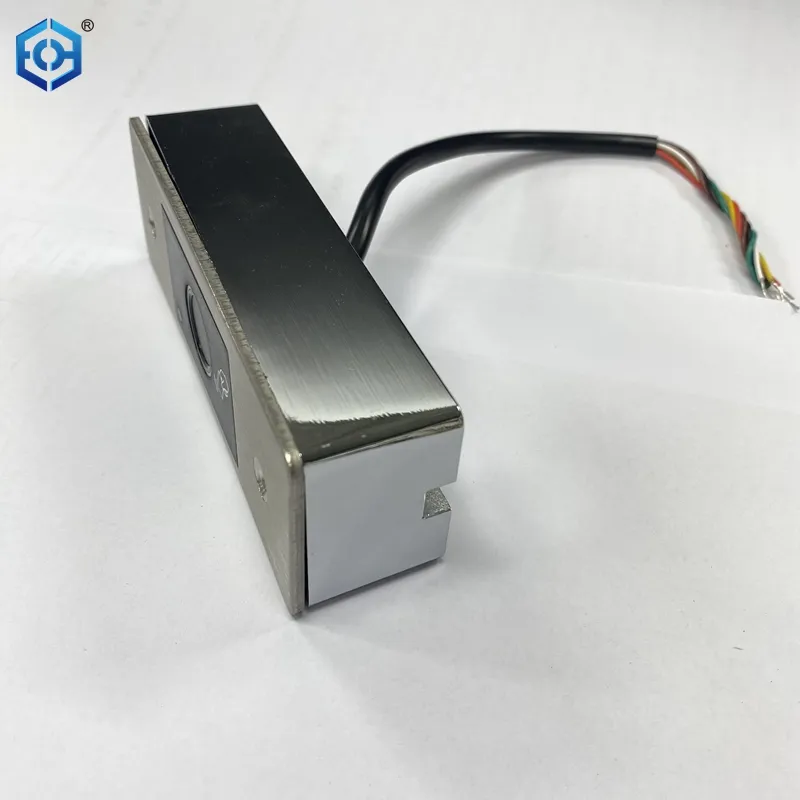

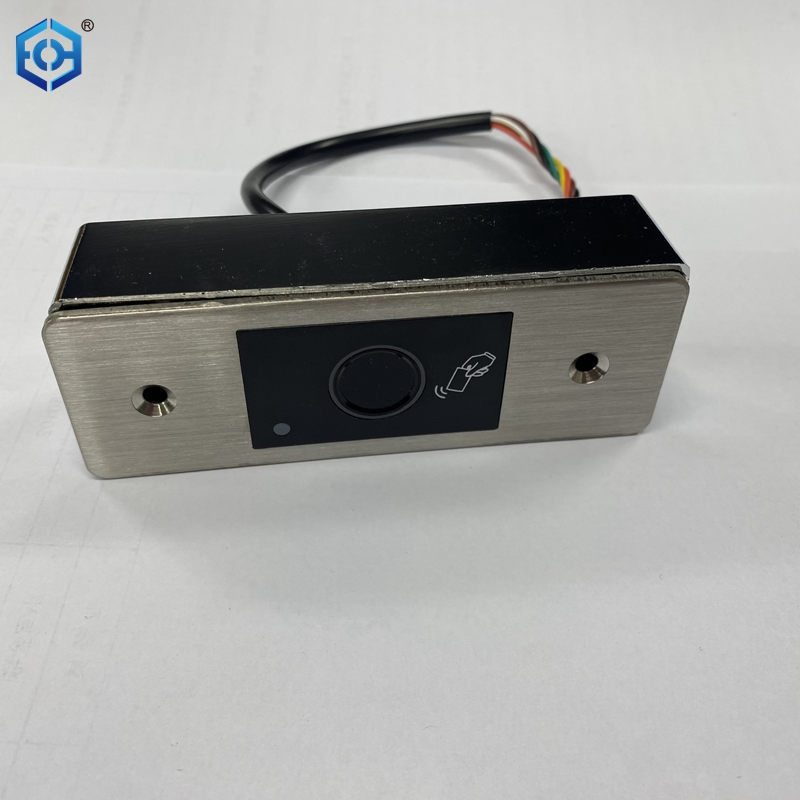

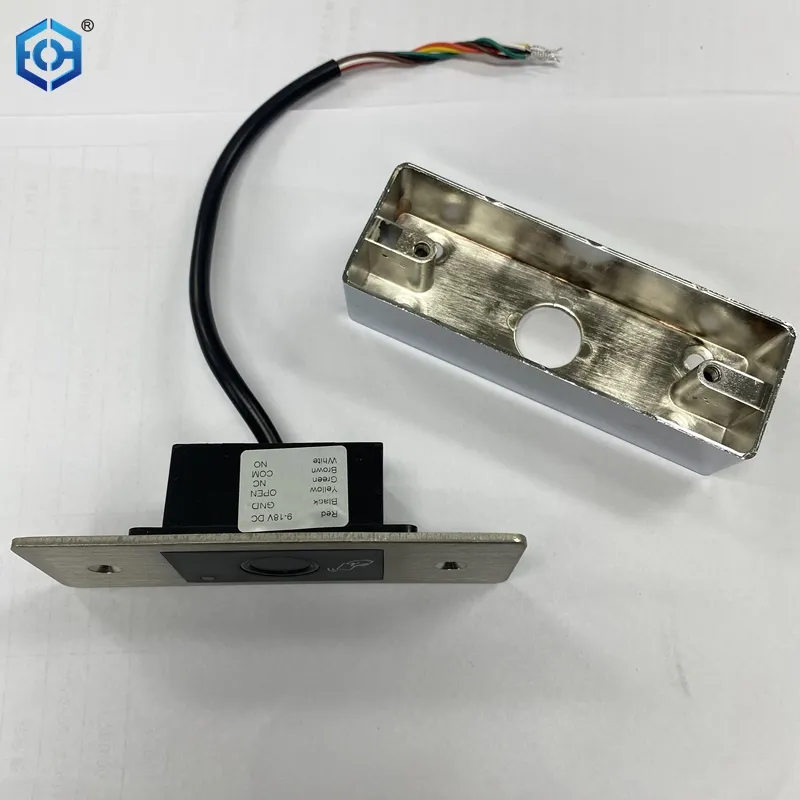

Detailed Photos

Packaging & Delivery

Package Size
8.00cm * 7.00cm * 6.00cm
Gross Weight
1.000kg
Package Type
White Box
Delivery Time
30 Working Days

Frequently Asked Questions

How many users can the access control system support?
The system supports a high capacity of up to 100 individual fingerprints and 3000 RFID cards, making it suitable for both small offices and large industrial facilities.
Is this device suitable for outdoor installation?
Yes, it features a rugged anti-vandal stainless steel housing and is IP66 weather-proof rated, ensuring reliable performance in various outdoor environments.
What are the power requirements for this system?
The device operates on a flexible DC voltage range between 12V DC and 18V DC.
Can the door be held open for loading/unloading?
Yes, the system includes a programmable "Latch Mode" which allows the door or gate to be kept open for repeated passes.
What is included in the standard delivery package?

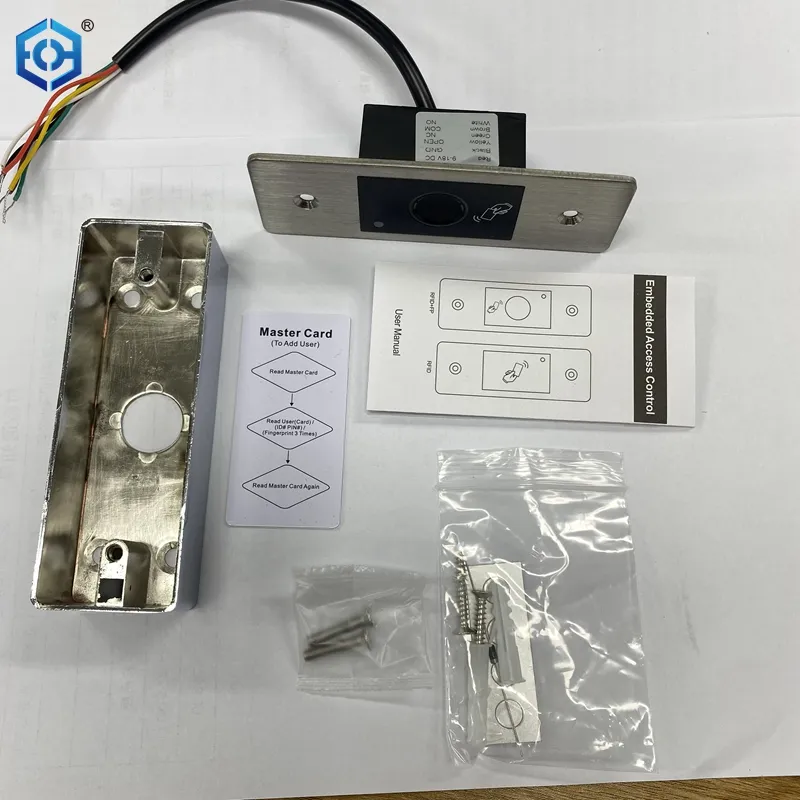

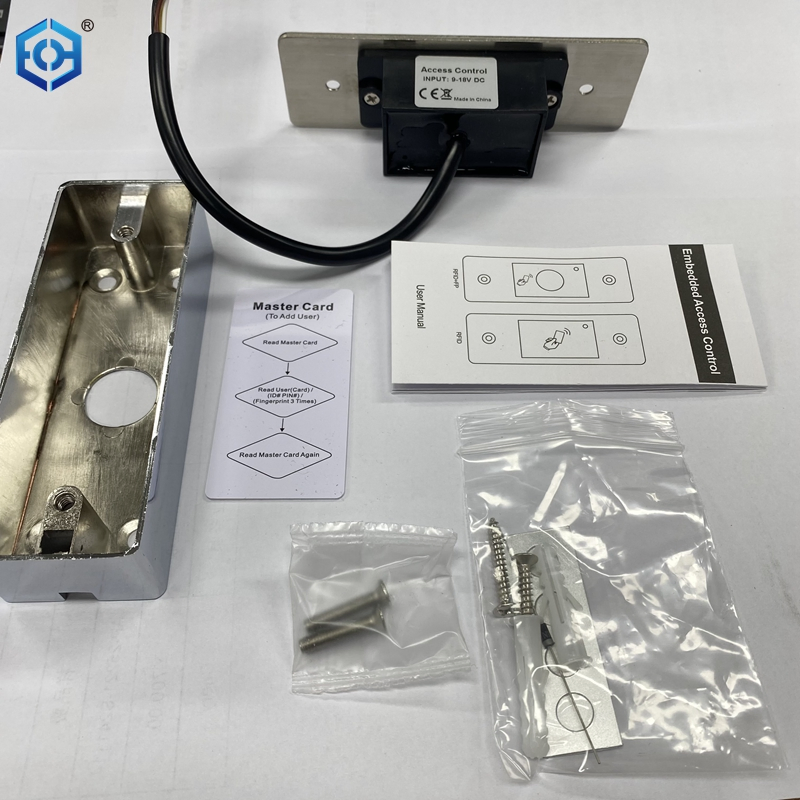

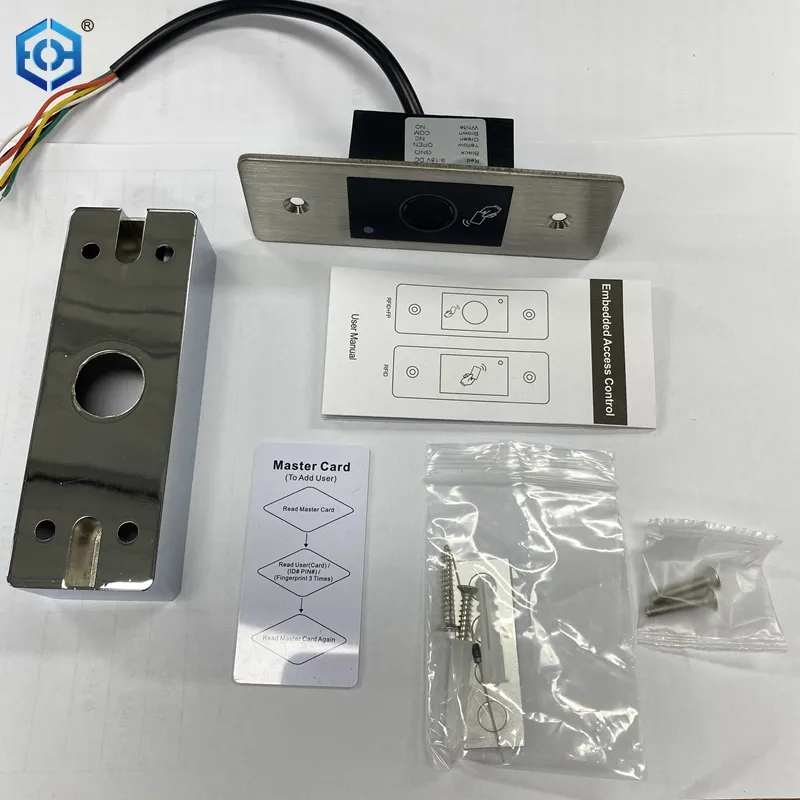

The package includes the RFID/fingerprint module, fasteners (special screws and tools), master transponder, a 1N4004 diode for relay protection, and a user manual.
Does the system provide visual feedback?
Yes, it is equipped with a tri-color LED indicator that clearly displays the current operational status of the system.
