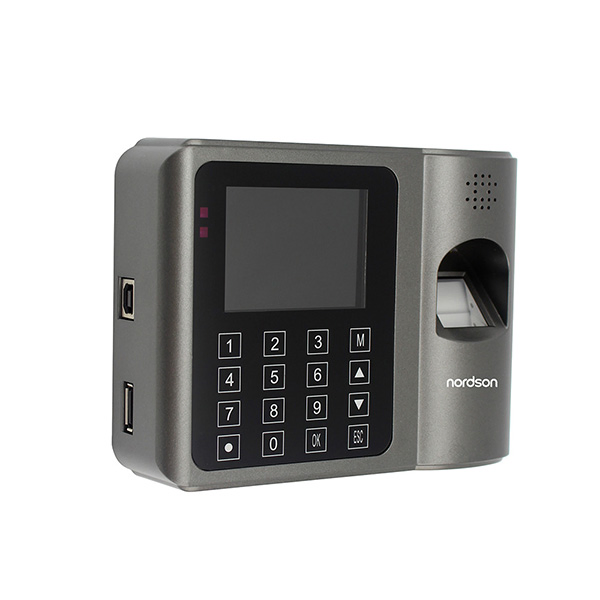

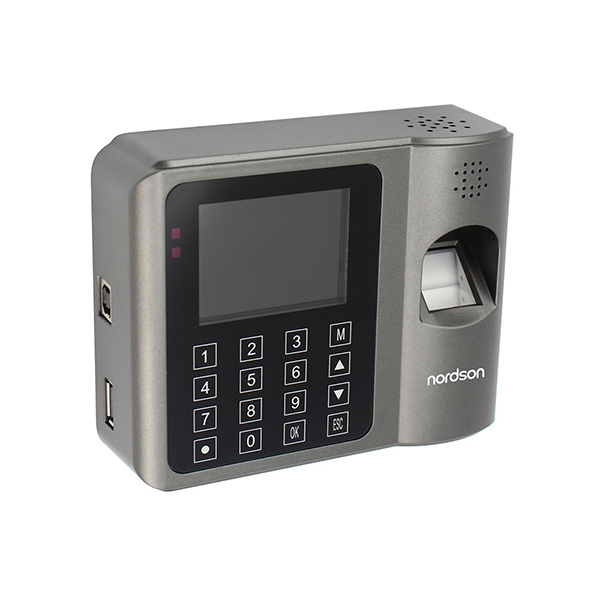

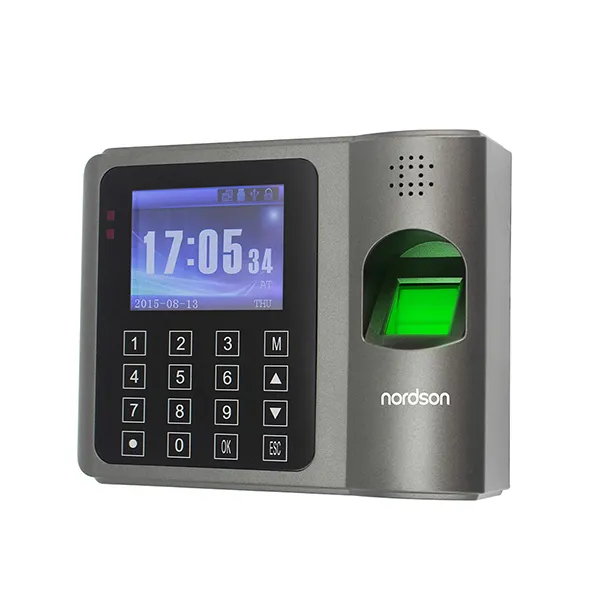

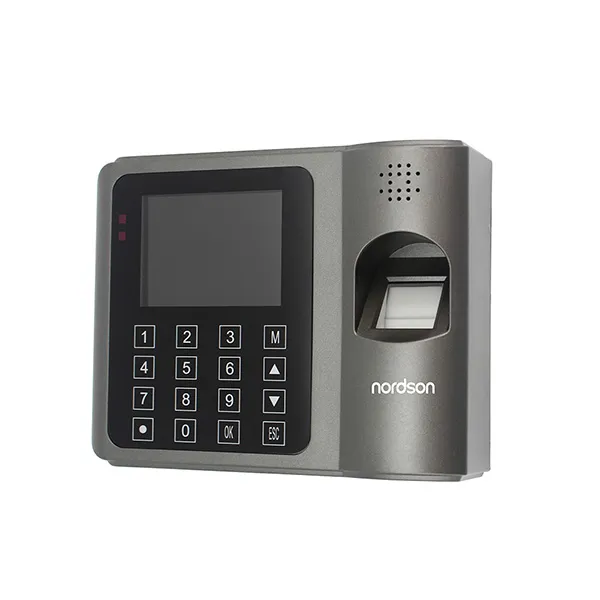

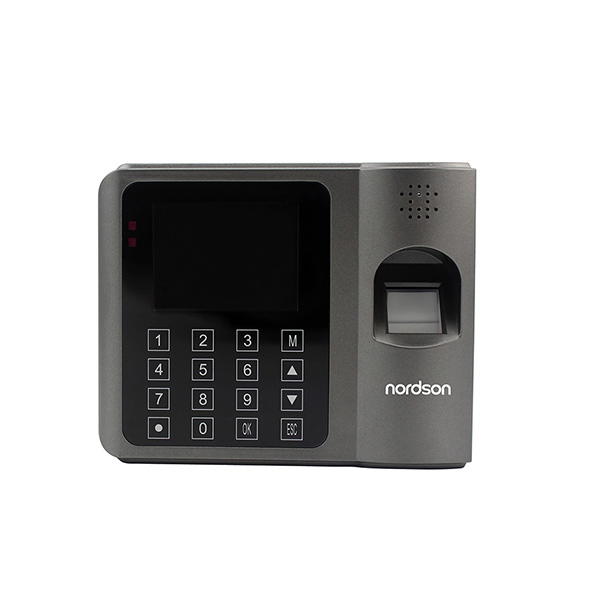

| Model NO. | FR-M4 Fingerprint Safe Access Control System |
| Color | Silver |
| Fingerprint Capacity | 3000 |
| Communication | RS485, USB, TCP/IP |
| Display | 2.4inch HD LCD Screen, Touch-Screen Keypad |
| Scanner | High Precision Total Reflection Optic Scanner |
| Power Supply | DC 12V |
| Dimension | 128*125*40mm |
| Gross Weight | 0.65kg |
The FR-M4 Network Touch-Screen Fingerprint access control terminal provides quick and accurate reading of fingerprint data. Equipped with a high-image quality optical fingerprint reader, it can be installed independently or integrated with third-party control panels via Wiegand 26 protocol. Its performance is exceptionally stable across different networks utilizing TCP/IP and RS232/485 communication protocols for seamless data transmission between the device and computer.
| ID Card Capacity | 3000 |
| Record Capacity | 100,000 |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Alarm Function | Intimidation alarm, tamper alarm, forced door-opening alarm |
| Standard Functions | Access control interface for 3rd party electric lock, door sensor, exit button |
| Optional Functions | ID/Mifare/HID, Webserver, 9 digit user ID, Wi-Fi, ADMS |
