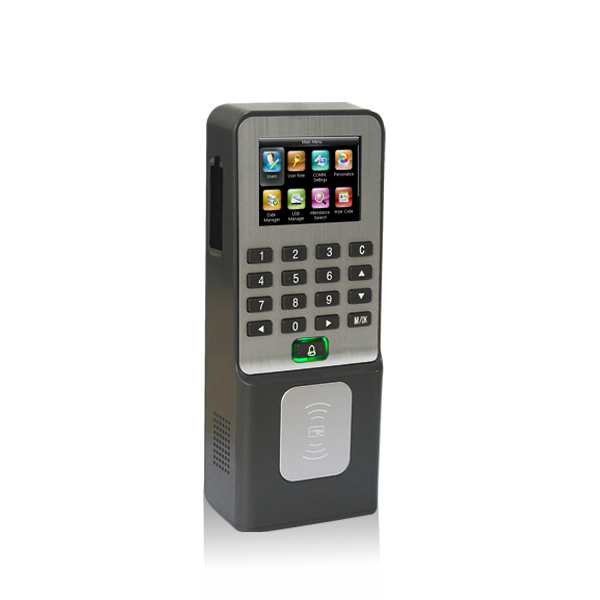

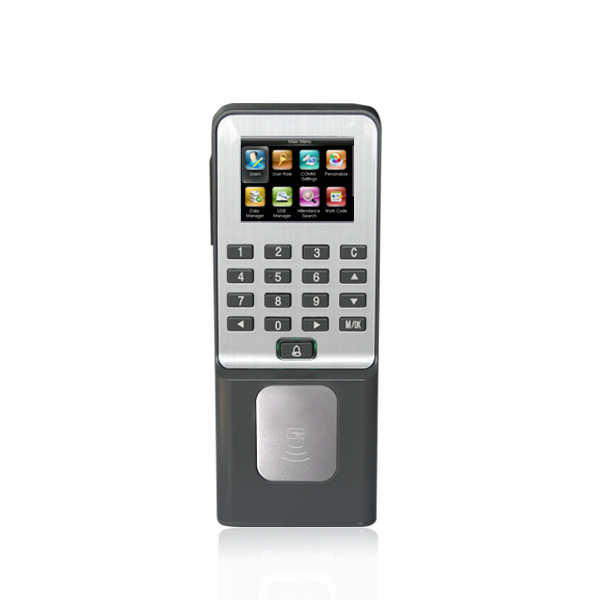

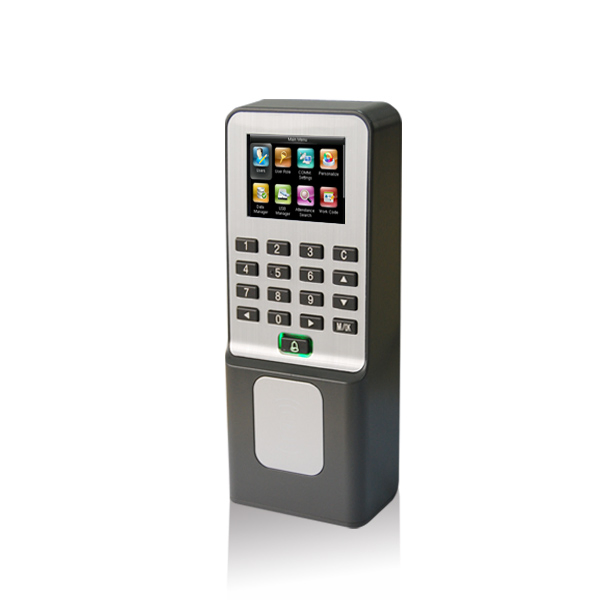

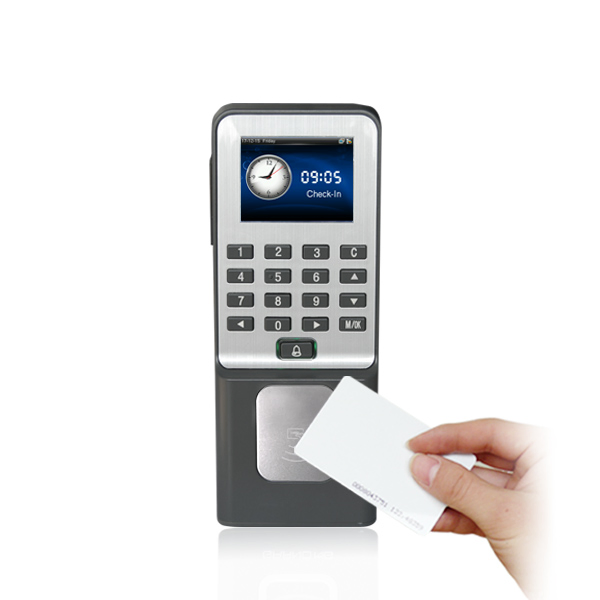

TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
1 / 5
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)

TCP/IP Web Based RFID Card Access Control System (S600)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.S600
Power Supply110/220VAC ~ 12VDC (PS-3A Optional)
Attendance StatusCheck in, Check out
CommunicationsTCP/IP, RS232/485, USB Host, Wiegand in/out
UsageAccess Controller, Access Machine
Reading MethodCard
ConnectionNetwork Access Control System
HS Code8543709990
Capacity6000 sets/Month
SpecificationCE, FCC, ROHS, ISO9001

Product Overview

S600 Biometric Time Attendance and Access Control System

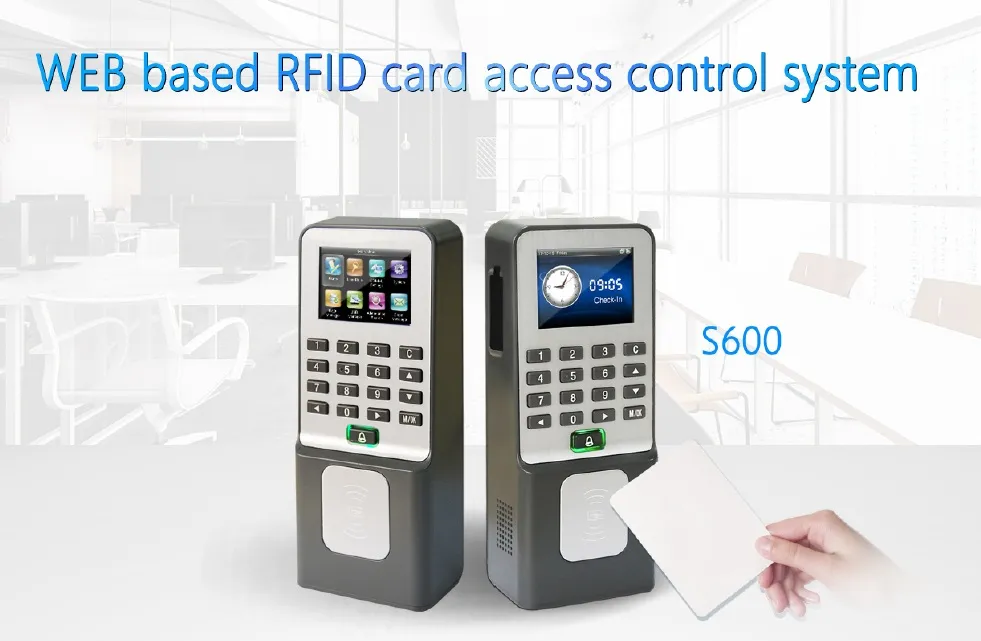

S600 RFID Card Access Control System

Key Features

⚡Composite algorithm system with high speed operating
⚡1 touch a-second user recognition
⚡Standalone or network environment support
⚡Real-time entrance logs transferring
⚡24 hours continuous operation available
⚡Support 125Khz ID card & wired door bell

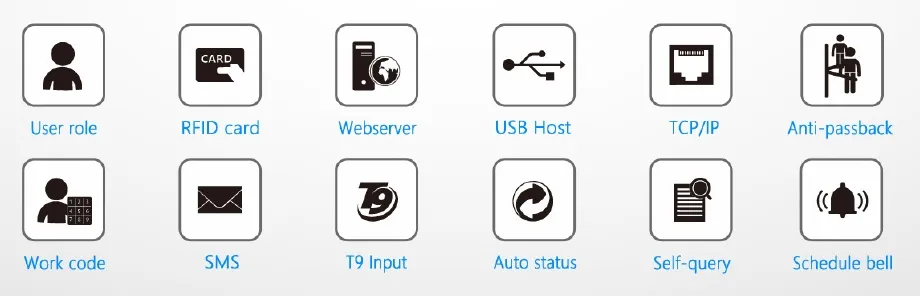

Product Features

Technical Specifications

Display & Audio Language Support
LCD Display: 2.4 TFT color LCD screen Multi Language: English, French, Spanish, Arabic, etc.
Speaker: Voice Prompt (selectable) Over 40 languages available for selection
Capacity Environmental Requirements
Card capacity: 50,000 Operation temperature: 0 ~ 45℃
Log capacity: 100,000 Operation humidity: 20% ~ 80%
Verification Speed Accuracy
Verification speed (1:1): ≤0.5s FRR: ≤0.01%
Identification speed (1:N): ≤1s FAR: ≤0.0001%
Communication & Power Physical Features
TCP/IP, RS232/485, USB Host, Wiegand In/out Machine Size: 185(L)*75(W)*40(H)mm
Power: 110/220VAC ~ 12VDC Attendance status: Check in, Check out

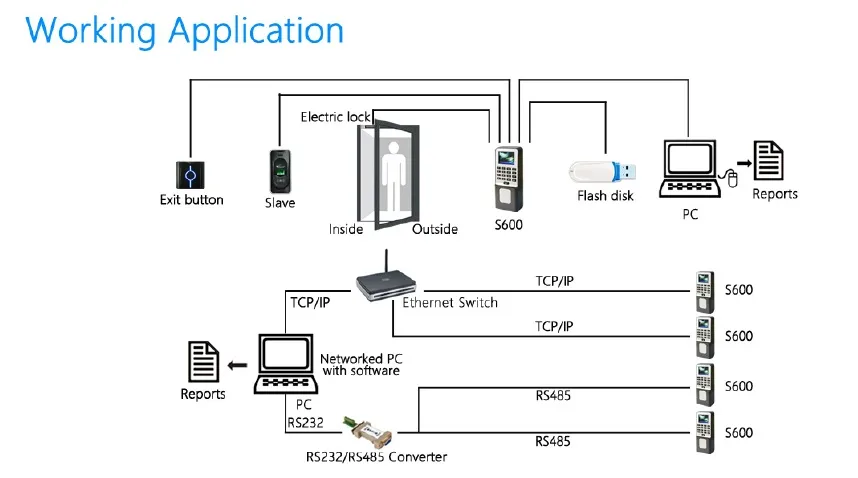

S600 Specification Detail

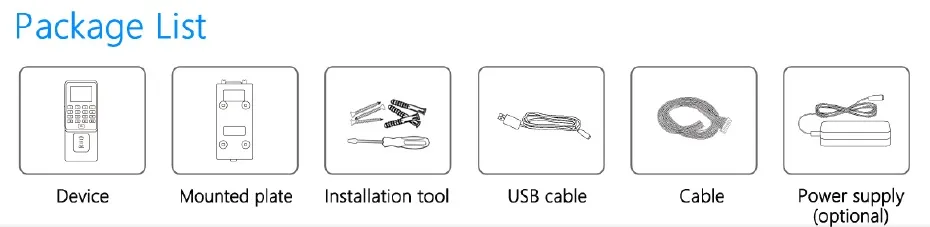

Access Control Interface

Frequently Asked Questions

Q1: How many users/cards can the S600 system handle?
The S600 supports a large capacity of up to 50,000 cards and can store 100,000 logs.
Q2: Does this device support network communication?
Yes, it features multiple communication interfaces including TCP/IP, RS232/485, and USB Host for easy data management.
Q3: Is the system available in different languages?
Absolutely. The device supports over 40 languages, including English, French, Spanish, and Arabic.
Q4: What type of card technology does the S600 use?
The standard model supports 125Khz ID cards. It can be customized to support M1 or HID readers if required.
Q5: Can it be used for professional access control?
Yes, it includes professional features like a built-in relay, 50 time zones, 5 groups, 10 combinations, and anti-pass back functions.
Q6: What are the power requirements for the device?
The system operates on 110/220VAC ~ 12VDC. An optional 3A power supply is also available for specific installations.
