Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
1 / 5
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk

Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk

Customization: Available
Screen: Color Screen
Application: Community, Hotel, Hospital, Campus, Supermarket, Enterprise, Factory, Data Center/Subway/Airport
Send Inquiry

Product Description

🔸 Basic Information
Model NO.
FA8
Operation System
Android 14
CPU
Rk3576, Quad-Core, 2.0GHz
Memory
4GB RAM + 64GB ROM
Display
10-Inch (800X1280)
Facial Capacity
Max up to 30,000 Faces
Camera
Dual-Lens (RGB+IR), 2MP+2MP
IP Rate
IP65 (Screen)
Power
12V/2A or POE
Communication
RS485, USB, RJ45, Wiegand
🚀 Key Features & Highlights
🛡️

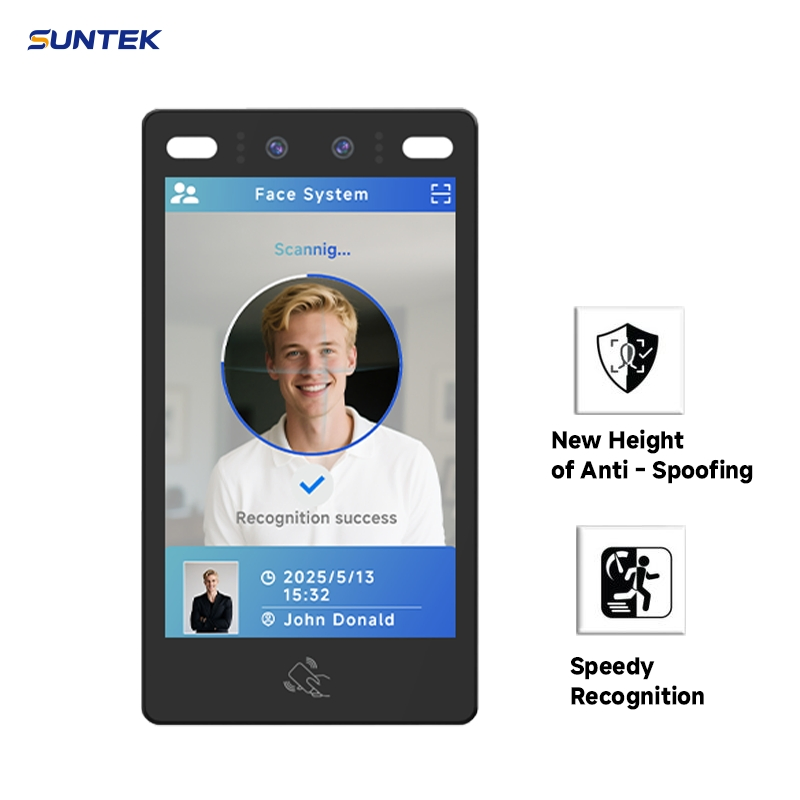

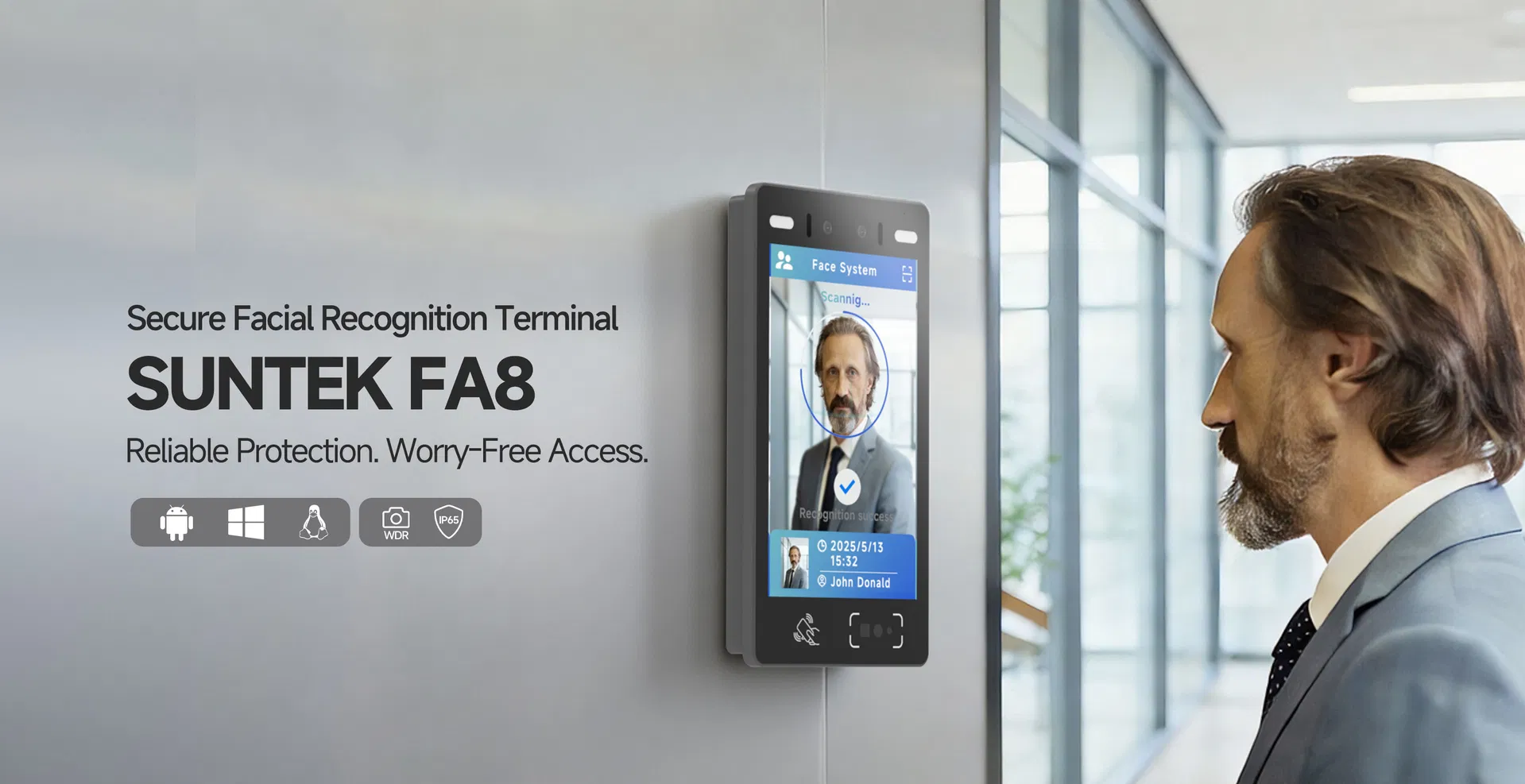

Secure Access Control

Advanced facial recognition terminal built for reliable protection and worry-free access.

⚡
High Speed & Accuracy

Recognition accuracy >99.99% with a blazing-fast matching speed of <0.2s.

👁️

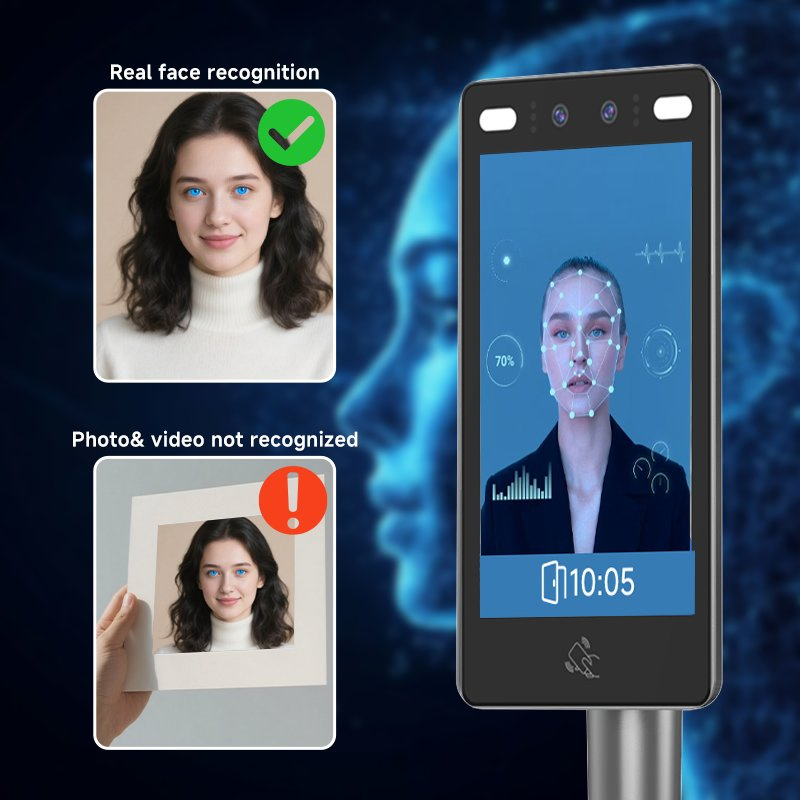

Liveness Detection

Safeguards against facial spoofing including fake faces, photos, videos, or masks.

🌦️
All-Weather Performance

Infrared + RGB dual-lens camera adapts to bright, dim, or backlit lighting conditions.

📸 Product Gallery
Facial Recognition Details
Interface and Display
Security System Features
Access Control Hardware
Industrial Design
Mounting Options
System Dimensions
Connectivity Ports
📋 Technical Specifications
FA8 Facial Recognition Terminal Specification
OSAndroid 14
ProcessorQuad-core, 2.0GHz
Memory4GB RAM + 64GB ROM

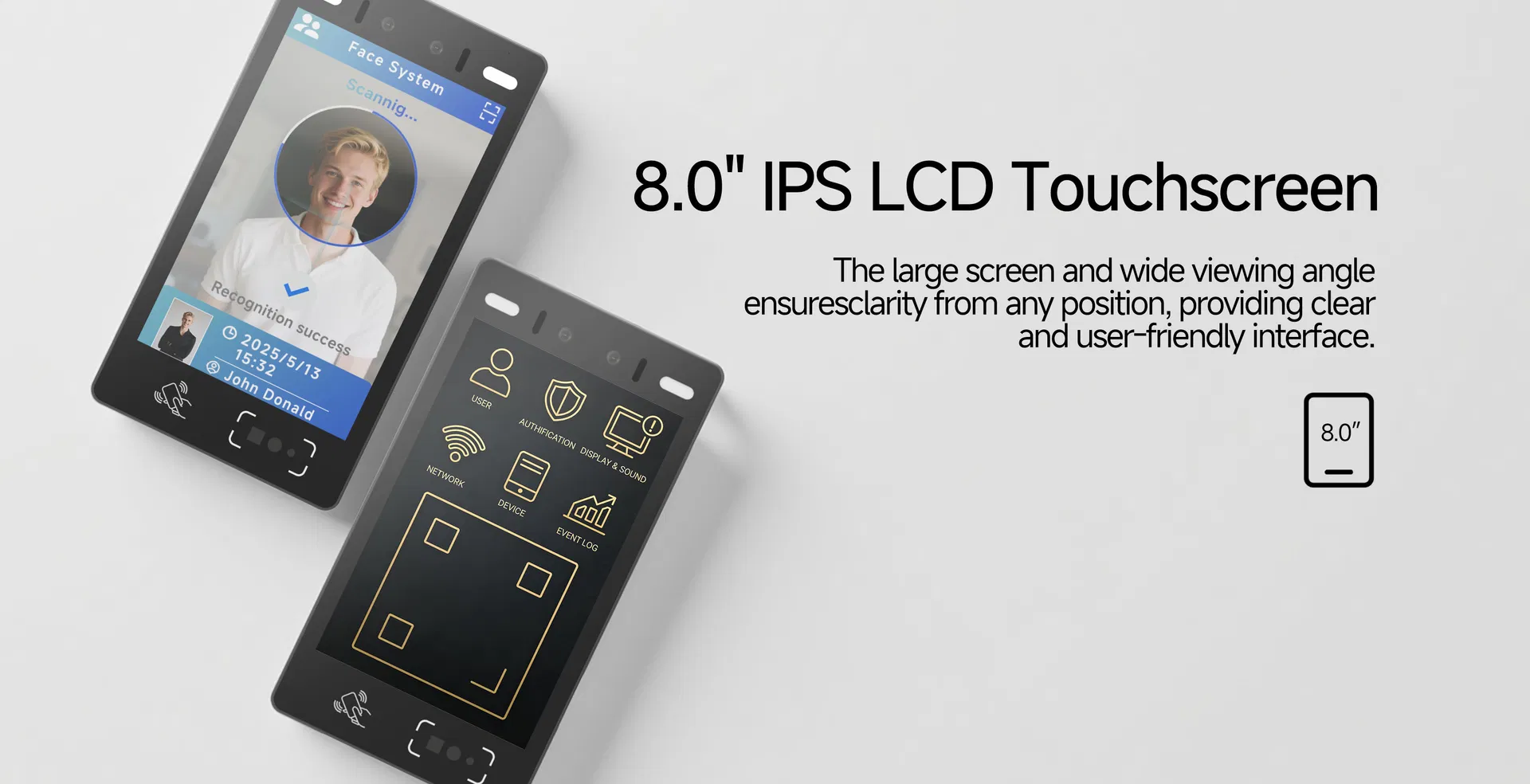

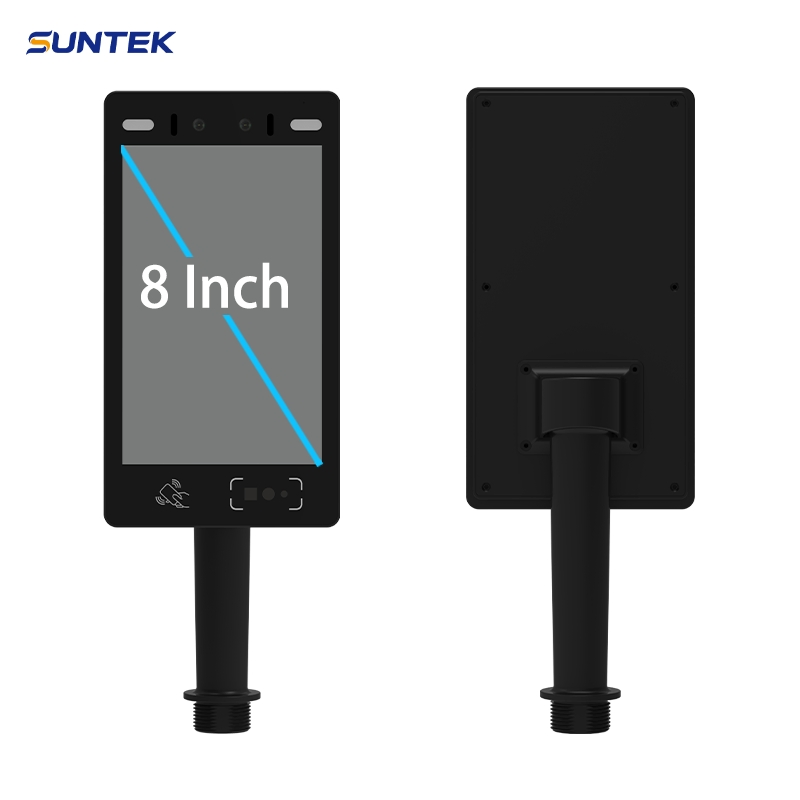

Display8-inch IPS LCD (800x1280) Touchscreen
Front CameraDual-lens (RGB+IR); 2MP+2MP
CommunicationsWIFI, Bluetooth, Ethernet

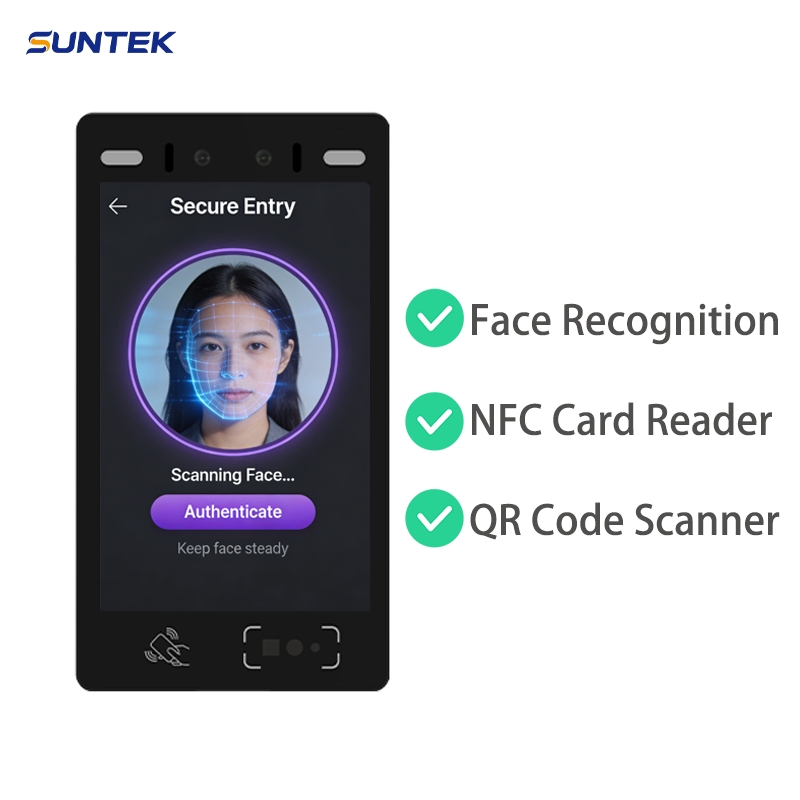

Contactless Card ReaderISO14443 Type A/B, NFC
Fill LightRed, Green, White LED Light
Rich Ports1xDC, 1xRJ45, 1xUSB, 1xUBOOT, Wiegand I/O, 1xRS485, 2xGPIO, 1xRelay
AudioDigital Audio Speaker; Microphone
Dimensions (mm)235 (L) x 128 (W) x 25 (H)

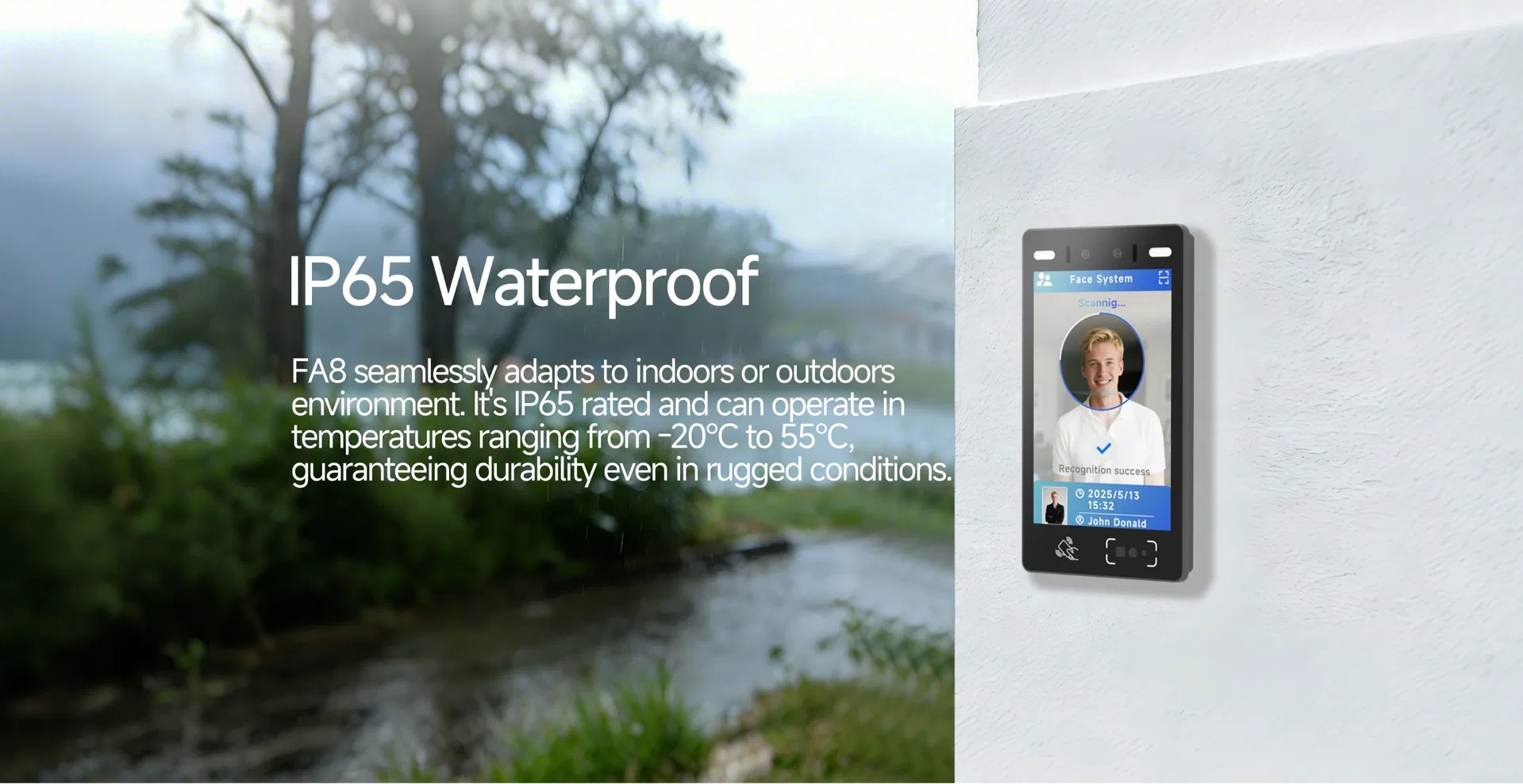

EnvironmentalOperating: -20℃ ~ 55℃; Storage: -25℃ ~ 60℃

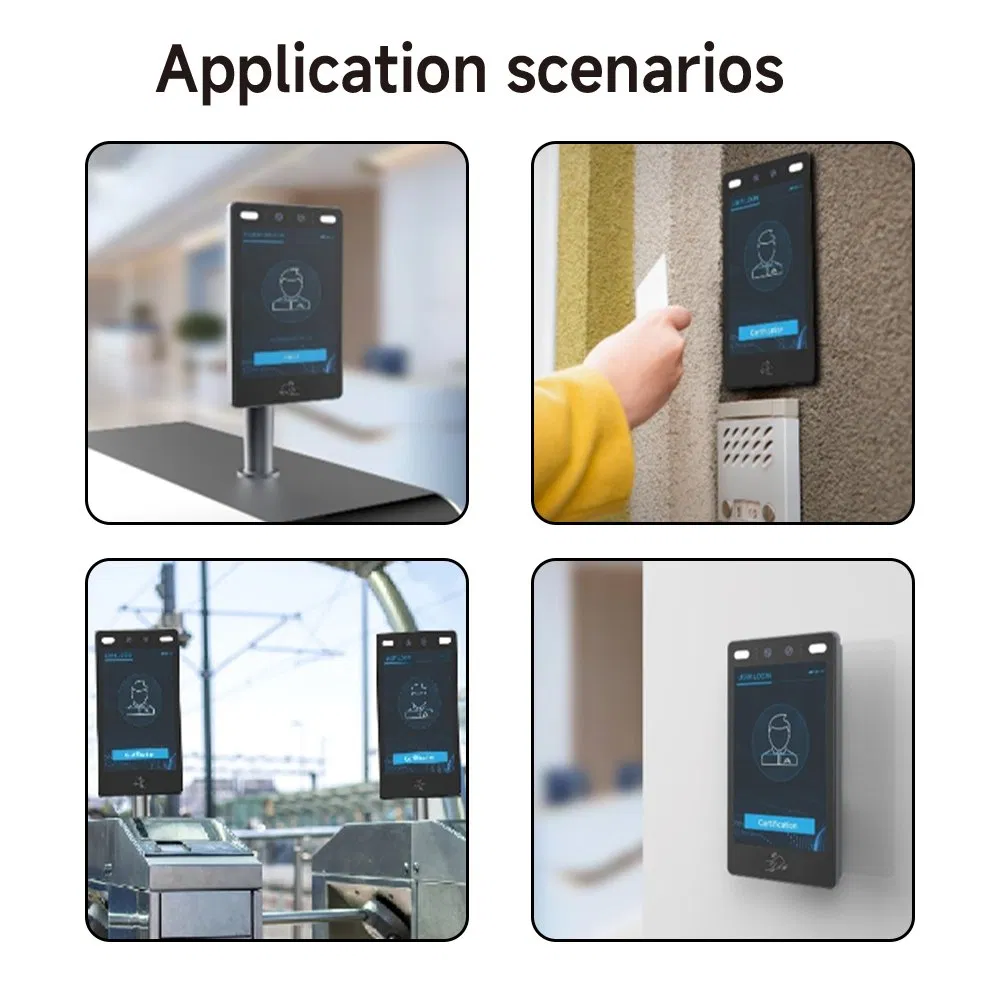

🌐 Wide Applications

Perfect for various sectors:

  • Corporate & Government: Employee entry and visitor registration.
  • High-Security Zones: Data centers and research labs.
  • Healthcare: Hygienic, touch-free access solutions.
  • Transportation: Crowd management at public venues.
  • Time & Attendance: Precise employee work hour logs.
❓ Frequently Asked Questions
1. Does the terminal come with POS or Access software?
We are a hardware manufacturer, so the terminal comes equipped with the operating system only. We provide the SDK for integration, as software requirements vary by country and specific application needs.

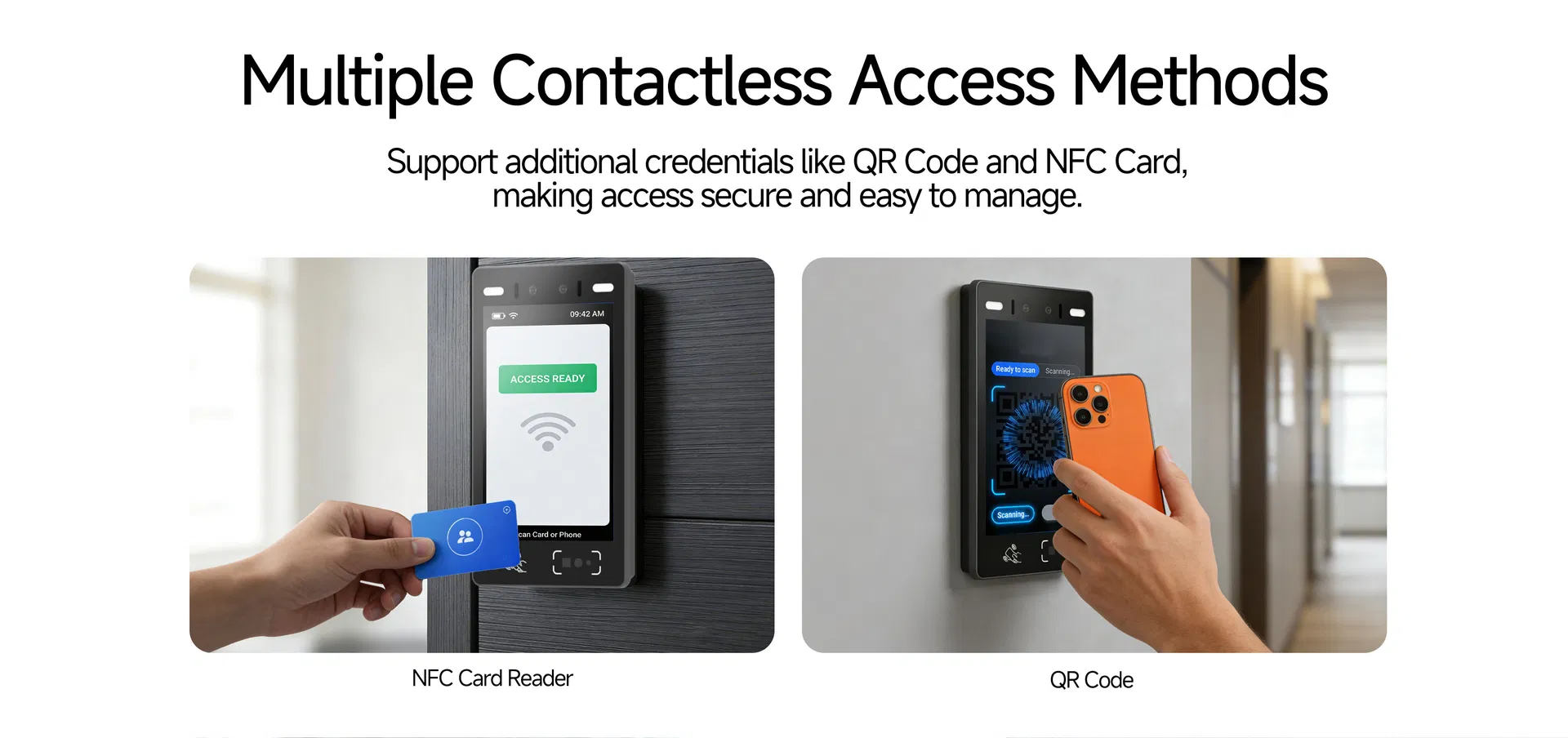

2. What type of card reading does the device support?
The device includes a contactless card reader supporting ISO14443 Type A/B, MIFARE, and NFC protocols.
3. Can the device be used outdoors?
Yes, with the optional turnstile bracket, it can be upgraded to an IP65 waterproof rating, making it suitable for all-weather outdoor deployment.
4. How does the device handle fake face attempts?
It utilizes advanced liveness detection technology and a dual-lens (RGB+IR) camera system to prevent unauthorized access via photos, videos, or masks.
5. What is the maximum facial capacity?
The FA8 terminal can store and recognize up to 30,000 face templates locally for high-speed offline verification.
6. Do you support custom OEM/ODM solutions?
Absolutely. We offer comprehensive customization services tailored to your specific project requirements, leveraging over 15 years of industry experience.
