| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |

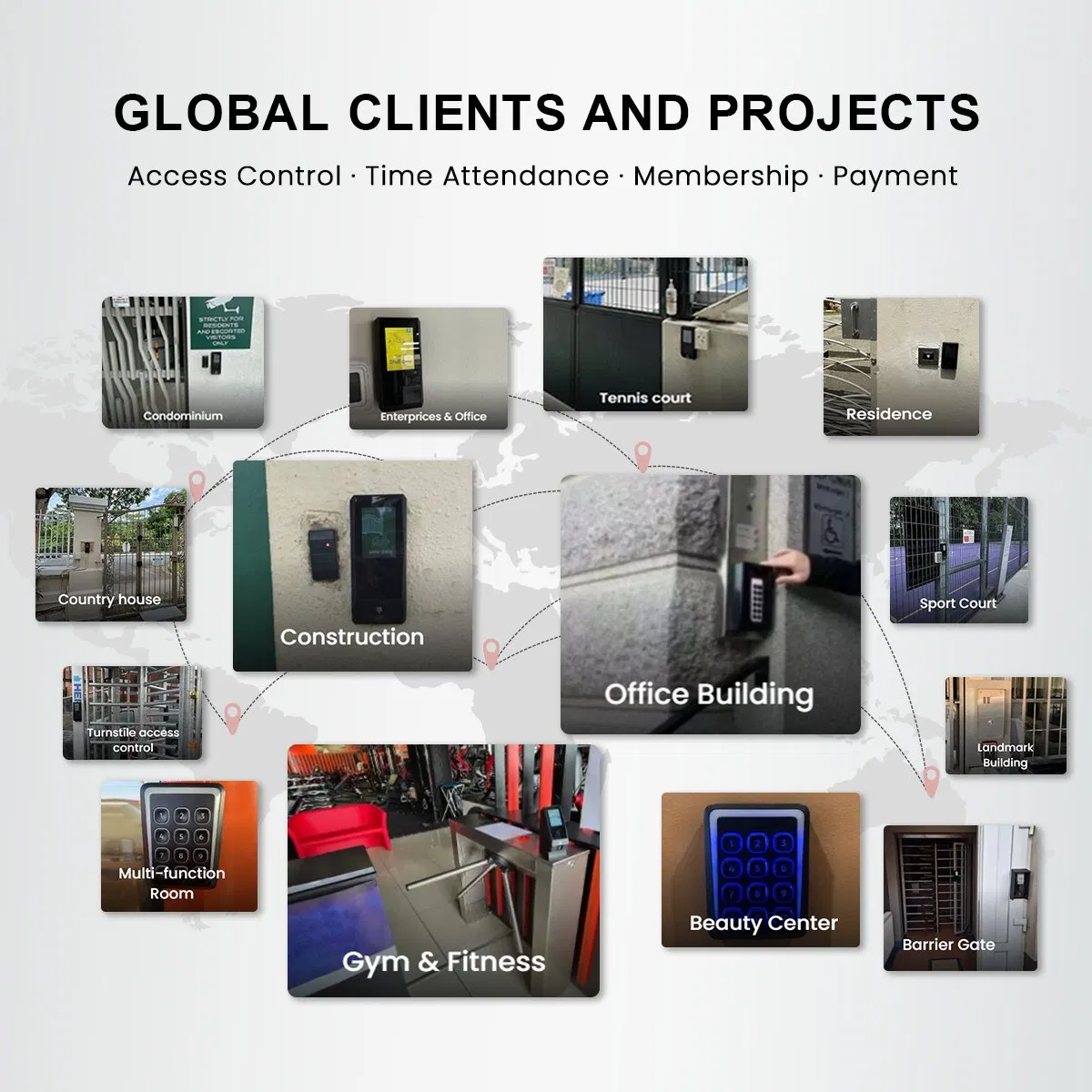

| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional QR Code |
| RFID Support | MIFARE Plus, MIFARE, DESFire EV1/EV2/EV3, 125kHz |
| Mobile Credential | NFC, BLE |
| QR Code | QR Code, Barcode |
| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| Secure Module | ISO7816 Sam Module |
| Power | 12-24V DC; Poe IEEE 802.3af |
| IP Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |
| Origin | China |
CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39 and mainstream 1D/2D barcodes. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic/Plus, DESFire EV1/EV2/EV3, NFC tags, ISO14443B, iCLASS Seos |
| Offline Capacity | 10,000 users / 50,000 logs |

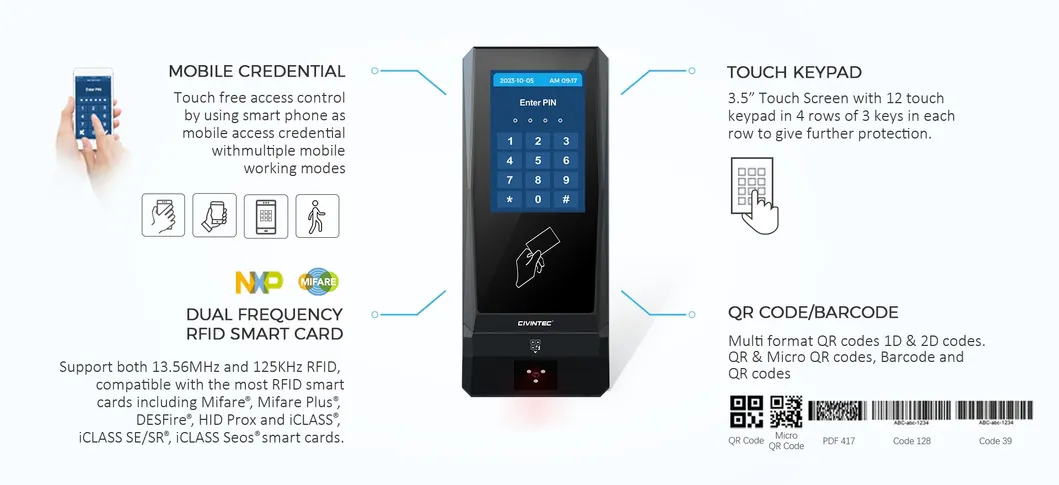

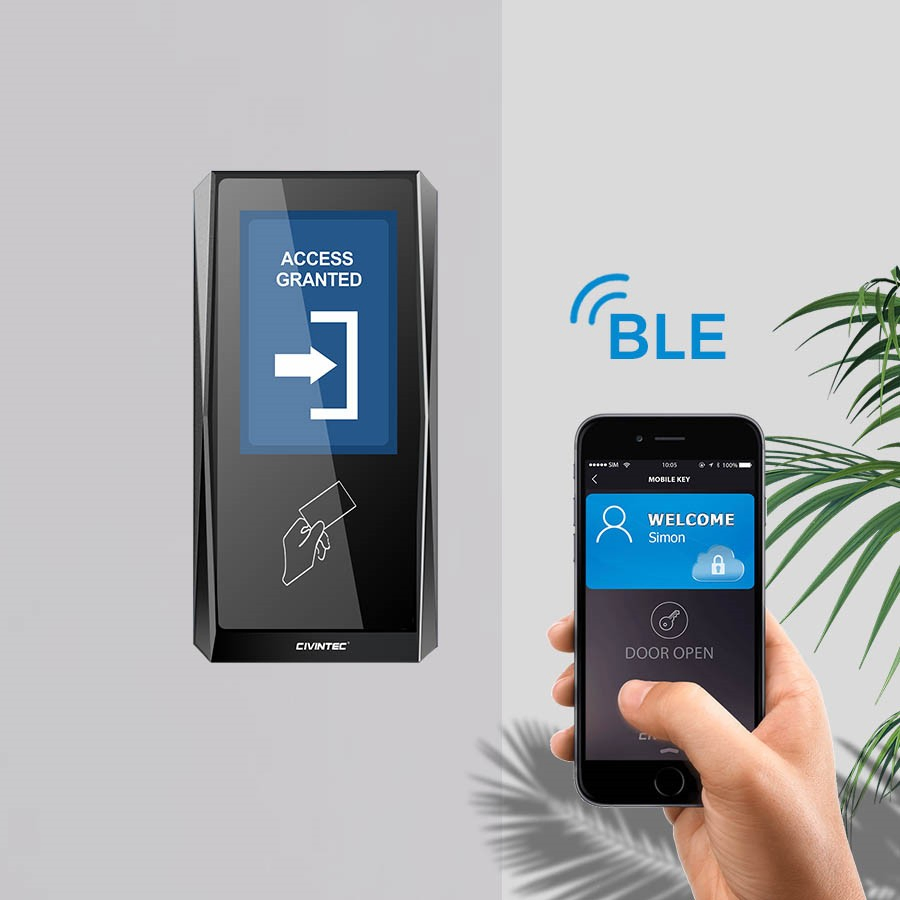

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.
Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It features an embedded relay output to control door locks as ACCESS DENIED or ACCESS GRANTED.
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature and various rugged working environments.
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
