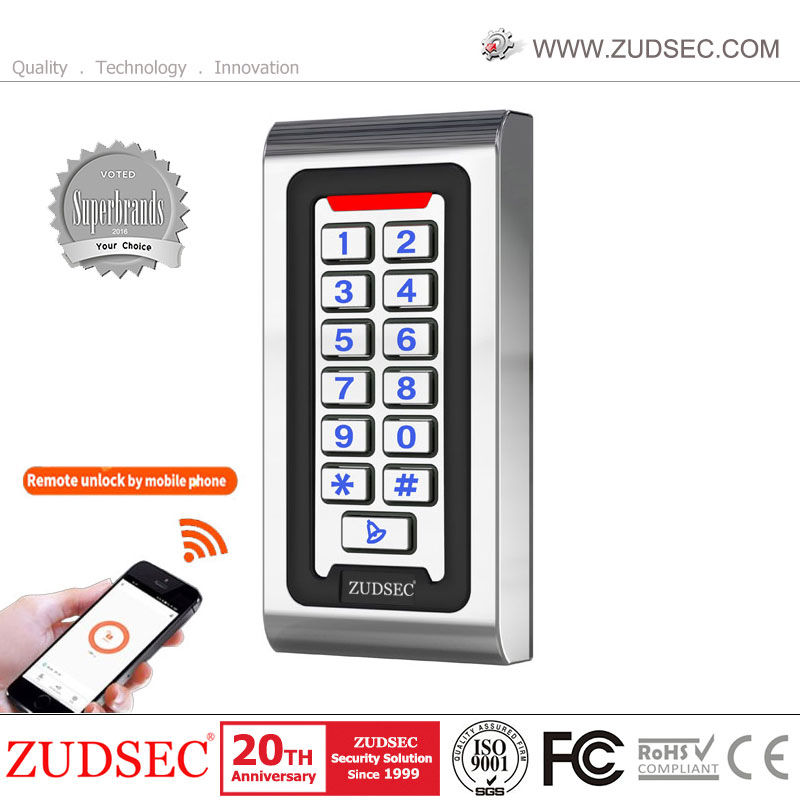

Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
1 / 5
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZDAC-2400W-WiFi
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Item
Waterproof WiFi Access Control
Identification Way
Card, Pin, Card & Pin
Reading Distance
3-6cm
Type of ID Card
125kHz, Em
Operating Voltage
DC 12-24V
Capacity
2000 Users
Waterproof Design
IP68
Material
Metal Case + Metal Keypad
Size
120* 58*20(mm)
★

Product Description

IP68 Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.

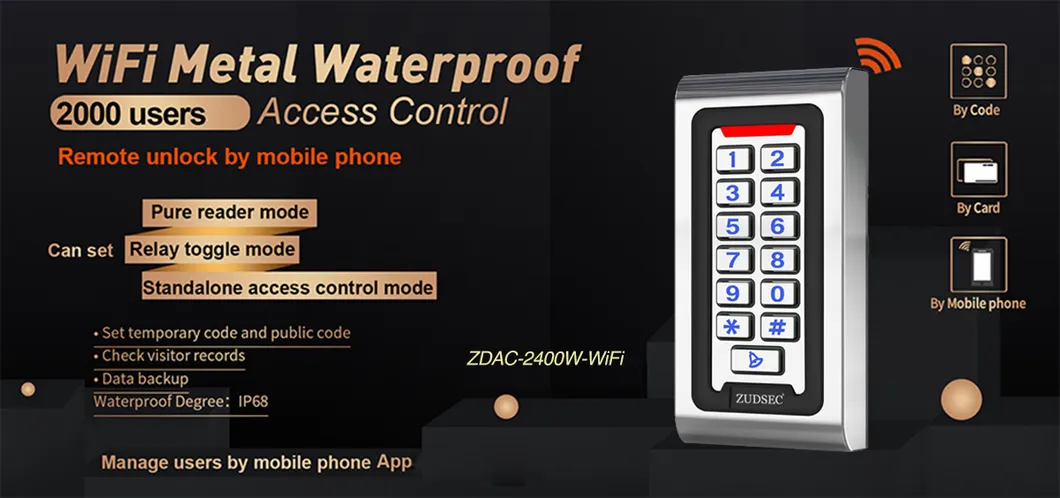

WiFi Access Control
✔

Main Features

  • Aluminium alloy case, waterproof, fully potted, meets IP-65/IP68 standard
  • Metal digital backlit keypad (Adjustable backlight modes)
  • Built-in door bell and 125KHz card reader with Auto-Recognition
  • 2000 users capacity (Card + 4-6 digits password)
  • Master card support for easy management
  • Support for 2-10 multi-card entry mode
  • Wiegand 26-37 output for card reader model
⚙

Technical Parameters

Operating VoltageDC 12-24V; Operating Current ≤35mA
Card Reading Distance3-6CM
Keypad Transmit Format4-6 digits key press (4 bits or 8 bits data)
Card Type125KHz, EM / Wiegand 26-37
Operating Temperature-40ºC to 60ºC
Operating Humidity0~95% (non-condensing)
Dimensions & Weight158.6L x 43W x 21.7D (mm); 0.5Kg
📷

Product Showcase

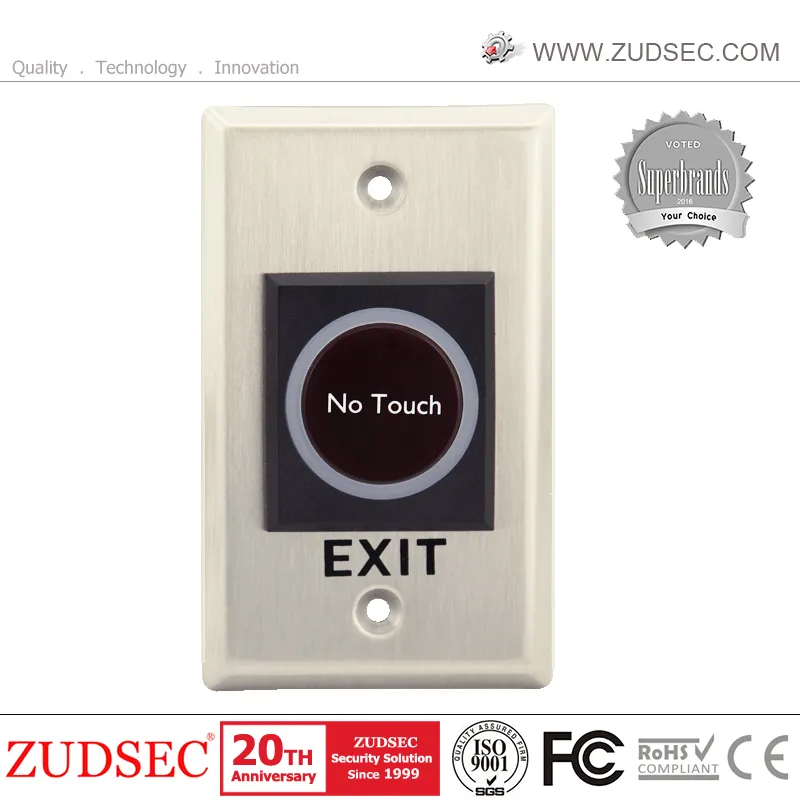

Access Control Front View

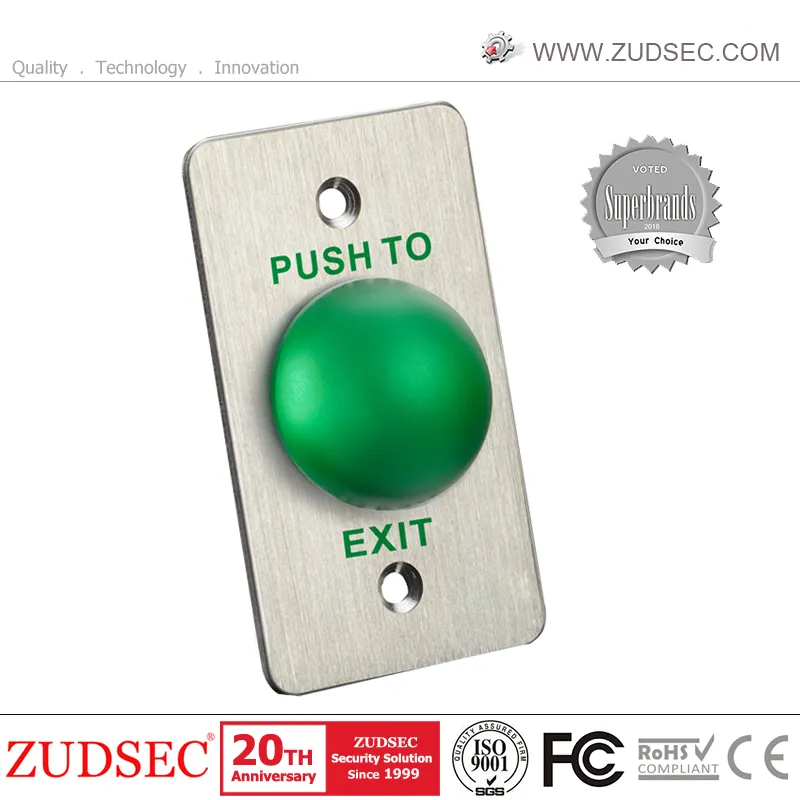

Detail 1

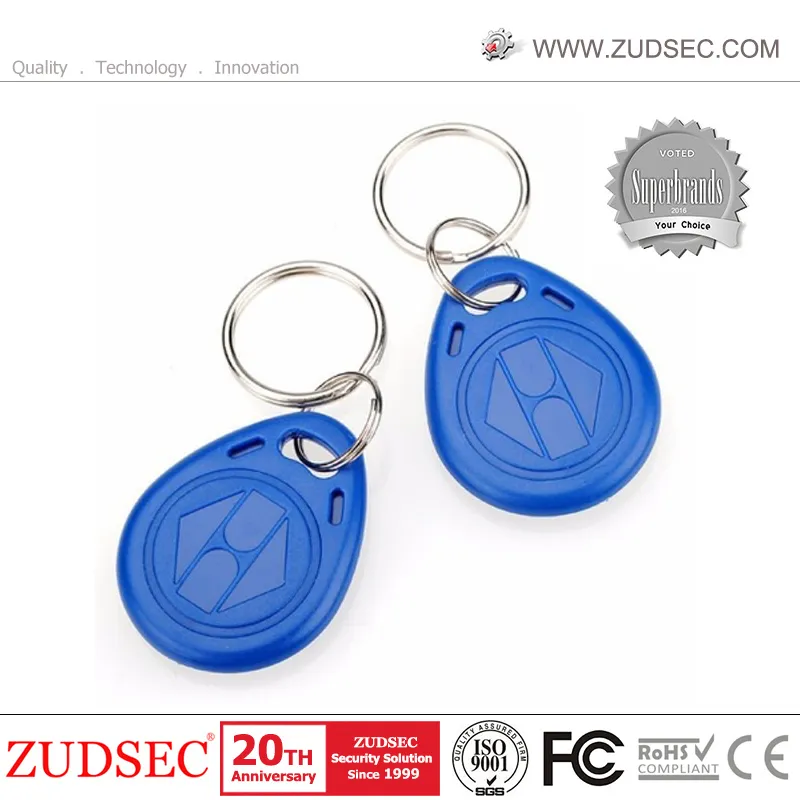

Detail 2

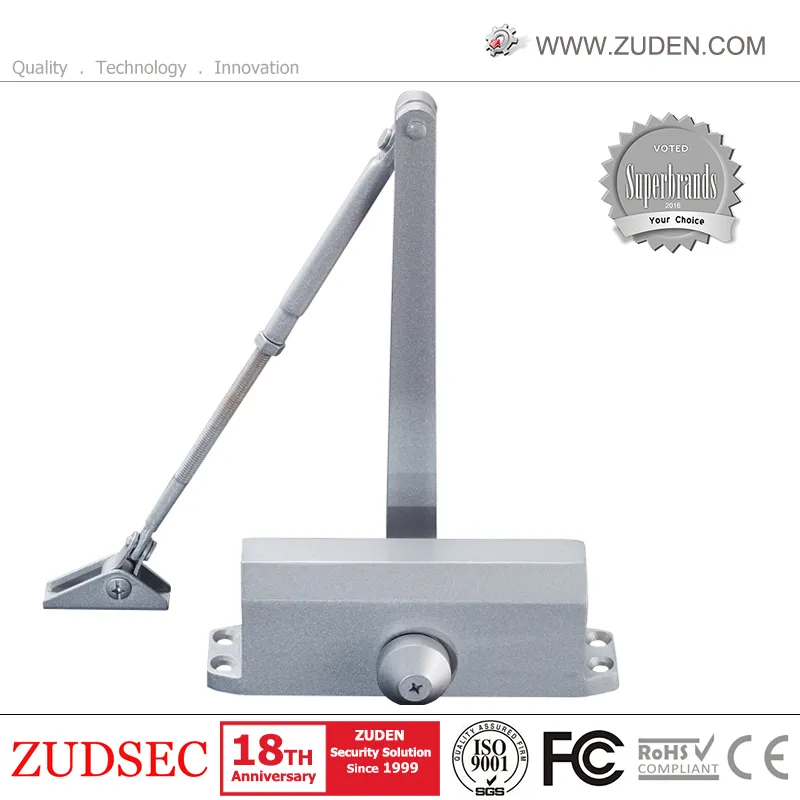

Detail 3

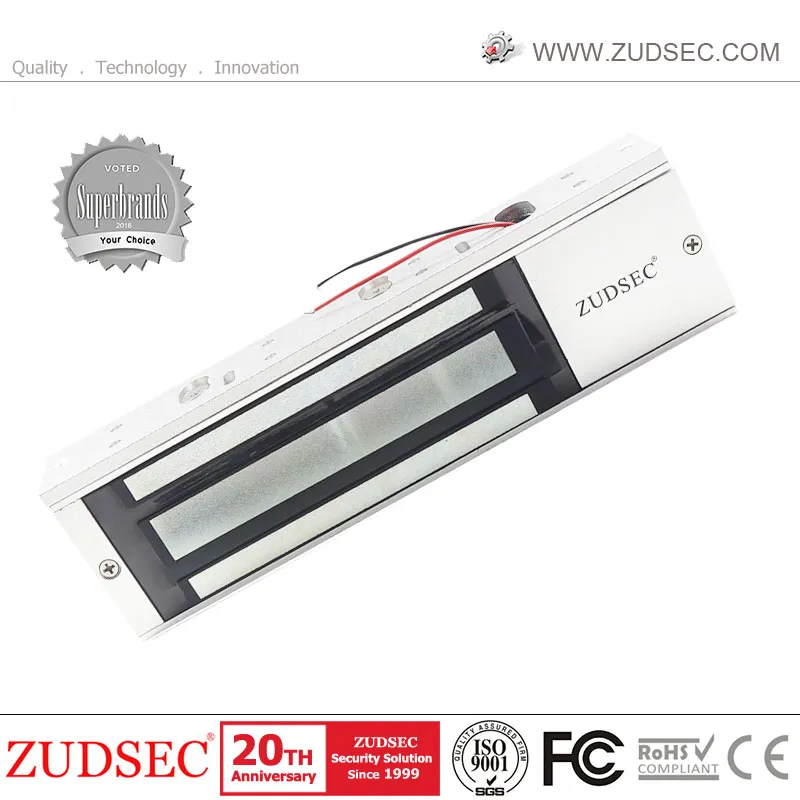

Detail 4

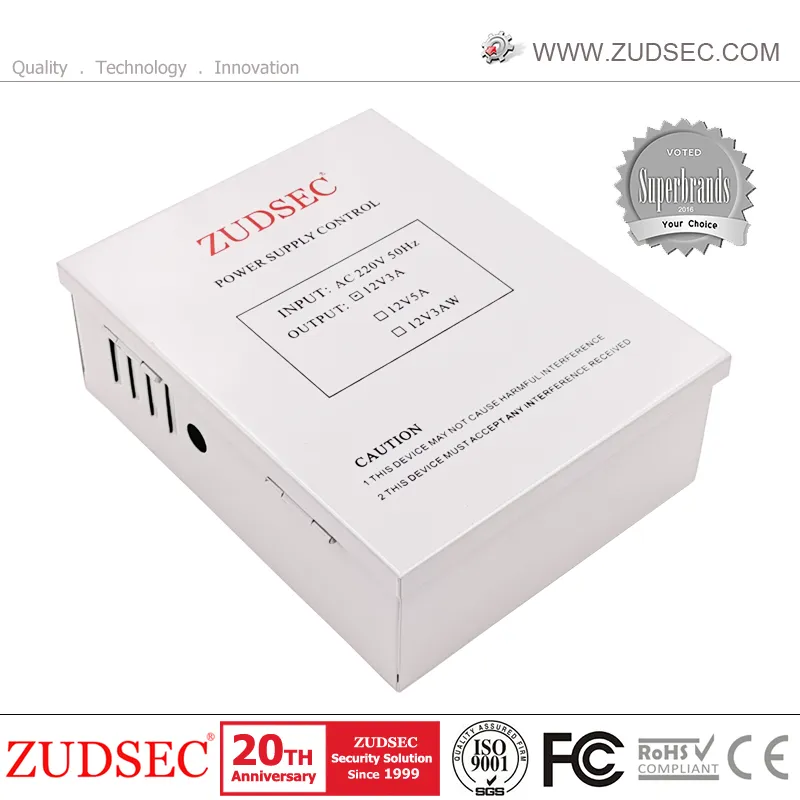

Detail 5
🔗

Related Series

Series 1
Series 2
Series 3
Series 4
?

Frequently Asked Questions

How many users does this access control system support?
The system supports up to 2000 users, and each user can have a registered RFID card and a 4-6 digit password.
Is this device suitable for outdoor installation?
Yes, it features an IP68 waterproof design with a fully potted aluminum alloy case, making it highly resistant to rain and dust.
Does it support smartphone remote control?
Yes, this is a smart WiFi version that can be integrated and controlled via the Tuya APP for convenient remote management.
What types of RFID cards are compatible?
The built-in reader supports 125KHz EM cards. It also has a Wiegand interface to work as a slave reader or connect to other controllers.
What is the required power supply?
The device operates on a wide voltage range of DC 12V to 24V, ensuring compatibility with most standard security power supplies.
Can the keypad backlight be turned off?
Yes, the metal digital backlit keypad can be configured to stay Normal ON, Normal OFF, or use Human-Approach activation.
