Model Name: SC800

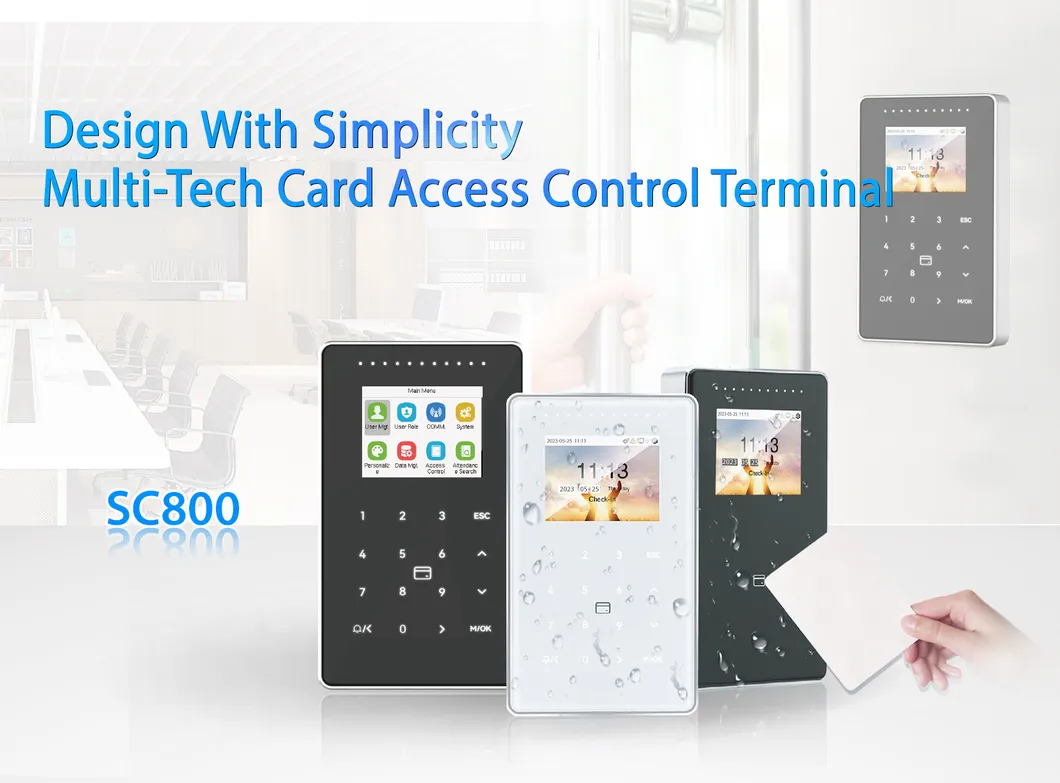

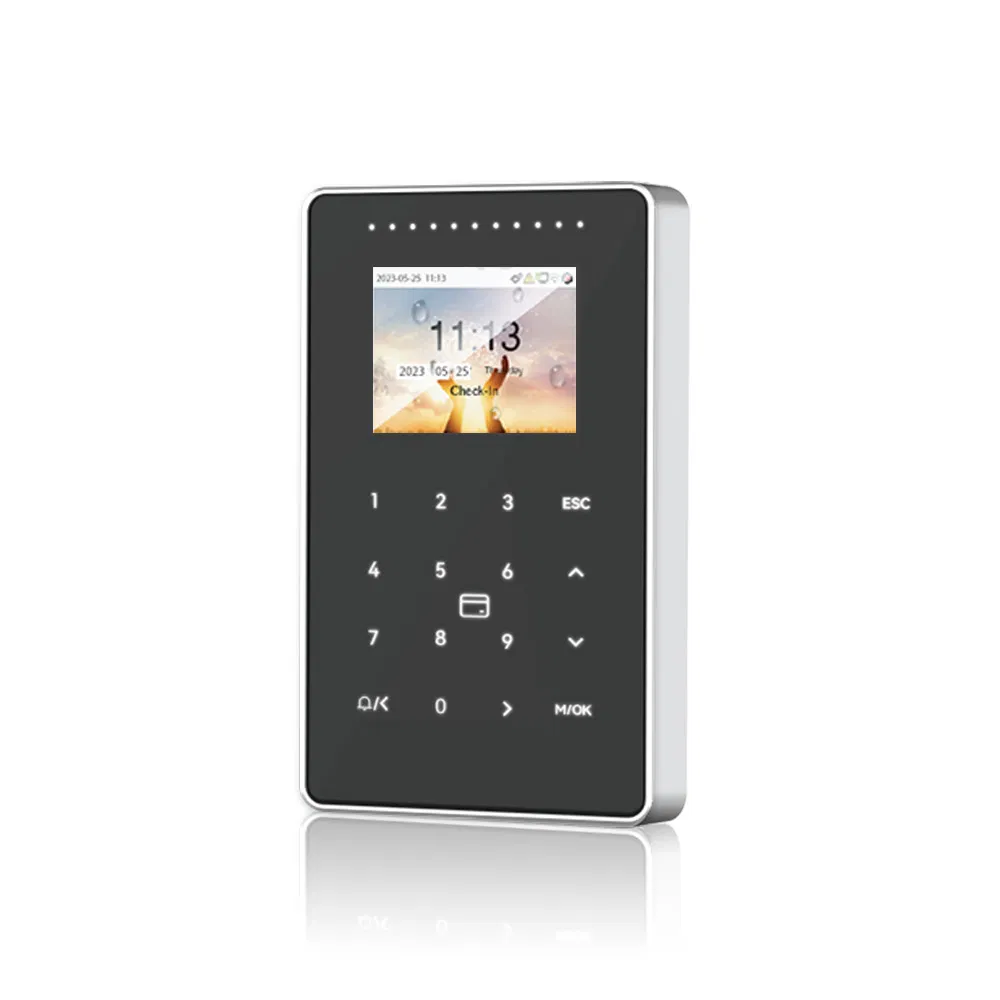

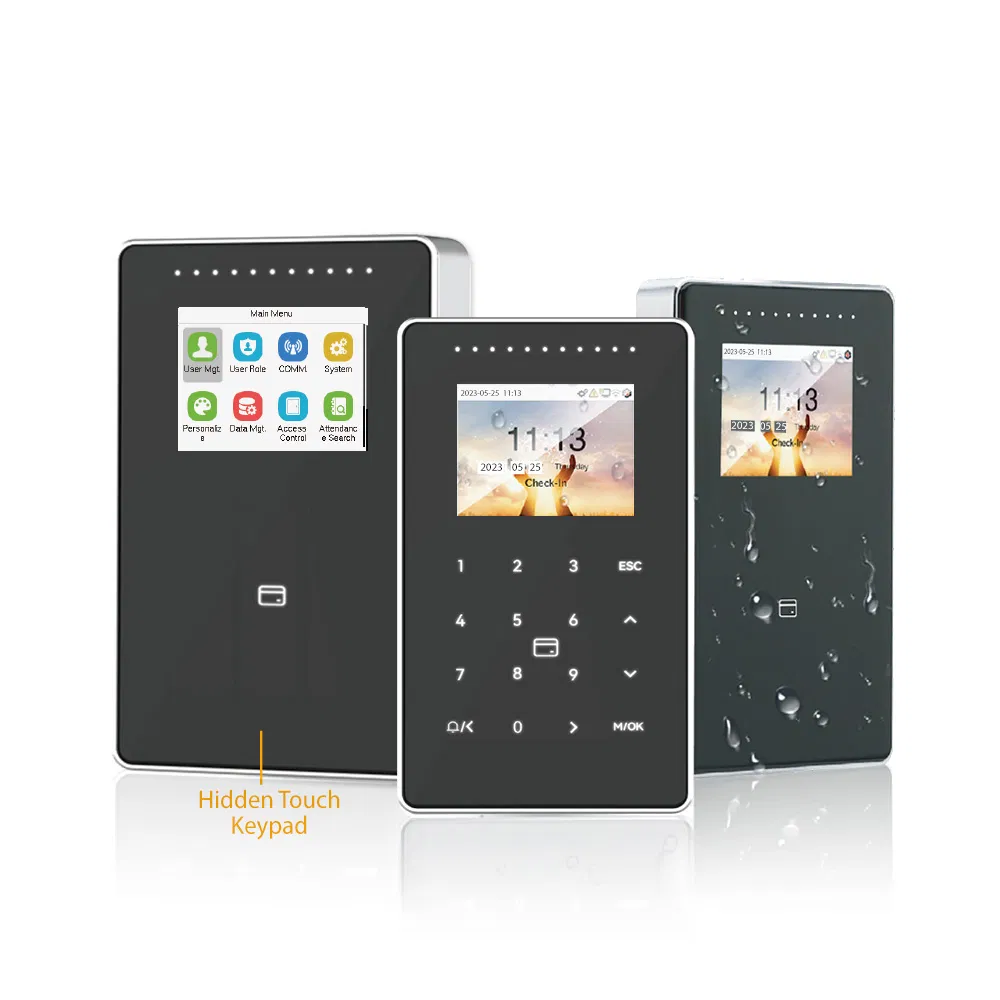

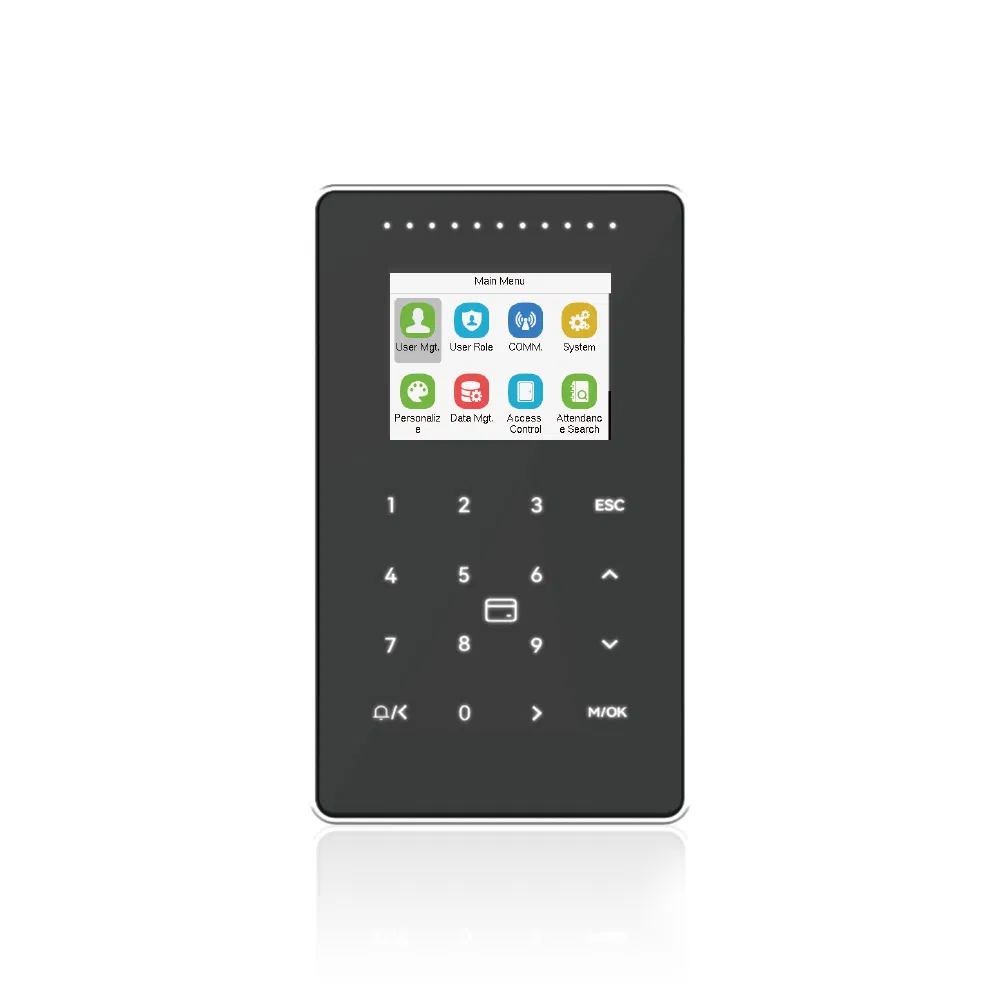

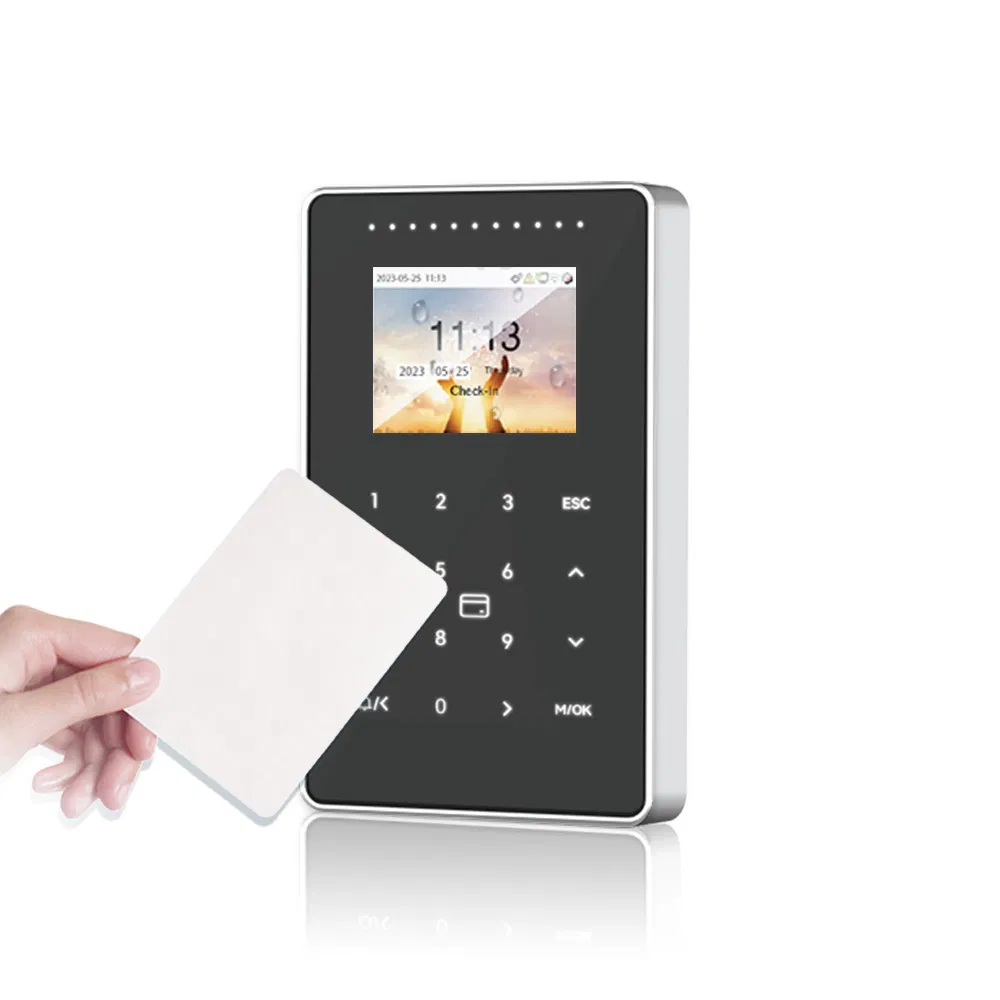

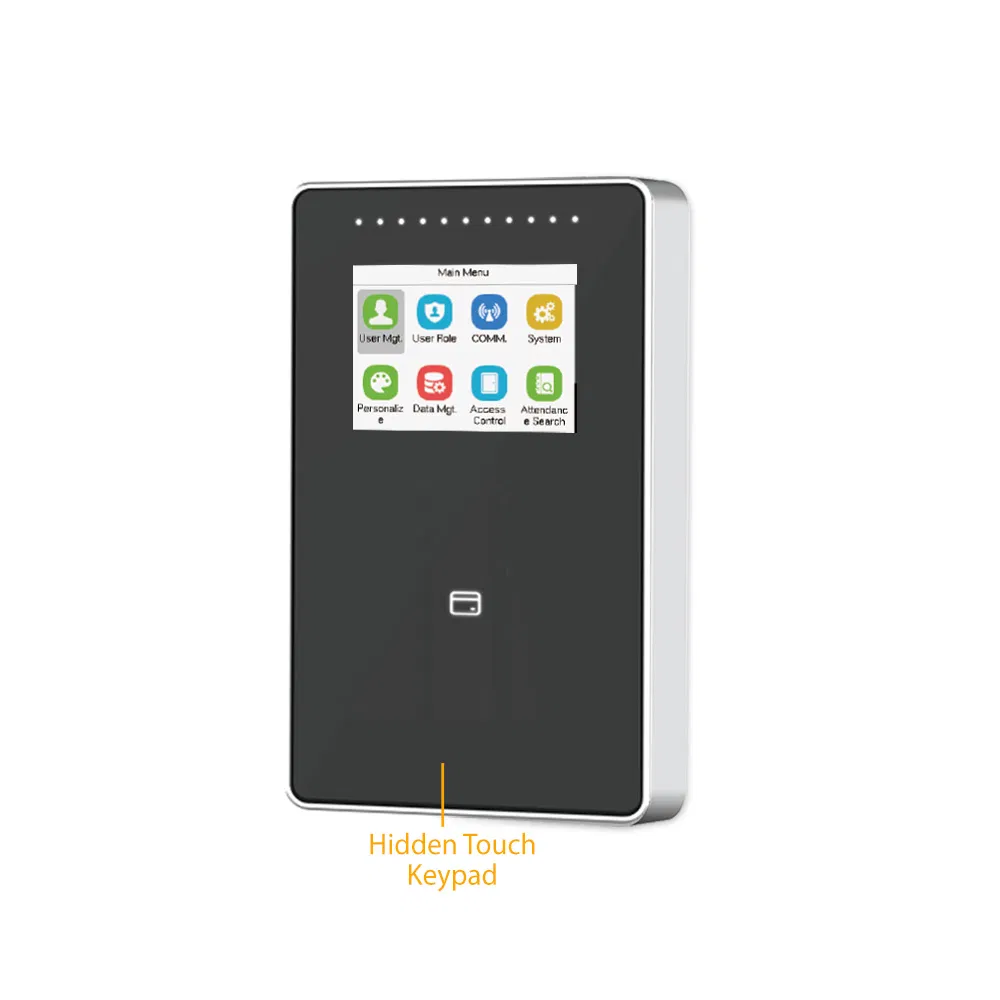

SC800 is a Linux-based and waterproof RFID Access Control terminal designed for outdoor application. It adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Featuring a 2.4-inch color screen and a hidden touch keypad, it enhances the touchless unlocking experience.

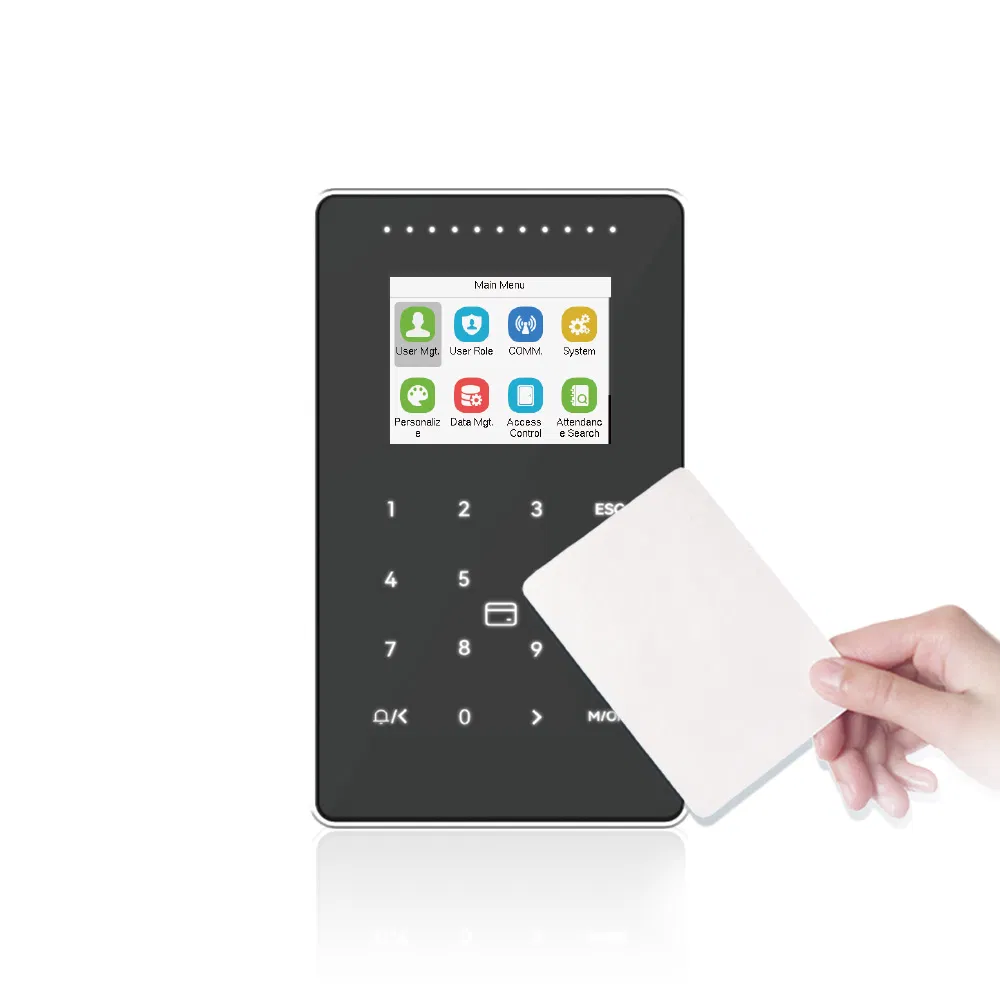

It supports the Multi-tech RFID module (125kHz and 13.56MHz cards) including H.I.D Prox and H.I.D i.class. It is compatible with major management software and acts as both a controller and an external reader via Wiegand ports.
| Operation System | Linux |
| Card Capacity | 50,000 (Optional: 100,000) |
| Logs Capacity | 200,000 (Optional: 1,000,000) |
| RFID Module | Standard: Proximity ID; Optional: IC, DESFire, Felica, Legic, H.I.D |
| Network | 10/100Mbps, Auto MDI/MDI-X |

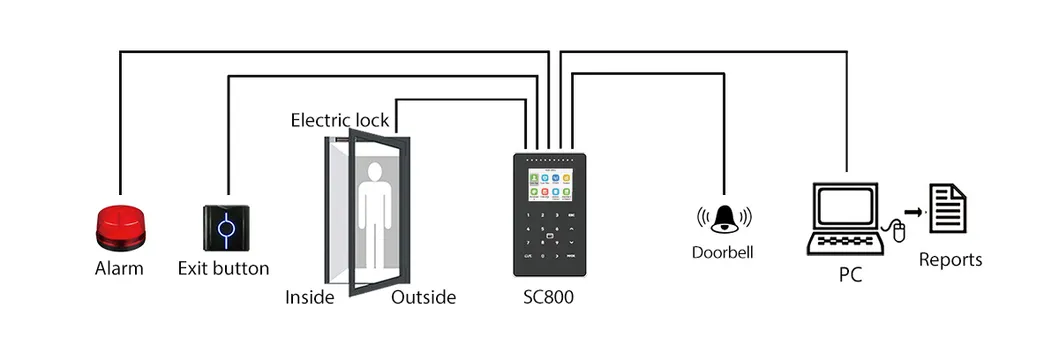

| Access Interface | 3rd party electric lock, Door sensor, Exit button, Alarm, Doorbell |
| Hardware | 1GHz Dual Core CPU, DDR2 64M, Flash 256M |
| Data Protection | AES-256 Encryption |
| Dimensions | 143 * 85 * 19.8 mm |
| Operating Temp | -10°C to 55°C |

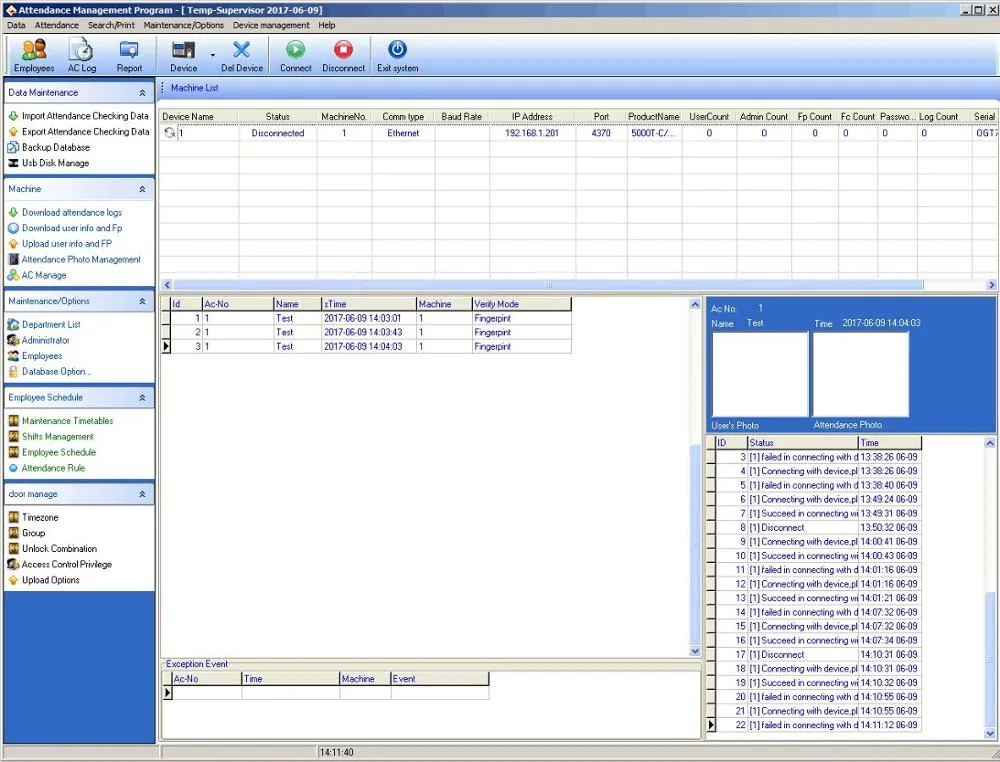

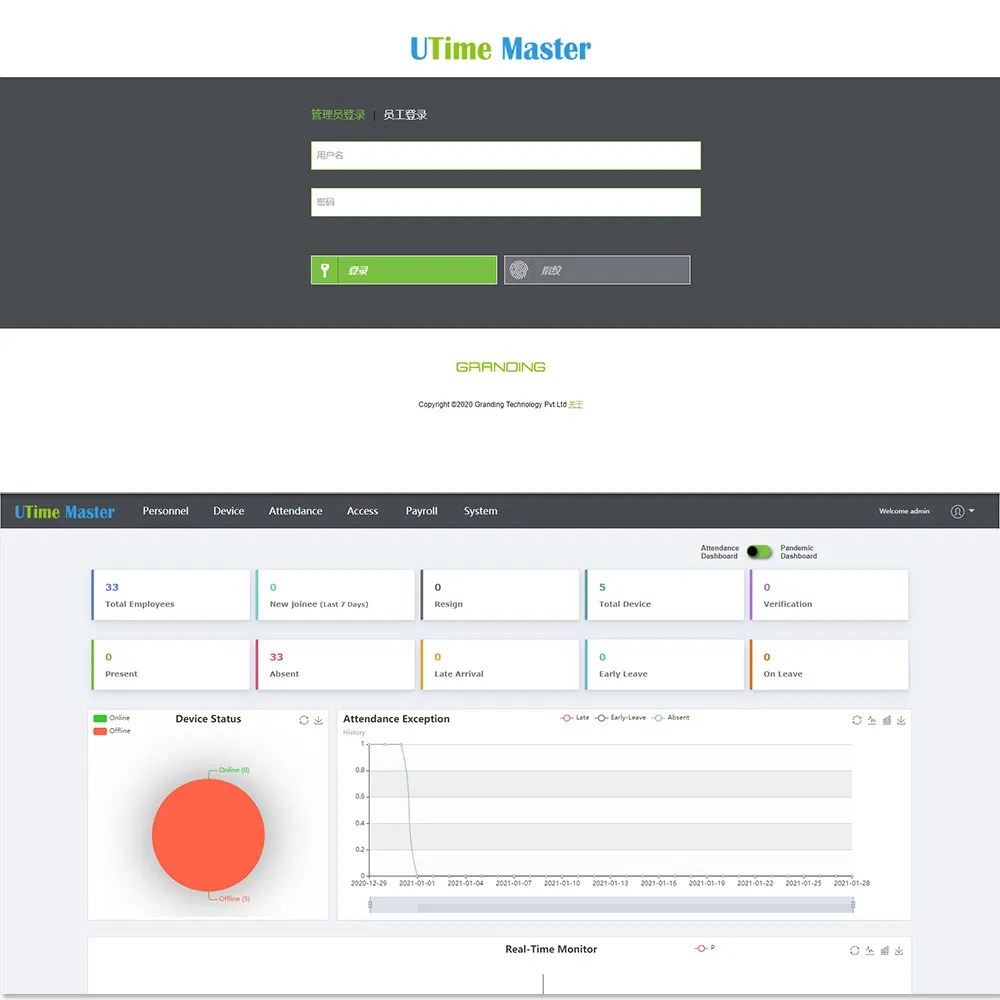

UTimeMaster Web-based Software: Supports multiple languages (English, Spanish, Portuguese, French, Arabic, etc.). Includes payroll, employee temperature management, mobile app functions, and schedule management.
Payment Terms: Paypal/Western Union for samples; T/T for regular orders; L/C for large orders.
Shipment Ways: International Express (DHL, UPS, Fedex, TNT, Aramex), Air, or Sea shipment.
