Product Description

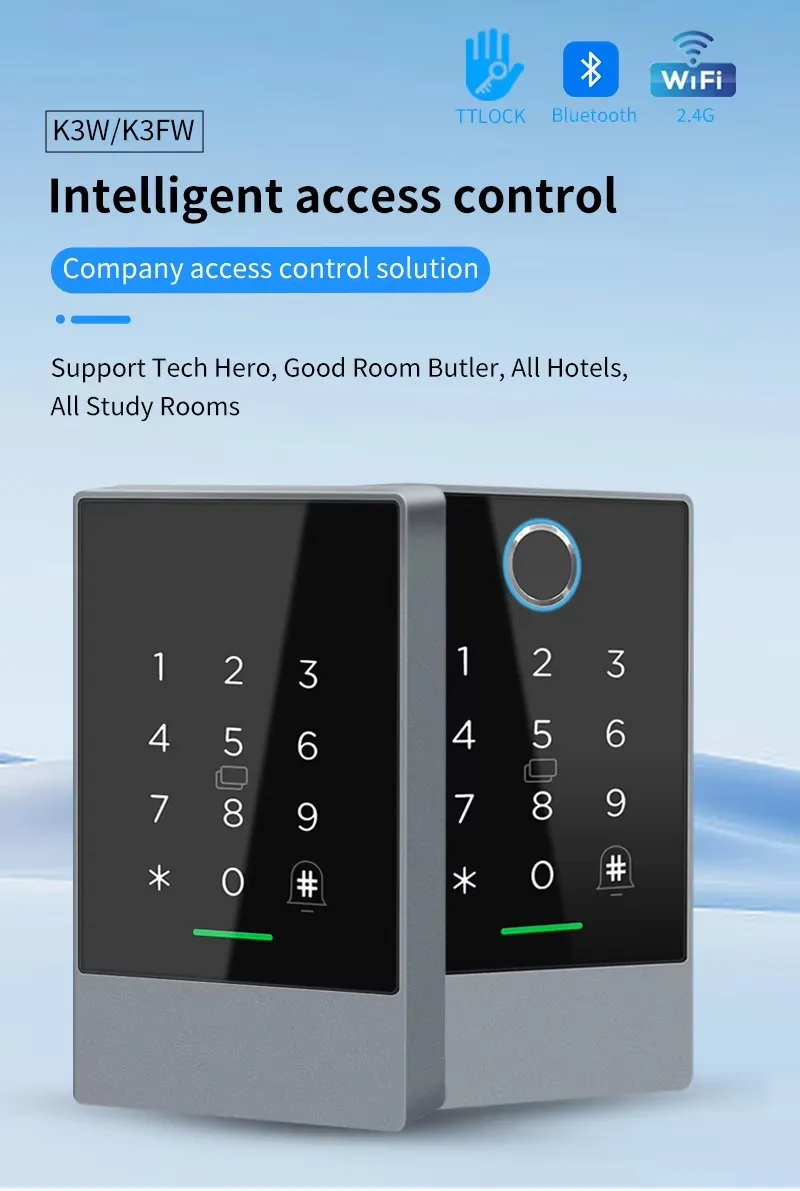

Introducing the K3FW - The Future of Intelligent Access Control
Upgrade your building's security with the K3FW Smart Access Control System, a powerful, reliable, and future-ready solution designed for modern offices, hotels, study rooms, and corporate campuses. With advanced Wi-Fi 2.4G + Bluetooth connectivity, this intelligent access controller offers seamless integration into any digital ecosystem.
Key Features

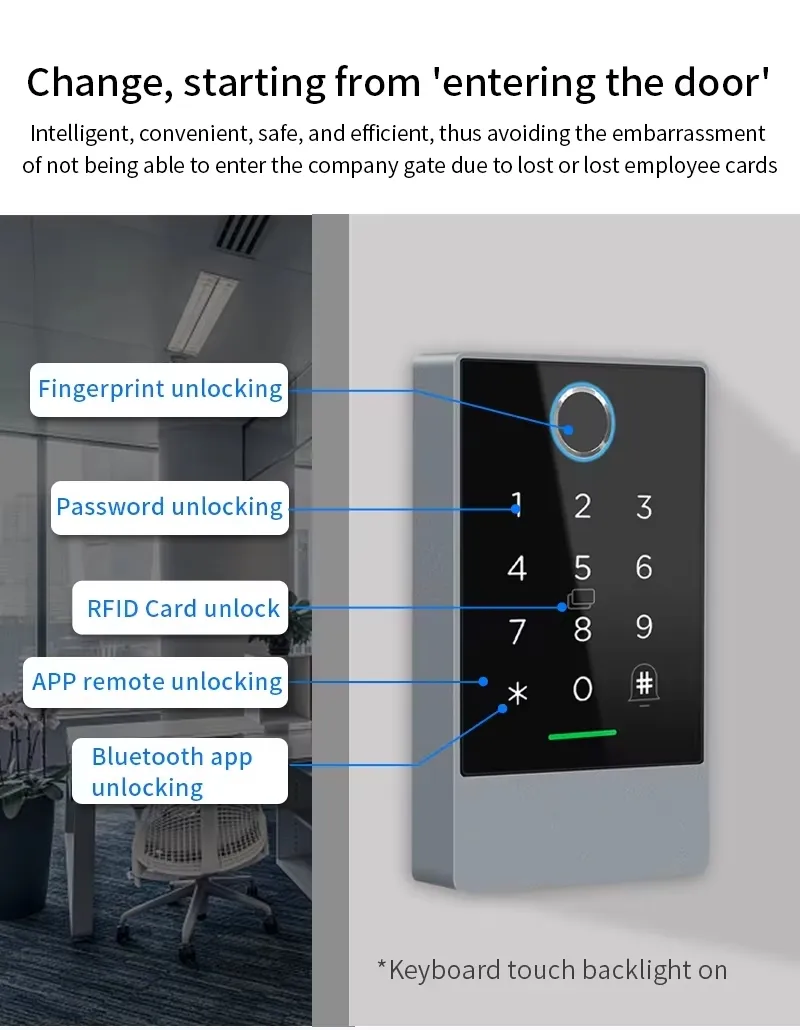

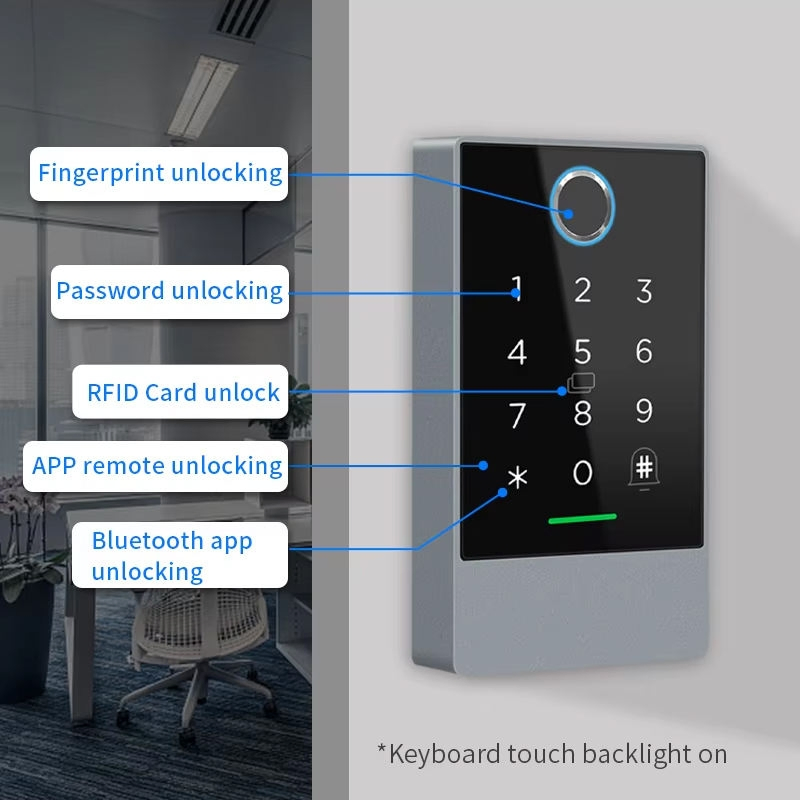

Multi-Authentication: Unlock via Fingerprint (K3FW only), RFID Card, Password, Mobile App, or Bluetooth.

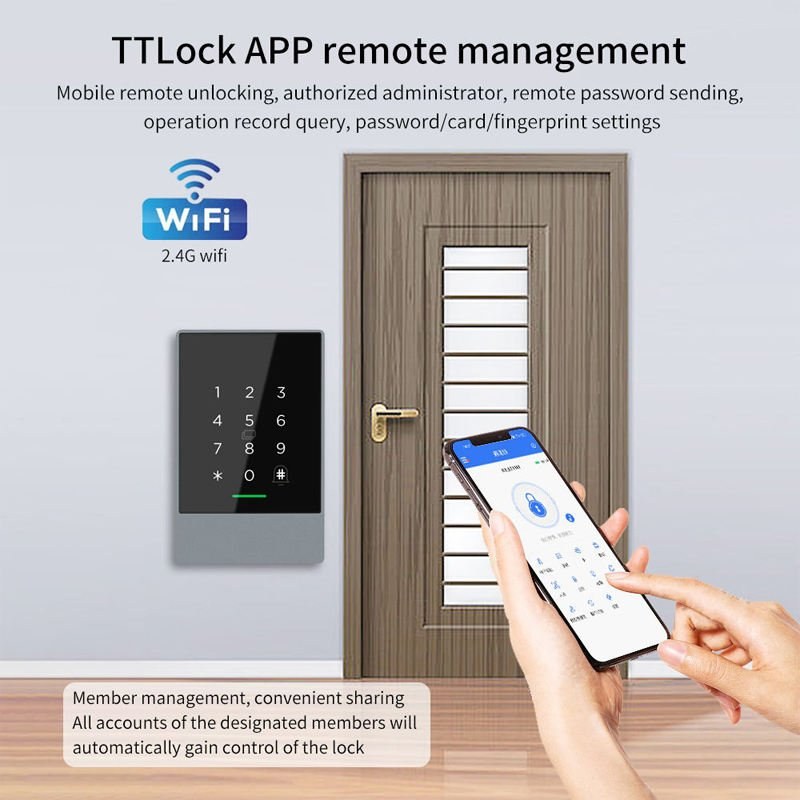

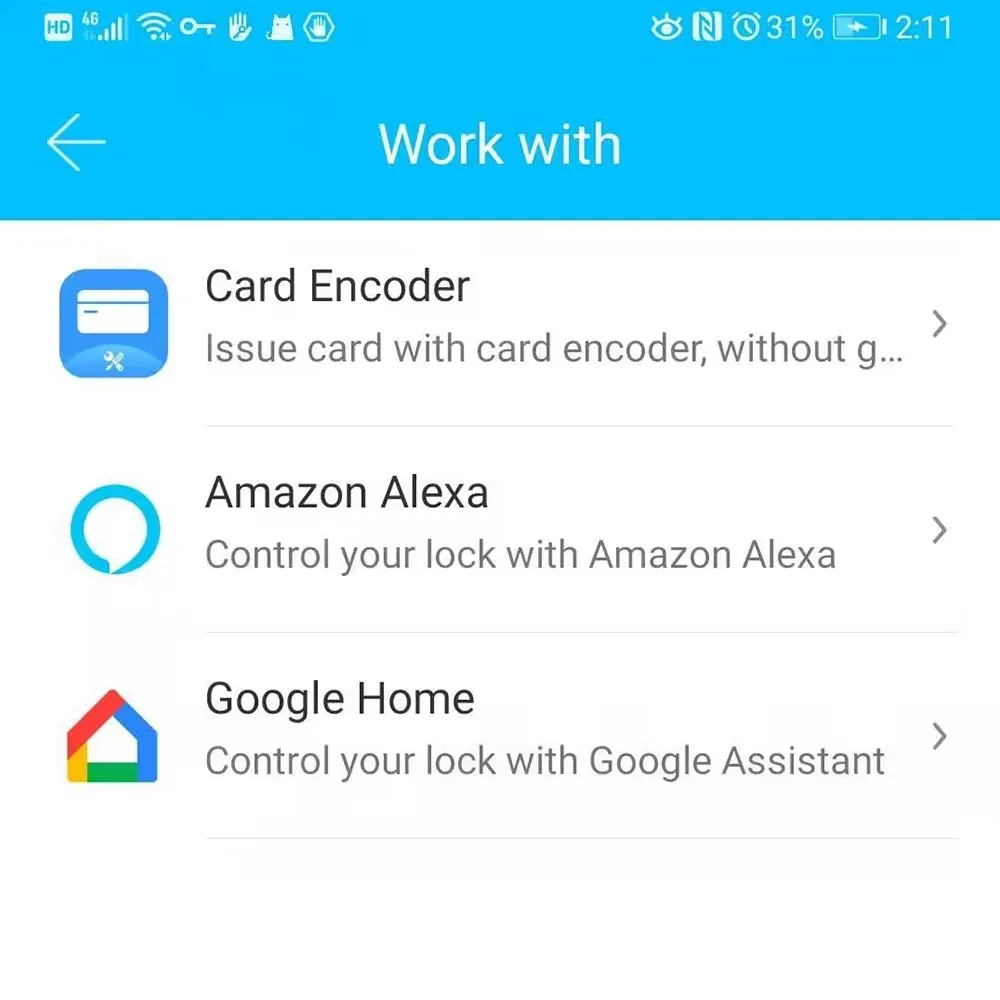

Remote Management: Use the dedicated app to remotely unlock doors, distribute e-keys, and monitor logs.
No-Touch Solution: Ideal for touchless operation via app or fingerprint to reduce surface contact.

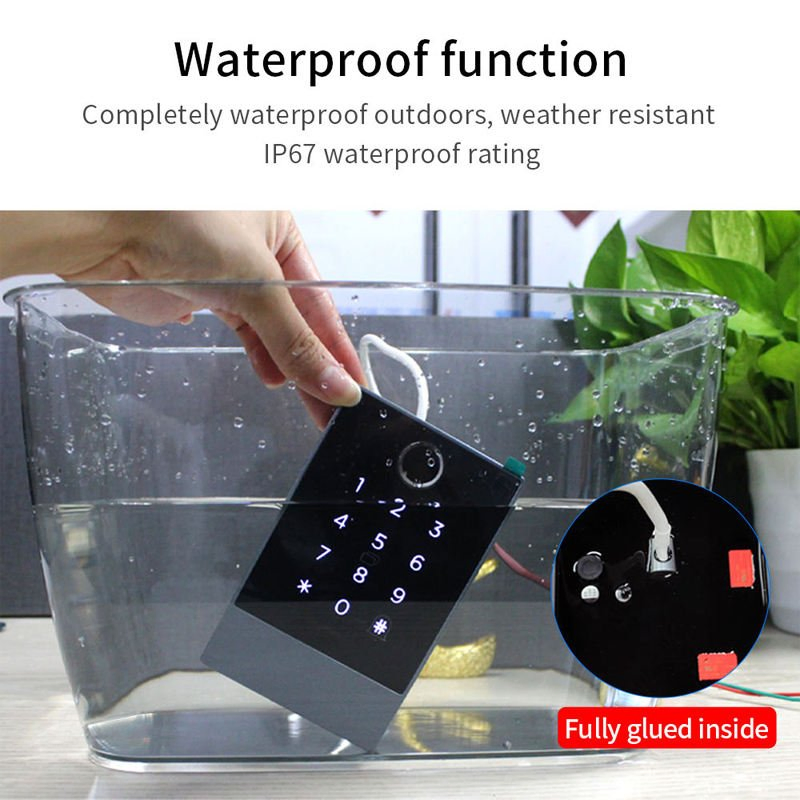

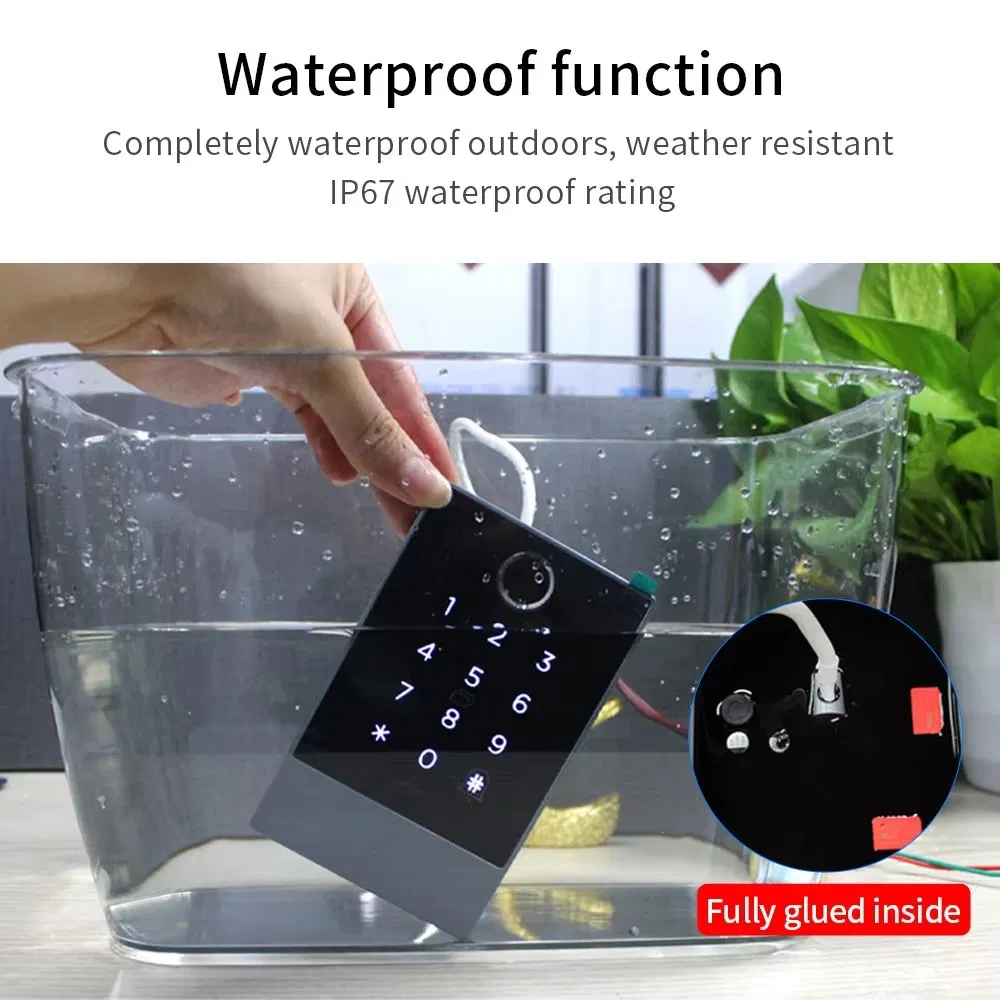

IP67 Waterproof: Built to withstand harsh conditions - perfect for outdoor or high-moisture areas.
Attendance Tracking: Automatically records user entries and exits for efficient management.
High Capacity: Supports up to 2000 RFID cards, 500 passwords, and 100 fingerprints.

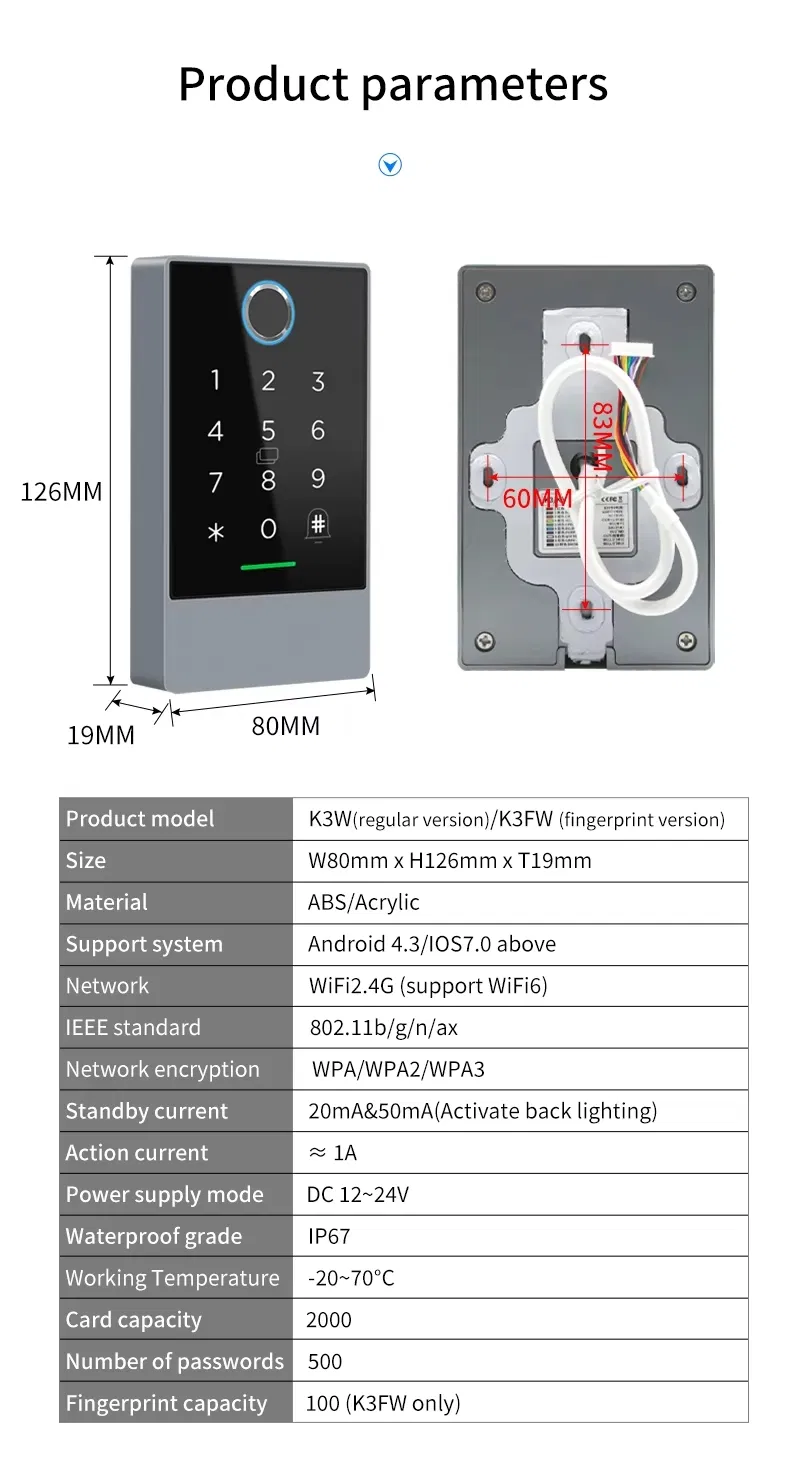

Technical Specifications

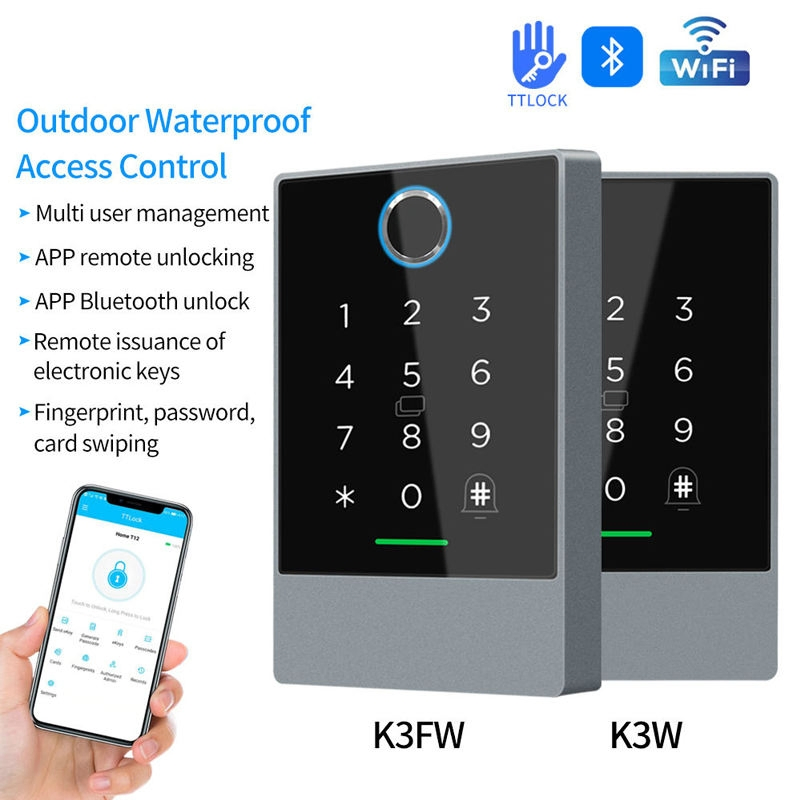

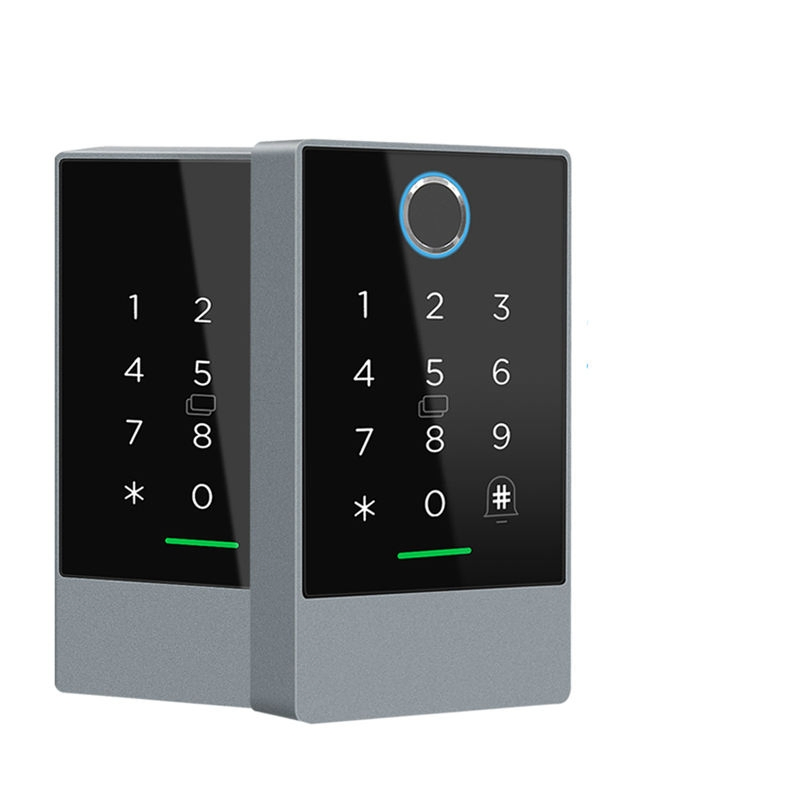

| Model | K3W (Standard) / K3FW (Fingerprint Version) |
| Dimensions | 80mm × 126mm × 19mm |
| Material | ABS/Acrylic - Durable and sleek design |
| Operating Voltage | DC 12-24V |
| Network | Wi-Fi 2.4GHz (supports Wi-Fi 6), Bluetooth |
| Compatibility | Android 4.3+, iOS 7.0+ |
| Working Temp | -20°C to 70°C |
| Waterproof Grade | IP67 |
| Current | 1A (Standby 20mA / 50mA with backlight) |

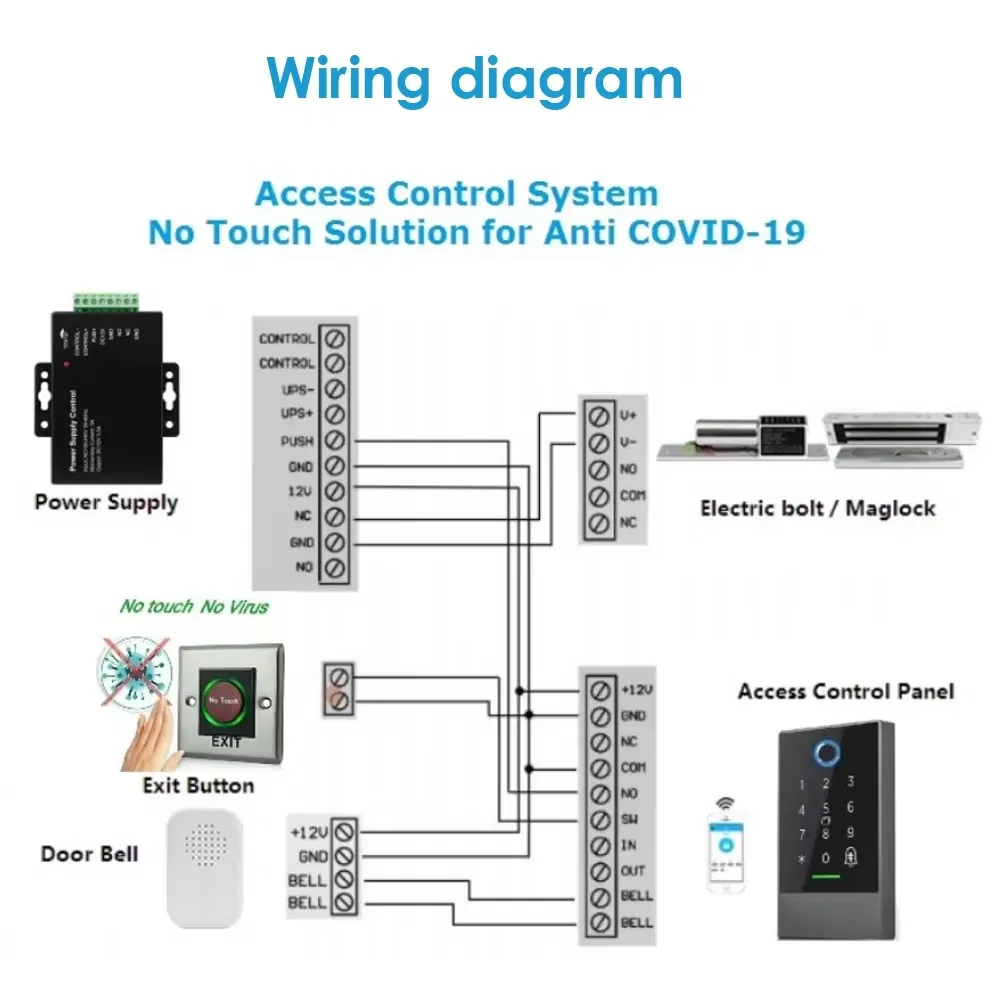

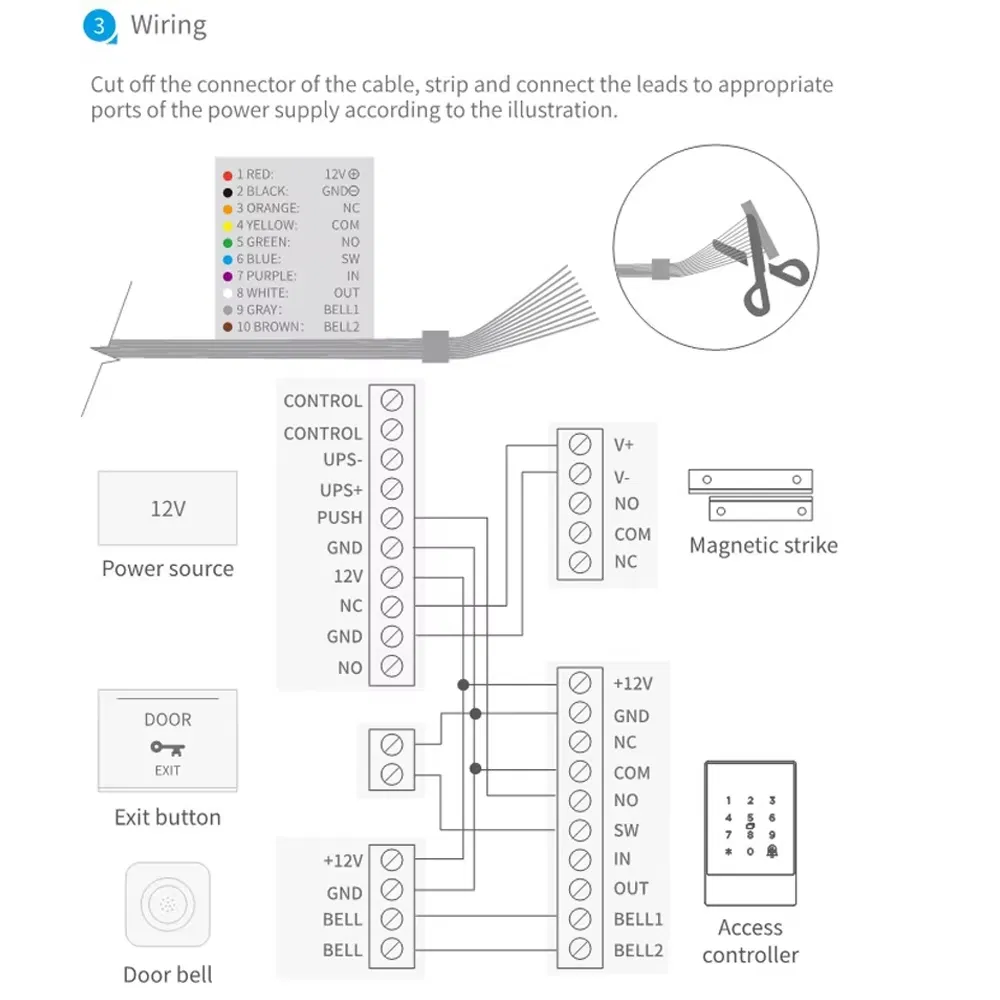

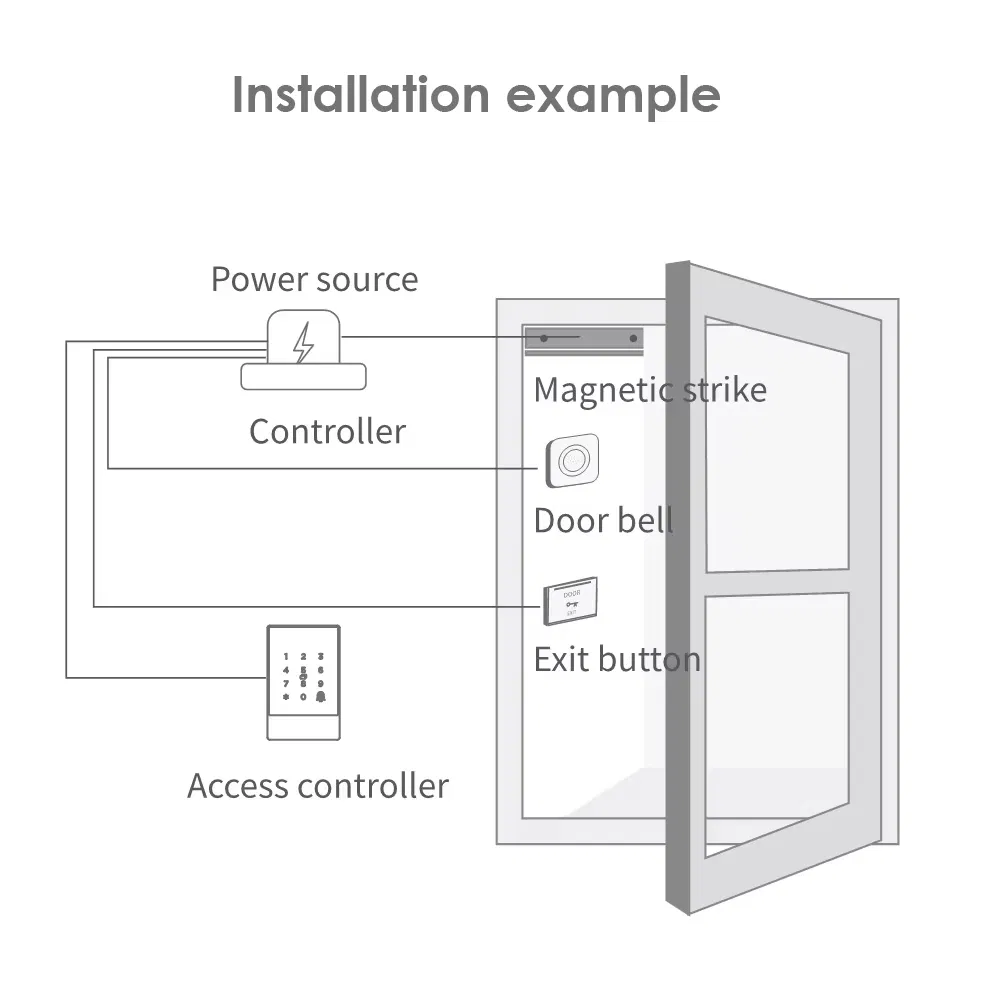

System Integration
The K3FW integrates seamlessly with:
Magnetic Strike Locks
Electric Bolts / Maglocks
Exit Buttons & Door Bells
Power Supply Units (12V)
Ideal For
- Corporate Offices & Shared Workspaces
- Hotels, Resorts & Medical Facilities
- University Dormitories & Secure Residential Buildings
Secure Entry. Smart Control. Effortless Experience.
Upgrade your access control today with K3FW - where technology meets safety.
Frequently Asked Questions
What are the main unlocking methods for the K3FW?
The K3FW supports five unlocking methods: Fingerprint, RFID Card, Password, Mobile App via TTLock, and Bluetooth.
Is this device suitable for outdoor installation?
Yes, the device features an IP67 waterproof rating, making it highly resistant to water and dust, perfect for outdoor use.
How many users can be registered on the system?
The system has a high capacity, supporting up to 2000 RFID cards, 500 unique passwords, and 100 fingerprints (fingerprint version only).
Can I manage the access logs remotely?

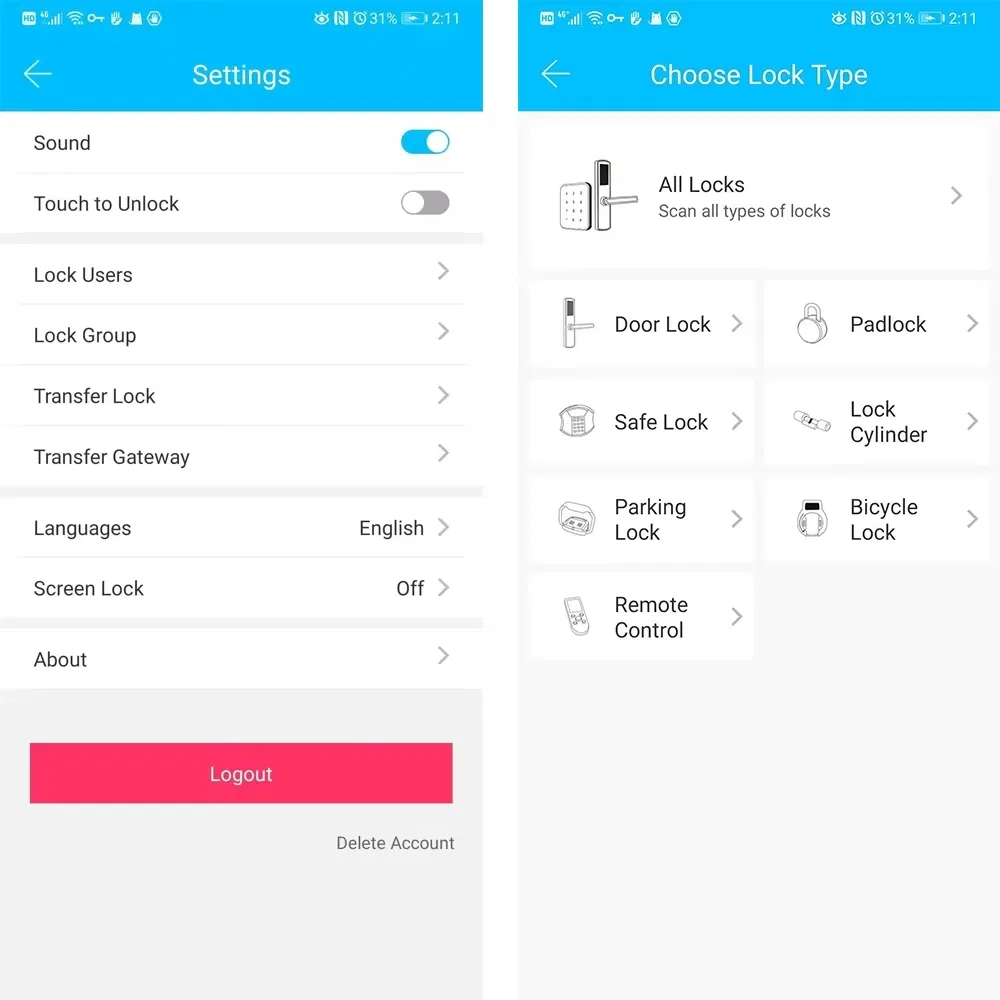

Yes, when connected via Wi-Fi or Bluetooth through the TTLock app, you can monitor access logs and manage users in real-time from your smartphone.
What is the required power supply for the K3FW?
The device operates on a standard DC 12-24V power supply, compatible with most electronic locking systems.
Does it support attendance tracking for offices?
Yes, it features smart attendance tracking that automatically records user entries and exits, which can be reviewed through the management software.
