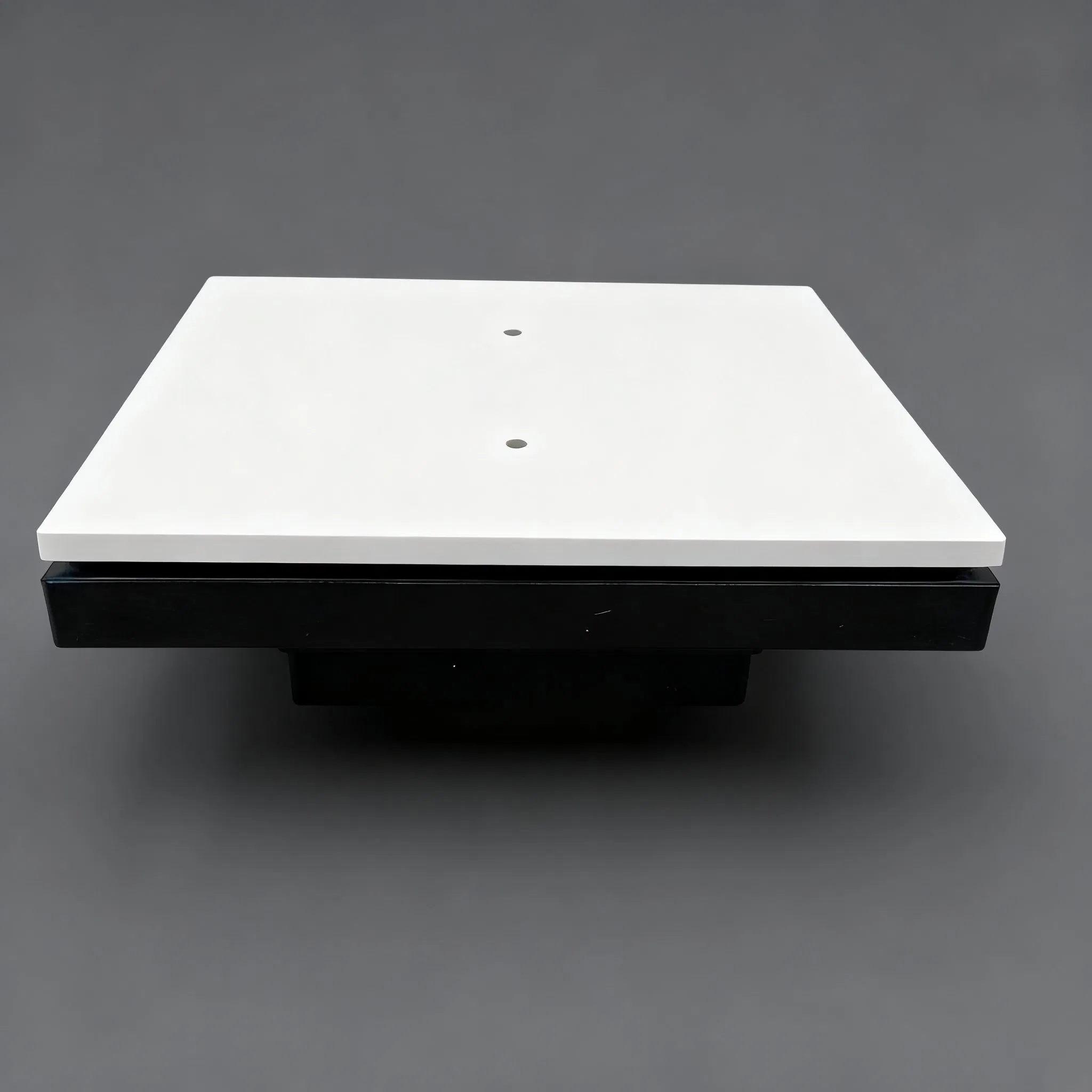

2 Push Button Panel Knx Smart Lighting System Remote Control Wall Switch

1 / 5

2 Push Button Panel Knx Smart Lighting System Remote Control Wall Switch

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

💡 Basic Information

Model NO.	VSU-MK1201
Function	APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Material	Metal + ABS + PC
Certification	CE
Bus Voltage	21-30 VDC, Powered by Knx Bus
Bus Current	≤12 Ma
Bus Power	≤ 360MW
Operating Temperature	-5°C to +45°C
Installation Method	86-Box Installation
Specification	86 x 86 x 35 mm (H x W x D)

🔧 Product & Function Overview

The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system, and its functions are simple and intuitive to operate. Users can plan and systematically execute these functions according to their own needs.

The control panel can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights. It is a standard 86 bottom box installation device with 1-4 or 1-8 button outputs, connecting to the EIB/KNX system via the EIB bus.

✨ Main Functions

Supports lighting switching, curtain control, and projection screen lifting with long/short press functions.

Controls dimming devices with relative and absolute dimming output.

Performs 8-bit scene control and pre-set scene calls.

LED indicators with multiple states: normally on, normally off, or flashing.

LED interlocking grouping and brightness adjustment.

Brightness wake-up and delayed extinguishing for status and backlight LEDs.

📊 Detailed Parameters

Bus Power	<360mW
Size (H x W x D)	86 x 86 x 33 mm
Weight	Approx. 0.1kg
Storage Temperature	-25℃ to +55℃
Relative Humidity	Max 90%
Auxiliary Voltage	24VDC
Auxiliary Current	≤27.5mA
Auxiliary Power	≤660mW

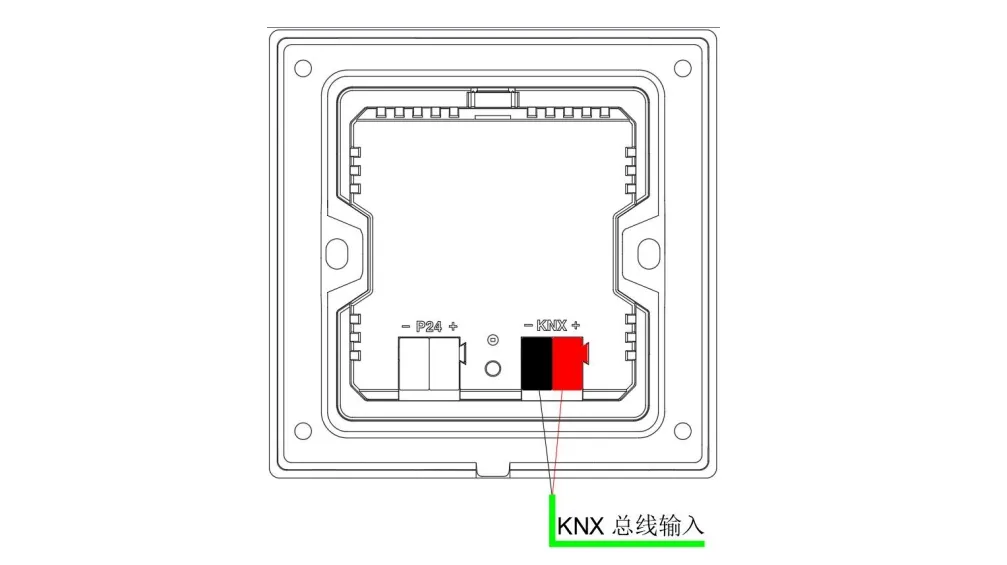

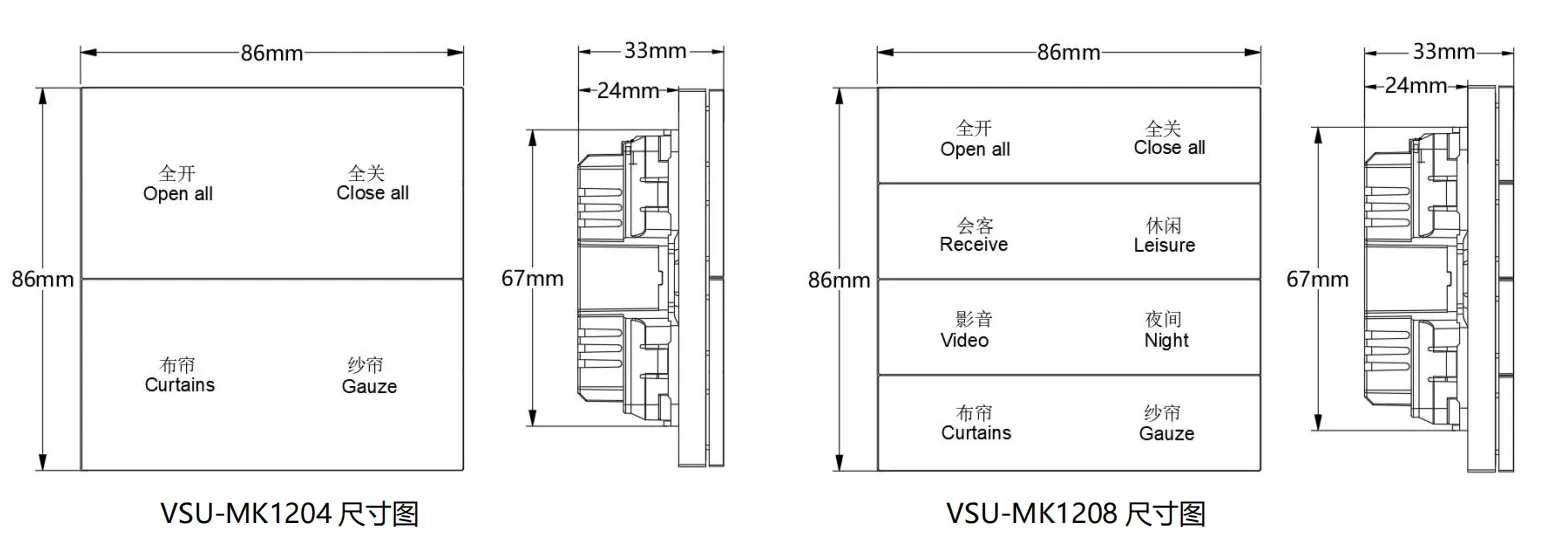

🖼️ Dimensional and Wiring Diagrams
