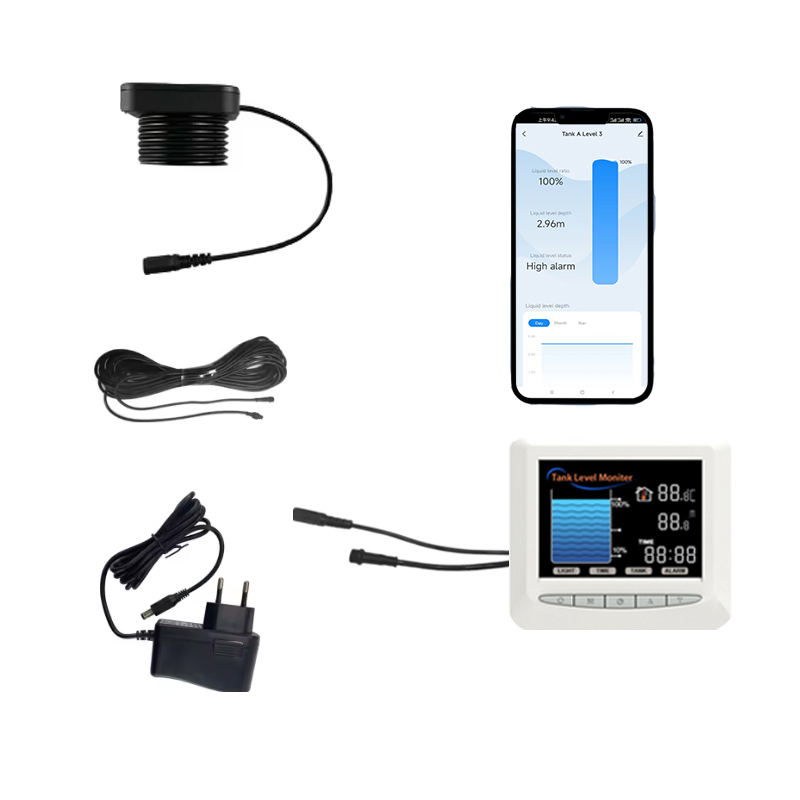

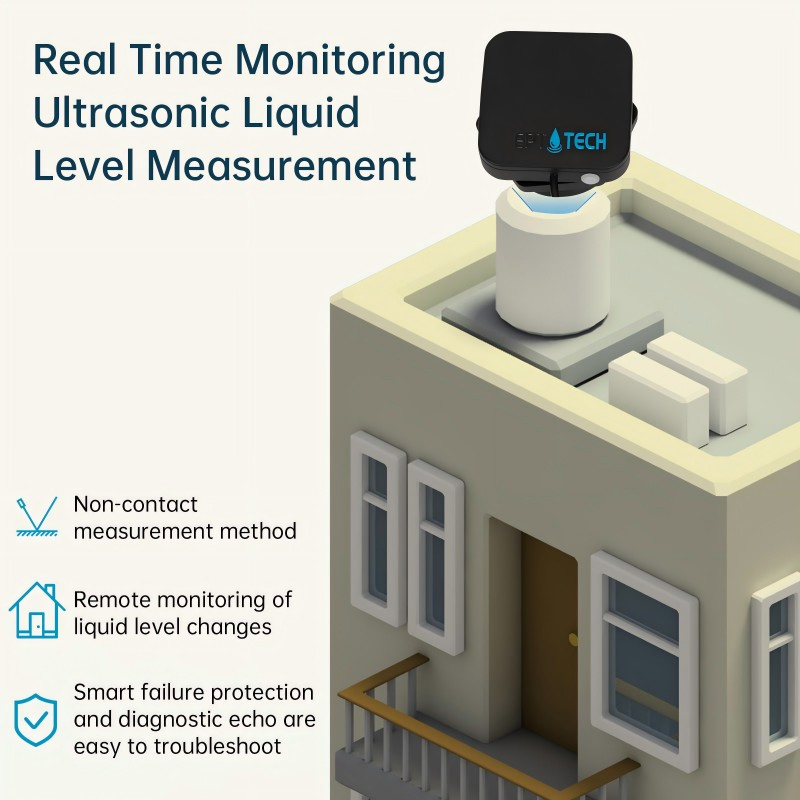

Tuya Wired RS485 Ultrasonic Water Level Alarm System for Home Automation with LCD Display

i

Basic Information

Model NO.TLC2326LS

Output SignalRS485, WiFi

Production ProcessIntegration

MaterialPlastic

IP RatingIP67

CertificationRoHS

Item NameRS485 Ultrasonic Level Sensor

Measuring Range10cm ~ 3m

Power SupplyDC 5V

Life Time50,000 Hours

★

Product Description

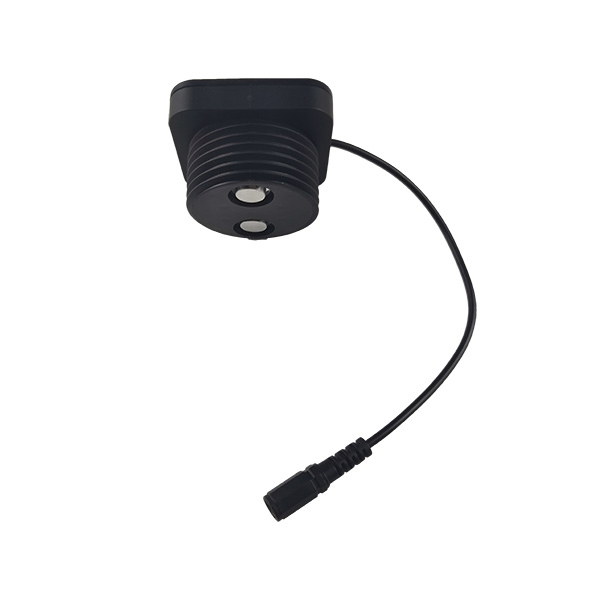

TLC2326LS Tank Level Sensor

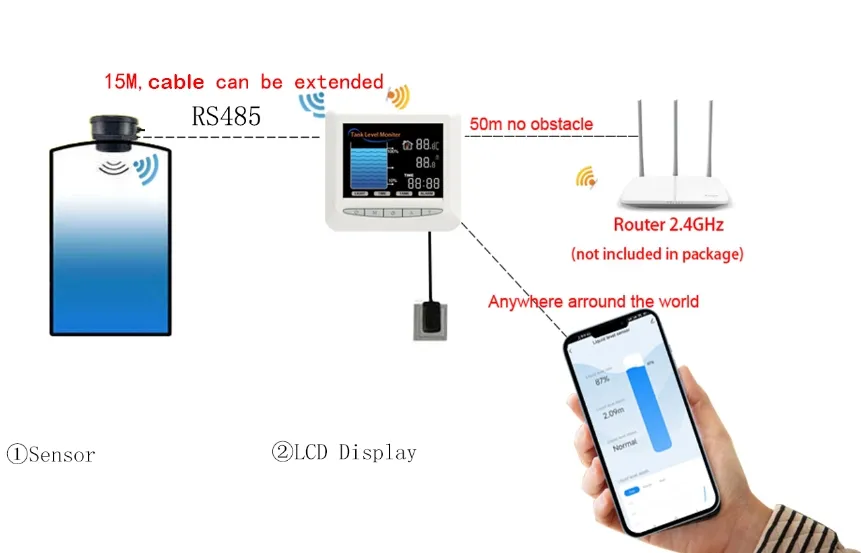

The TLC2326LS Wired Domestic Water Tank Level Indicator features a built-in RS485 chip. This ultrasonic sensor converts measurement data into digital signals through advanced internal circuitry, outputting them via a serial port. Designed for efficiency, it boasts strong anti-interference capabilities and supports a theoretical communication distance of up to 50 meters, making it an ideal choice for stable and reliable data transmission in automation systems.

⚙

Technical Specifications

Power Supply	DC 5V
Current	Normal State < 110mA
Frequency	40kHz

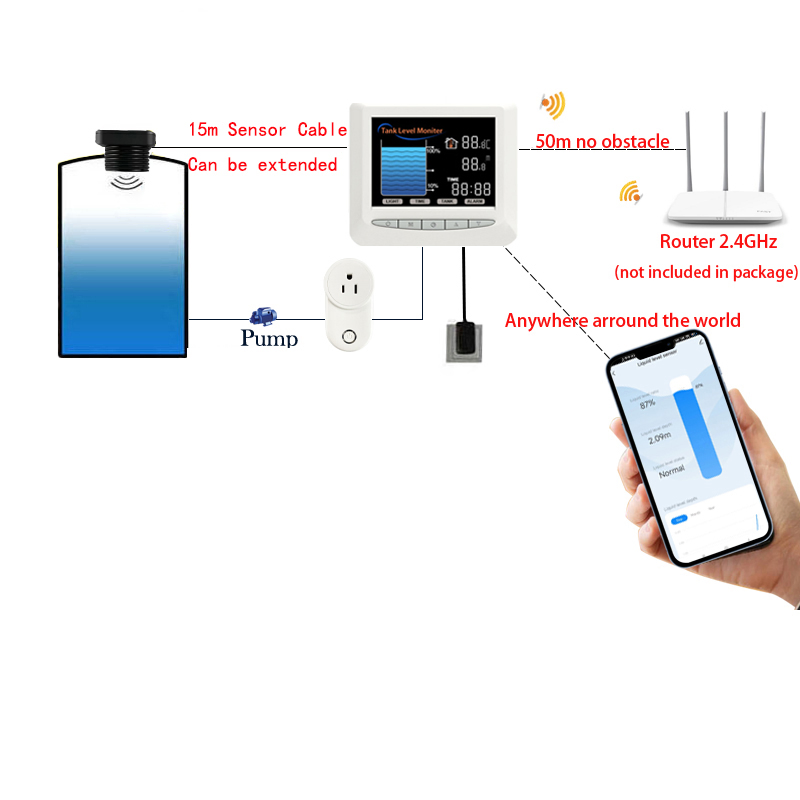

Communication	Wi-Fi (2.4GHz); RS485
Measuring Range	0.1m - 3m
Blind Zone	< 0.1m
App Support	Tuya or Smart Life
System compatibility	Android and iOS

🔍

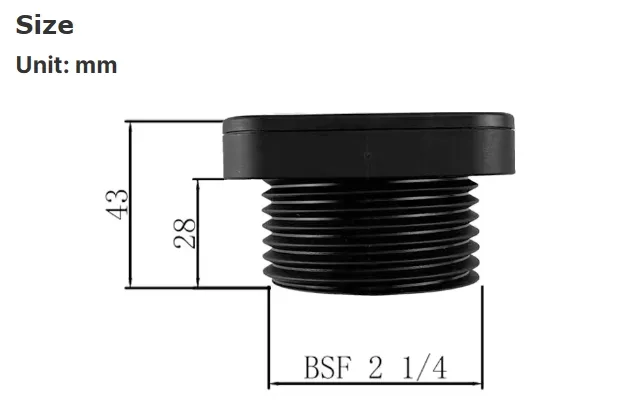

Product Details & Dimensions

🛠

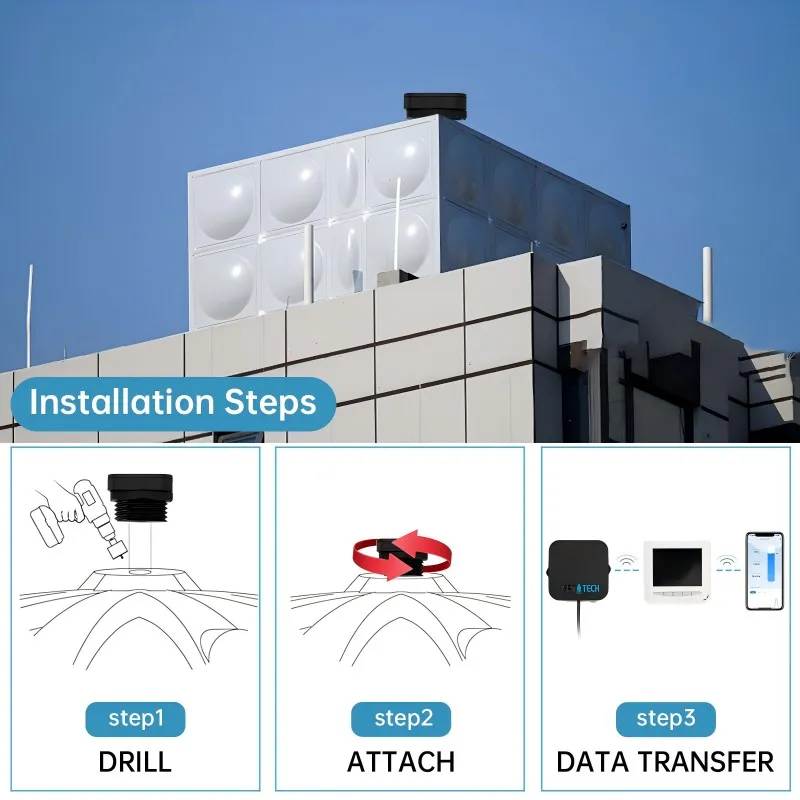

Installation Guide

Easy Setup: Simply drill a 58mm diameter hole in the top of the tank. Screw the sensor into the hole and secure it tightly with the provided nut.

For optimal performance, the sensor should be installed in the center of the tank cover, away from the liquid inlet to avoid interference with the ultrasonic signal.

✔

Quality & Expertise

With over 22 years of experience and more than 50 patents, our manufacturing process specializes in high-precision sensing technologies. Our products are widely applied in smart home appliances, industrial equipment, and water tank systems globally.
