Product Description

Basic Information
Model NO.
MF43
Work Mode
FDD
Usage
Radio, IP Mesh
Content
Video, Audio, Data
Type
Harris
Package
Carton
Specification
360*240*135mm
HS Code
8517629900
Capacity
10000/Year
Product Description

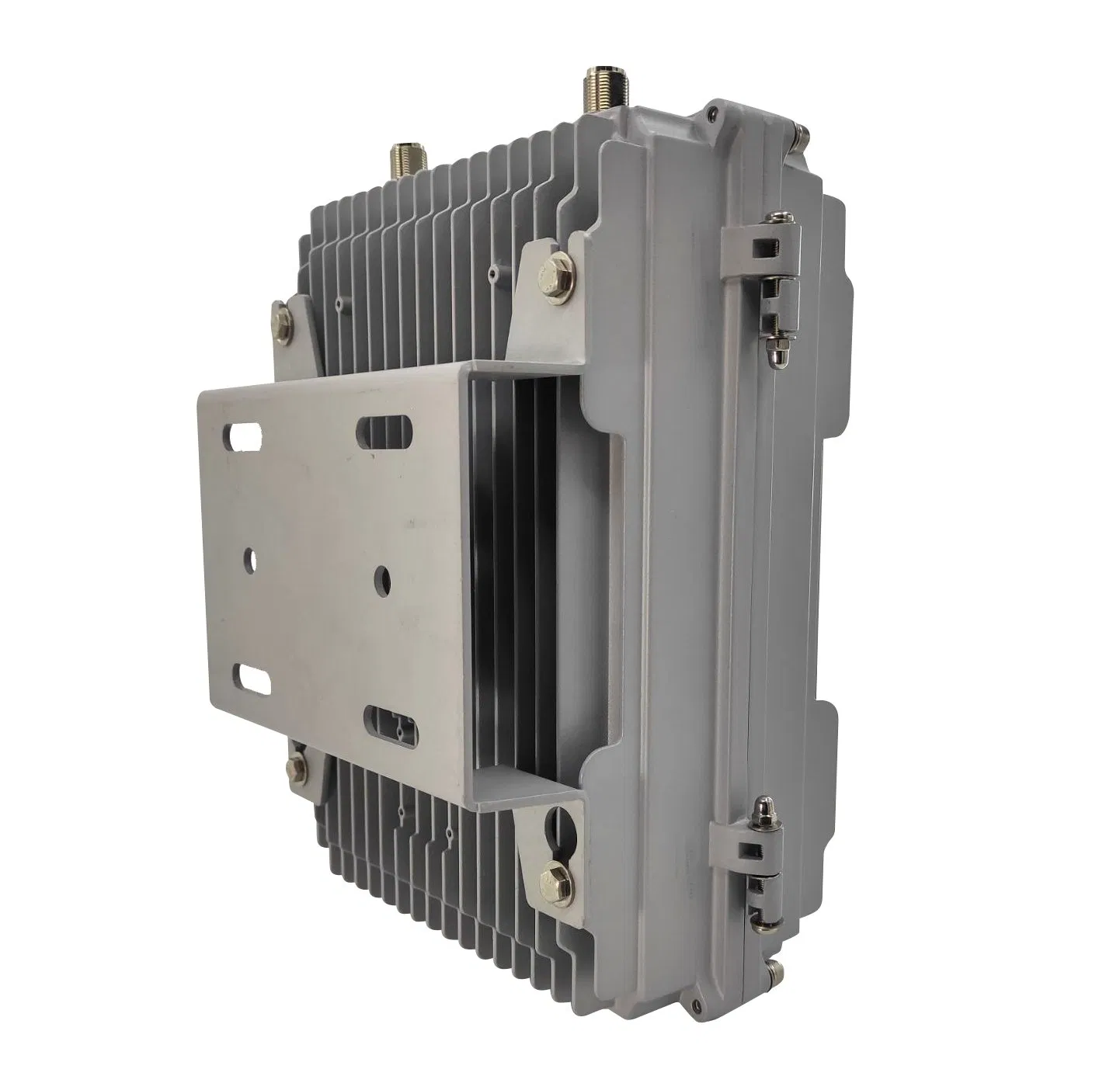

Base Station Mesh Network radio, It can be fixedly installed on poles, walls and brackets. It is mainly deployed in outdoor fixed points and ship-borne mobile points. It is waterproof and dustproof, easy to install and simple to operate. The device has high transmission power and covers a long communication distance.
It integrates data transceiver, dynamic routing, relay and forwarding, and quickly self-organize form a wireless multi-hop broadband network with other forms of node devices, providing wireless transmission services for multimedia services such as voice, data and video to users.
Outdoor Cofdm Mesh
Product Features
Up to 100Mbps high speed
LOS transmission 10-100 km
Transparent IP data transmission
Support two-way intercom
Centerless Self-organizing network
Multi-hop coverage expansion
Strong anti-interference performance
Excellent diffraction capabilities
Low system latency (30ms)
AES 128/256 bits encryption
IP66 waterproof and dustproof
Easy installation & operation
Application Scenarios
Base Station is especially suitable for applications such as long-distance coverage link communication, information aggregation and backhaul, regional coverage support, commanding heights enhanced coverage, and relay transmission nodes. It can play a strong advantage in emergency response, anti-terrorism and anti-riot, rescue and disaster relief, large-scale event security, temporary control and relay transmission.
Application Scenario

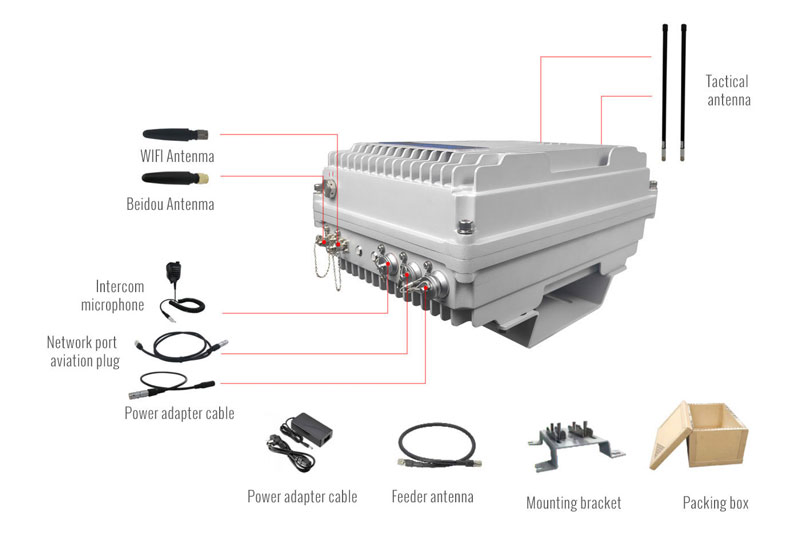

Detailed Photos

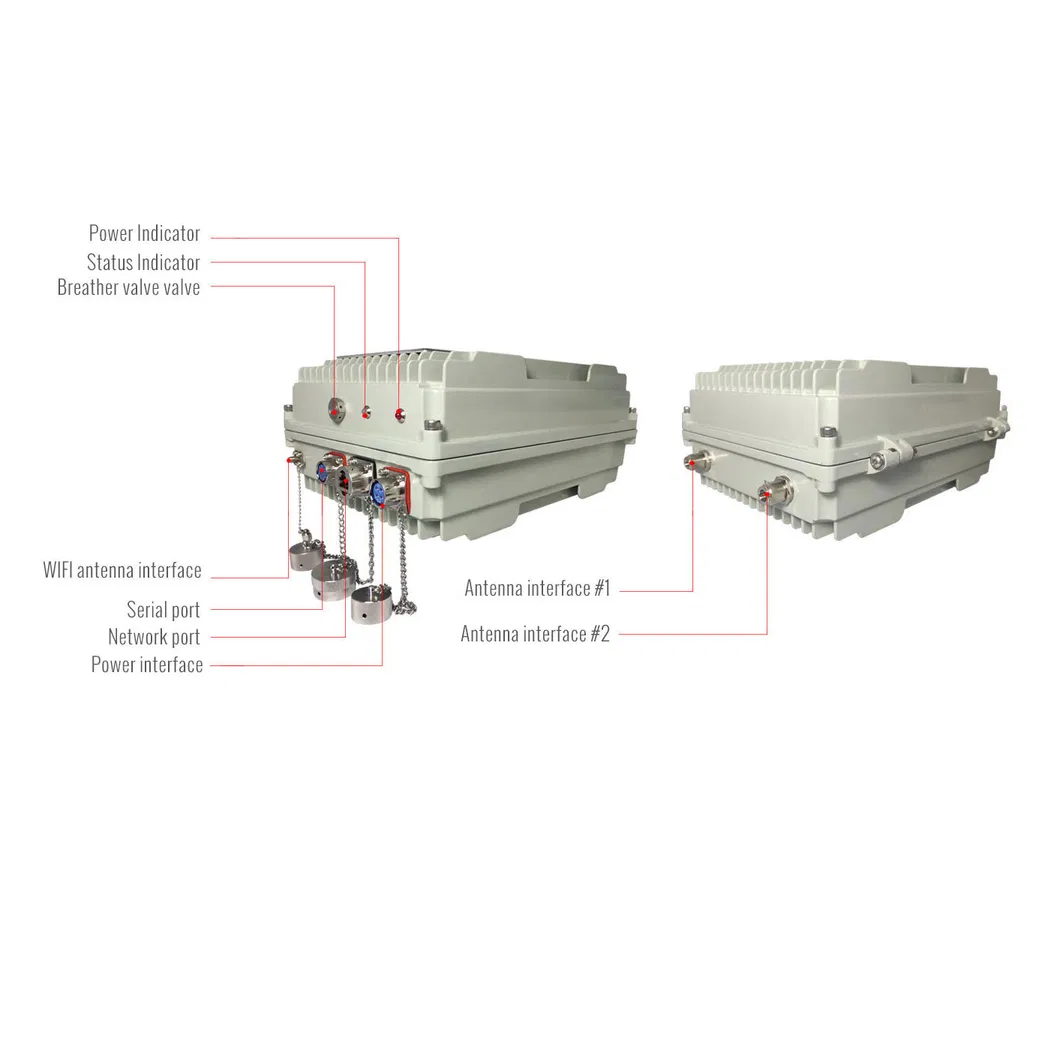

Detailed View 1 Detailed View 2
Product Parameters
System Parameter Specification Description
Operating frequency 1300-1500MHz
Bandwidth 5.0/10.0/20.0MHz, Configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM (Self-Adaptation)
Transmission capacity Peak rate 52Mbps (Optional up to 100Mbps)
RF Transmitted Power 10W
Receiving Sensitivity -100dBm@5MHz
Video Input IP Network Video / WIFI Video (HDMI/AV customized)
Networking Nodes ≥64 nodes
Hops >10 hops
Topology Centerless, star, chain, mesh, etc.
Encryption Mode DES (default) / AES128 / AES256 (Optional)
Power Supply DC 24-36V
Equipment Interface
Antenna Interface N type ×2
GPS / WIFI Interface SMA surface
Ethernet interface Aviation interface
Physical Indicators

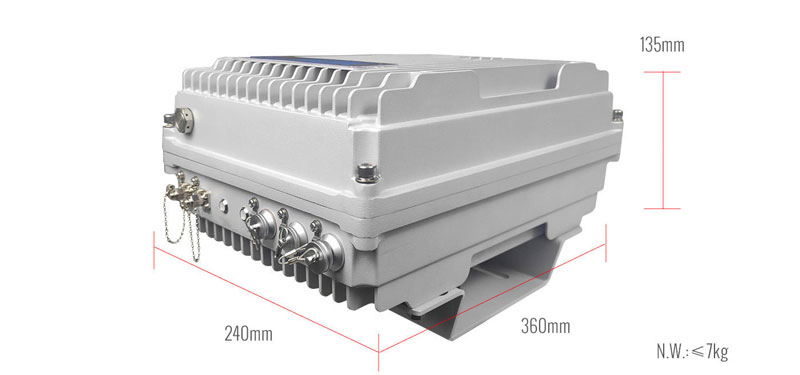

Dimension ≤340×240×135mm
Weight / Protection ≤7.5kg / IP66
Operating Temperature -40ºC ~ +65ºC
Frequently Asked Questions
Q1: What is the maximum communication range of this Base Station?
The device supports a Line-of-Sight (LOS) transmission distance of 10km to 100km, depending on environmental conditions and antenna configuration.
Q2: How does the "Self-organizing" network feature work?
It uses a centerless mesh architecture where nodes automatically select the best link. It supports over 64 nodes and 10+ hops to dynamically expand coverage.
Q3: Is this device suitable for extreme outdoor weather?
Yes, it is rated IP66 for waterproof and dustproof protection, and it operates effectively in temperatures ranging from -40ºC to +65ºC.
Q4: What are the data security options available?
The system includes DES encryption by default, with optional AES128 or AES256 bit encryption for high-security requirements.
Q5: What is the peak transmission rate?
The standard peak rate is 52Mbps, but an optional high-performance version can reach up to 100Mbps.
Q6: Can it handle real-time video streaming?
Absolutely. With a low system latency of only 30ms and support for COFDM modulation, it is designed for high-quality IP video and audio transmission.
