Product Description

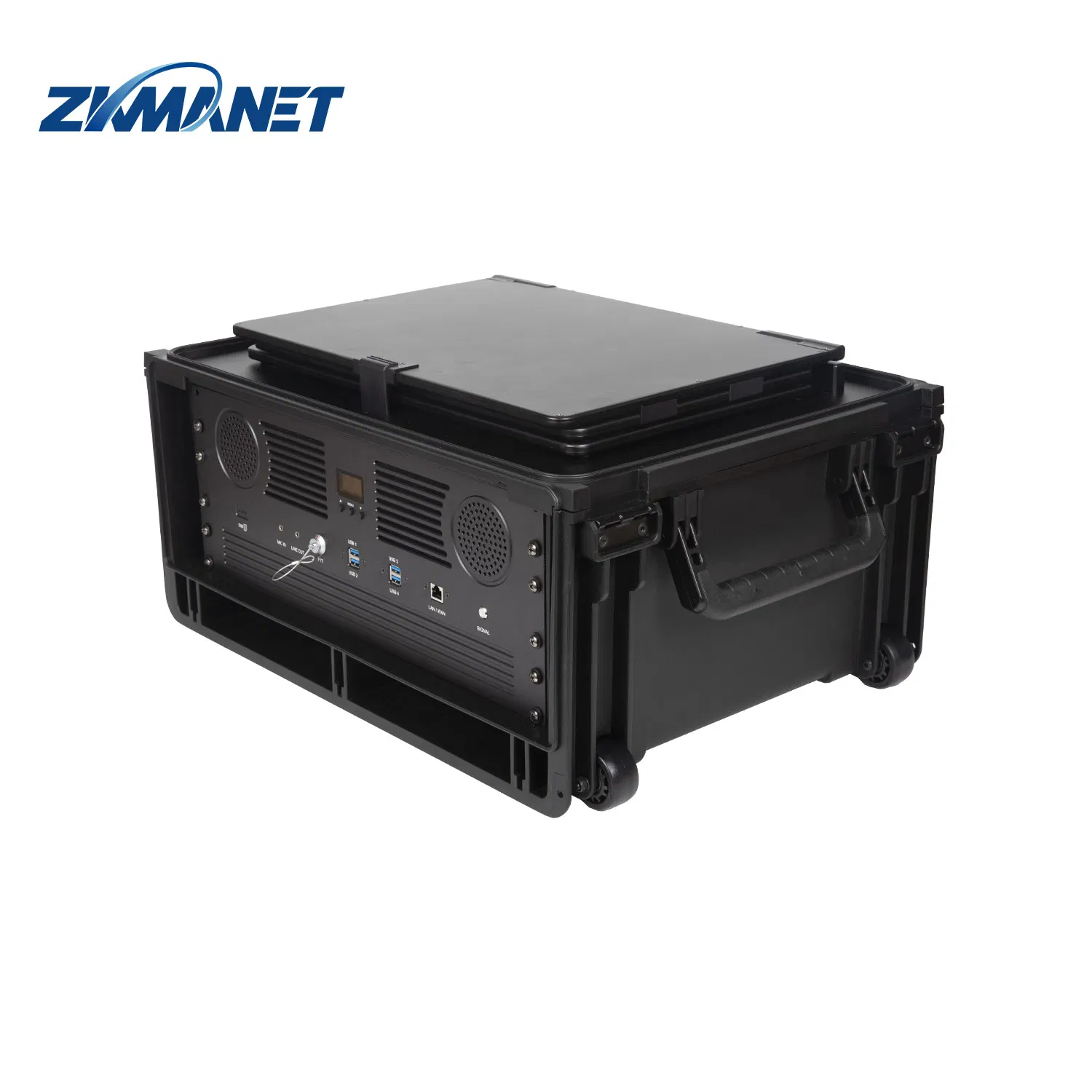

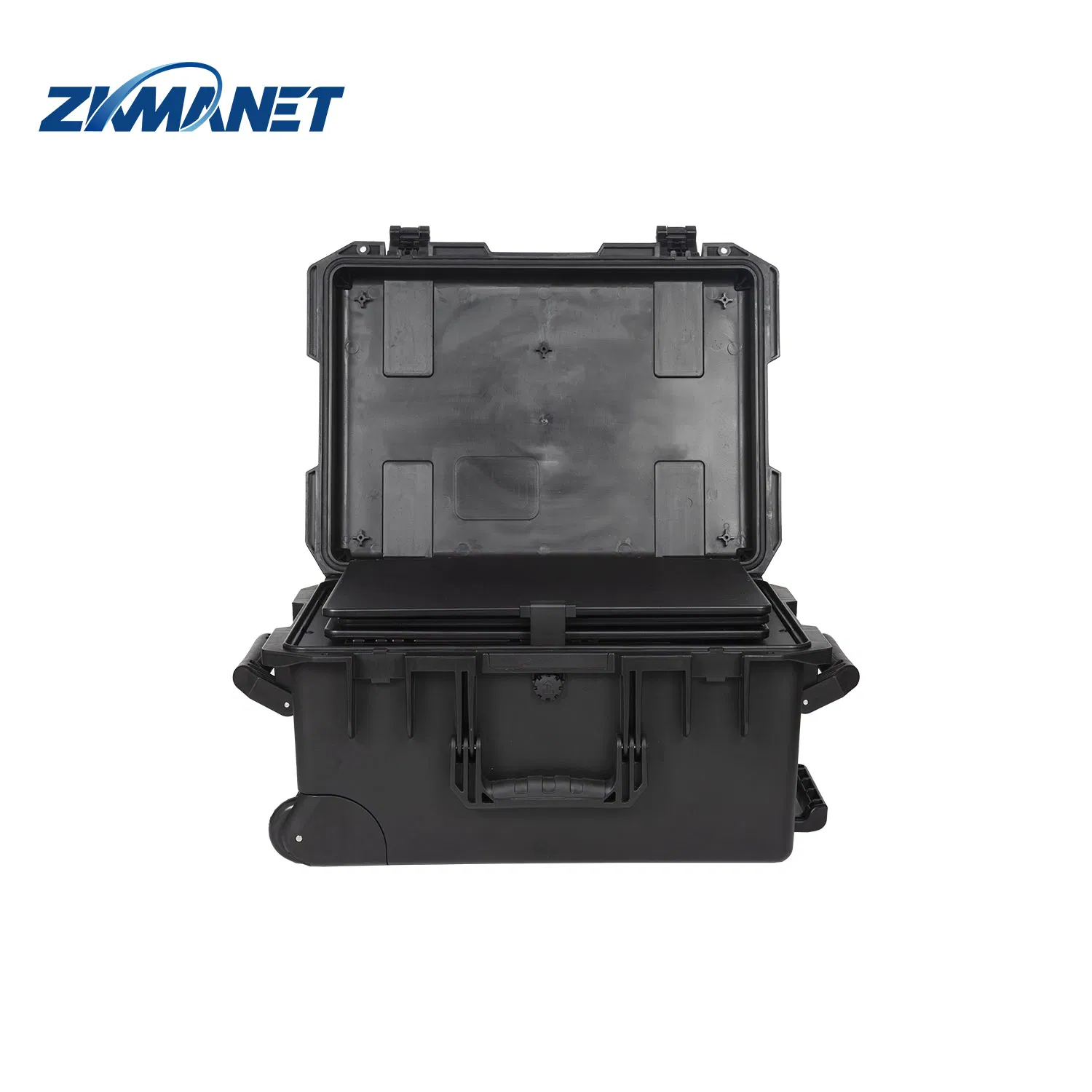

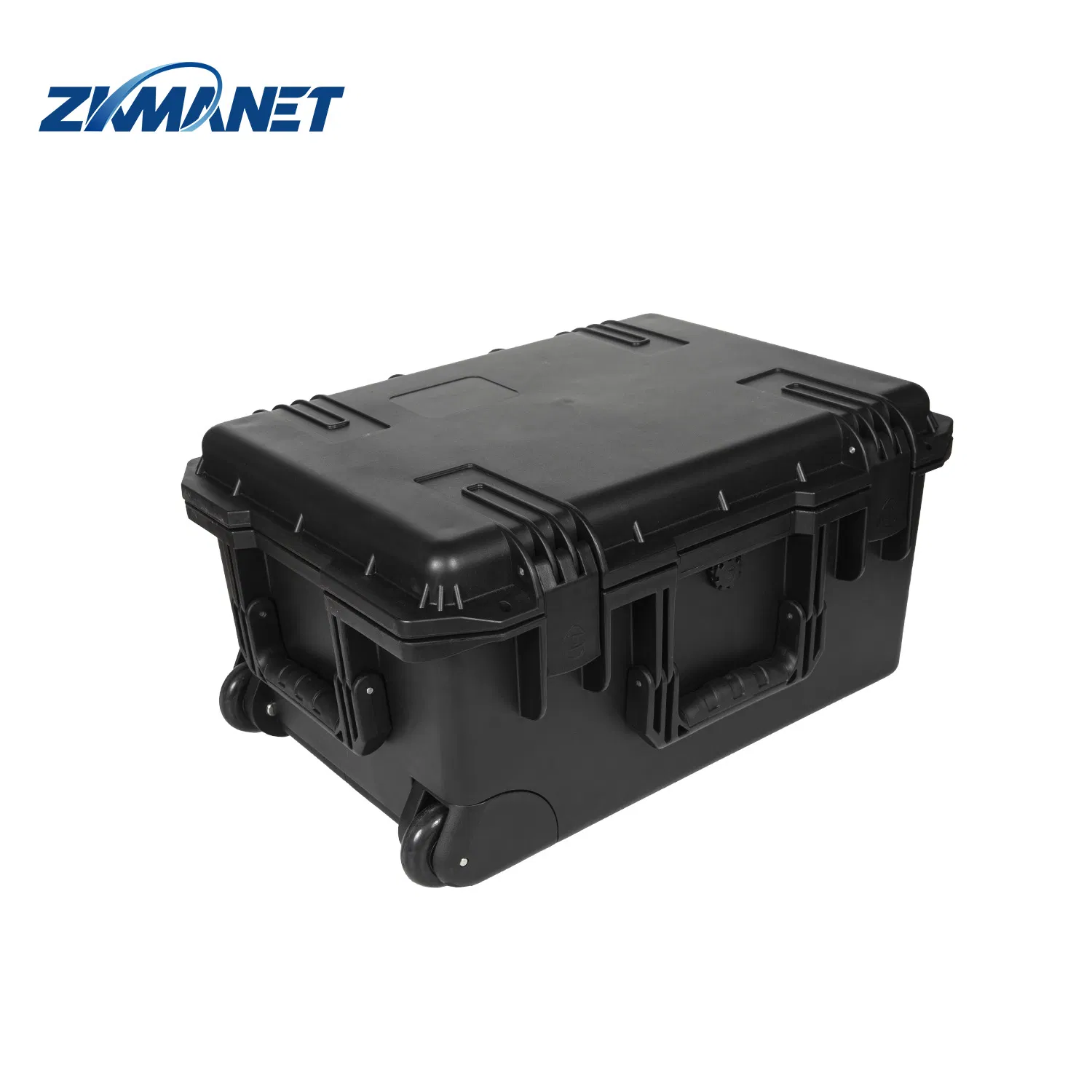

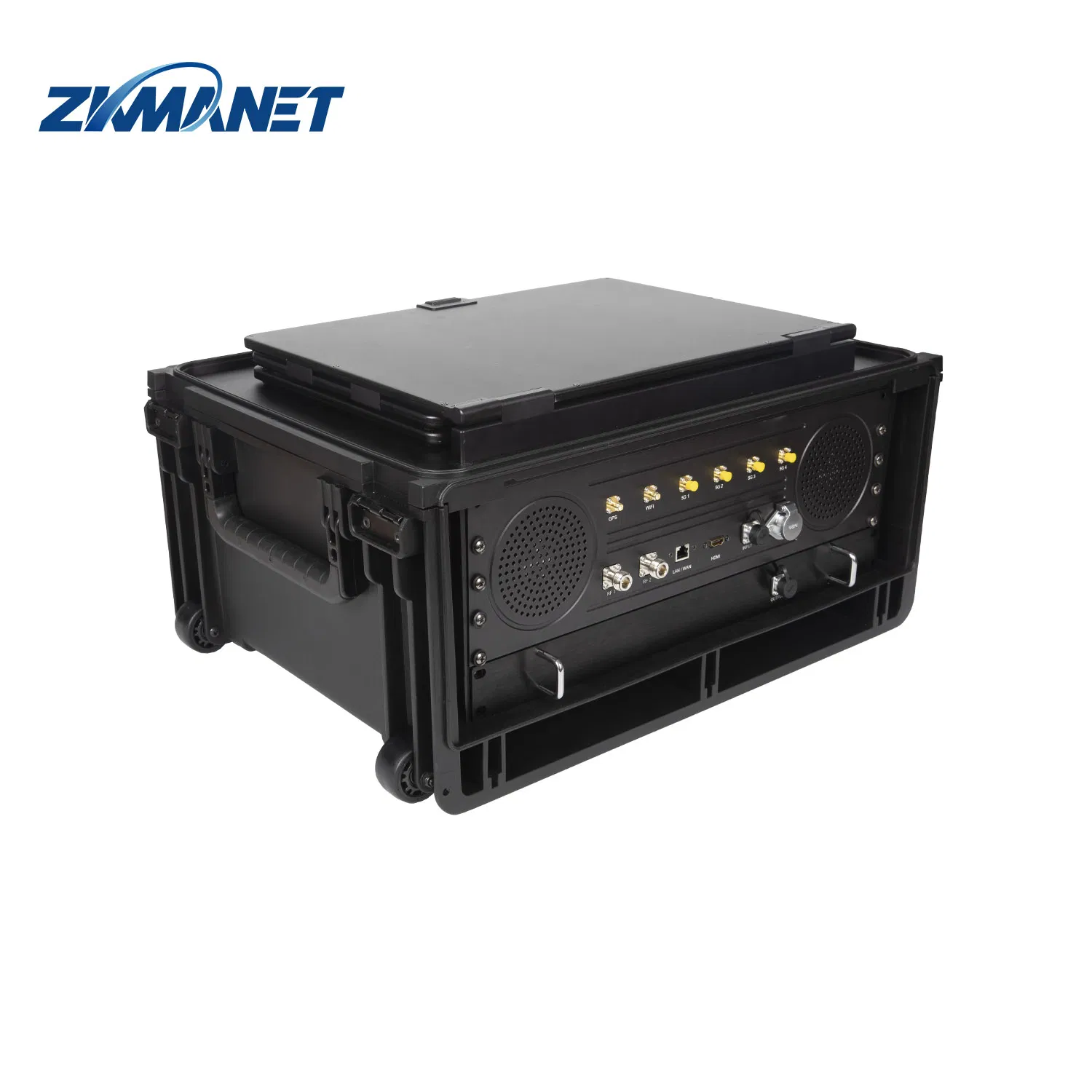

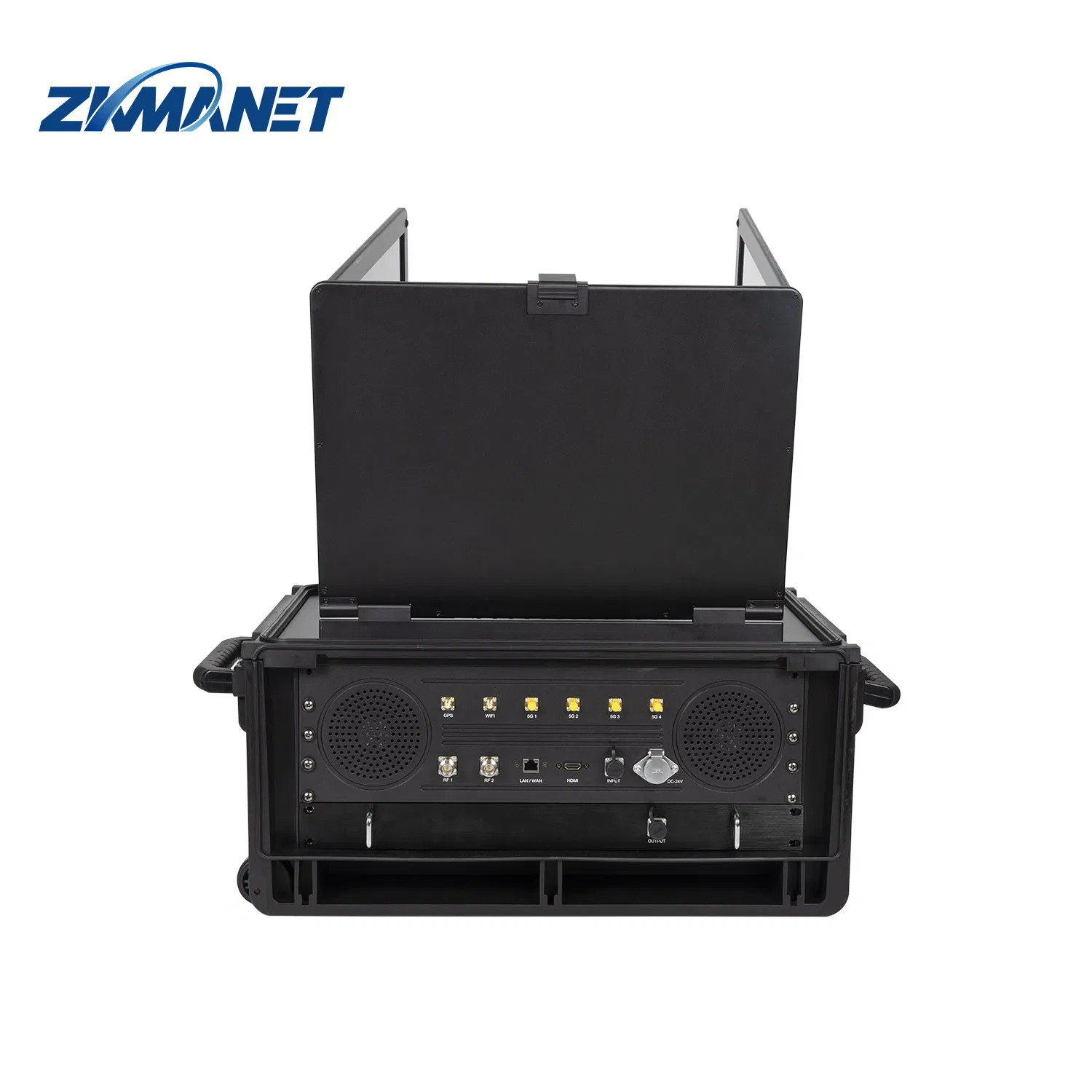

The ZKManet3961 portable command box is a highly reliable mobile Mesh product developed for field command. Through advanced link management, it enables the centralized control of Mesh nodes within the network. Users can monitor link signal strength, access node video and data information, and view front-end video in real-time. The system also supports high-quality voice intercom.

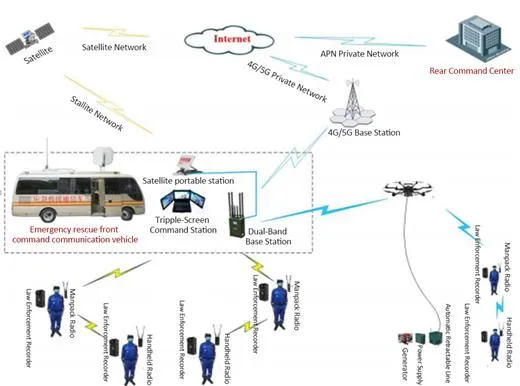

Designed for rapid response and simple deployment, this Mesh command box offers excellent mobility and stability. It serves as a front-line command terminal and can transmit data back to a main command center via 4G/5G private or public networks, ensuring seamless coordination of operations. It is primarily used to receive and relay data information from individual field units.
Key Features
2W Output power with data rates up to 56Mbps
Full-duplex bidirectional data transmission
Supports 4G/5G Public Network integration
Flexible networking and rapid field deployment
Rugged IP67/IP65 protection for harsh environments
Integrated video surveillance and voice intercom support
Advanced Technology & Patents
Our technology utilizes Mesh and LTE as core components to build comprehensive emergency communication systems. These systems are designed for underground buildings, tactical investigations, urban emergencies, and specialized robot communications. Our products comply with ISO9001 standards and hold various certifications including CCC, CE, and FCC.

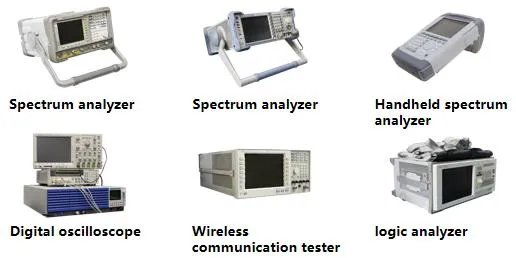

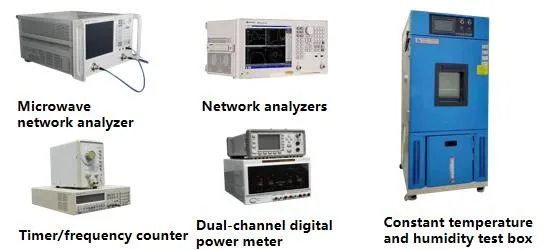

Intellectual Property & Testing:
Frequently Asked Questions
1. What is the maximum data transmission rate for this device?
The system supports a high-speed data rate of up to 56Mbps, ensuring smooth video and data streaming.
2. Can the frequency be customized for specific regions?
Yes, while the default frequency is 1300-1500MHz, it can be customized within the 70MHz to 6GHz range to meet specific requirements.
3. How many nodes can be connected in a single Mesh network?
The portable command box can manage and support a network capacity of 32 to 64 nodes, depending on the configuration.
4. Is the command box suitable for harsh outdoor environments?
Absolutely. It features a rugged design with an IP65 protection rating and operates reliably in temperatures ranging from -20ºC to +65ºC.
5. Does it support connectivity to standard 4G or 5G networks?
Yes, the device supports 4G/5G public and private networks, allowing data to be sent back to a central command center from remote locations.
6. What type of operating system and hardware powers the command box?
The unit is powered by an Intel I7 processor, 8GB of RAM, and runs on the Windows 10 operating system for a familiar and powerful user interface.
