Basic Information
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Material
Plastic / Aluminum Alloy
Production Capacity
50,000 Pieces/Year
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 18.00cm
Standard Lead Time
3 days (1 - 100 Pieces)

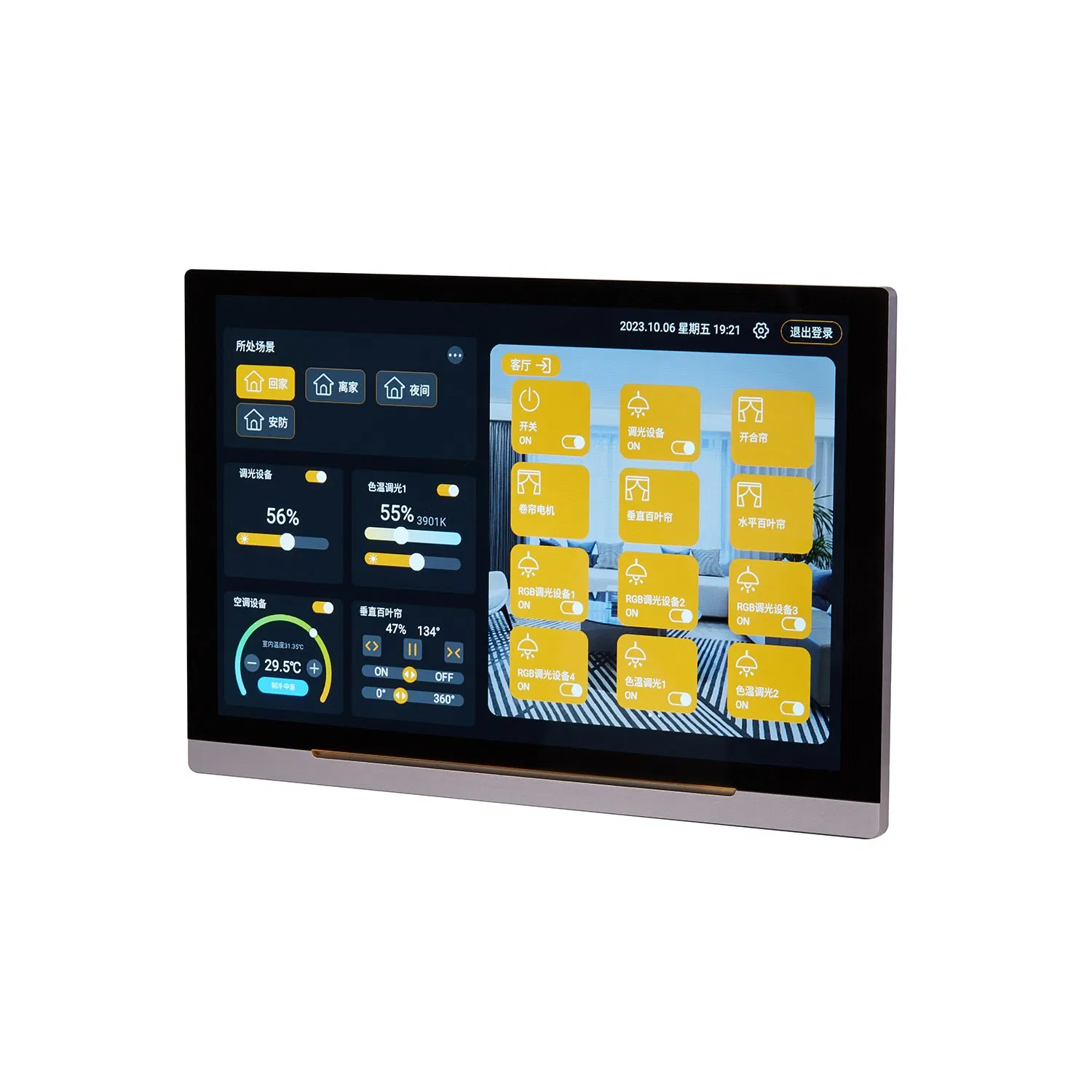

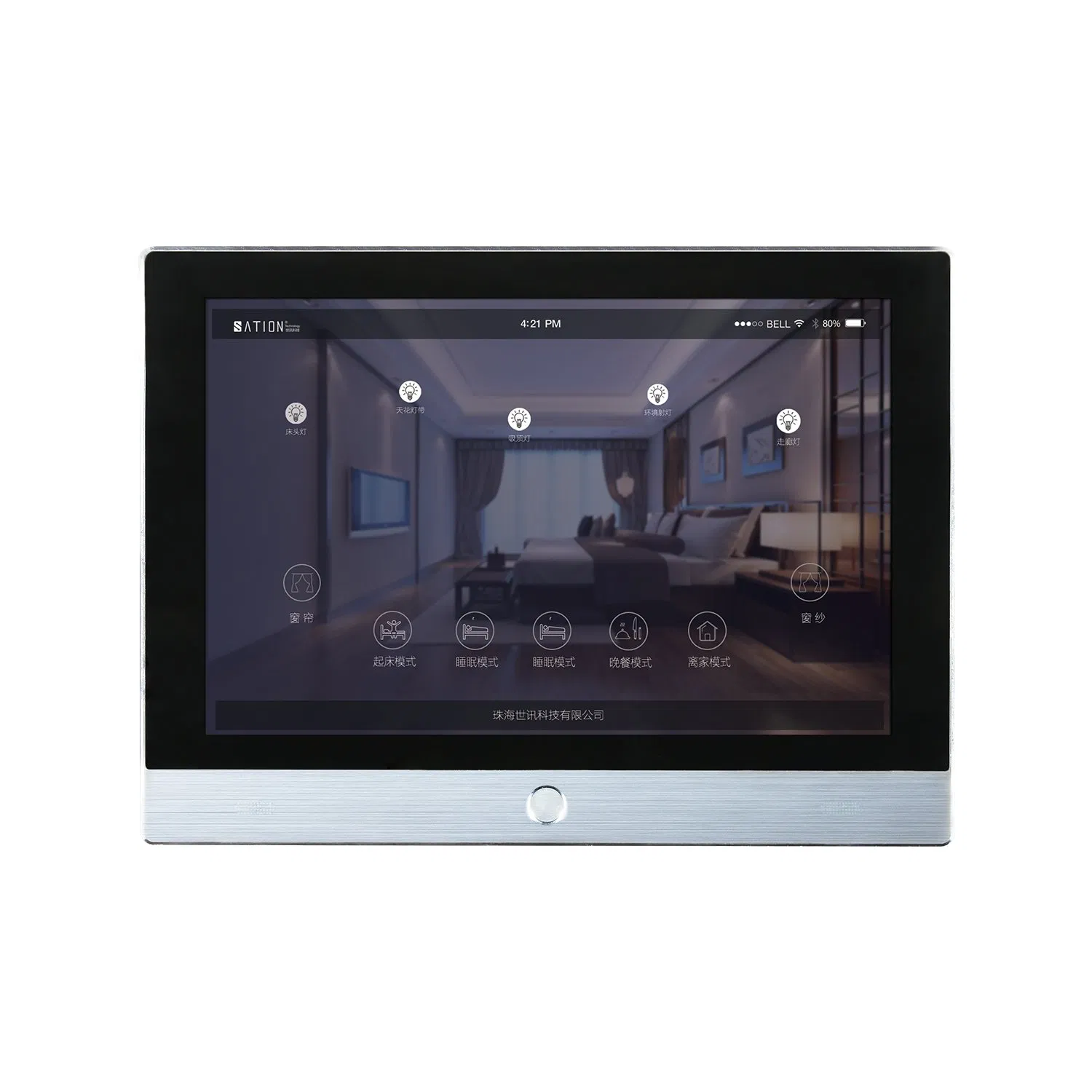

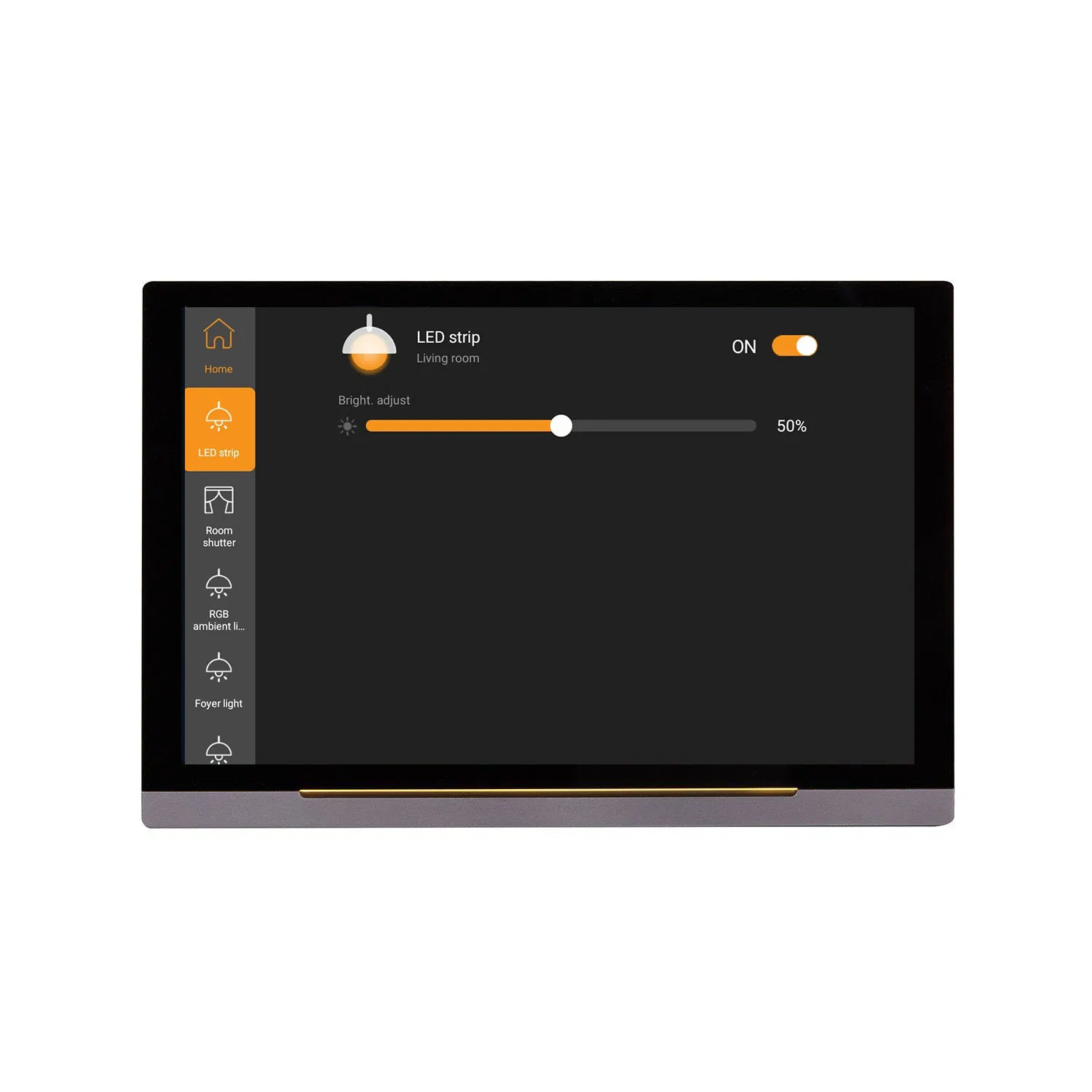

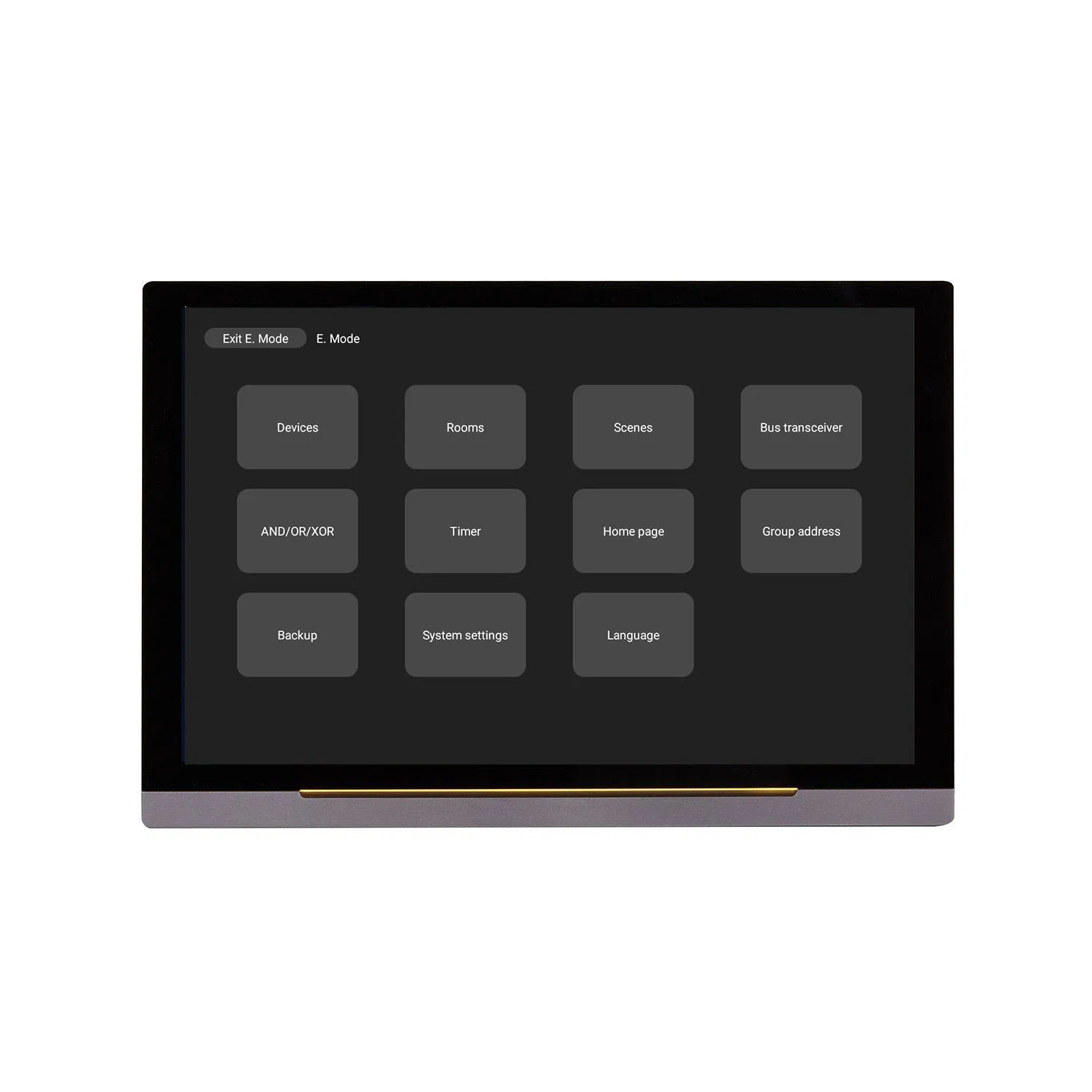

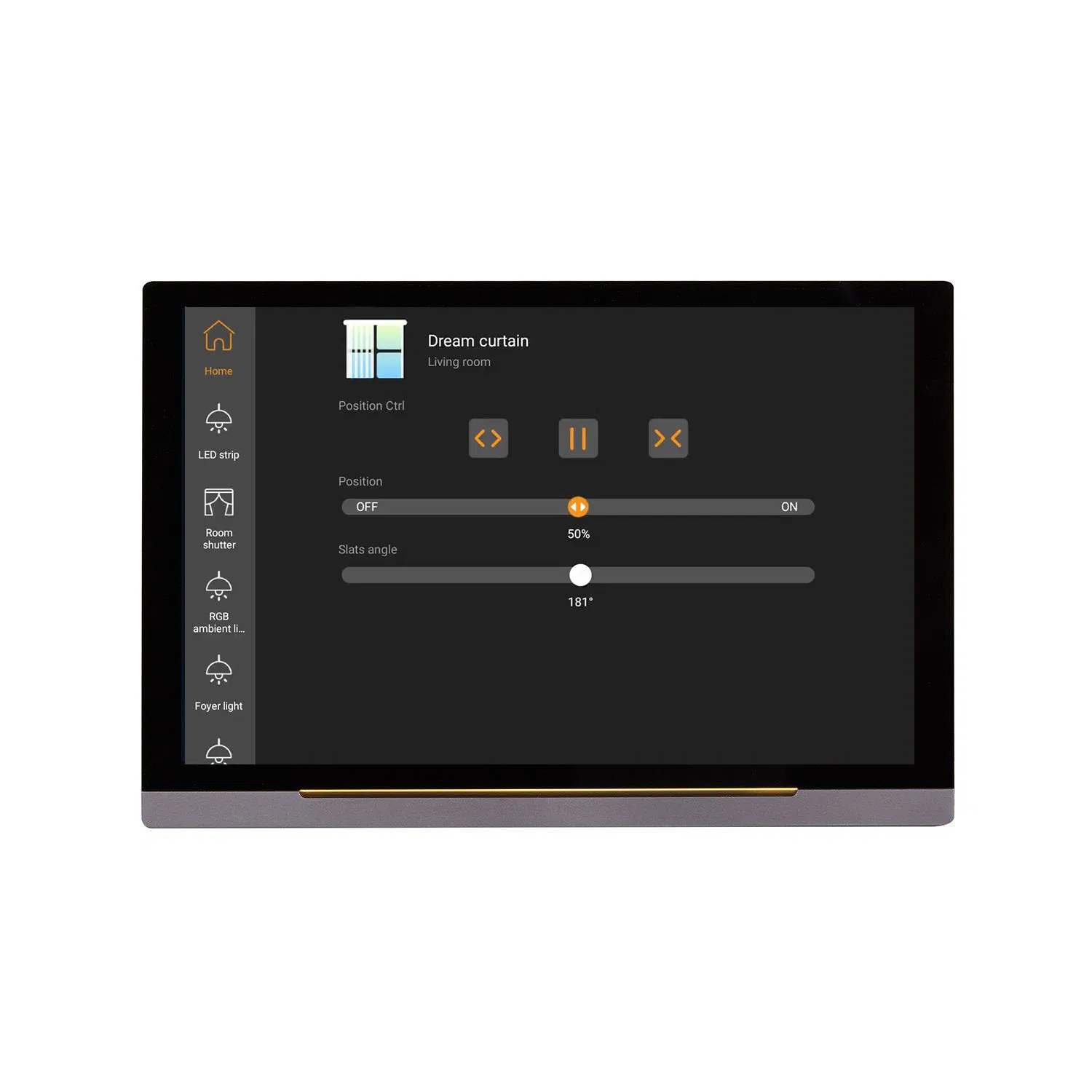

Product and Function Overview
✔Support smart home functions: curtains, air conditioning, underfloor heating, background music, lighting, etc.
✔Built-in temperature and humidity sensor for real-time indoor monitoring.
✔Optional voice recognition for remote control of home devices.
✔Optional analog intercom module paired with door units for video and voice communication.
✔Digital visual intercom and remote unlocking functionality.
✔Security alarm functions and automatic photography with management center reporting.
✔Real person voice prompts and terminal remote upgrade support.
✔Easy installation: Supports standard 86 box packaging.
Detailed Parameters
| Processor | ARMcortexA8SOC (800MHz~1.2GHz) |
| LCD Display | 10" IPS TFT LCD |
| Resolution | 1024x600 |
| Video/Audio Encoding | H.264 / PCM |
| Storage Expansion | Built-in Micro SD card slot |
| Security Interface | 2 security interfaces, 12V DC output |
| Network Interface | RJ45 10M/100M Adaptive Ethernet |
| Communication | Matching base, KNX |
| Working Voltage | 12-24VDC |
| Power Consumption | ≤6W |
| Dimensions | 300mm × 154mm × 13.2mm |
| Protection Level | IP20 |

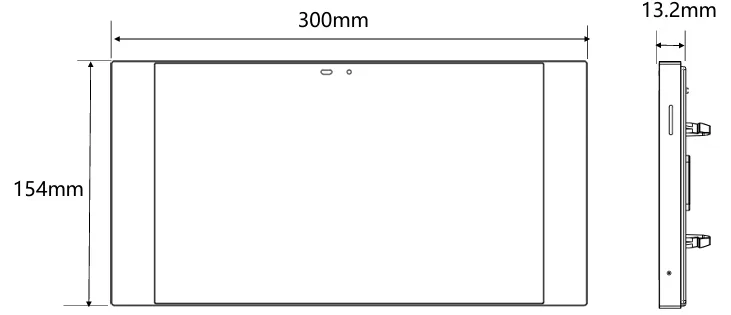

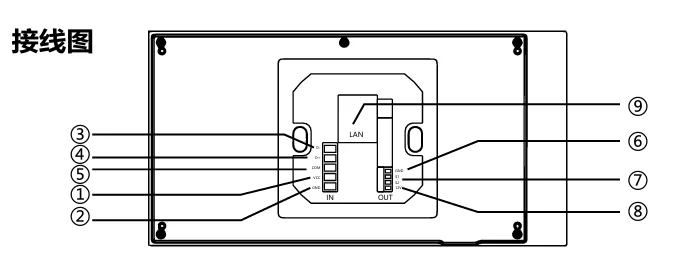

Dimensional and Wiring Diagrams
Wiring Explanation:
• VCC: Power Supply Positive (12V-24V) | GND: Power Supply Negative
• D- / D+: KNX Terminal connection
• S1-S2: Two defense zone interfaces
• DC12V Output: 0.5A Maximum | Ethernet: 10M-100M adaptive port
Production & Quality Showcase
Frequently Asked Questions
What types of products are available in your range?
We specialize in energy conservation, monitoring, and power quality solutions. Our main products include smart electrical systems, energy meters, smart circuit breakers, lighting controllers, and smart gateways.
Are these products original and certified?
Yes, all products are original. They have passed international CE certification, ISO9001, and other quality system standards to ensure reliability and safety.
What is the standard warranty period?
The standard warranty is provided within 90 days after the package has been received. Please contact support for extended project warranties.
What is the typical lead time for orders?
For products in stock, there is no lead time. Most standard orders can be shipped within 7 days after payment verification.
Do you offer OEM or custom design services?
Yes, we provide OEM/ODM services. Custom logos and specific designs can be implemented on the merchandise based on your requirements.
What are the supported payment and shipping methods?
Payments can be made via TT, PayPal, and Western Union. For shipping, we normally use international couriers such as DHL, FedEx, TNT, and EMS.
