Basic Info.

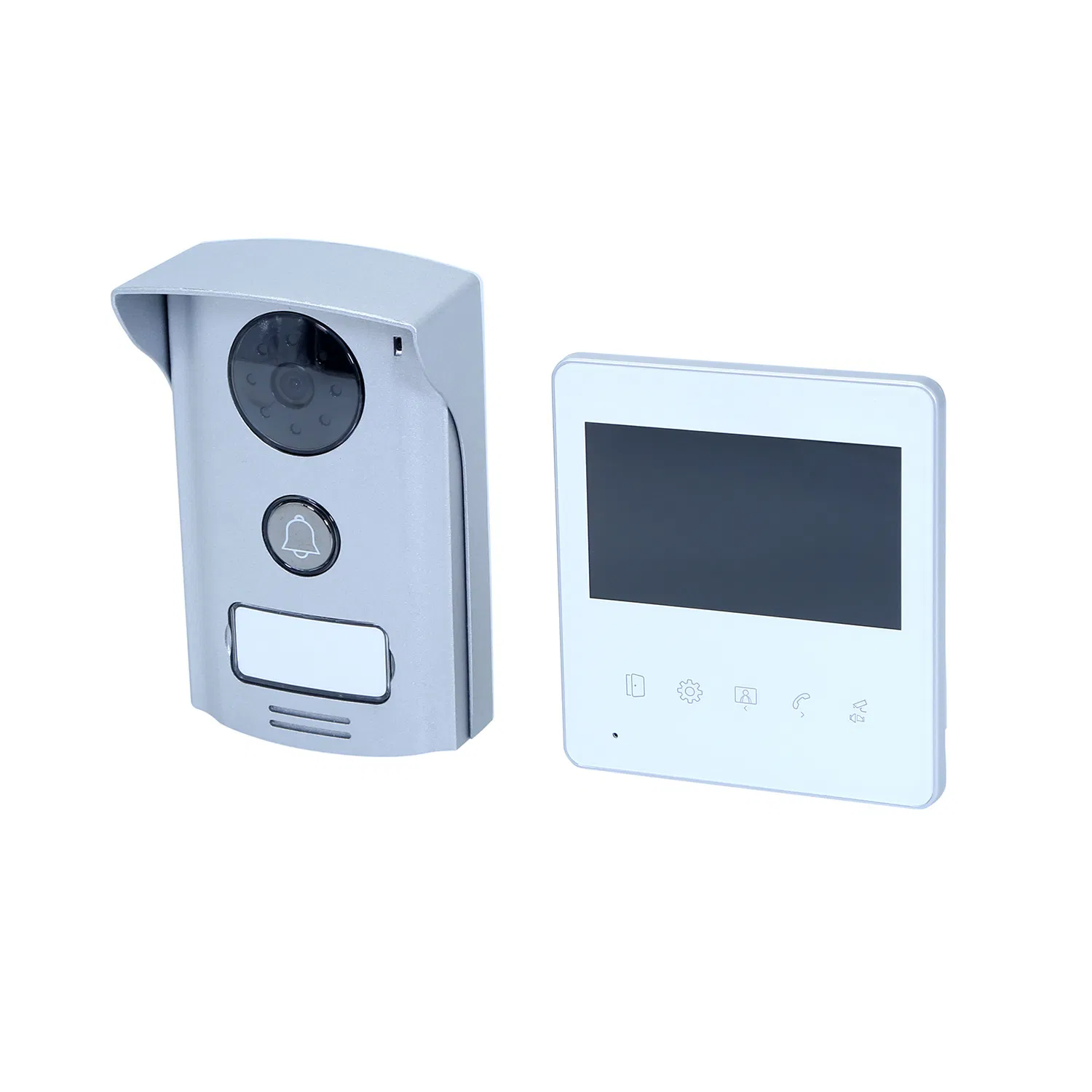

IP BOX WIFI BOX SUPPORT ALL TWO RANGE VDP WIFI VIDEO DOORPHONE
I. Product at a Glance

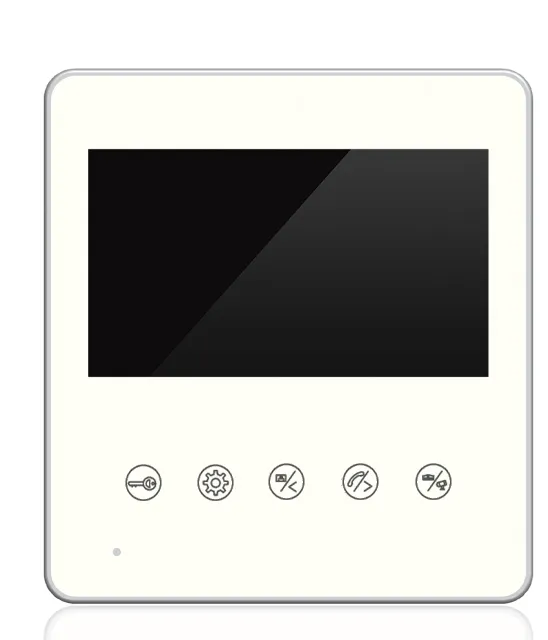

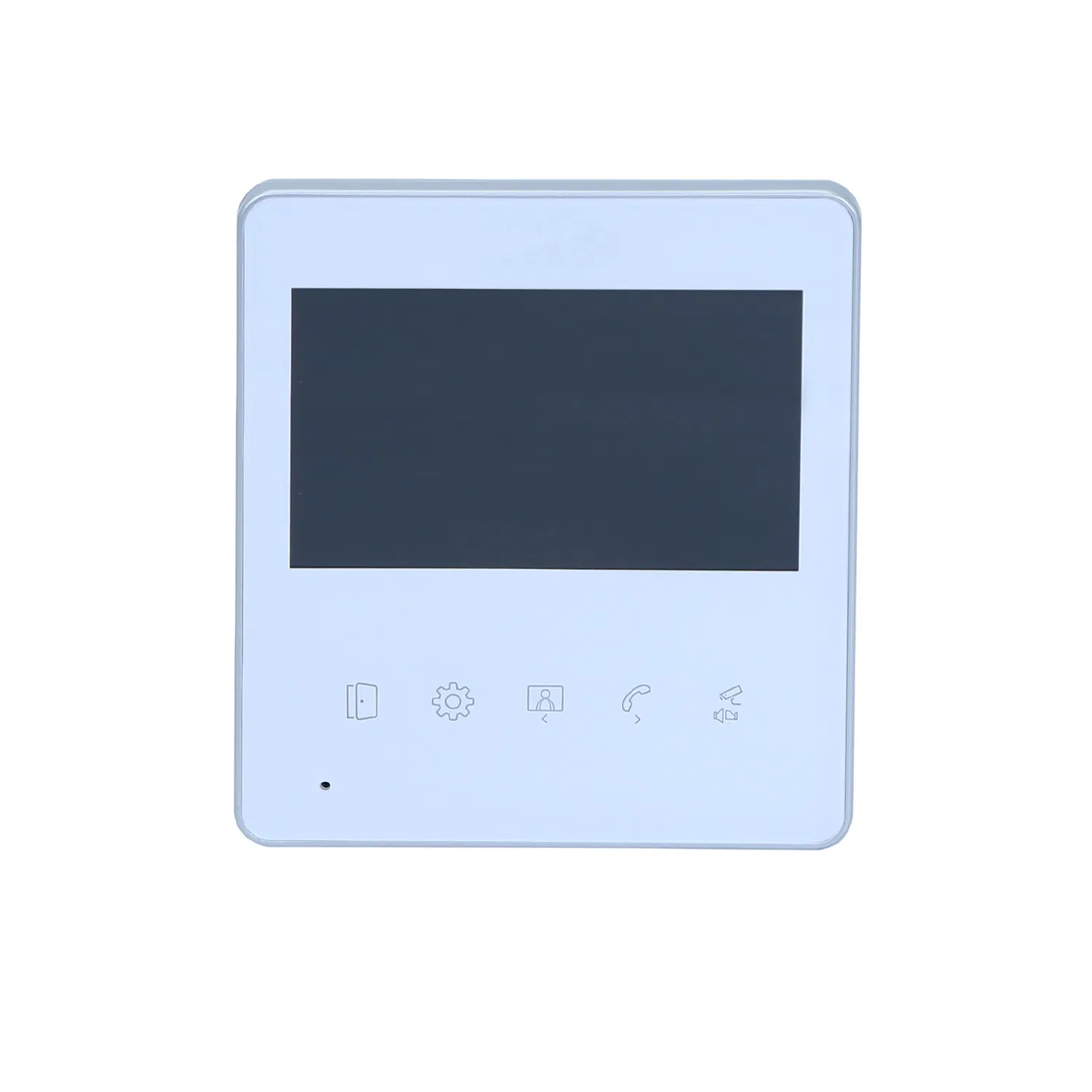

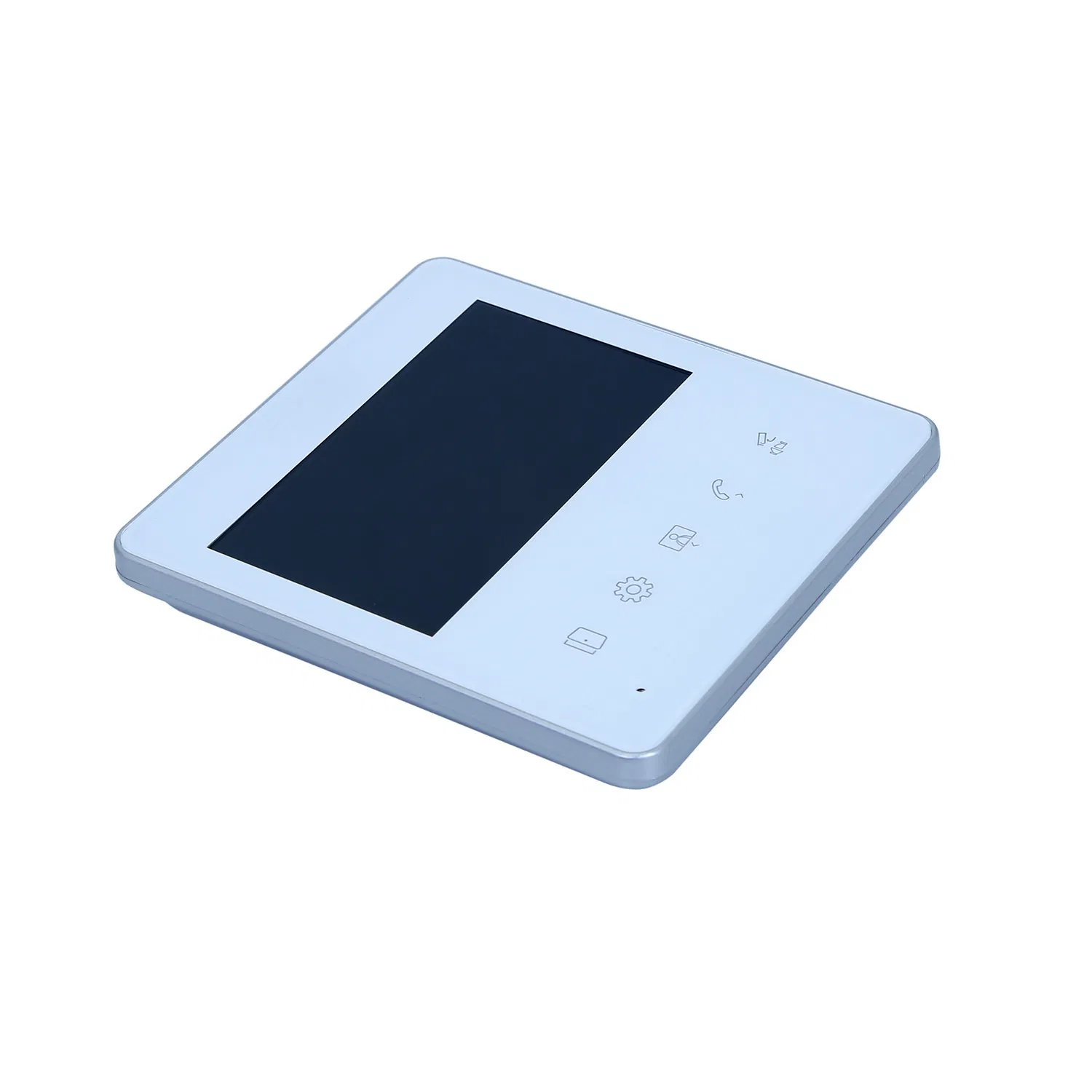

1) Indoor Unit Calling Function
Under standby mode, tapping "Call" on the Outdoor Unit triggers all indoor units to ring and light up, displaying visitor images.
Automatic hang-up occurs after 60s if the call is unanswered.
Tapping "Answer" on any unit stops the ring on others and starts a 120s two-way intercom.
2) Monitoring Capabilities
Access two-way intercom by tapping "Monitor" then "Answer" on any indoor unit.
One-way visual monitoring: Tap "Monitor" to see the outdoor image without audio transmission until "Answer" is pressed.
System automatically hangs up after 90s in monitoring mode.
3) Unlocking Features
Supports "Unlock the Door" (500mA or below) and "Unlock the Gate" during intercom mode.
Customizable unlocking duration for both door and gate options.
4) Internal Communication & Modes
Indoor Intercom: Supports calling between different indoor units within the system.
Silent Mode: One-touch silent mode activation (icon turns white) to disable ringing.
Photo Management: View visitor photo logs with exact timestamps and delete options.
Wiring Diagrams
Frequently Asked Questions
Which mobile application is compatible with this IP Box?
This device is fully compatible with the Tuya Smart APP, allowing for seamless integration into your smart home ecosystem.
Does the system support external storage for recordings?
Yes, the IP Box supports SD card storage up to 128GB for saving photos and video logs.
Can I install the unit on any wall?
The product is designed for a Wall-Mounted installation, making it versatile for most indoor entry points.
How does the Silent Mode work?
When Silent Mode is activated, the icon turns white, and the indoor unit will not ring when the outdoor unit is triggered, providing peace and privacy.
Can I unlock both a door and a gate?
Yes, the indoor unit features separate controls for "Unlock the Door" and "Unlock the Gate" with customizable unlocking times.
What is the maximum duration for a two-way intercom call?
The system allows for a two-way intercom session of up to 120 seconds between the indoor and outdoor units.
