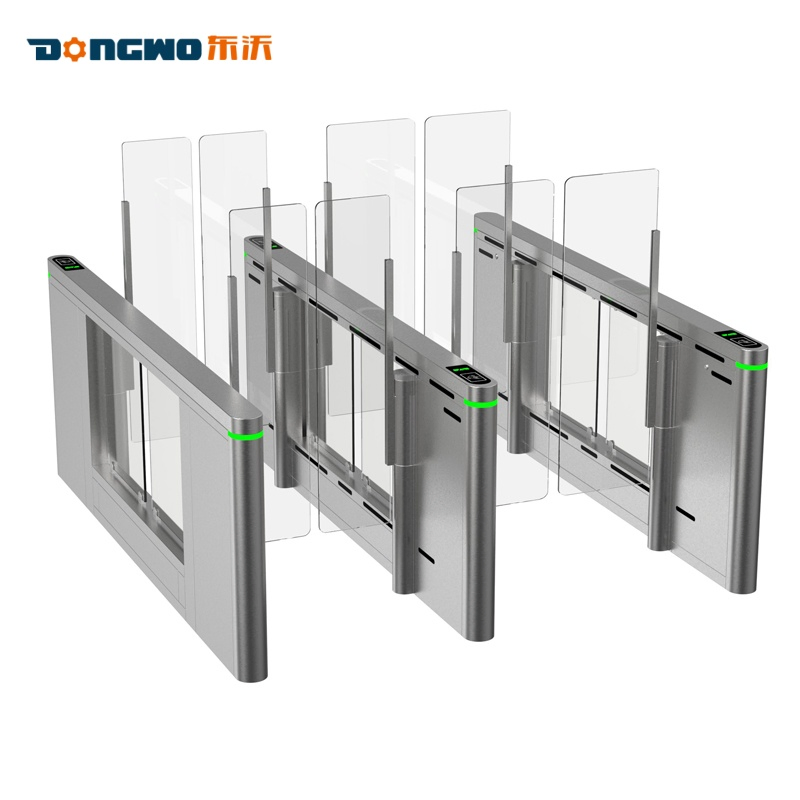

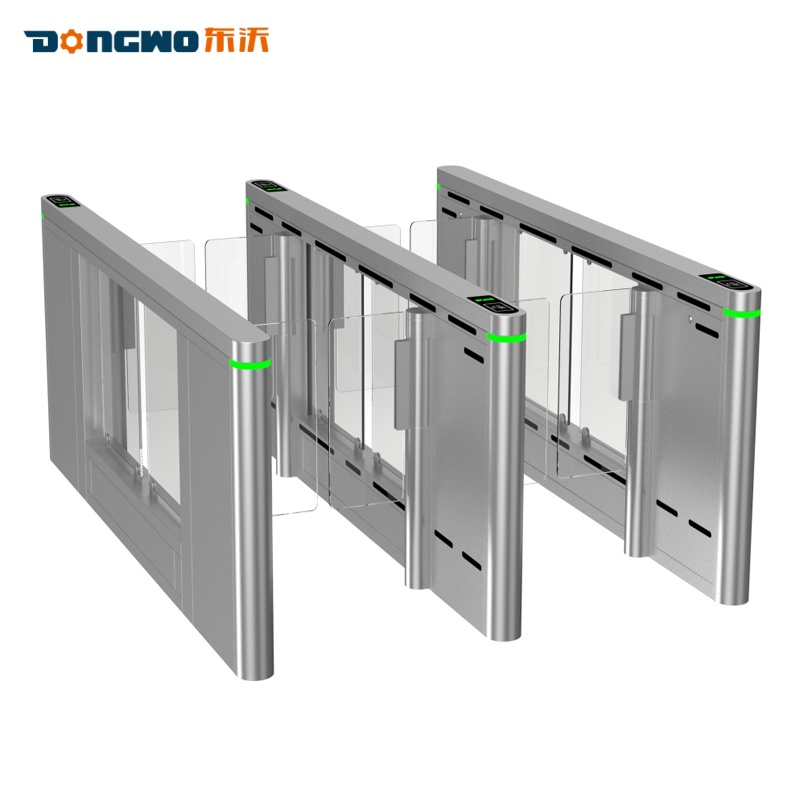

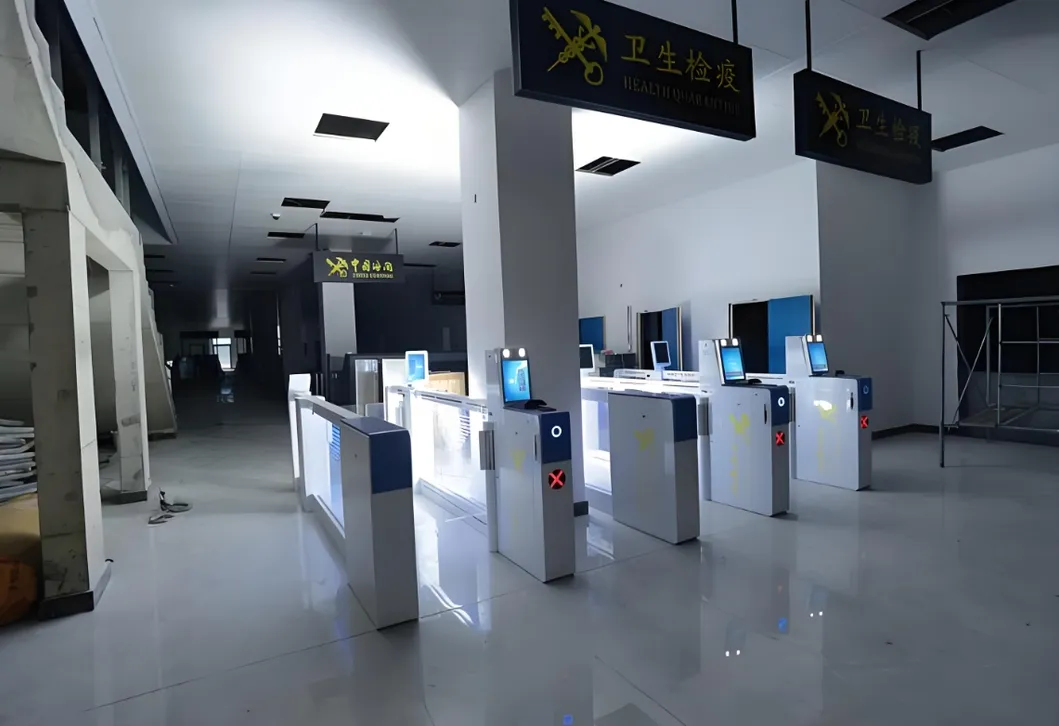

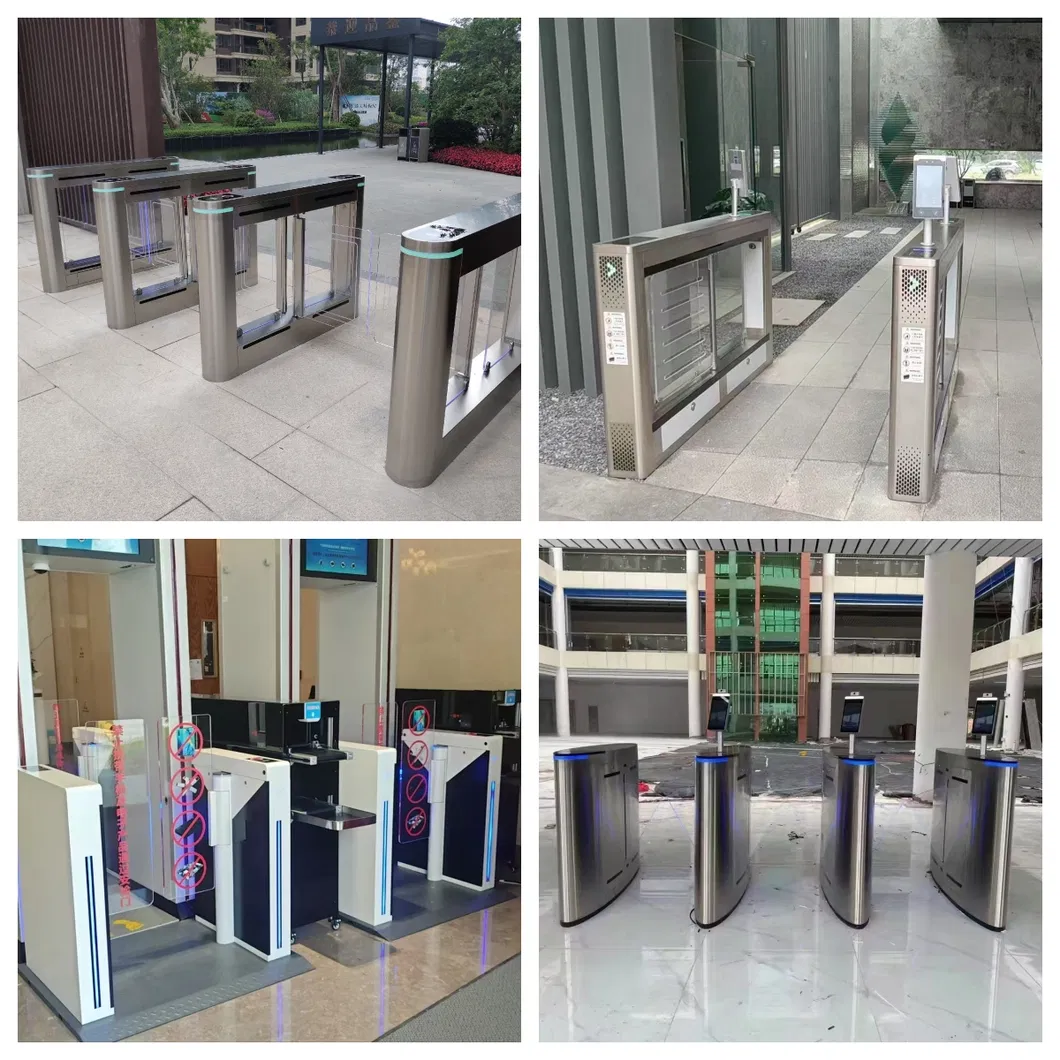

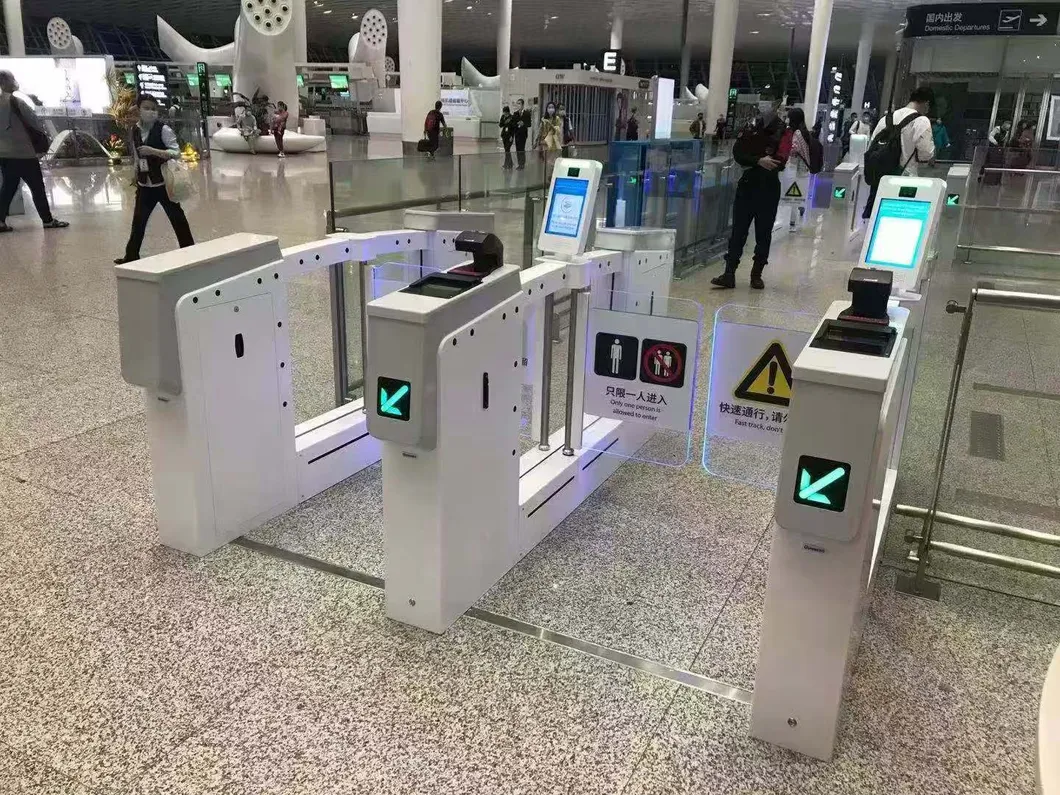

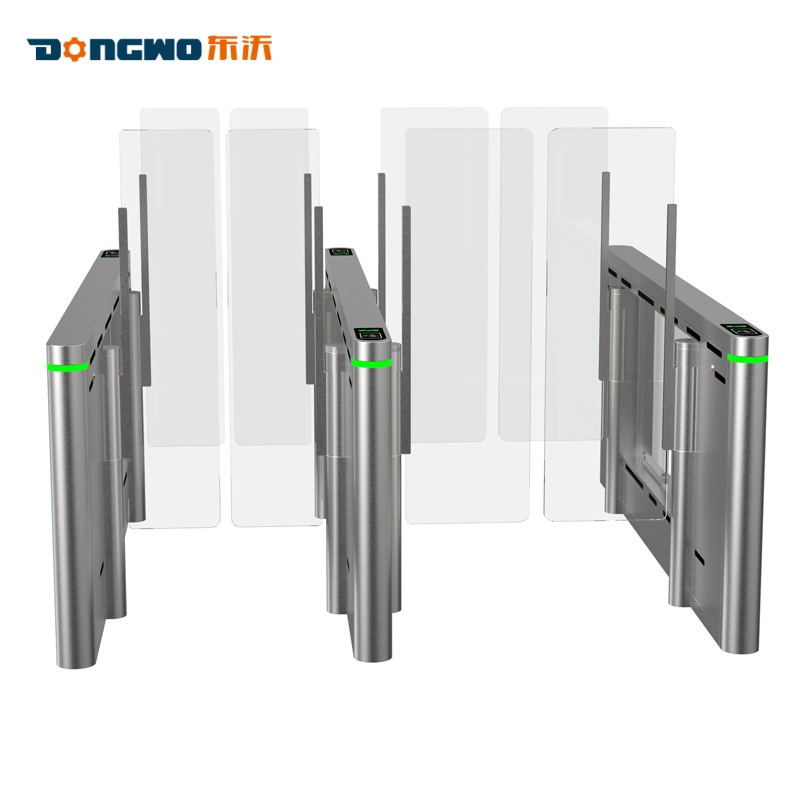

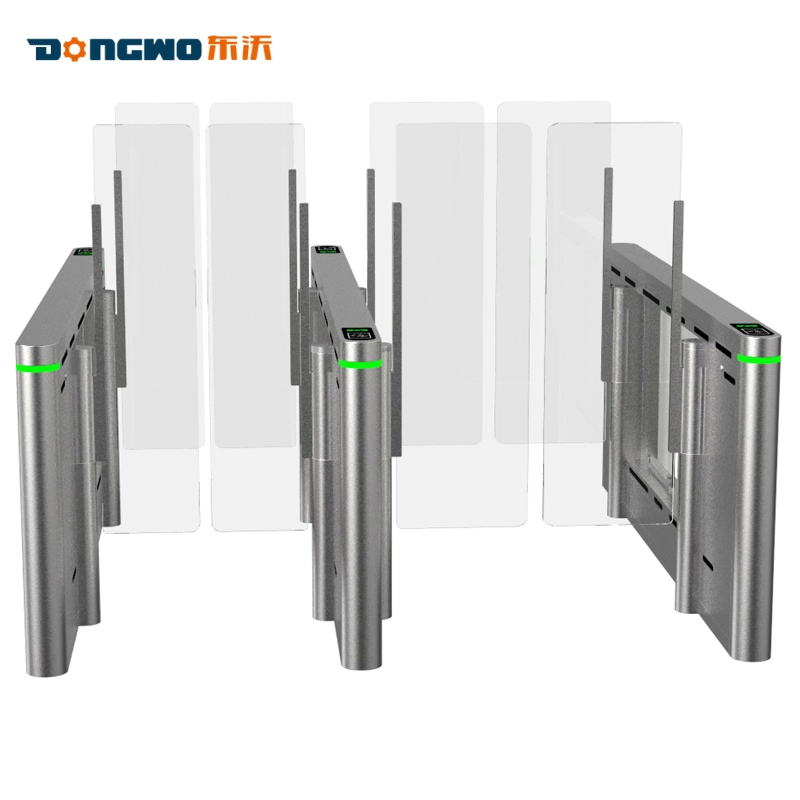

The AB interlocking gate is an intelligent access control device meticulously developed for smart management of personnel passages. It integrates mechanical, electronic, and microprocessor control with advanced identity recognition technologies. It serves as a multi-in-one solution combining face recognition, certificate verification, and security checks, making it ideal for customs, high-security facilities, and office buildings.
| Function | Declaration & Benefit |
|---|---|
| Visual/Audio Indication | Visual status (Green/Red) and auditory warnings for status and prohibited access. |
| Triple Anti-clamp | Infrared, mechanical, and current sensing prevents injuries during passage. |
| Anti-stalking Tech | 16 pairs of infrared sensors and AB door interlocking to prevent following. |
| Fire Linkage | Interface for emergency systems; gates open automatically upon alarm trigger. |
| Voice Broadcast | Real voice broadcast (Chinese/English) for user guidance and customized alerts. |
| Case Material | 304 Stainless Steel (1.5mm Thickness) |
| Drive Motor | Brushless Servo Direct Drive Core |

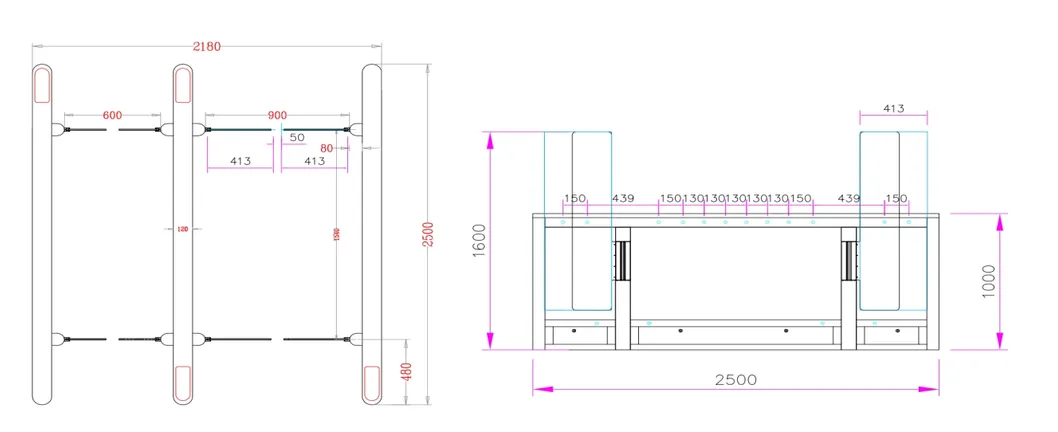

| Dimensions | 2500*120*1000mm (Support Customization) |
| Channel Width | 600-900mm |
| Passage Speed | 40 people/min (Always Open) |
| Reset Time | 1-3 seconds |
| Noise Level | ≤55dB |
Wooden Box Material: High-quality plywood meeting international standards (fumigation-free). Thickness: Side panels 12-18mm, Bottom panel 18-25mm for stability.
Internal Protection: EPE pearl cotton and bubble wrap shock-absorbing materials are used to ensure safety during transit.
