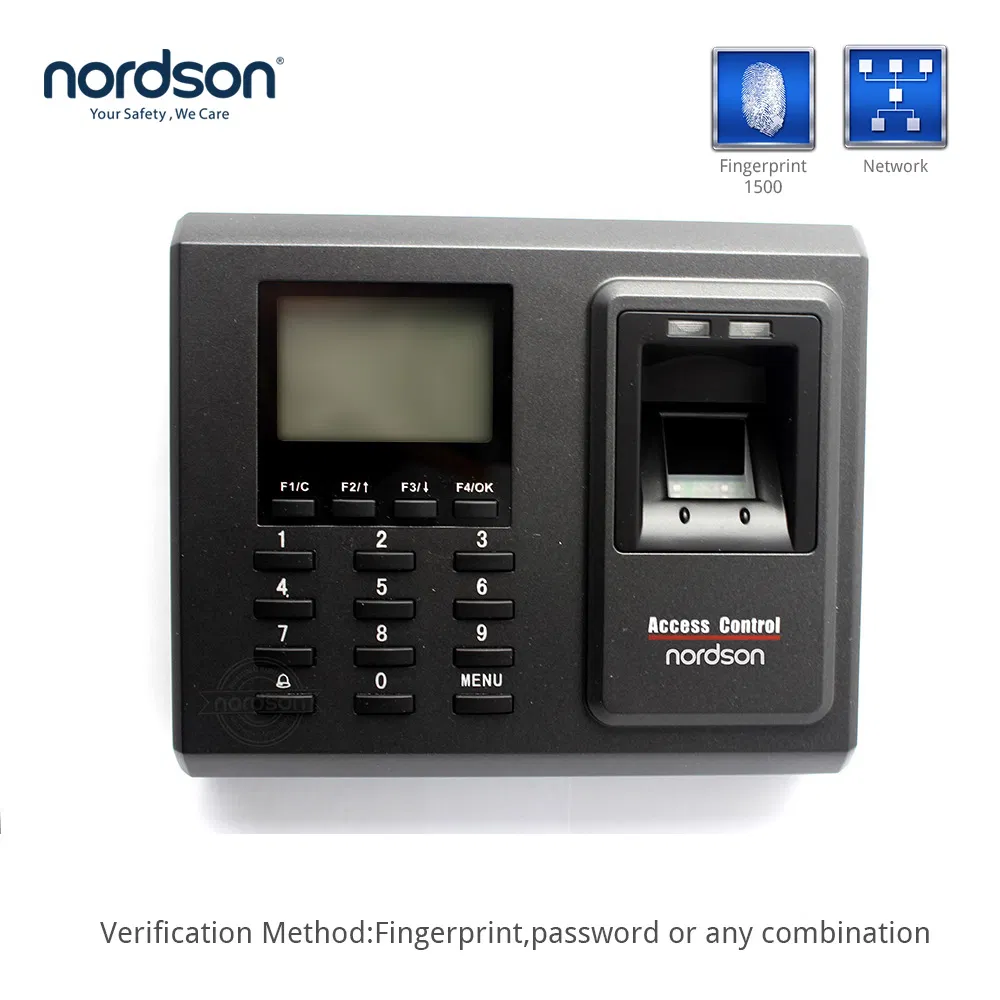

Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
1 / 5
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System
Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System

Fr-F2 Standalone TCP/IP Network RFID ID Card Biometric Fingerprint Safe Elevator Access Control System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
FR-F2 Biometric Fingerprint Safe Elevator Access Control
Color
Black
Screen
B & W LCD Screen
Communication
RS485, RS232, USB, TCP/IP
Fingerprint Capacity
3000
Record Capacity
50000
Standard Functions
Work Code, SMS, Dst, Scheduled-Bell, Self-Service
Optional Functions
ID/MIFARE/HID, Webserver, Wi-Fi, ADMS
Access Control
3rd Party Electric Lock, Door Sensor, Exit Button
Power Supply
DC 12V
Verification Speed
≤0.5 Sec
Dimension
140.5*116*43.5mm
Operating Temp.
0°C - 45°C
HS Code
123456
Production Capacity
10000PCS/Per Month
Product Description

Fr-F2 Standalone TCP/IP Network Biometric Fingerprint Access Control System

The FR-F2 Biometric Access Control terminal features an ultra-thin design with a B & W LCD Screen and full metal siding. Safe, durable, and equipped with a grade A industrial chip, it provides stable performance and easy installation for attendance and access control management.

Biometric Access Control 1

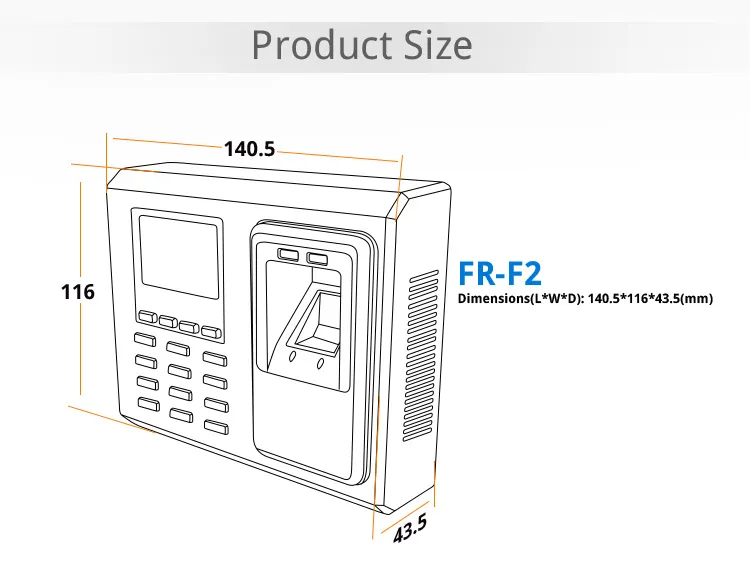

Biometric Access Control 2

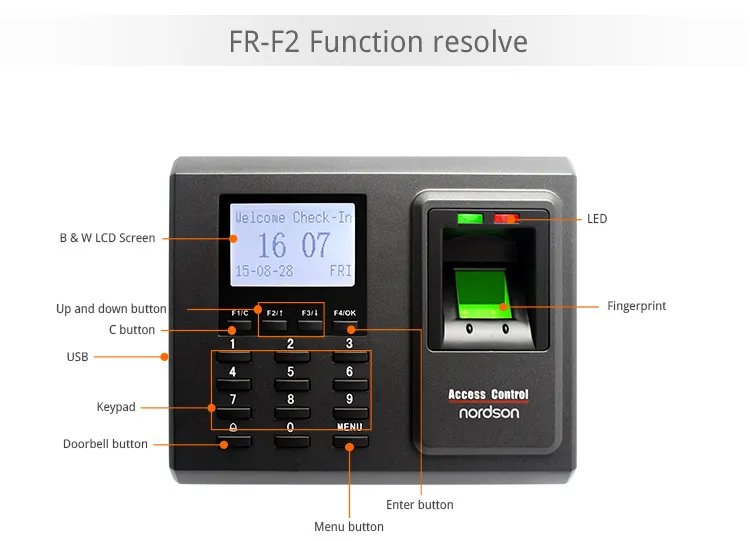

Biometric Access Control 3

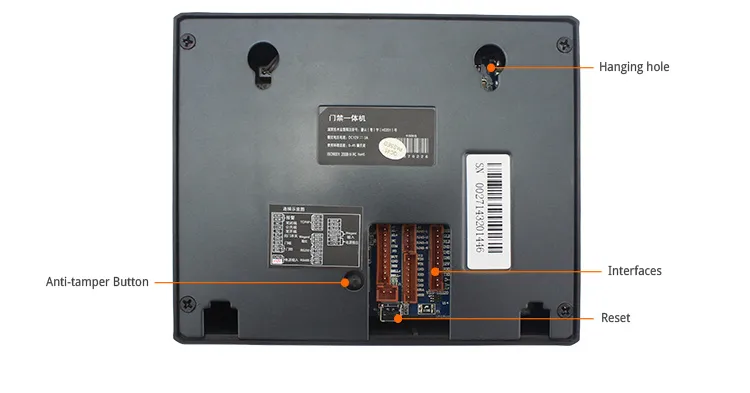

Biometric Access Control 4

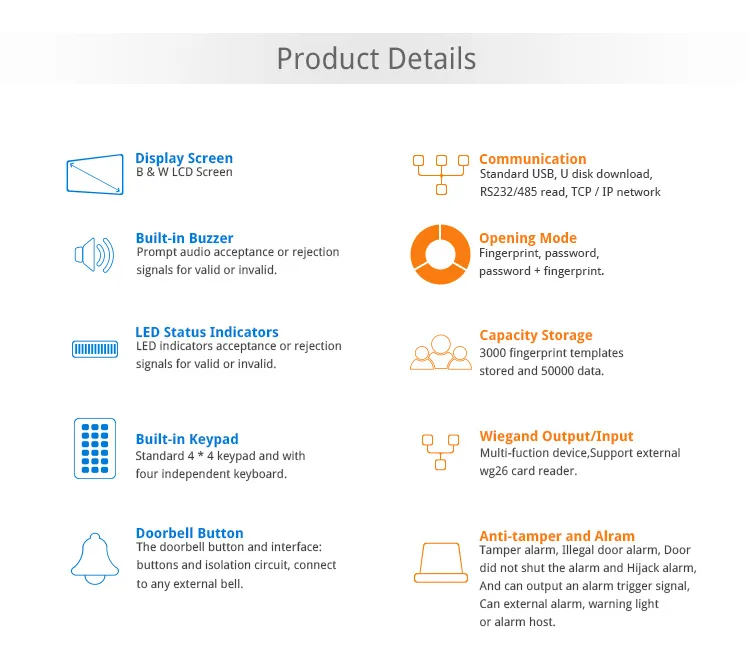

Biometric Access Control 5

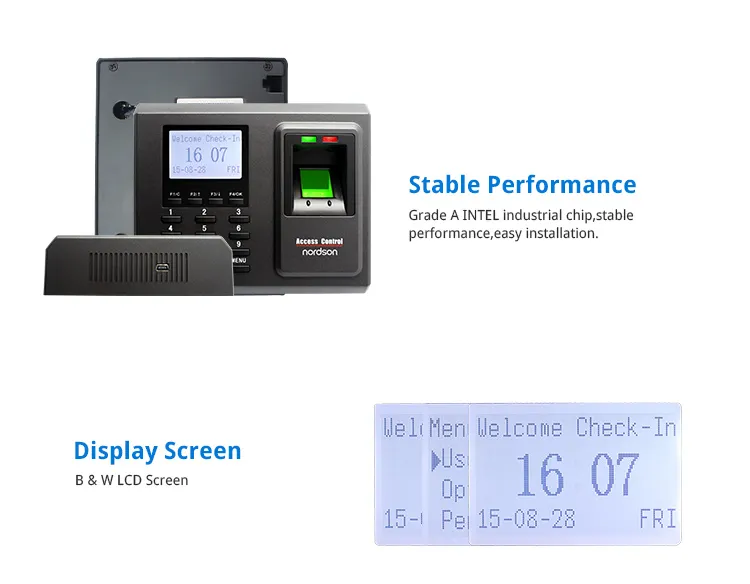

Biometric Access Control 6
Technical Specification
Fingerprint Capacity3000
Record Capacity50000
DisplayB & W LCD Screen
CommunicationTCP/IP, RS232/485, USB-host
Standard FunctionsWork code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input
Access Control Functions3rd party electric lock, door sensor, exit button, alarm, DoorBell
Optional FunctionsID/Mifare/HID, Webserver, Wi-Fi, ADMS
Power SupplyDC 12V
Verification Speed≤0.5 sec
Operating Temp.0°C- 45°C
Operating Humidity20%-80%
Dimension140.5*116*43.5mm
Gross Weight0.85kg
Core Functions
◈High-speed twin-engine fingerprint recognition for rapid verification.
◈Multi-protocol support: Compatible with TCP/IP, RS232, and RS485.
◈Advanced security: Built-in tamper alarm and demolition protection.
◈Convenient data management: Support for U disk upload and download.
◈High storage: Up to 3,000 templates and 50,000 transaction records.
◈Flexible access: 50 time zones, 5 groups, and 10 unlock combinations.
◈Real-time integration: Export 1-touch data to 3rd party applications.
◈Professional interfaces: Request-to-exit and alarm contact support.
Connection Diagram
Frequently Asked Questions
How many fingerprints can the FR-F2 store?
The device has a high-capacity memory that can store up to 3,000 fingerprint templates and 50,000 transaction records.
What communication interfaces are supported for networking?
The FR-F2 supports various communication methods including TCP/IP, RS485, RS232, and USB-host for flexible data management.
Is the verification speed fast enough for high-traffic areas?
Yes, the device features high-speed twin-engine recognition, achieving a verification speed of ≤0.5 seconds.
Can I use RFID cards with this biometric terminal?
While it is primarily a fingerprint terminal, it offers optional support for ID, MIFARE, and HID card verification.
Does this device support external door hardware?
Yes, it integrates with 3rd party electric locks, door sensors, exit buttons, alarms, and doorbells for a complete access control solution.
Can data be transferred without a network connection?
Yes, the FR-F2 supports U-disk data upload and download, allowing you to manage records even when offline.
