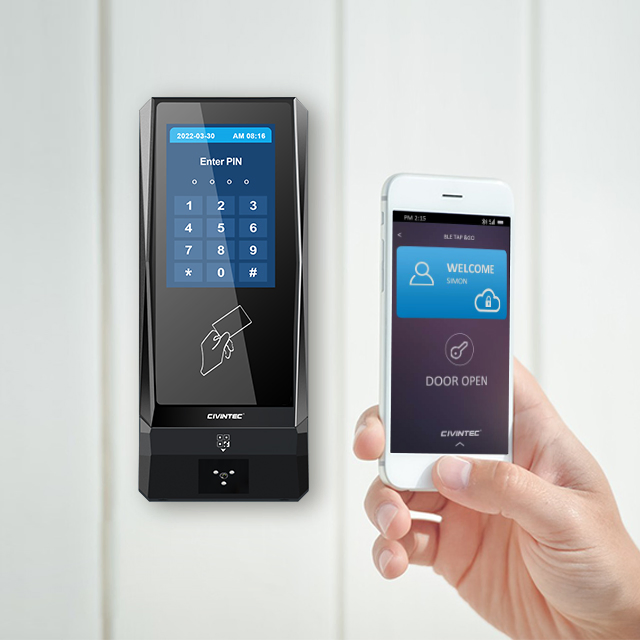

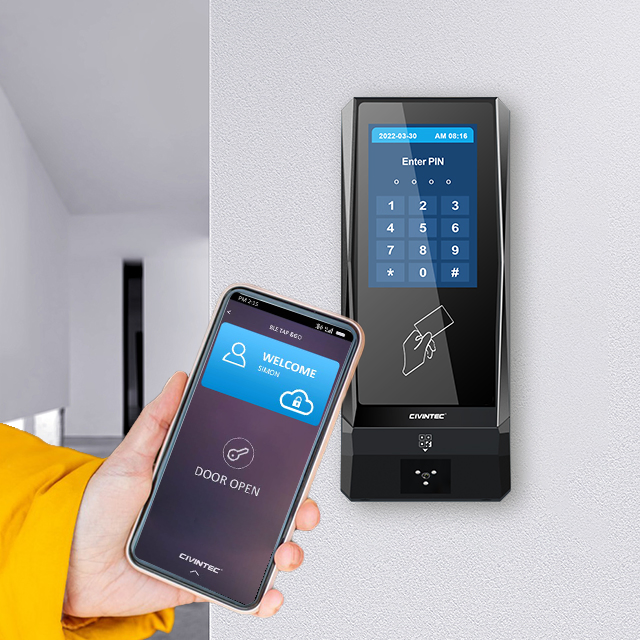

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |

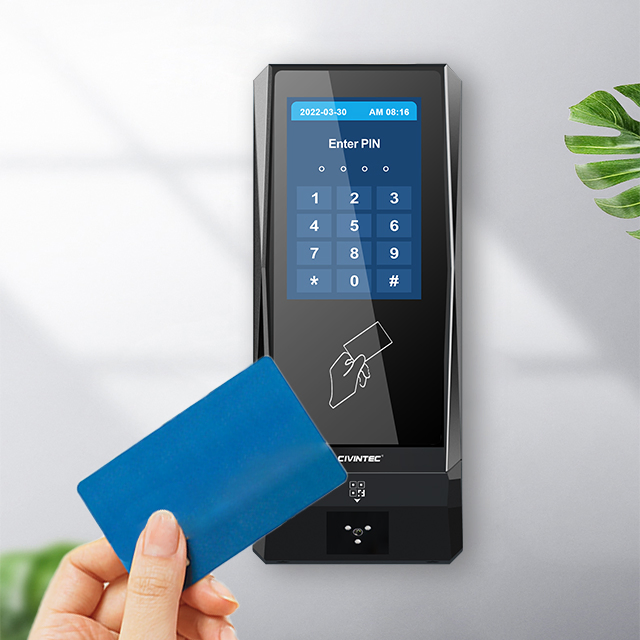

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1, EV2, NFC tags, ISO14443B, HID Prox, iCLASS, iCLASS SE/SR, iCLASS Seos |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| Offline Logs | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |

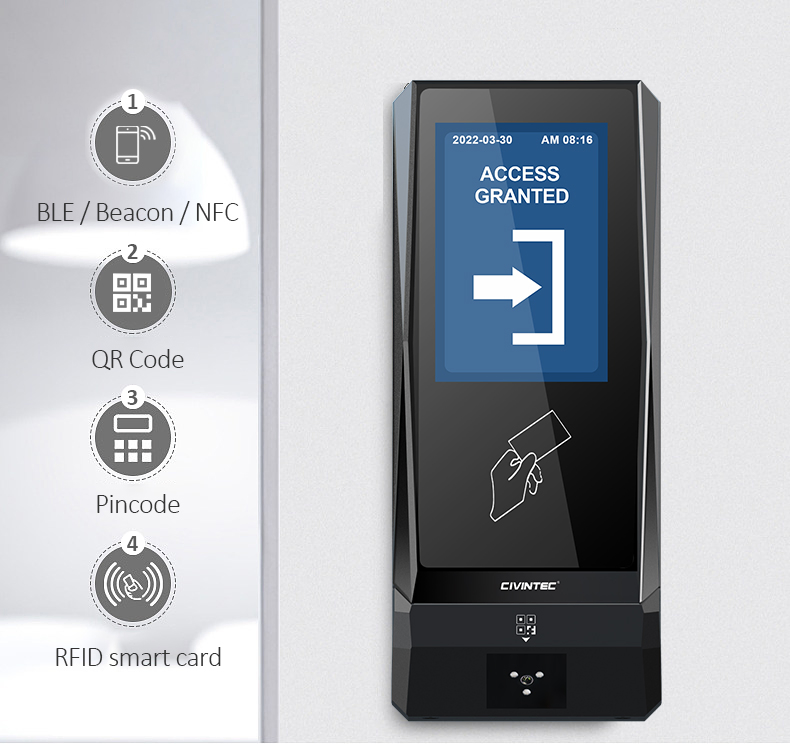

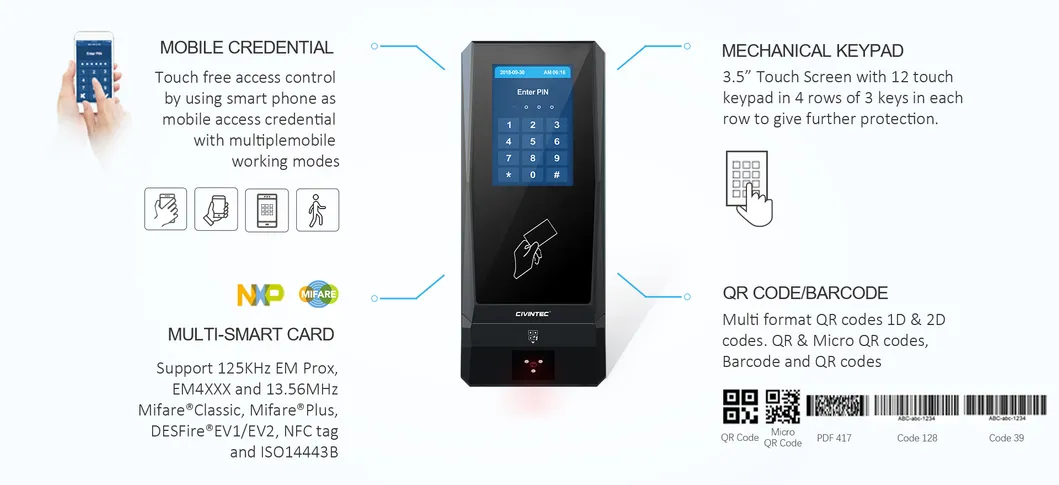

CT9 Pro incorporates 5-in-1 multiple access technologies, including touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR code scanning for comprehensive visitor management.

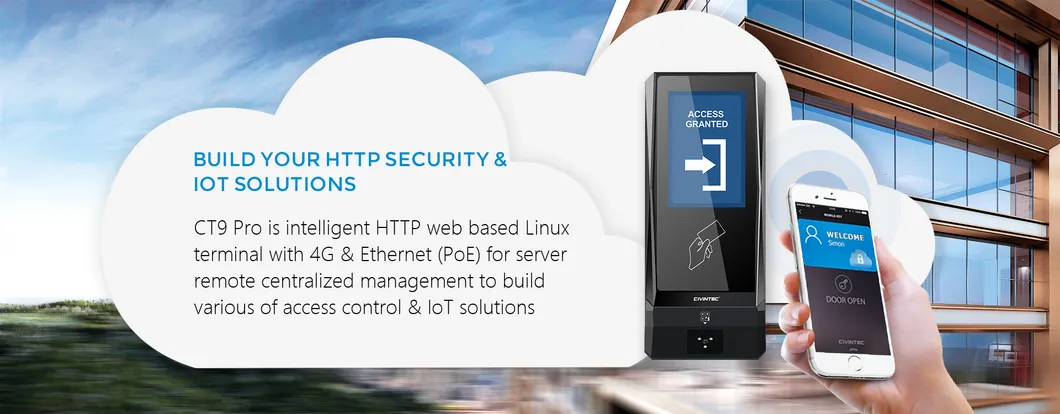

Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and servers allows for remote control of door locks and various IoT facility management systems.
Remotely controlled by cloud web-based software in real-time. Features embedded relay output to control door locks for Access Denied or Access Granted scenarios.

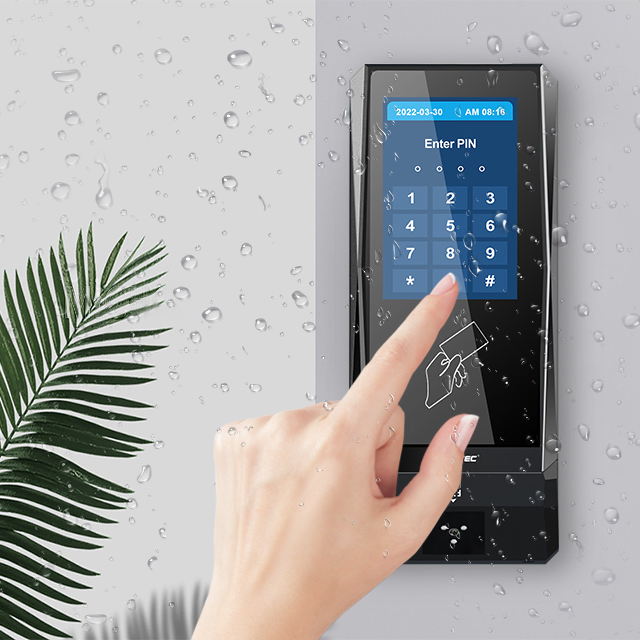

With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
We offer customization on hardware, reader housing, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
