| Model NO. | NovaSite Management Unit |
| Output Type | Multiple |
| OEM&ODM | Yes |
| Application | 5G/4G Base Stations / Multi-Vendor Hybrid Networks |
| Monitoring Capacity | Supports ≥500 Base Station Nodes in Real-Time |
| Deployment | Cloud-Based / on-Premise / Hybrid |
| Transport Package | Carton Box or Wooden Pallets |
| Specification | 350x280x58mm |
| HS Code | 8504409940 |
| Production Capacity | 300,000 |
| Package Size | 350.00cm * 280.00cm * 58.00cm |
| Package Gross Weight | 2.000kg |

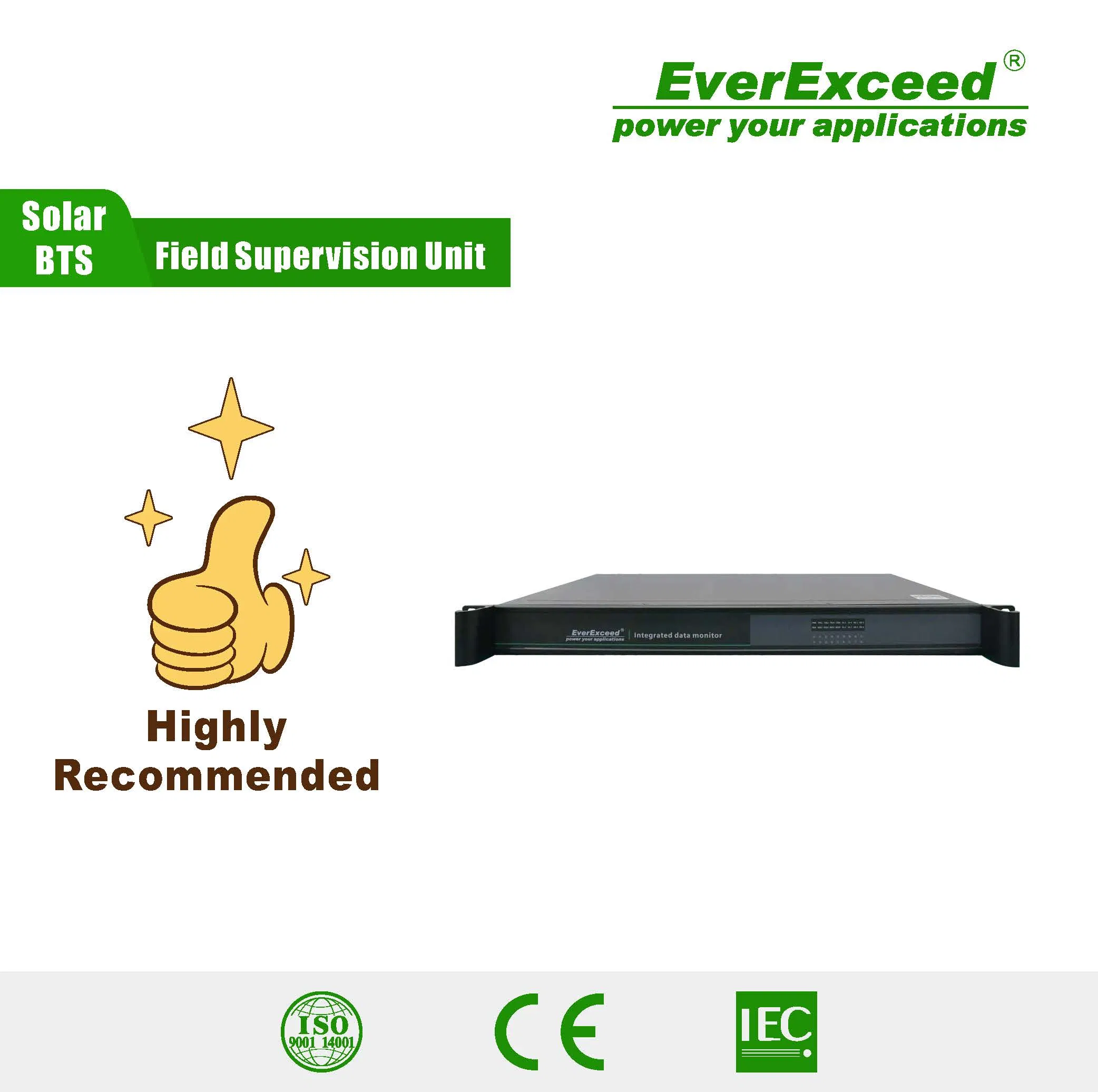

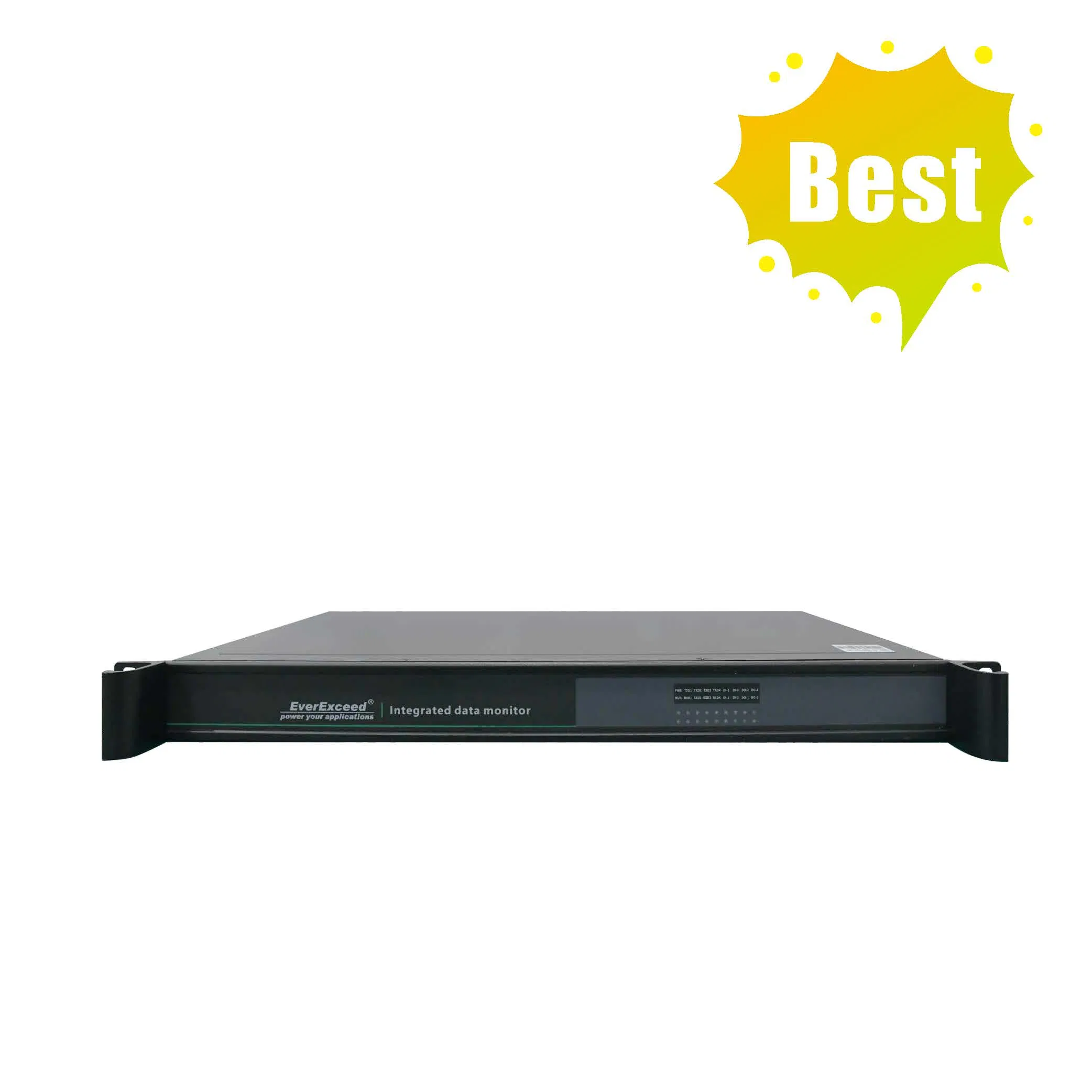

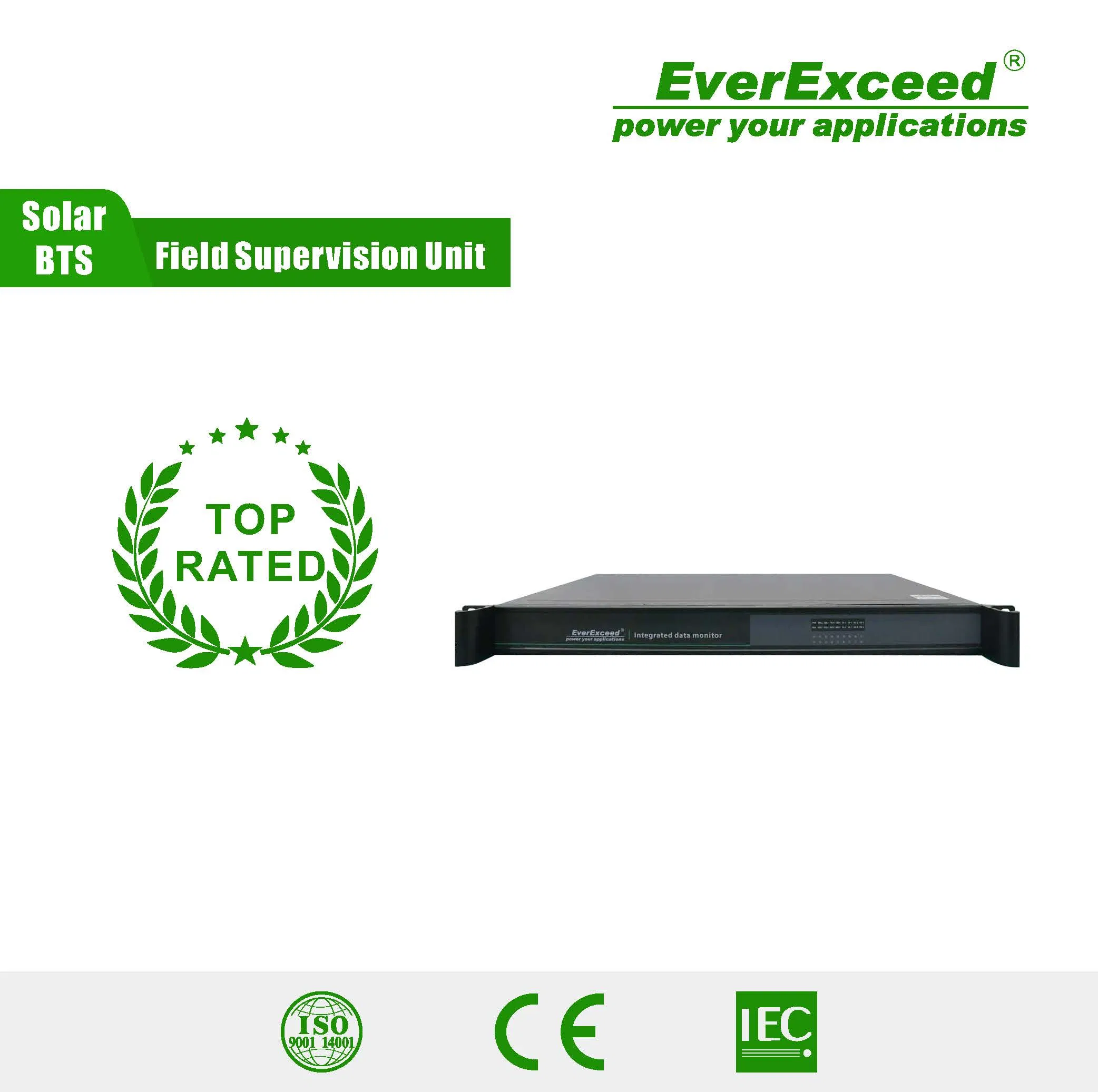

The NovaSite Management Unit serves as a field supervision unit dedicated to site environment and power management. Leveraging advanced ICT technology, it enables site digitization, rendering the energy network visible and manageable. This ensures high-level power reliability and facilitates easy site maintenance.

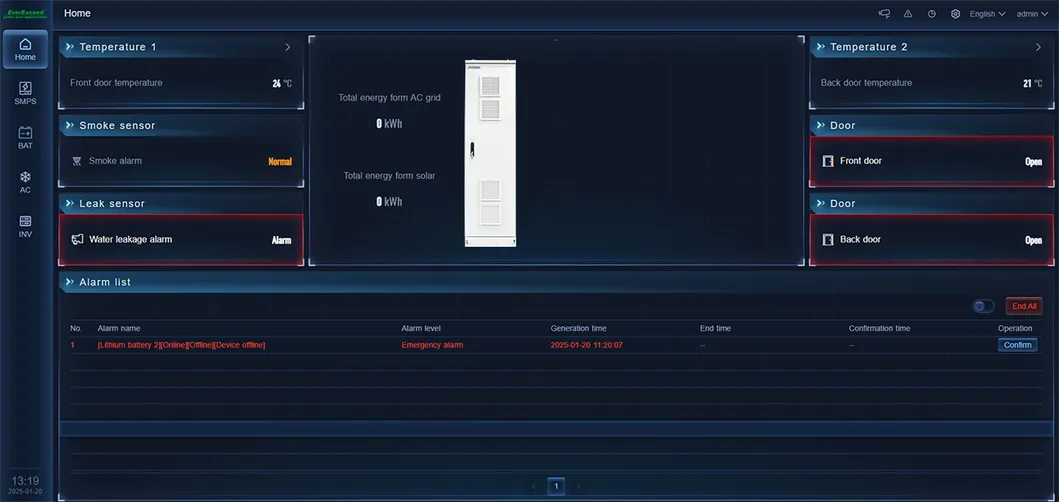

Effortlessly monitor and control a vast network of sites through one powerful and intuitive platform.
Harness integrated solar, generators, and grid systems to achieve remarkable cost savings.
Minimize downtime with proactive diagnostics that keep operations running smoothly.
Accelerate issue resolution and reduce site visits with real-time intelligent alerts.
| Item | Specification / Description |
|---|---|
| Main Functions | Energy monitoring, remote control, data acquisition, alarm management, centralized control of batteries/inverters |
| Compatible Devices | Energy storage systems, solar inverters, chargers, UPS, BMS, smart meters |
| Communication Protocols | Modbus TCP/RTU, CAN, SNMP, MQTT, IEC 61850 (optional) |
| Data Collection Frequency | 1 time/sec or customizable |
| Remote Access | Web browser / Mobile App / Cloud platform |
| Supported Nodes | ≥ 100 terminal nodes |
| Local Display | 7" / 10" color touchscreen (optional) |
| Data Storage | Internal memory + cloud synchronization; supports historical data export |
| Power Consumption | ≤ 50W |
| Installation Method | Wall-mounted / Rack-mounted (1U/2U) |
| Operating Temperature | -10°C ~ +60°C |
| Communication Interfaces | RS485, Ethernet, USB, DI/DO |
| Certifications | CE, RoHS, ISO9001 |
| Application Scenarios | C&I energy storage systems, microgrids, telecom base stations, data centers |
