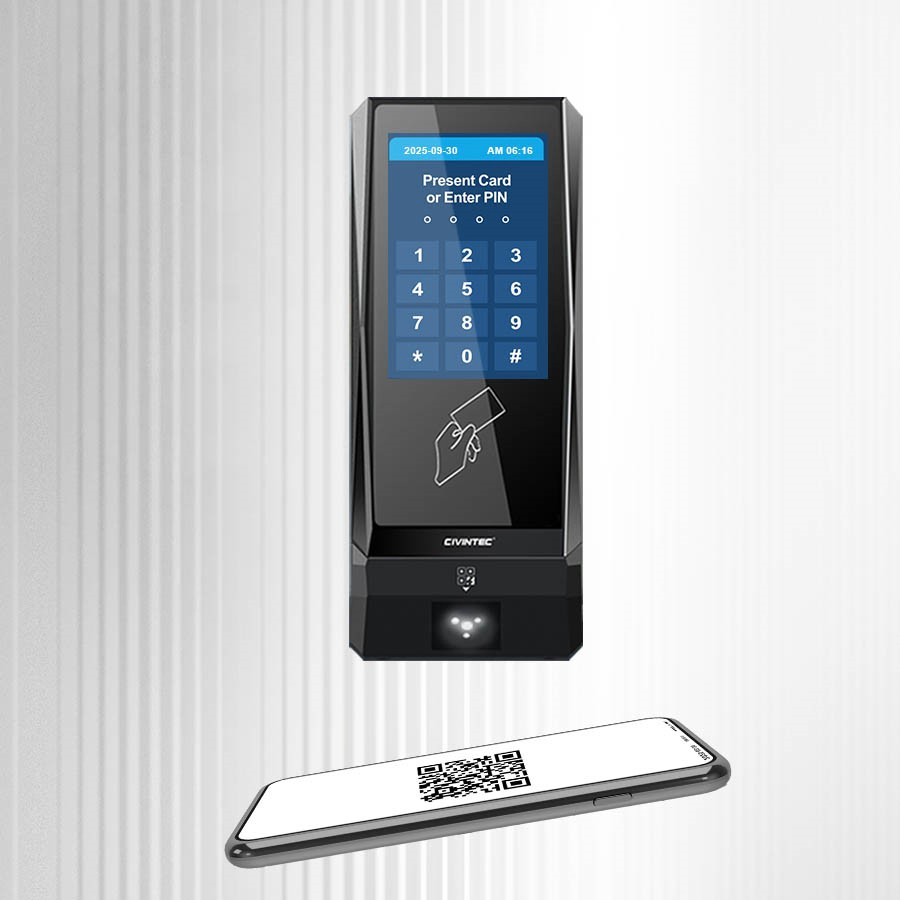

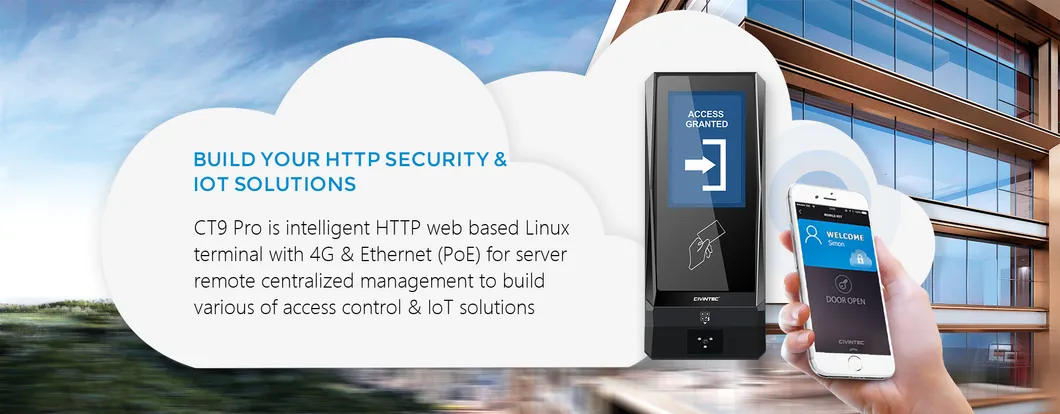

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. With an embedded relay to build versatile IoT and security solutions, it supports 5-in-1 multiple access credential technologies including touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC (iOS support BLE, Android supports NFC/BLE) |
| RFID Card | 125KHz, 13.56MHz ISO14443A/B, Mifare Classic/Plus, DESFire EV1/EV2/EV3, iCLASS Seos |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, Door contact, Exit button |
| Storage | 10,000 users / 50,000 logs |

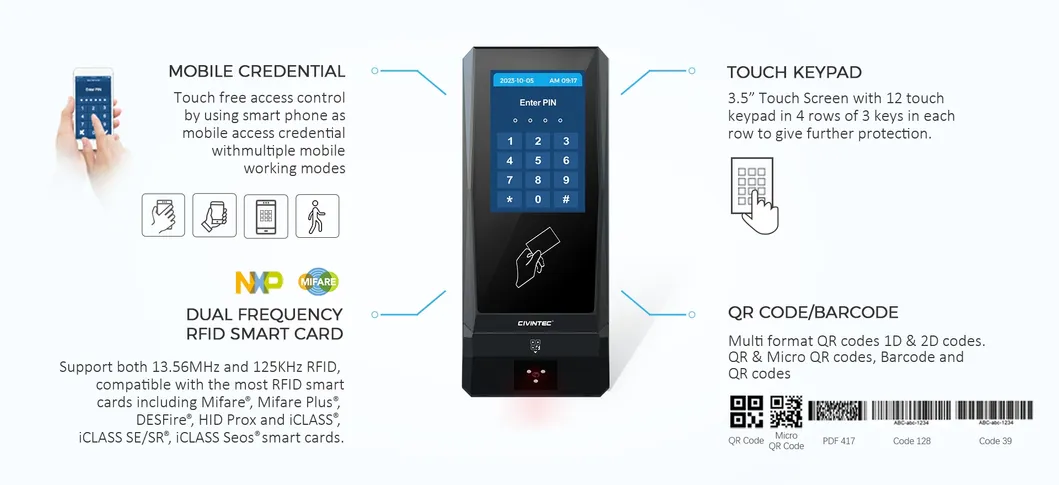

Multiple Access Credentials
CT9 Pro incorporates 5-in-1 technologies: touch keypad, dual RFID frequencies, BLE & NFC mobile access, and QR CODE/barcode for visitor management.
Cloud Server Remote Control
Bidirectional communication via standard HTTP/HTTPs between CT9 Pro and the server allows for remote control of door locks and facility management.
Weather-Resistant Protection
With an IP65 rating, CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and low-temperature rugged environments.
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen.
Frequently Asked Questions
Q1: What identification methods does the CT9 Pro support?
A: It supports a 5-in-1 combination of RFID (125KHz & 13.56MHz), BLE and NFC mobile access, QR Code/Barcode scanning, and a touch pin code.
Q2: Can this terminal be used outdoors?
A: Yes, CT9 Pro has an IP65 protection rating, making it waterproof and UV-resistant, suitable for various outdoor and rugged environments.
Q3: Does the device support Power over Ethernet (PoE)?
A: Yes, it supports PoE IEEE 802.3af standard, allowing for both power and data transmission through a single Ethernet cable.
Q4: What operating system does the CT9 Pro run on?
A: The terminal is based on a stable Linux OS, which supports centralized communication via HTTP/HTTPs protocols.
Q5: Is it possible to customize the screen interface?
A: Yes, users can freely program the device to display their own LOGO and UI elements on the 3.5-inch touch screen.
Q6: How many users and logs can the device store offline?
A: In standalone or offline mode, it can store up to 10,000 users and 50,000 event logs, with options for more upon request.
