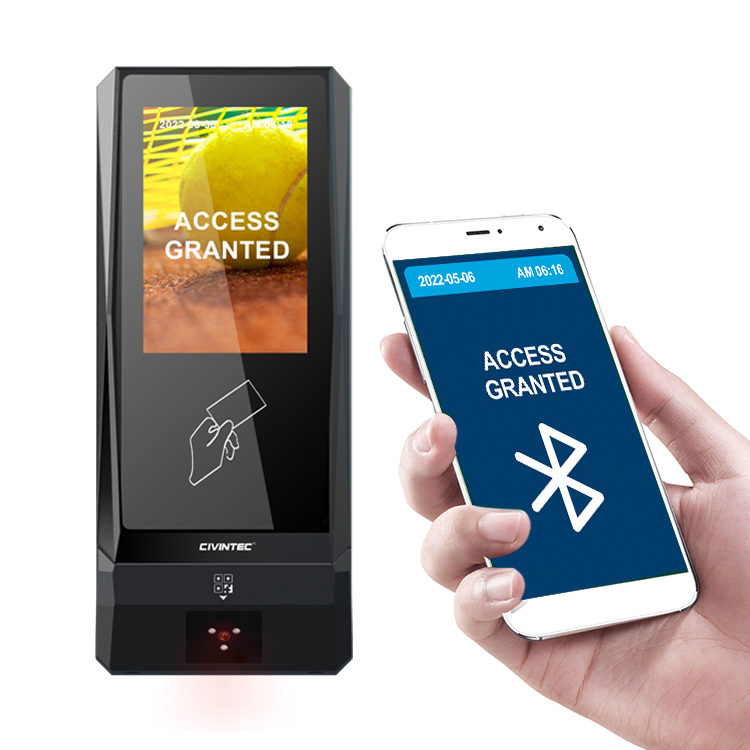

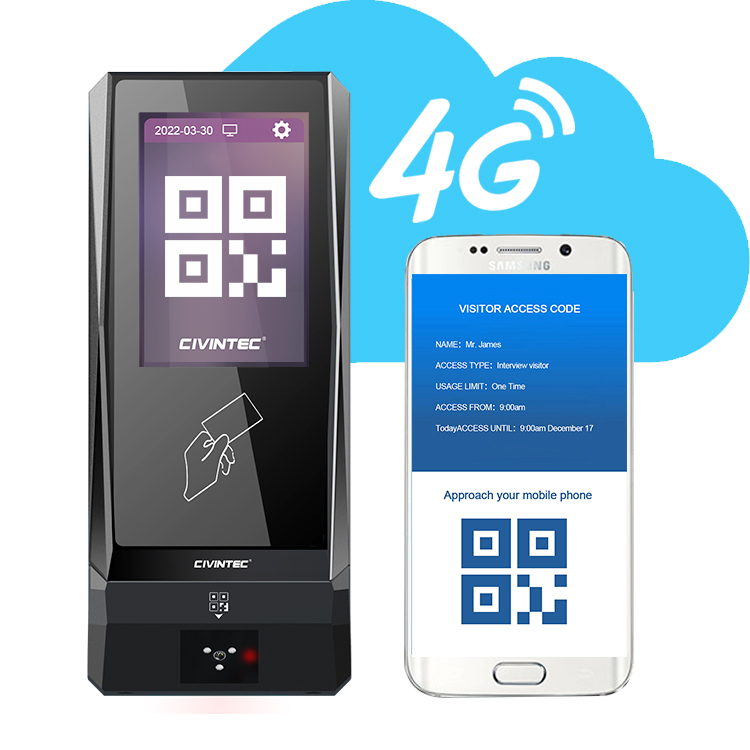

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 etc. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1, EV2, NFC tags |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP protection | IP65 |
| Certification | CE approved |

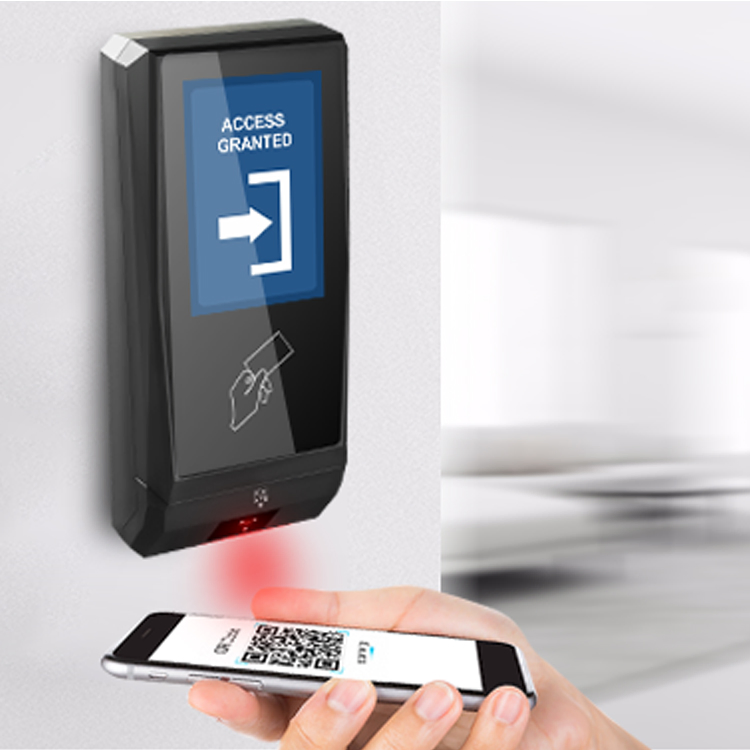

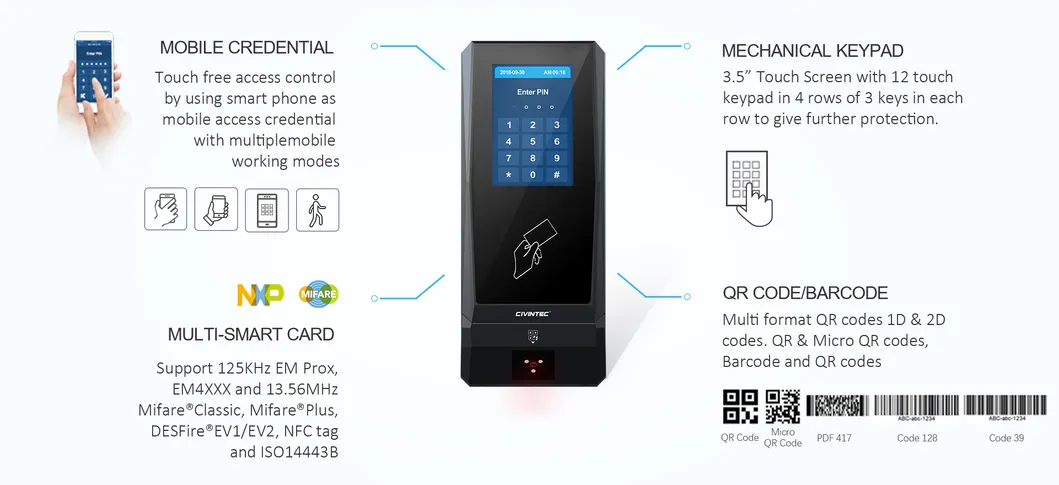

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

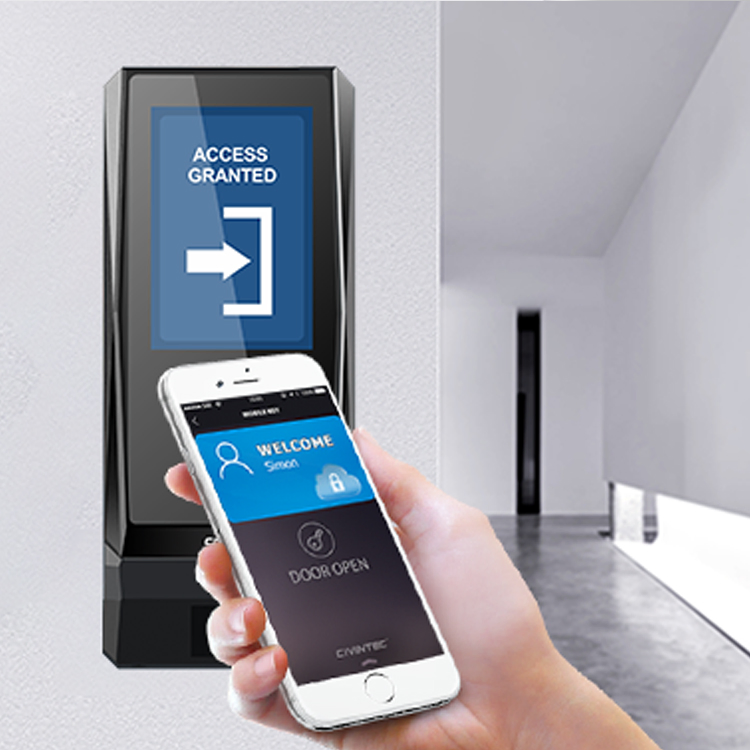

Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.

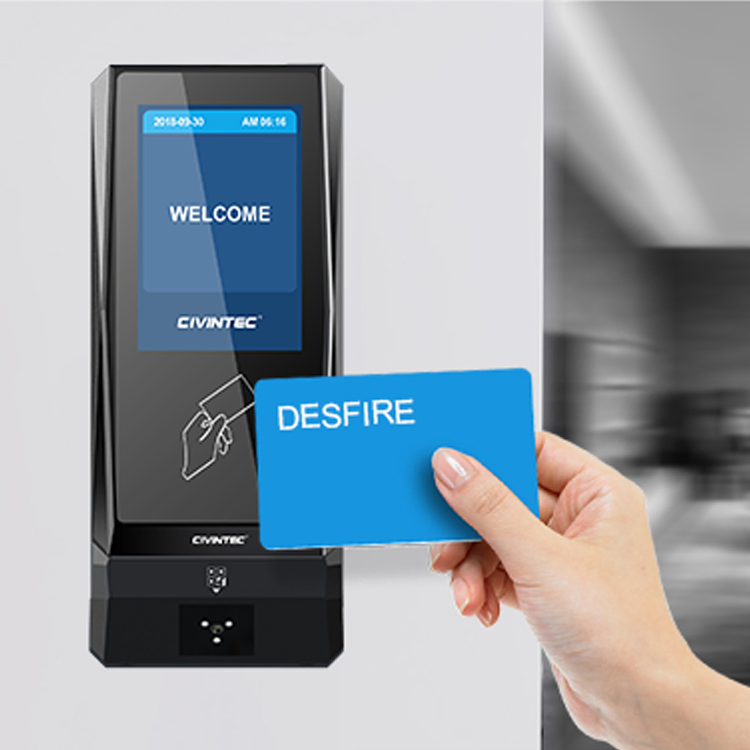

Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solution.
Leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
User can free program and display own LOGO on 3.5" touch screen. We also offer OEM LOGO printing on reader body.
