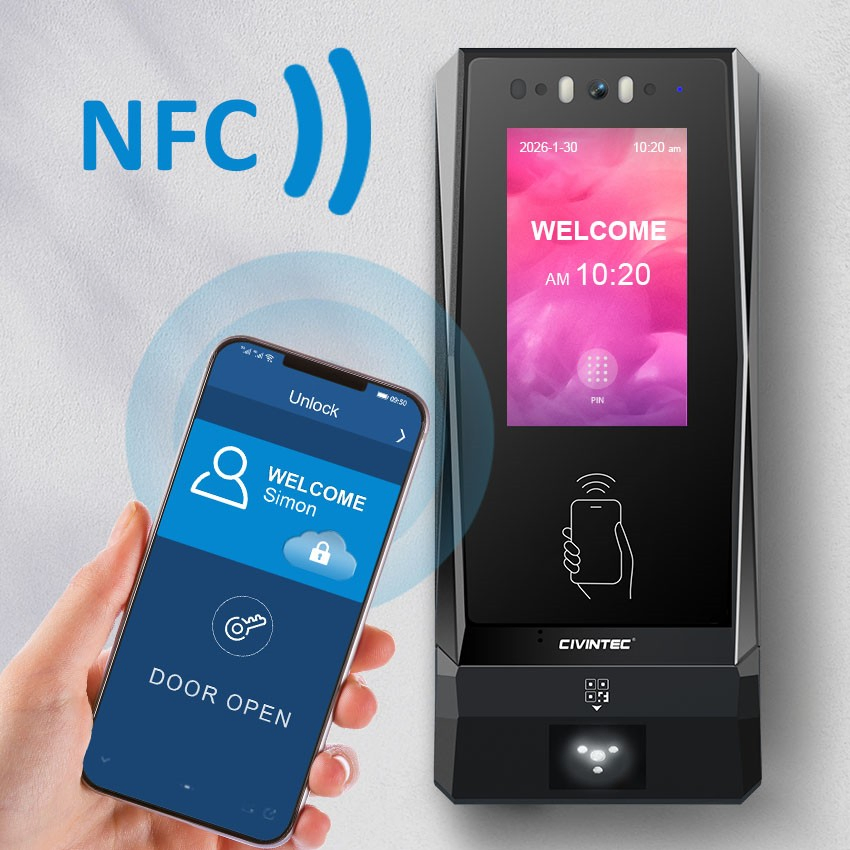

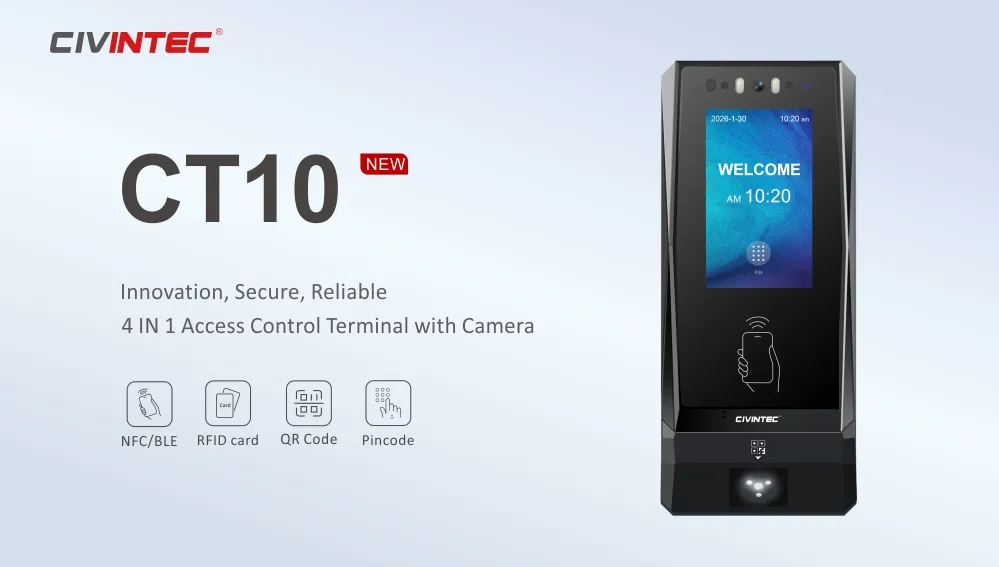

CT10 is an advanced access control terminal featuring a high-definition camera and four authentication methods: Mobile Credentials (BLE/NFC), RFID Cards, QR Scanning, and Keypad Input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for both real-time cloud and standalone operations.
HTTP Server Centralized Access Control System with RFID/QR Code/Mobile Reader

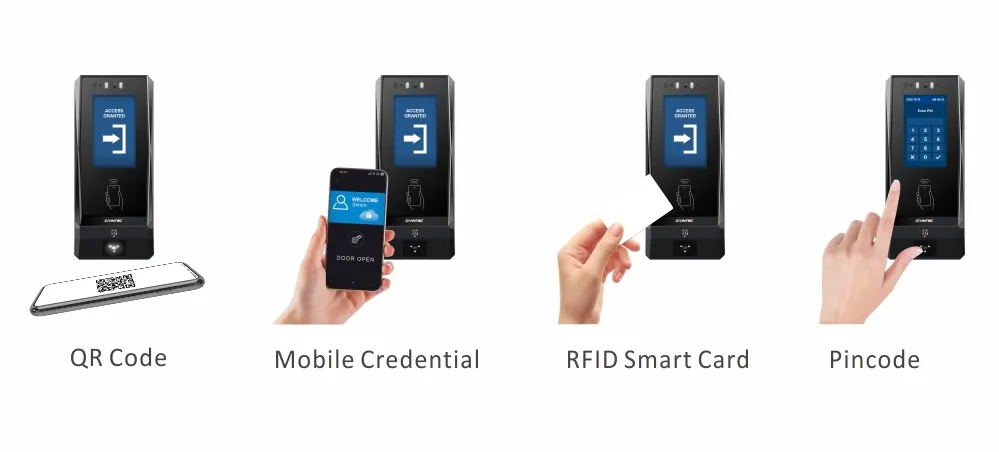

Combines RFID, Mobile App, QR Code, and PIN for 4-factor security authentication.
Real-time remote control via bi-directional encrypted HTTP/HTTPS protocols.

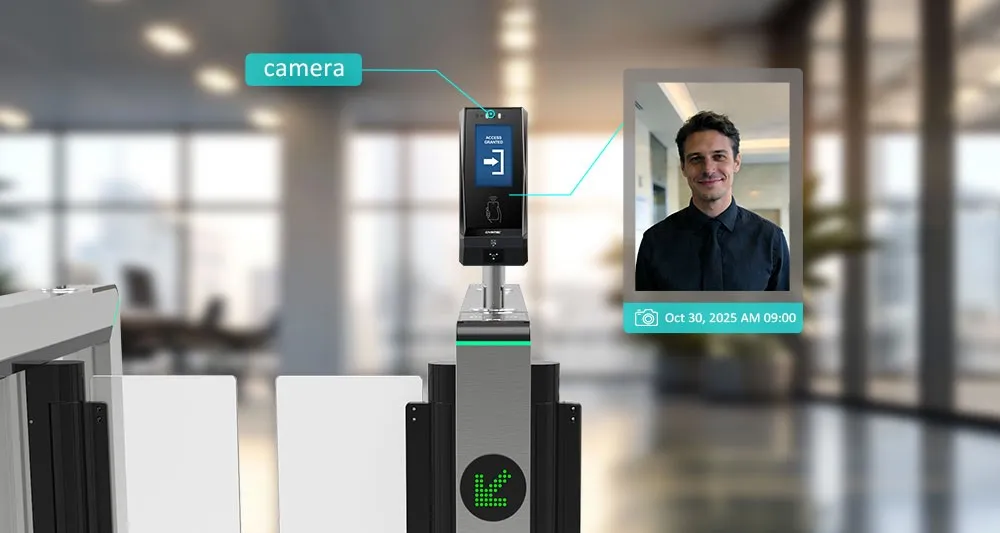

Automatically captures snapshots upon access for a clear audit trail.
| System Identification | |
|---|---|
| RFID Support | 125KHz (HID Prox, EM), 13.56MHz (Mifare Classic, DESFire EV1/2/3, NFC) |
| Mobile Credentials | BLE, NFC, QR Code |
| Display | 3.5" Touch Screen (UV Resistant) |
| Camera | Autofocus with LED Flash |
| Communication | TCP/IP (RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| I/O Ports | Door contact, Exit button, Tamper alarm, Relay output |
| User Capacity | 100,000 (Local), Unlimited (Online) |
| Protection Rating | IP65 Epoxy Potted |

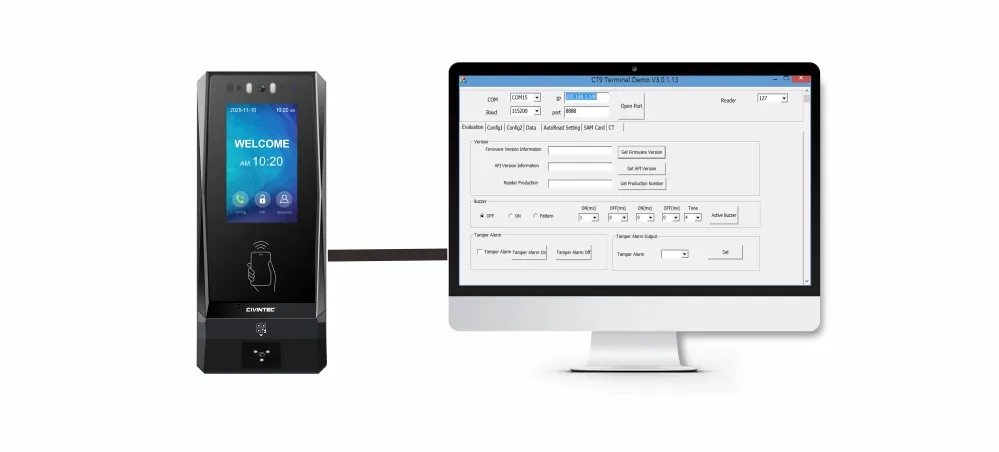

A robust SDK and demo software are provided for seamless third-party server integration. The package includes a plug-and-play testing environment with necessary accessories for fast development and configuration.
A: It supports four methods: Mobile Credentials (BLE/NFC), RFID Cards (125KHz/13.56MHz), QR Code scanning, and Keypad PIN input.

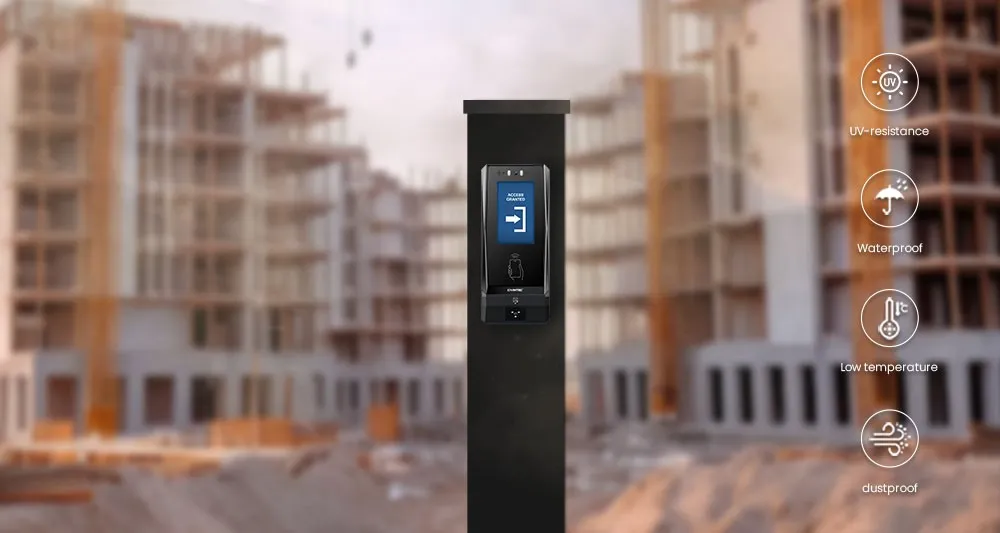

A: Yes, CT10 is IP65 rated, electric epoxy potted, and UV resistant, making it suitable for rain, dust, and strong sunlight.
A: It supports versatile connectivity options including TCP/IP (Ethernet), WiFi, 4G LTE, and LoRaWAN, using encrypted HTTP/HTTPS protocols.
A: Yes, it enables real-time online remote control of locks and facilities via a centralized cloud-based platform.
A: In local standalone mode, it supports up to 100,000 users. In online cloud mode, the user capacity is unlimited.
A: Yes, the built-in camera automatically takes a snapshot upon access, which can be saved locally or synced to the server in real-time.
