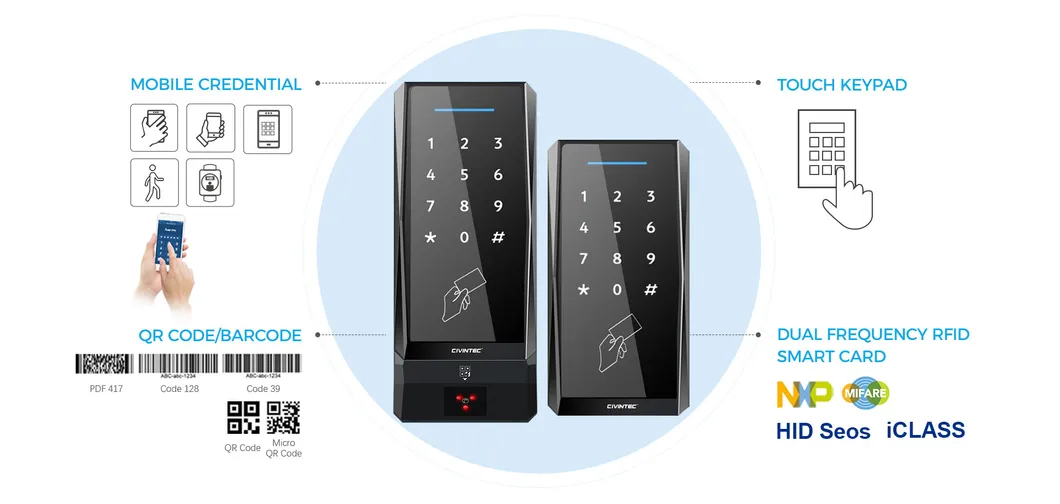

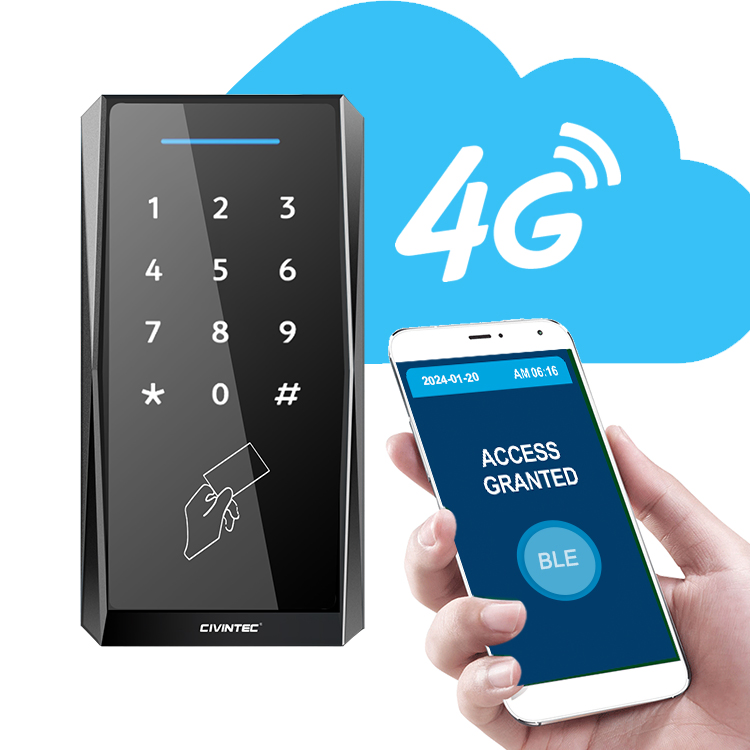

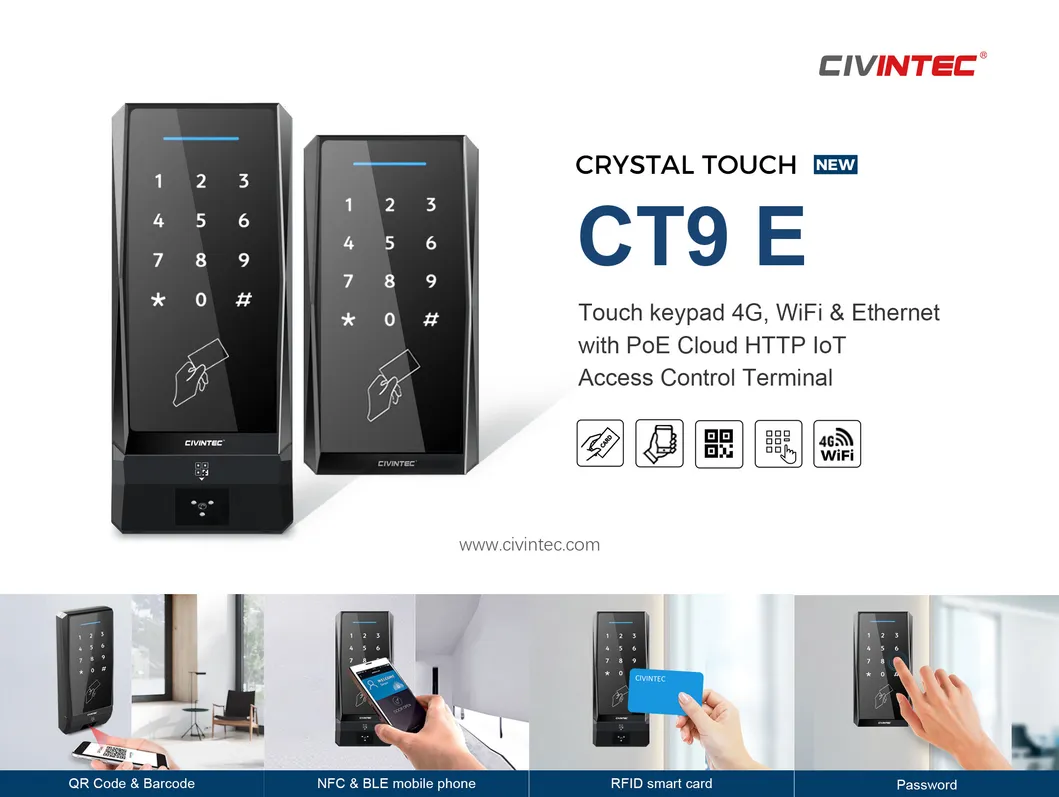

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring an embedded relay for versatile IoT and security solutions. It supports 5-in-1 multiple access technologies: touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.
| Category | Feature Details |
|---|---|
| RFID Technologies | 125KHz PROx/EM; 13.56MHz MIFARE Classic, Plus, DESFire EV1/EV2/EV3, NFC tags |

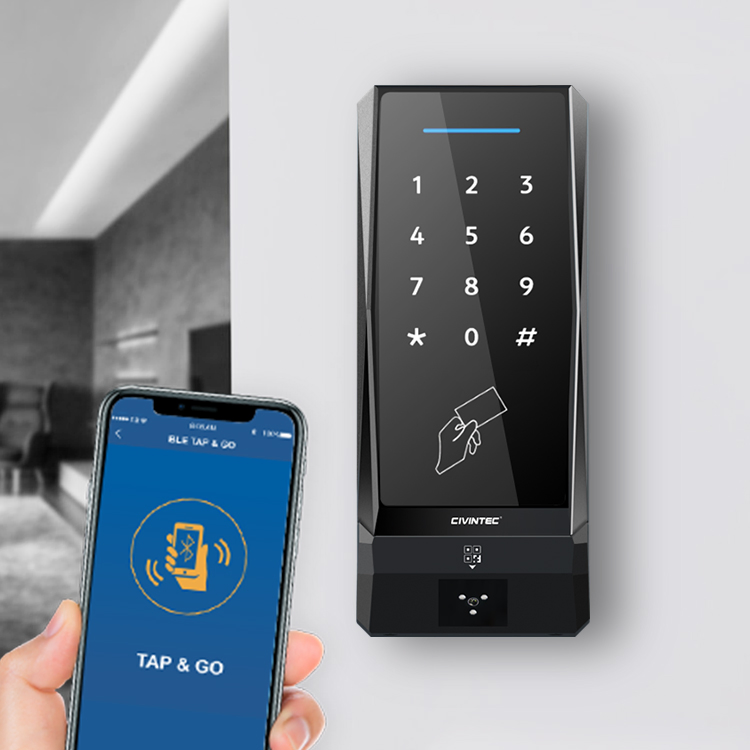

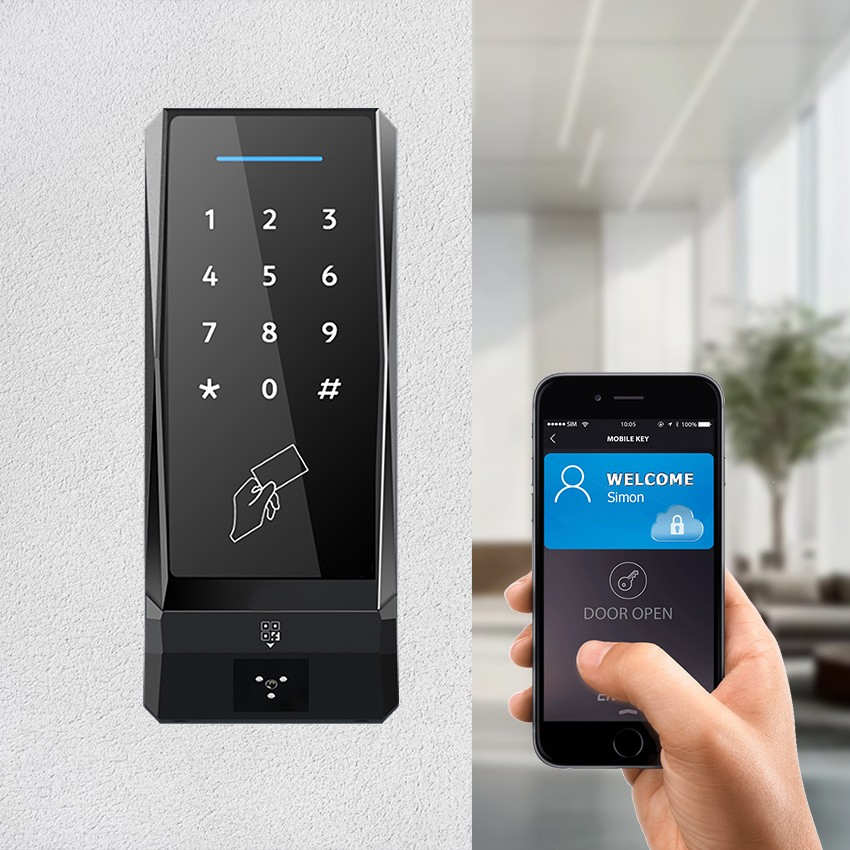

| Mobile Access | BLE (2.4GHz), NFC |
| Barcode Scanning | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |

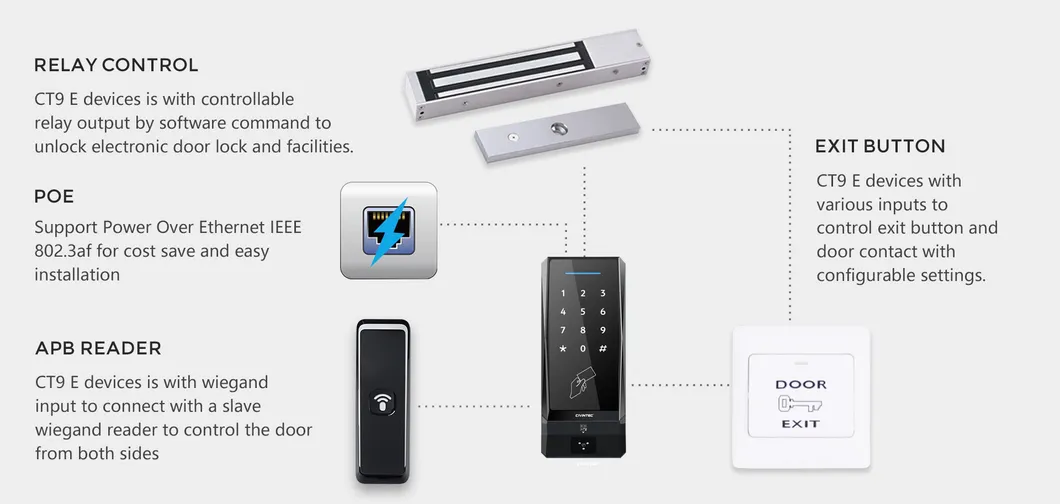

| I/O Ports | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 Relay outputs |

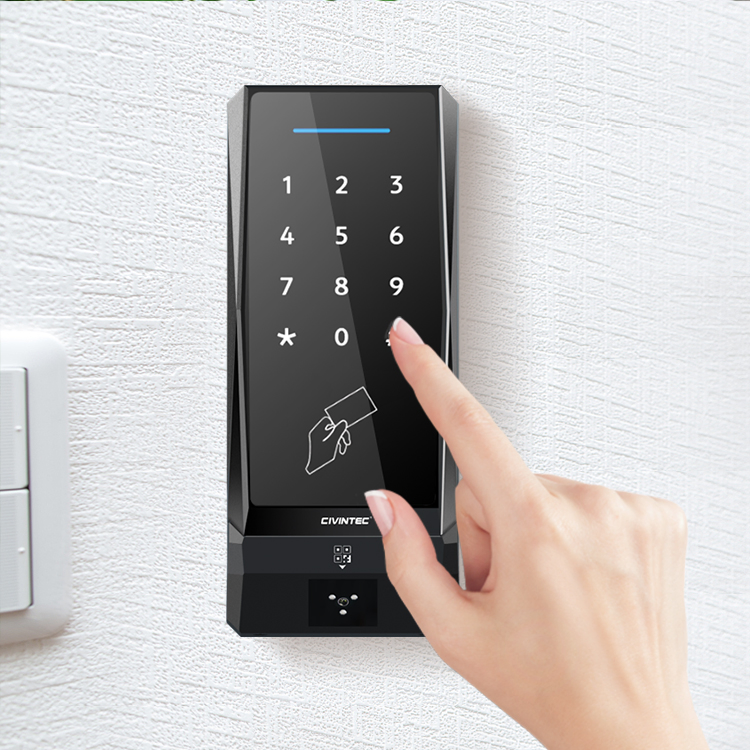

| OS & UI | LINUX OS; 12-digit Touch keypad with backlit |
| Storage | 10,000 users / 50,000 logs (expandable) |
| Protection | IP65 electric epoxy potted, UV resistant |

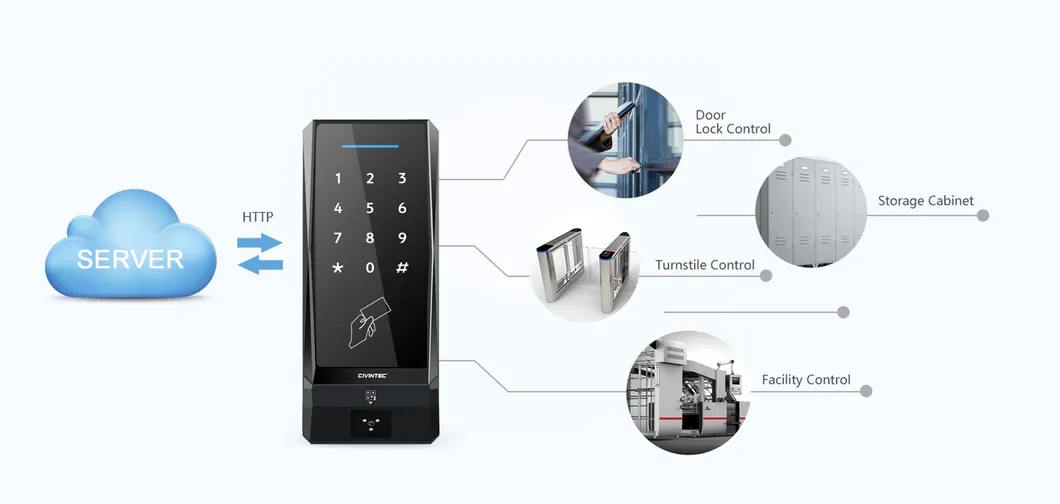

Cloud Server Remote Control: Bi-direction communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and IoT facilities.
Weather-Resistant Protection: With an IP65 rating, the CT9 E is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
