Product Description

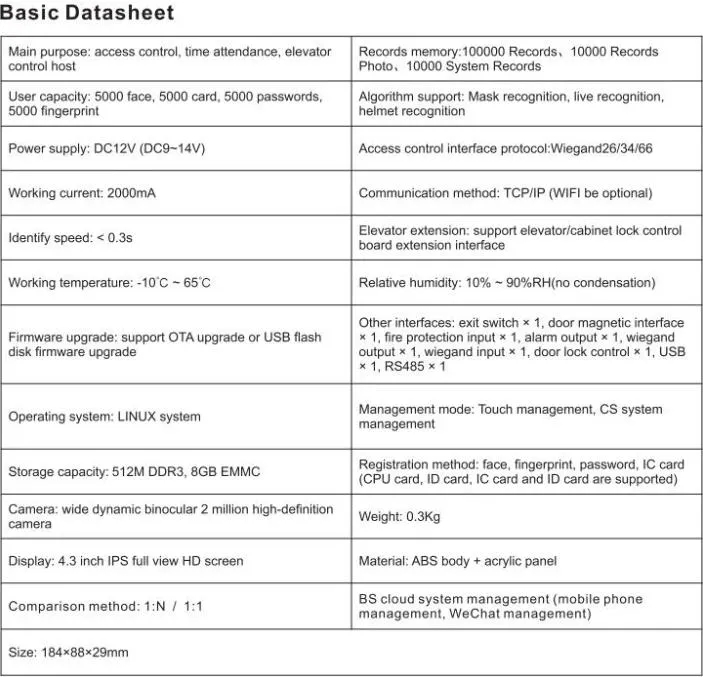

Basic Information
Model NO.FR-8100T
ClockWith Clock
Voice ServiceWith Voice Service
Facial Capacity1200
Communication InterfaceTCP/IP
Records Memory100000 Records, 10000 Photos, 10000 System Records
Algorithm SupportMask Recognition, Live Recognition, 5000 Fingerprints
Access Control InterfaceWiegand 26/34/66
Communication MethodTCP/IP (WiFi Optional)
Working Temperature-10°C ~ 65°C
Firmware UpgradeSupport OTA or USB Flash Disk
Management ModeTouch Management, CS System Management
Main PurposeAccess Control, Time Attendance, Elevator
User Capacity5000 Faces, 5000 Cards, 5000 Passwords
Power SupplyDC12V (DC9~14V)
Working Current2000mA
Operating SystemLinux System
Storage Capacity512M DDR3, 8GB eMMC
Specification18.8*8.8*2.9cm
Production Capacity50000 Per Month
Product Description

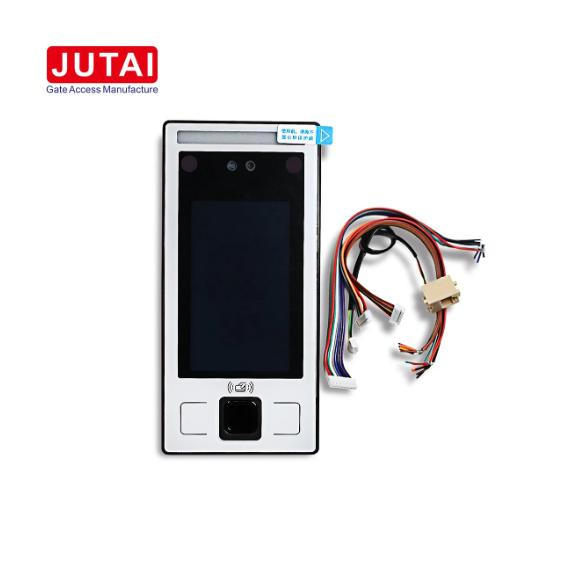

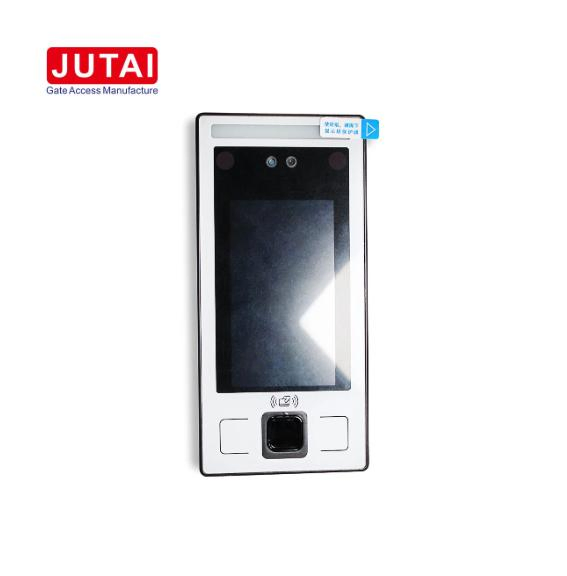

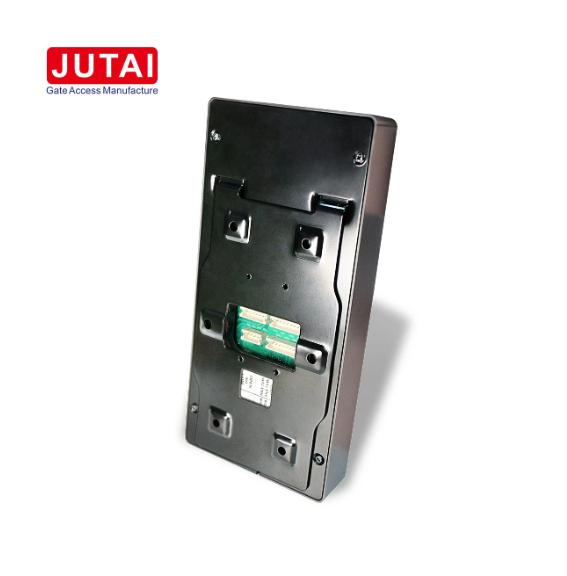

FR-8100T Dynamic Face Fingerprint Standalone Device

FR-8100T is a wide dynamic face recognition terminal product developed based on deep learning dynamic face access control technology, combined with CPU, GPU computing power, and ISP image acceleration. The product supports live detection, which effectively prevents cheating attacks such as photos and video streams.

Equipped with an imported lens and IPS full-view high-definition LCD screen, the body is made of all-metal electroplating. It is waterproof, dust-proof, and salt fog proof, enabling reliable use in outdoor and strong light environments. Identification distance ranges from 0.3m to 2m.

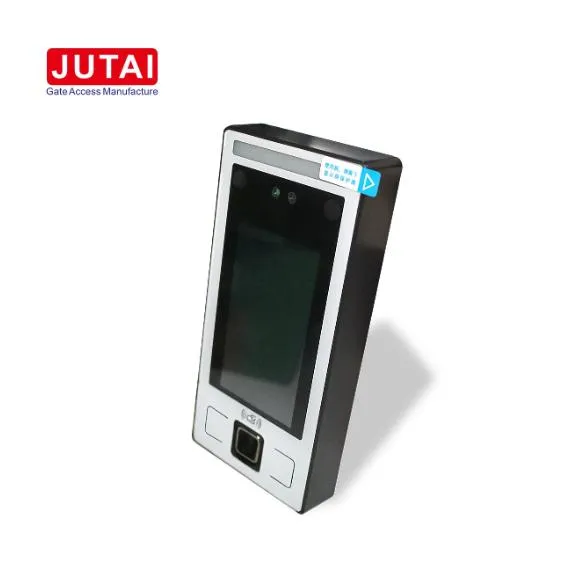

Fingerprint Scanner Access Control System

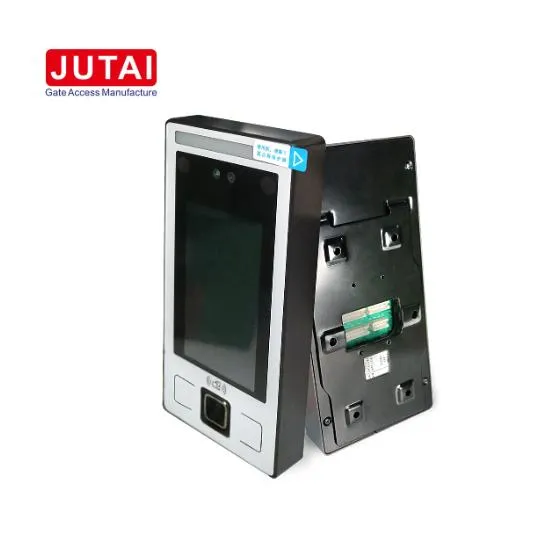

Facial Recognition Biometrics
Main PurposeAccess control, time attendance, elevator control host
User Capacity5000 face, 5000 card, 5000 fingerprint
Power SupplyDC12V(DC9~14V)

FR-8100T features built-in TCP network communication and WIFI capability. It includes two USB ports: one for a mouse or USB flash disk, and another for ID card modules. It supports WG input/output and signal control for access gates. Additional functions include regular ringing, blacklist alarms, screen sleep, and timed restart to reduce power consumption.

With auxiliary communication lines, it can achieve 485 communication, internal switch buttons, alarm bells, and fire linkage signals. It is widely used in construction site labor systems, smart community passages, high-end office buildings, and club member management systems.

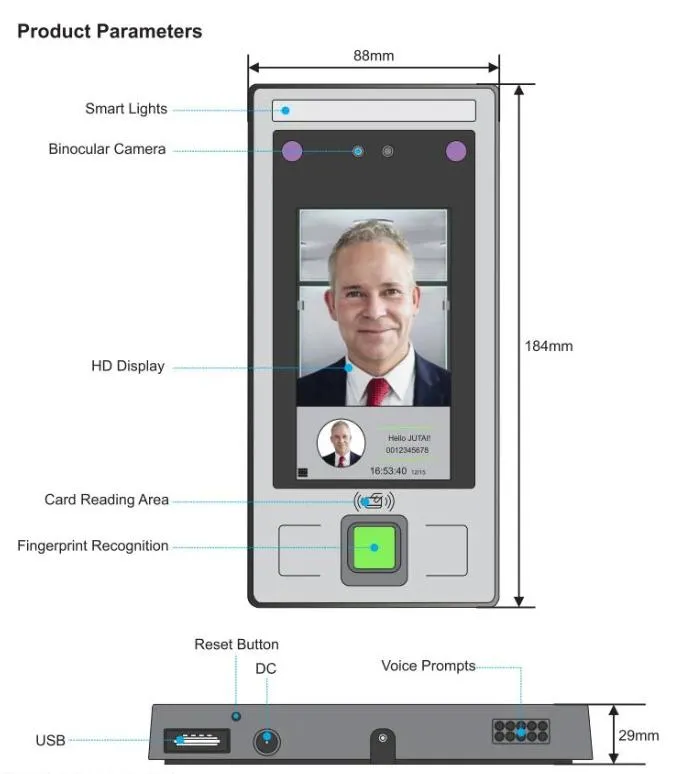

Access Control Management
Standalone Device Features
Basic Functions
Dynamic face recognition and live detection support.
Effective identification distance starting from 30cm.
Superior performance in outdoor strong light environments.
Certificate verification and photo distribution registration.
Supports secondary development via WebSocket (BS) and Socket (CS).
Suitable for turnstiles at construction sites, residential areas, and offices.
Installation Scenario 1
Installation Scenario 2
Packaging & Delivery
Package Size20.00cm * 10.00cm * 4.00cm
Package Gross Weight1.000kg
Transport PackageCarton
Packing and Shipping
Frequently Asked Questions
1. What is the maximum user capacity for the FR-8100T?
The device can store up to 5,000 faces, 5,000 cards, 5,000 fingerprints, and 5,000 passwords, with a record memory of 100,000 entries.
2. Can the device be used in outdoor environments?
Yes, it features an all-metal electroplated body that is waterproof, dust-proof, and salt-fog proof, and it is specifically designed to handle strong outdoor light.
3. What communication protocols does it support for access control?
It supports standard Wiegand 26, 34, and 66 interface protocols for seamless integration with access control systems.
4. Does the facial recognition prevent cheating via photos or videos?
Yes, the FR-8100T includes live detection technology to prevent unauthorized access attempts using photos, video streams, or masks.
5. What operating system does the device run on?
The terminal runs on a stable Linux operating system, supported by 512M DDR3 memory and 8GB eMMC storage.
6. What is the recognition distance for face detection?
The device offers a wide dynamic identification range between 0.3 meters and 2 meters for efficient passage.
