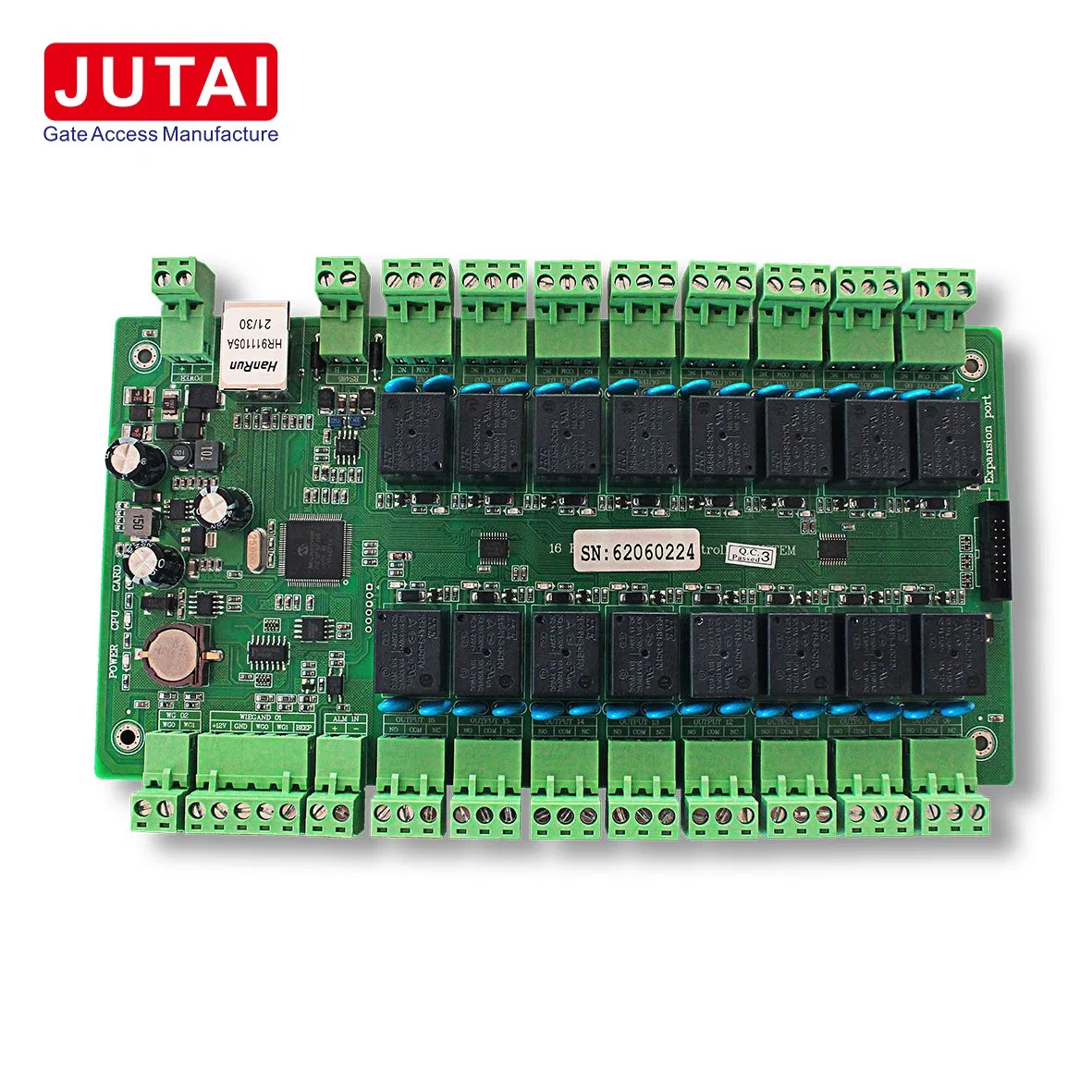

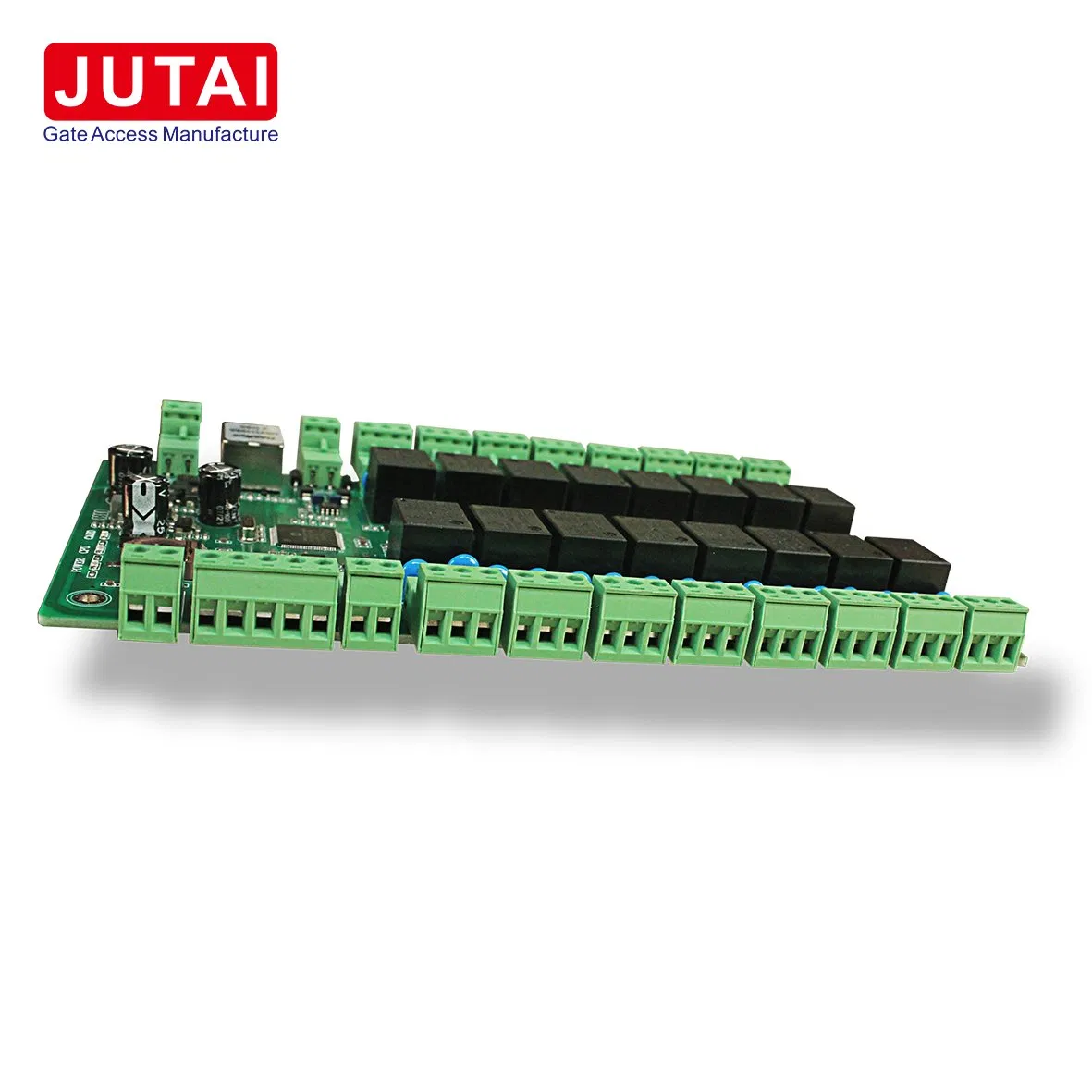

Access Control System for TCP/IP Lift Elevator Controller Board

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
JTEC-16
Technology
32-Bit Technology
Way of Control
Computer Control, Hand Control
Communication
TCP/IP / RS485
Type
Two-way Controller
Lift Access
16 Floors or 32
User Limit
26,000
Data Capacity
100,000
Working Temp
-25°C ~ +75°C
Working Voltage
DC12V (10.8-14V)
Data Storage
10 Years
Package Size
12.80cm * 9.30cm * 4.80cm
Product Description

This elevator control system allows different users to access specific floors by assigning door access rights. Unauthorized users are restricted from sensitive areas. Users present their cards at the elevator reader, and the controller enables access to assigned levels only. This ensures comprehensive security management for building access using dedicated controllers installed on each elevator car.

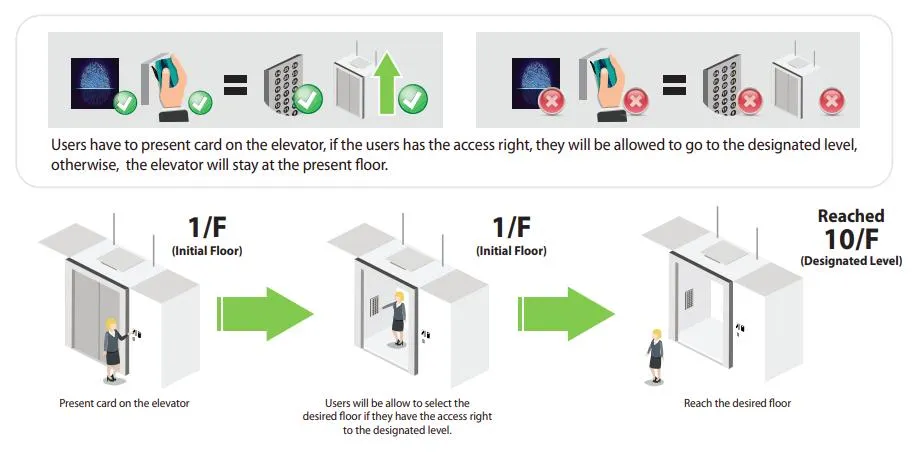

Elevator Controller Diagram
Product Parameters

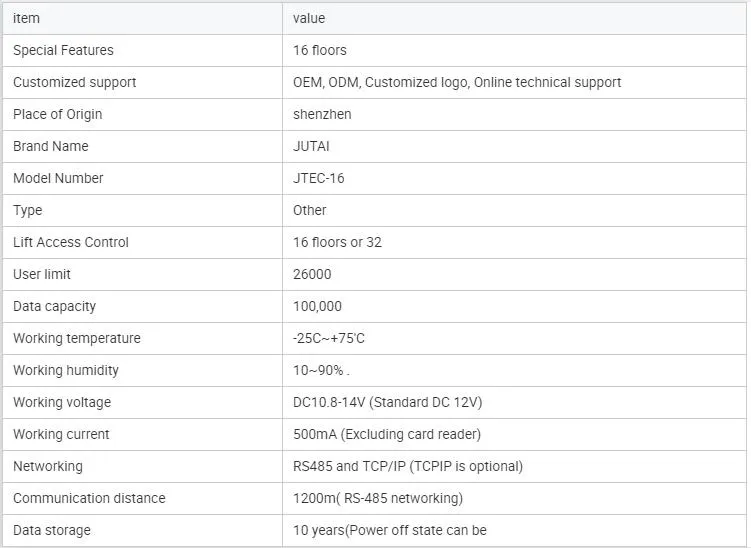

Elevator Controller Parameters
Key Advantages
Intelligent management system for hierarchical elevator control and personnel access management.
Customizable authorization: Floor indicator lights only activate for authorized users.
Time zone management: Set specific time periods for floor access to enhance security.
High capacity: Stores up to 26,000 personnel groups and 100,000 access records viewable via software.
Scalability: 16 independent relays per board, expandable to 32 floors with additional boards.
Multiple interfaces: Supports RS485/TCPIP and 2 Wiegand interfaces for readers, fingerprints, or facial recognition.
Safety protection: Includes voltage dynamic protection and fire alarm linkage input.
Detailed Photos

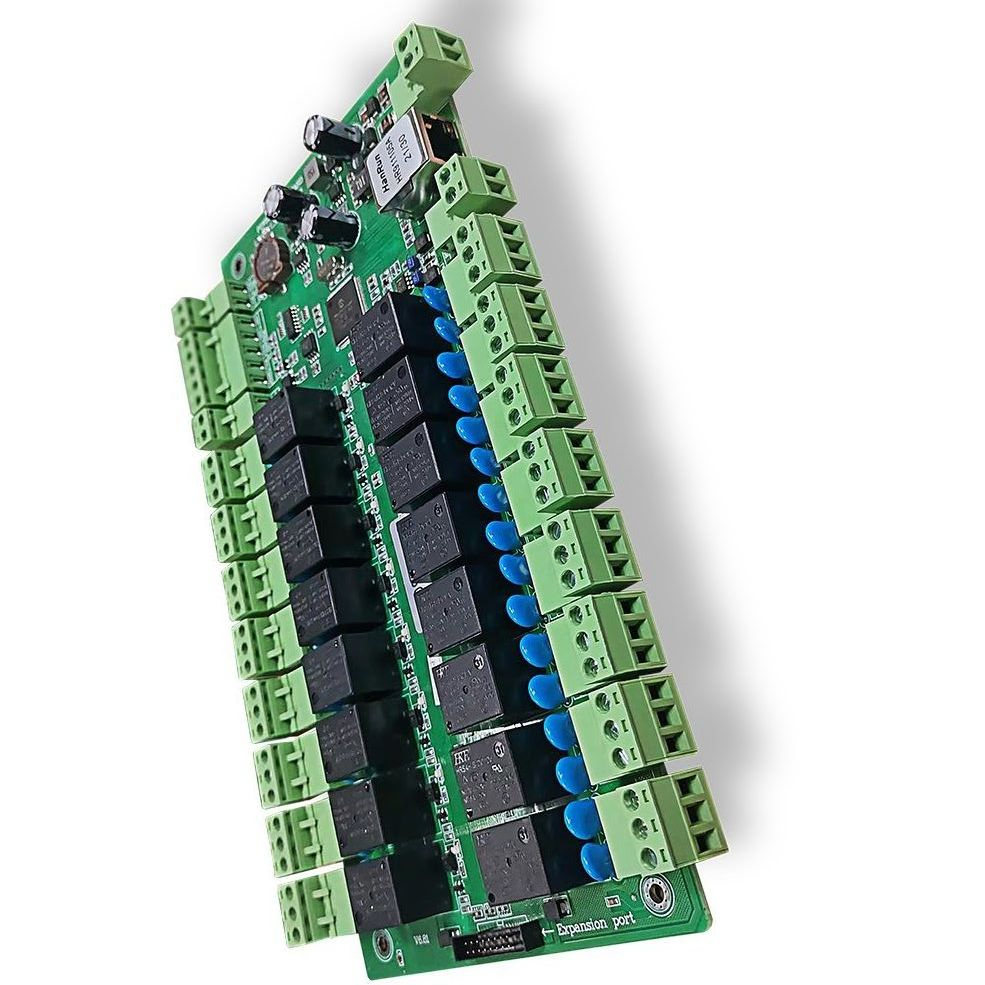

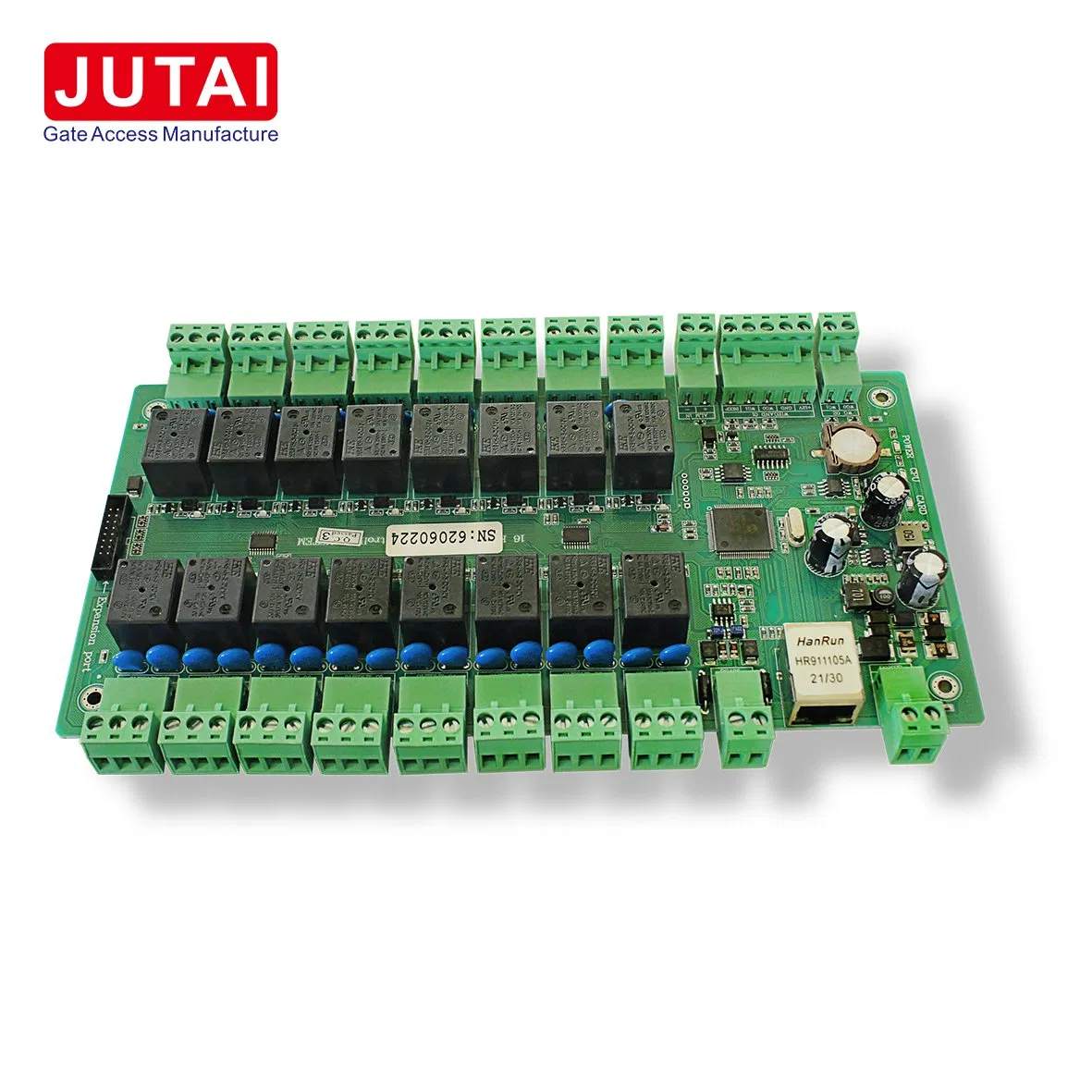

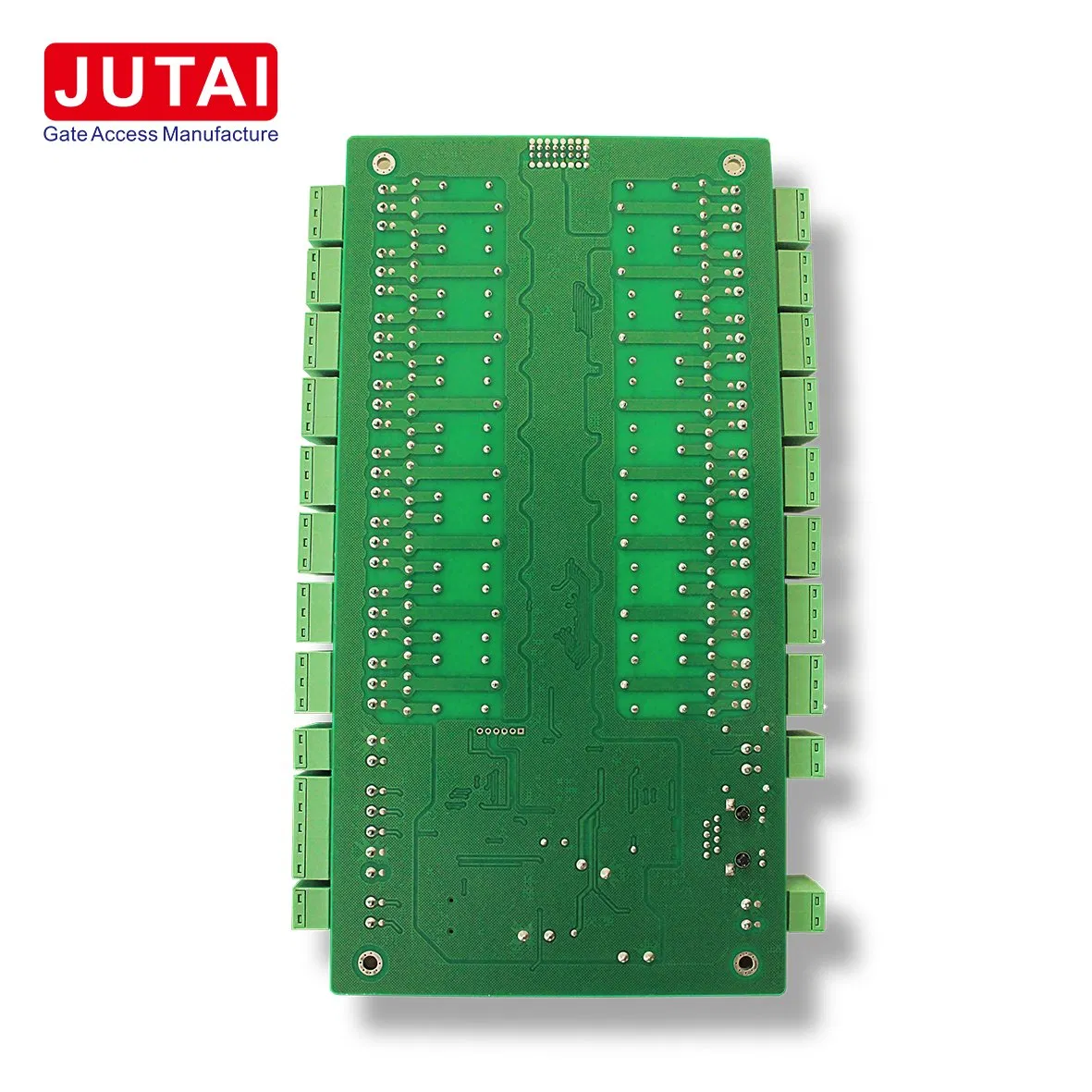

Product Detail View
Professional Manufacturing & Service

As a manufacturer integrated with R&D, production, and sales, we specialize in safety light curtains, card readers, access control, and gate automation systems. Our focus is providing reliable security solutions for modern buildings.

Product Warranty: 2 years.
OEM logo services available.
Long-term online technical support.
Comprehensive gate automation accessories: Photocells, light curtains, and readers.
Frequently Asked Questions
How many floors can one controller manage?
A single controller board manages 16 independent relays (16 floors). It can be expanded to manage up to 32 floors using an expansion board.
What is the user and record capacity of the system?
The system can independently store data for up to 26,000 users and maintain a log of 100,000 access records.
Does this system support integration with other devices?
Yes, it features 2 Wiegand interfaces, allowing connection to standard card readers, fingerprint scanners, or facial recognition machines.
What communication modes are available for networking?
The system supports both RS485 and TCP/IP (optional) networking modes for flexible installation.
How does the fire alarm linkage work?
The controller includes a dedicated fire alarm input linkage. When triggered, it can automatically release floor restrictions to ensure building safety during emergencies.
How long is the data stored if power is lost?
The controller features non-volatile data storage that can preserve records and settings for up to 10 years without power.
