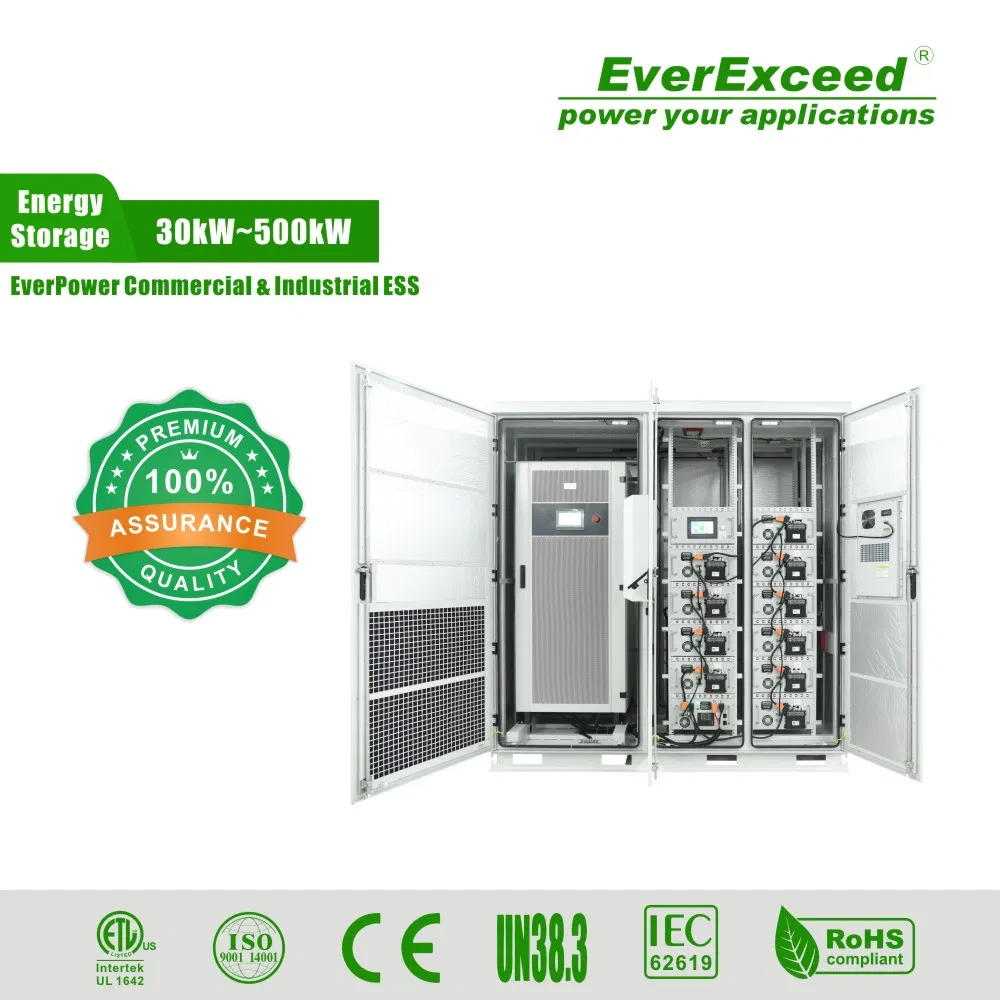

220VAC Everexceed Shenzhen, China Commercial UPS 100kw Energy Storage Solution Hot Sale

1 / 2

220VAC Everexceed Shenzhen, China Commercial UPS 100kw Energy Storage Solution Hot Sale

Customization:	Available
Phase:	No
Type:	Hybrid

Send Inquiry

Product Description

Basic Information

Model NO.

CO50K-100E

Protection

Over Voltage, Over Current, Short Circuit etc.

Application

Household, Office etc.

Classification

Energy Storage Solution

Output Capacity

220VAC

Battery Type

Lithium

IP Rating

IP21

Warranty

2 Years (Inverter) / 5 Years (Battery)

Product Description

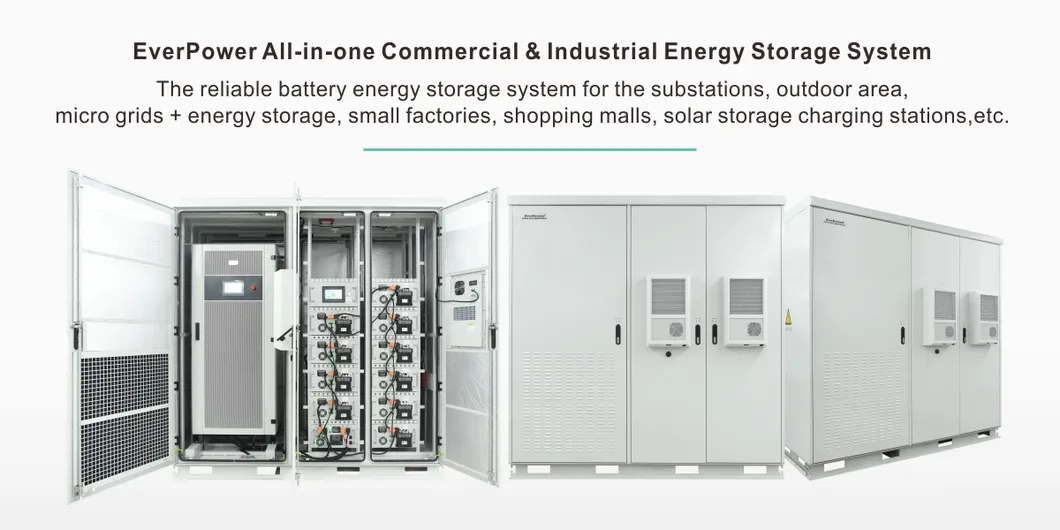

250kw Energy Storage Solution UPS Backup Commercial Energy Backup Power Solution for Factory, Industry

This commercial battery backup energy storage system is a high-power backup power supply solution. It features 50KW, 100KW, 150KW, and 250KW power inverters coupled with a large LiFePO4 battery bank, providing extended backup time for critical loads.

Technical Features

🔋 Wide Compatibility

Compatible with lead acid & lithium-ion batteries; wide voltage range for various environments.

❄️ Cold Start Function

Supports off-grid cold start and multi-machine parallel operation.

🛡️ Multiple Protection

Overcharge, Overload, Short-circuit, and High/Low temperature protection.

⚡ Dual Power Backup

AC and DC dual backup ensures continuous power supply for the control system.

📊 High Efficiency

Highest power density with efficiency up to 97.5%.

📱 Smart Interface

Flexible communication via RS485 and CAN, accepting real-time BMS commands.

Technical Specifications

Model	CO30K-50E	CO30K-100E	CO50K-100E	CO100K-200E	CO150K-300E	CO250K-500E
Rated AC Output	30KW	30KW	50KW	100KW	150KW	250KW
Max. AC Output	33KVA	33KVA	55KVA	110KVA	165KVA	275KVA
Battery Energy	53.76kWh	107.52kWh	107.52kWh	215.04kWh	301.06kWh	537.60kWh
Battery Type	LiFePO4 battery
Cycle Life	≥6000 at 80%DOD
Protection	IP55

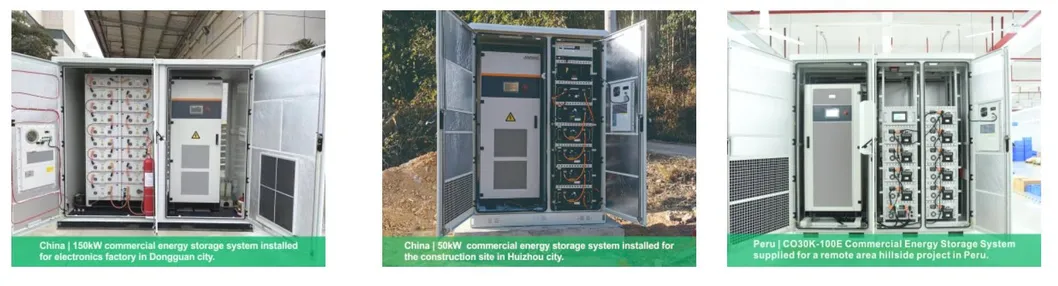

Successful Cases & Application

Shipping & Payment

Payment Terms	T/T, L/C, Cash, Western Union etc.
Delivery Methods	By sea, air, train, or truck transportation
Lead Time	Normally 4 weeks ex-factory
Packing	Carton box with pallet or wooden box

Frequently Asked Questions

What are the primary applications for this energy storage system?

The system is designed for high-power commercial and industrial needs, including factories, large offices, and other facilities requiring stable backup power.

What type of batteries does the system use?

The system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) batteries, offering a long cycle life of ≥6000 cycles at 80% Depth of Discharge (DOD).

Can the system be integrated with solar power?

Yes, there are PV-compatible models (ending in -PV) that include MPPT inputs for seamless integration with commercial solar arrays.

What is the protection rating of the enclosure?

The general equipment is rated at IP55, providing excellent protection against dust and water ingress in industrial environments.

What safety features are included?

The system includes comprehensive protection against over-voltage, over-current, short circuits, high/low temperatures, and includes built-in smoke and fire protection sensors.

Does the system support remote monitoring?

Yes, it features an LCD touch-screen for local control and supports remote monitoring via EMS (Energy Management System) through RS485 or CAN communication interfaces.
