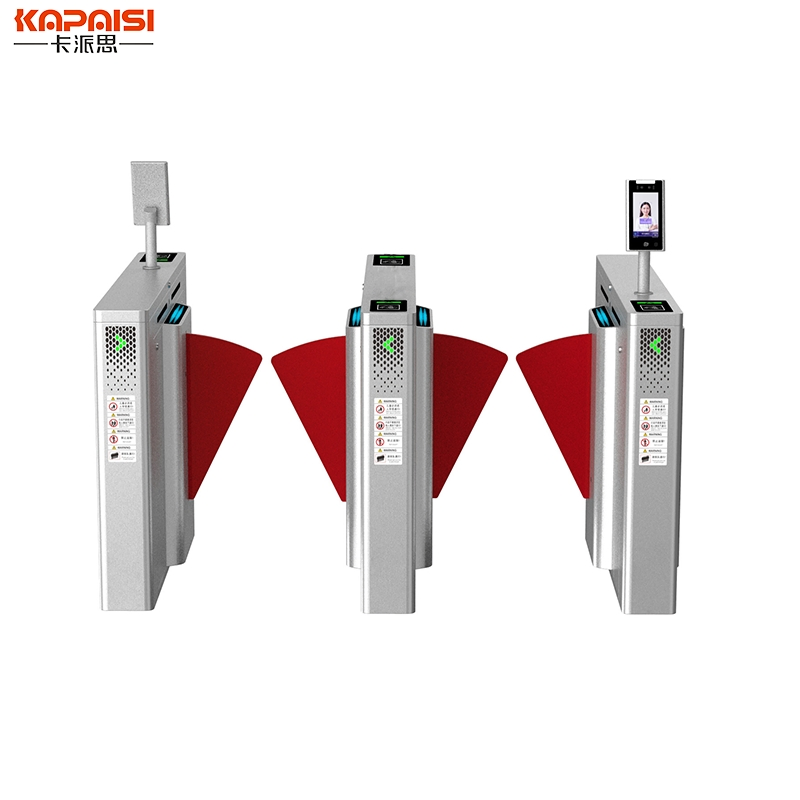

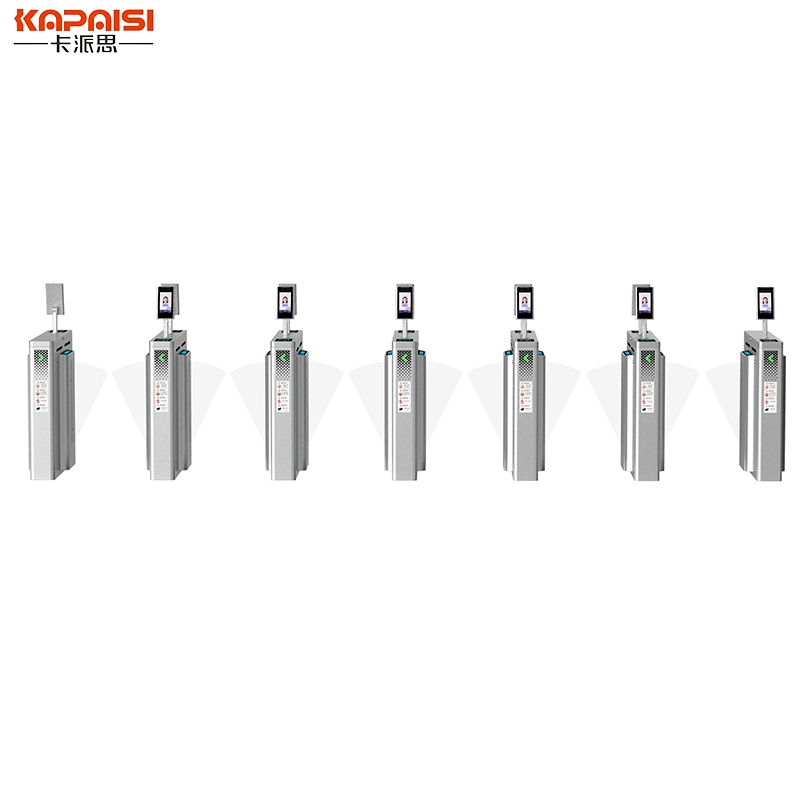

Premium Factory Direct Rotating Security Solutions for Businesses

Product Overview

Model	KPS-TD-3202	Movement	Single Movement
Type	Swing Gate	Control Mode	Remote Control
Interface	RS485	Aisle Width	Max 600mm
Body Material	304 Stainless Steel	Door Material	Acrylic/Stainless Steel
Power Supply	AC220V, 50/60Hz	Temperature	-20°c~70°c
Power	≤180W	Environment	Indoor/Outdoor

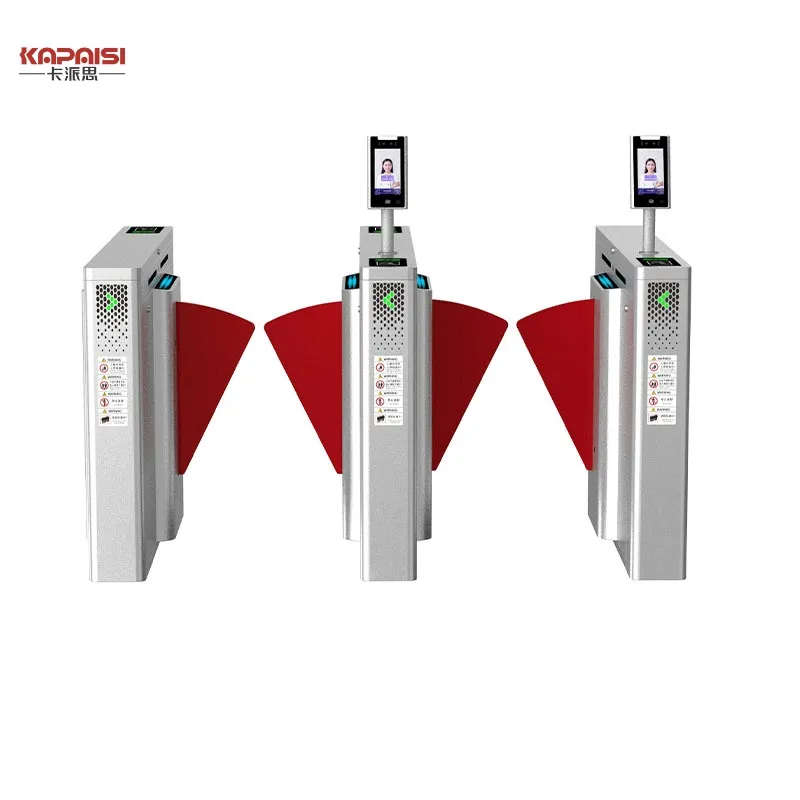

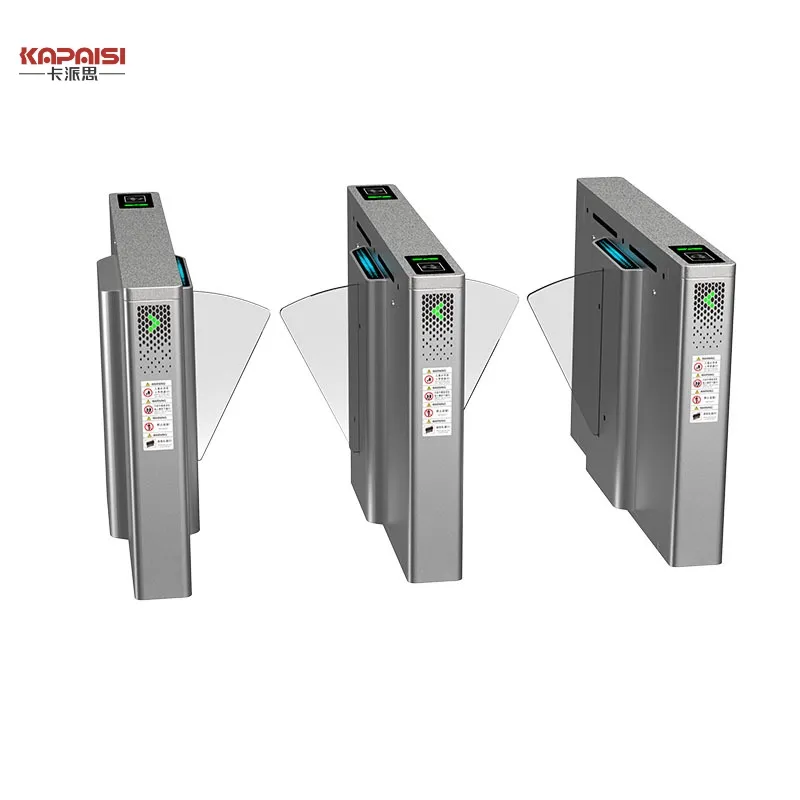

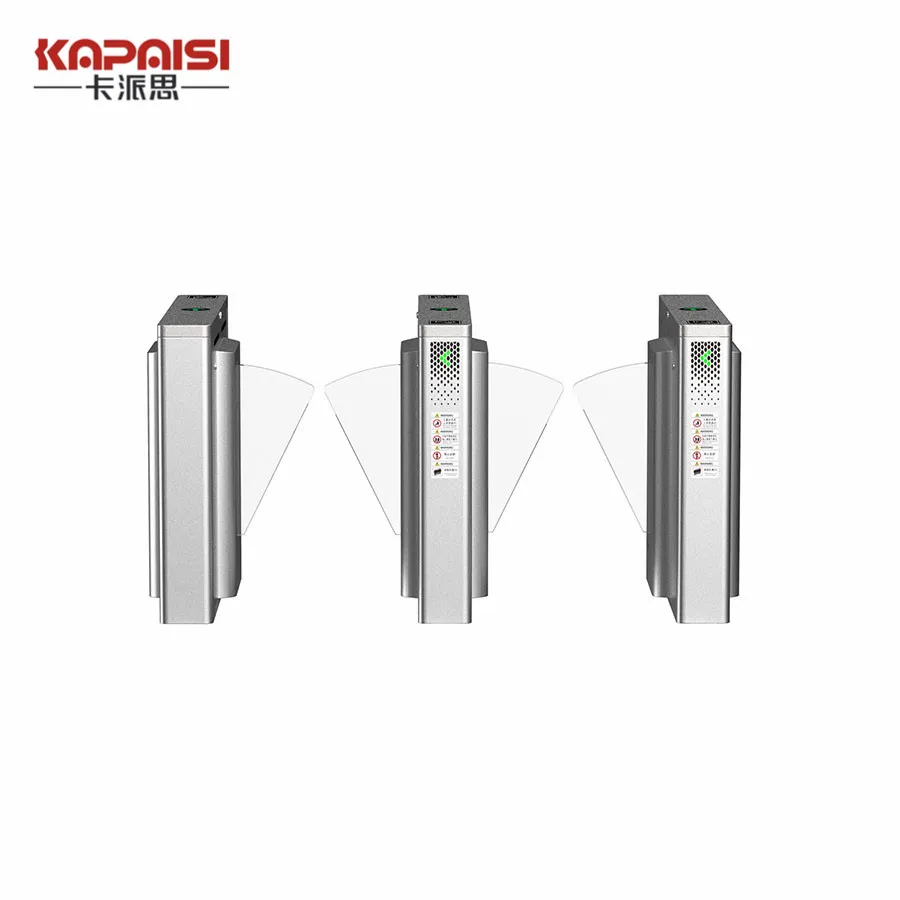

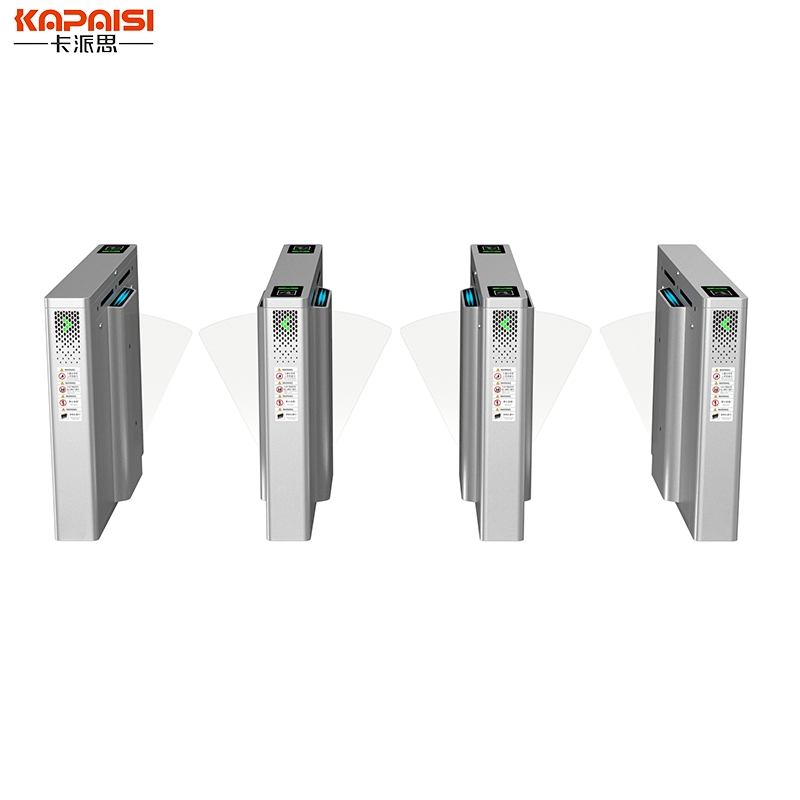

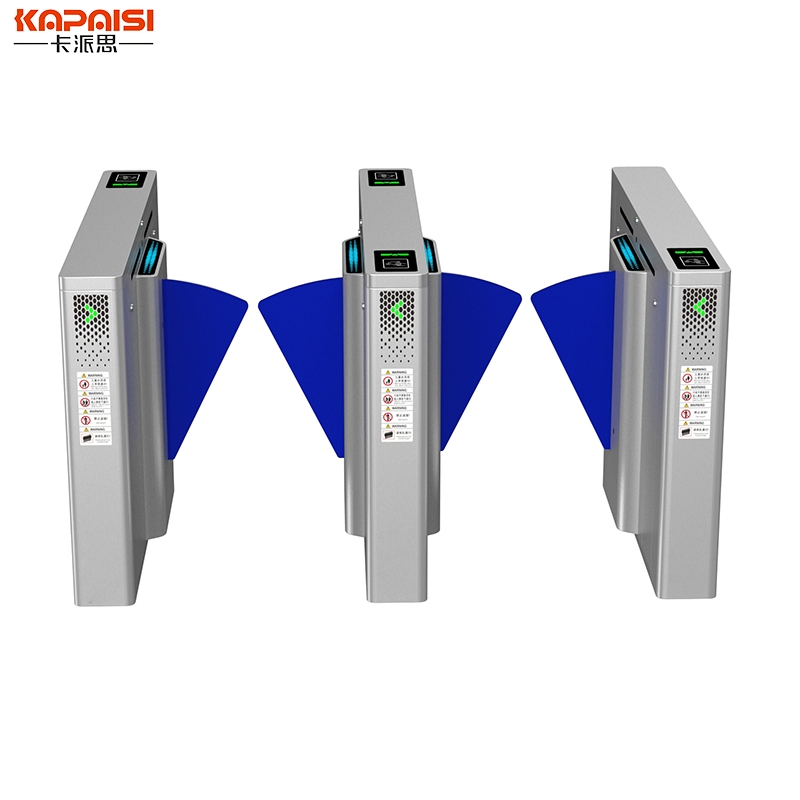

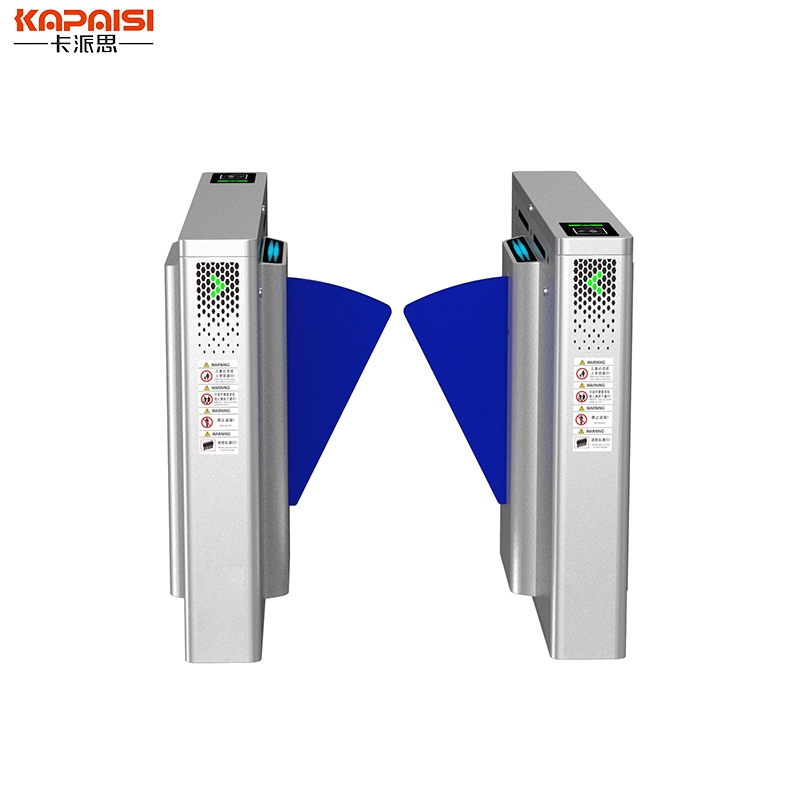

Electronic Security Flap Wing Barrier

The cylinder turnstile swing gate is crafted from standard 304 stainless steel. Equipped with a DC brushless motor, it combines elegant design with heavy-duty durability. It supports IC/ID readers, QR codes, and facial recognition, making it ideal for CBD centers, office buildings, residential areas, and kindergartens.

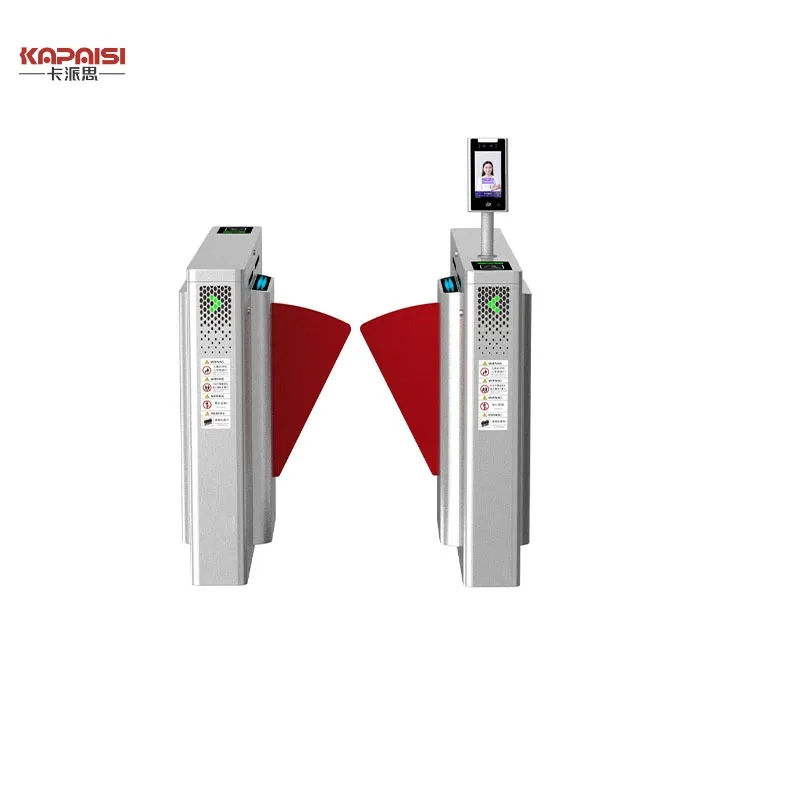

Core Product Features

Advanced Motor Technology

Brushless DC motor with power-on self-diagnosis, low failure rate, and a service life supporting at least 5 million passages.

Smart Alarm System

LED indicators for passage direction and status. Acoustic and optical prompts for unauthorized entry or illegal intrusion.

Anti-Pinch & Rebound

Infrared sensors detect obstructions during closing, triggering an alarm and automatic rebound to prevent injury.

Emergency Evacuation

Equipped with a super capacitor; wings open automatically during power failure or fire signals for safe evacuation.

Precision Counting

Integrated people counting function to monitor inbound and outbound traffic flows separately.

Climate Control

Special air duct design with dual-ball fans and insulation to prevent condensation in extreme temperature differences.

Maintenance Guidelines

Surface Care: Keep the product clean and dry. Use non-woven cloth and alcohol for general cleaning.

Rust Prevention: For rust spots, use a scouring pad along the grain (avoid steel wool) and apply maintenance oil.

Schedule: Monthly maintenance for standard conditions; weekly for harsh or coastal environments.

Mechanical: Periodically check gear lubrication and tighten barrier rod screws.

Technical Parameters

Dimensions	H1050 * Φ 168MM
Passage Width	Single Gate Max 600mm
Box Material	304 Stainless Steel
Gate Material	Stainless steel tube or acrylic
Physical Interface	RS485, Fire emergency input
Passing Rate	20-60 people/minute
Relative Humidity	≤95%, No condensation

Note: QR codes, card readers, facial recognition terminals, and remote controllers are optional accessories and are not included by default.

Production & Logistics

Frequently Asked Questions

How do I choose the right grade of stainless steel for my gate?

For standard indoor or urban environments, 304 stainless steel is sufficient. For coastal areas or chemical plants where corrosion risk is high, 316 stainless steel is recommended.

What happens if the power goes out?

The system is equipped with super capacitors that automatically trigger the door wings to open during a power failure, ensuring an unobstructed emergency passage.

How does the anti-tailgating system work?

The gate uses multiple pairs of infrared sensors to monitor passage trajectories in real-time. If an unauthorized person follows an authorized user, the system triggers an alarm and locks the gate.

Can this gate be integrated with facial recognition?

Yes, the system is designed for easy integration with various access control terminals, including facial recognition, QR codes, and IC/ID card readers.

What should I do if the gate responds slowly?

Check the stability of the 24V power supply and ensure the infrared sensors are clean. If the issue persists, check for any mechanical jamming in the motor.

Is the gate suitable for outdoor installation?

Yes, the 304 stainless steel construction and specialized exhaust system allow for both indoor and outdoor operation, though regular maintenance is recommended for outdoor use.
