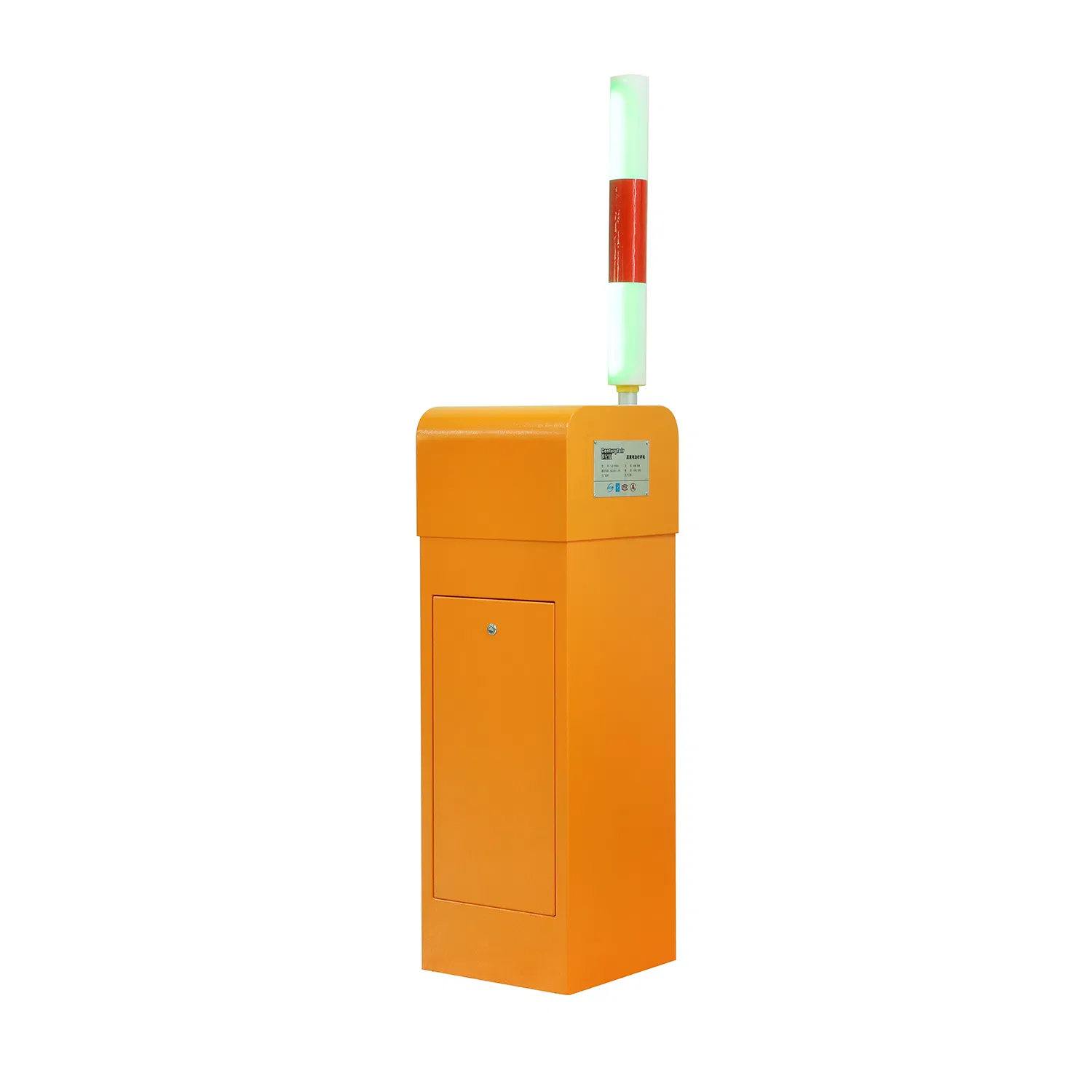

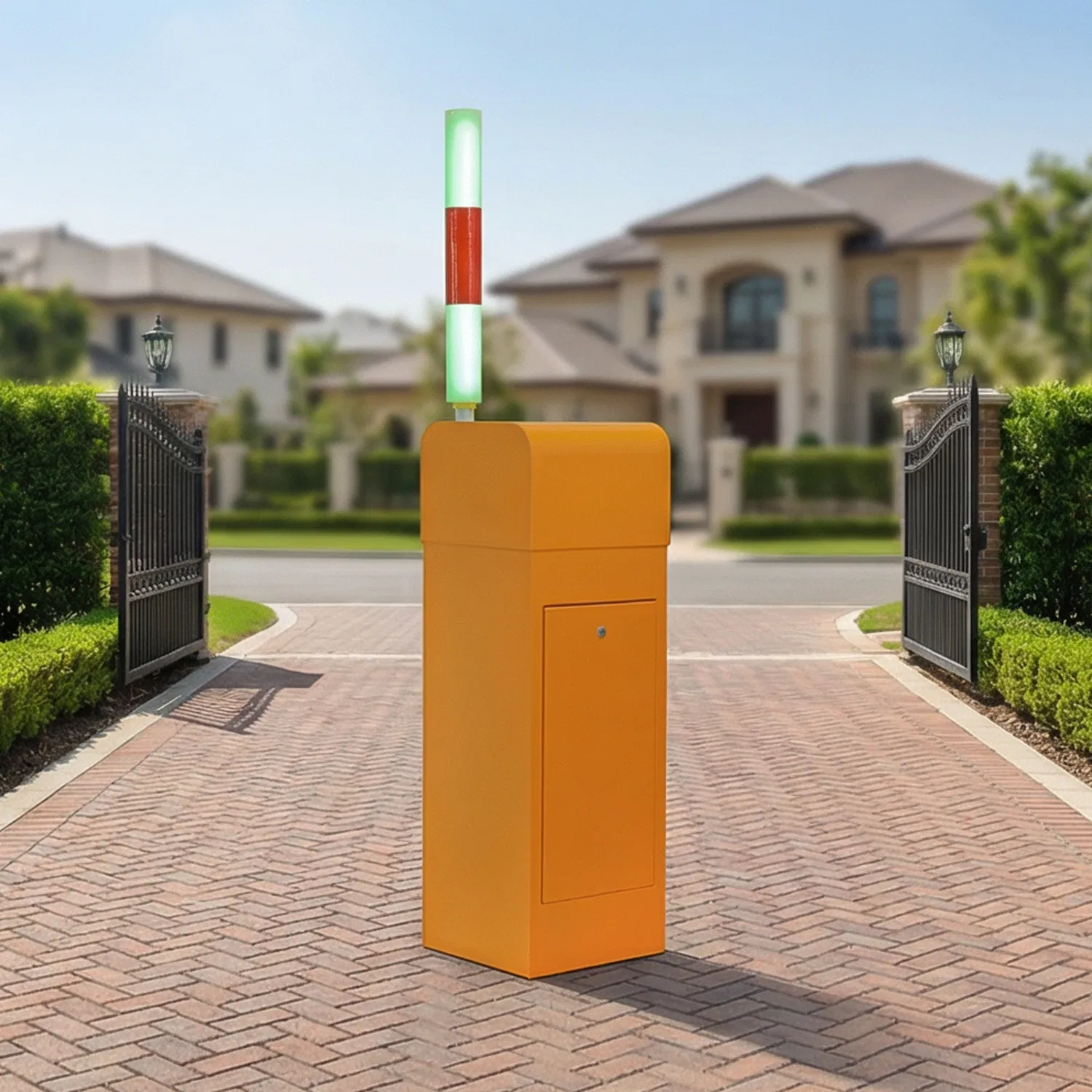

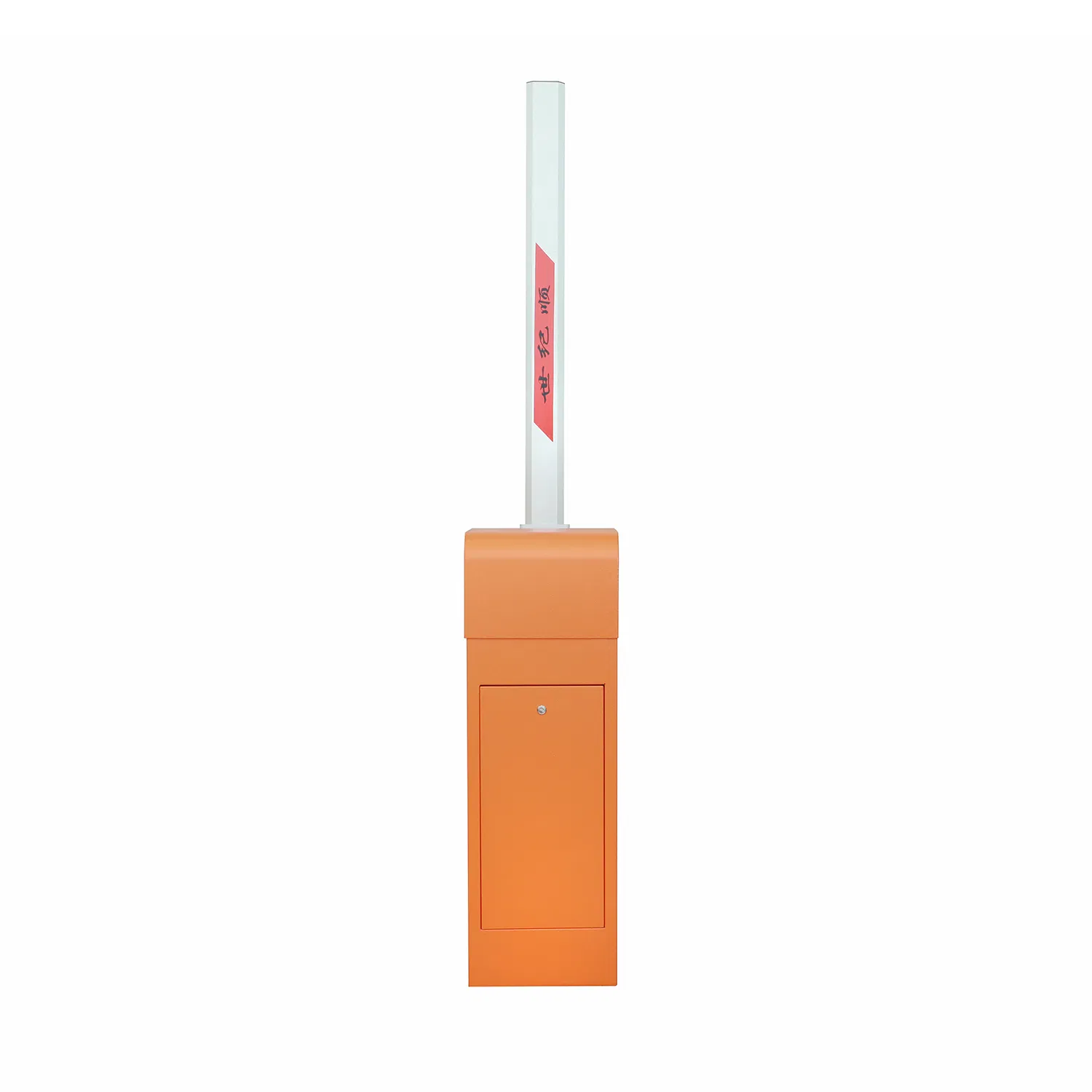

Smart Access Control System: DC Brushless Barrier Gate Solution

Basic Information

Model NO.	DC Brushless Barrier Gate
Position	Vehicle Fence
Material	Steel
Function	Obstruction / Access Control
Rod Length	≤6m
Working Voltage	DC24V
Operating Time	1.5s - 5s
Service Life	≥5 Million Cycles
Temperature Range	-25°C to +55°C

Product Description

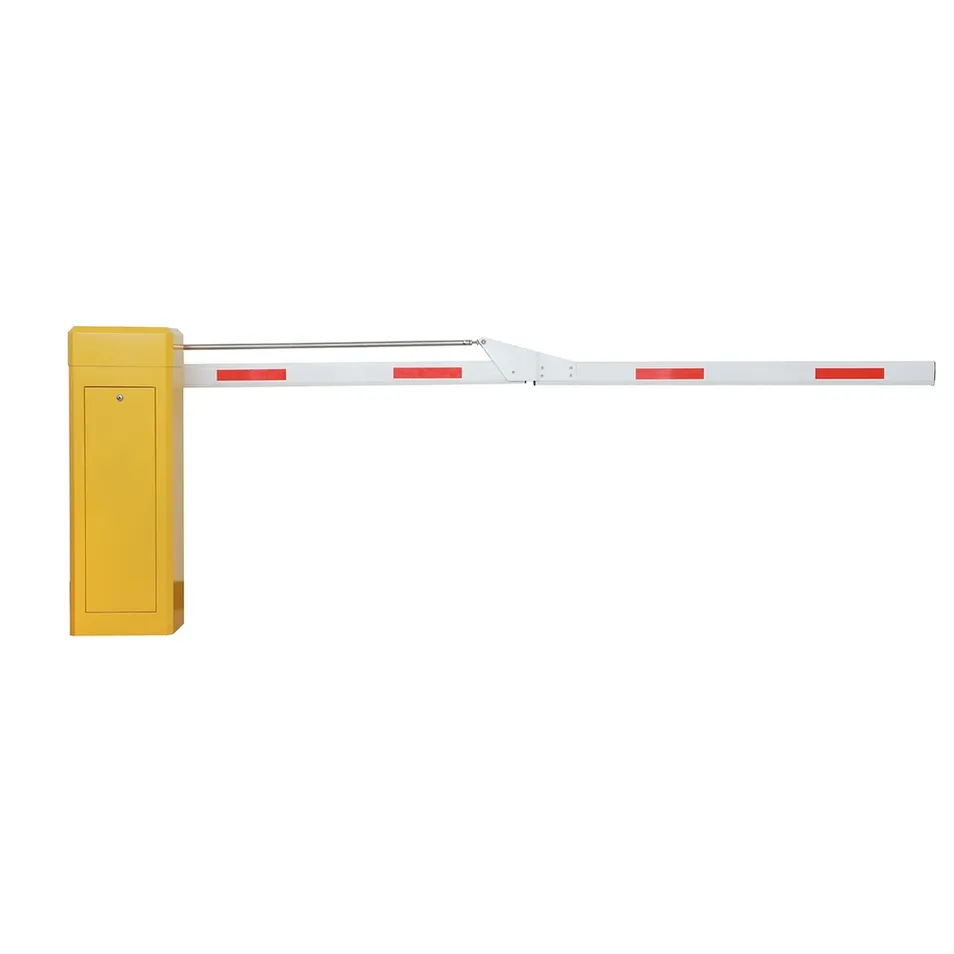

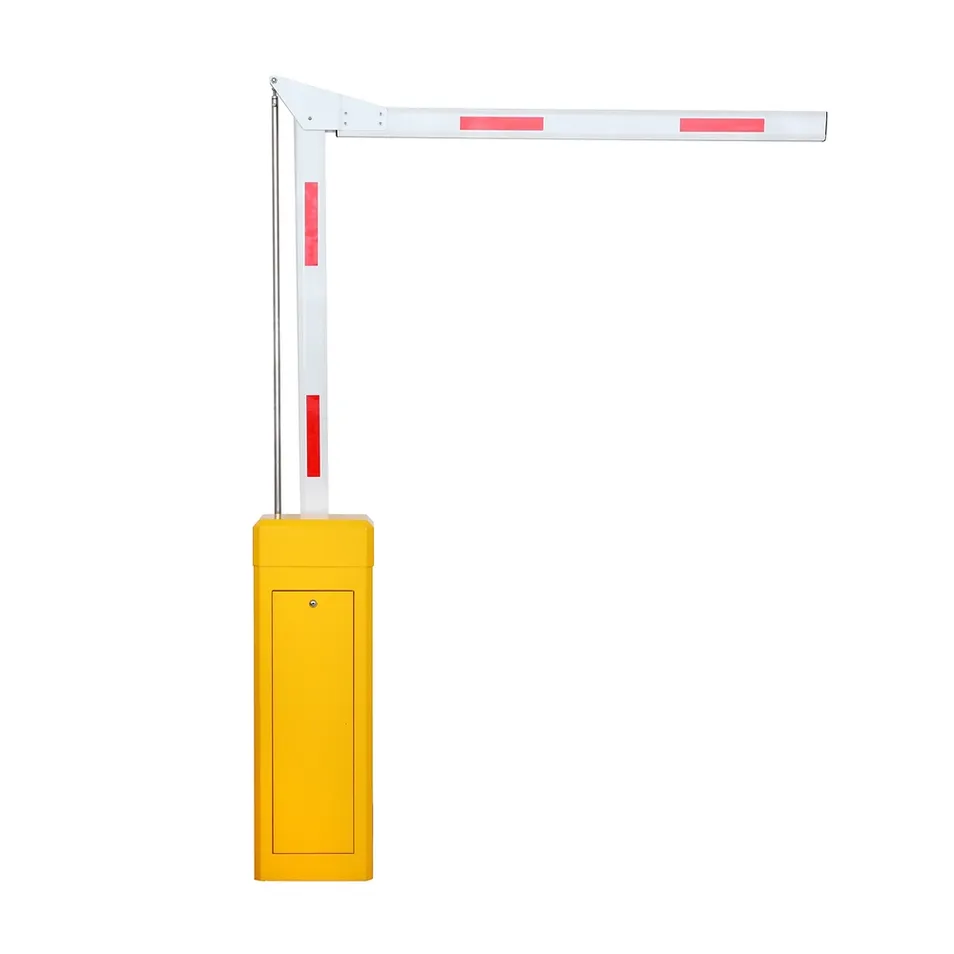

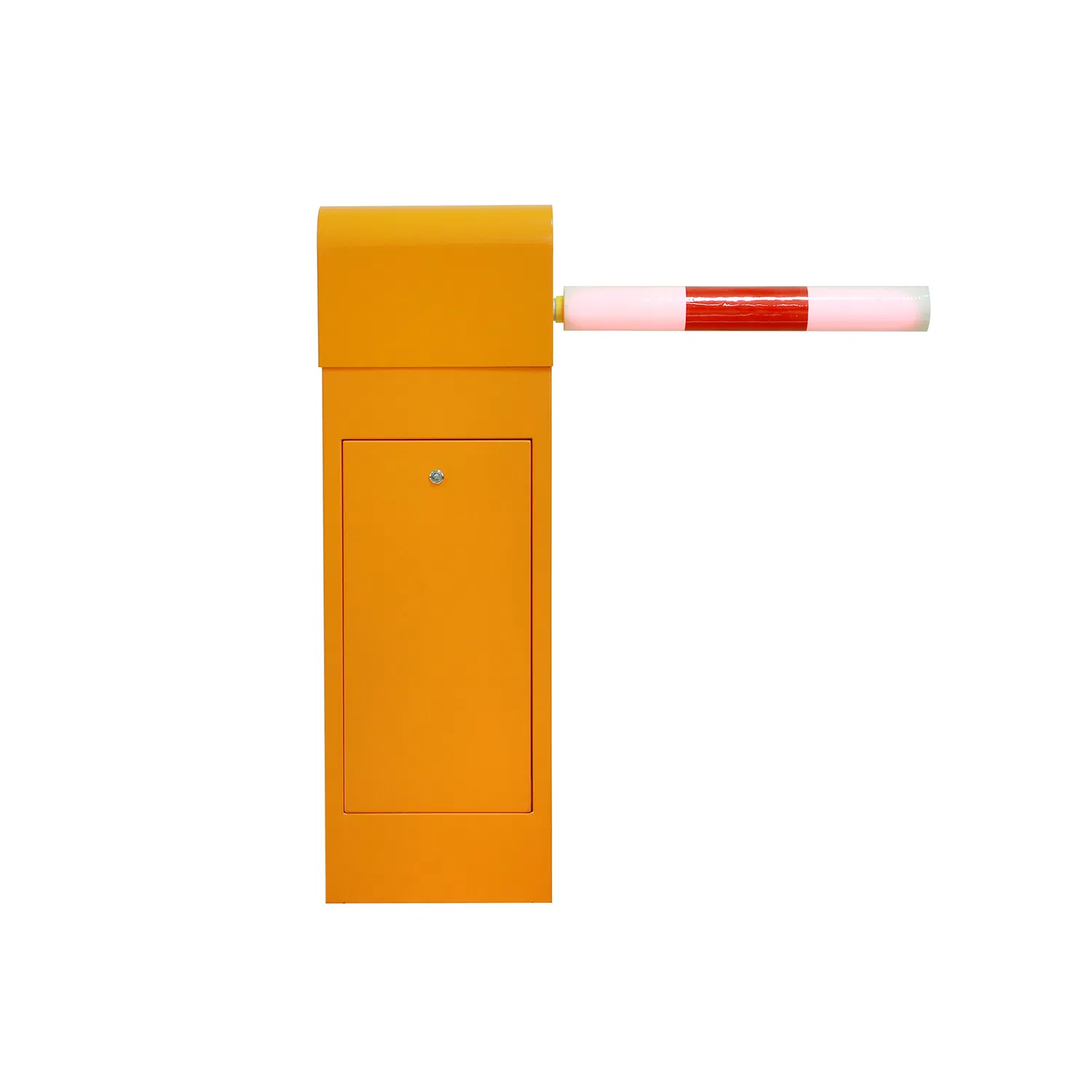

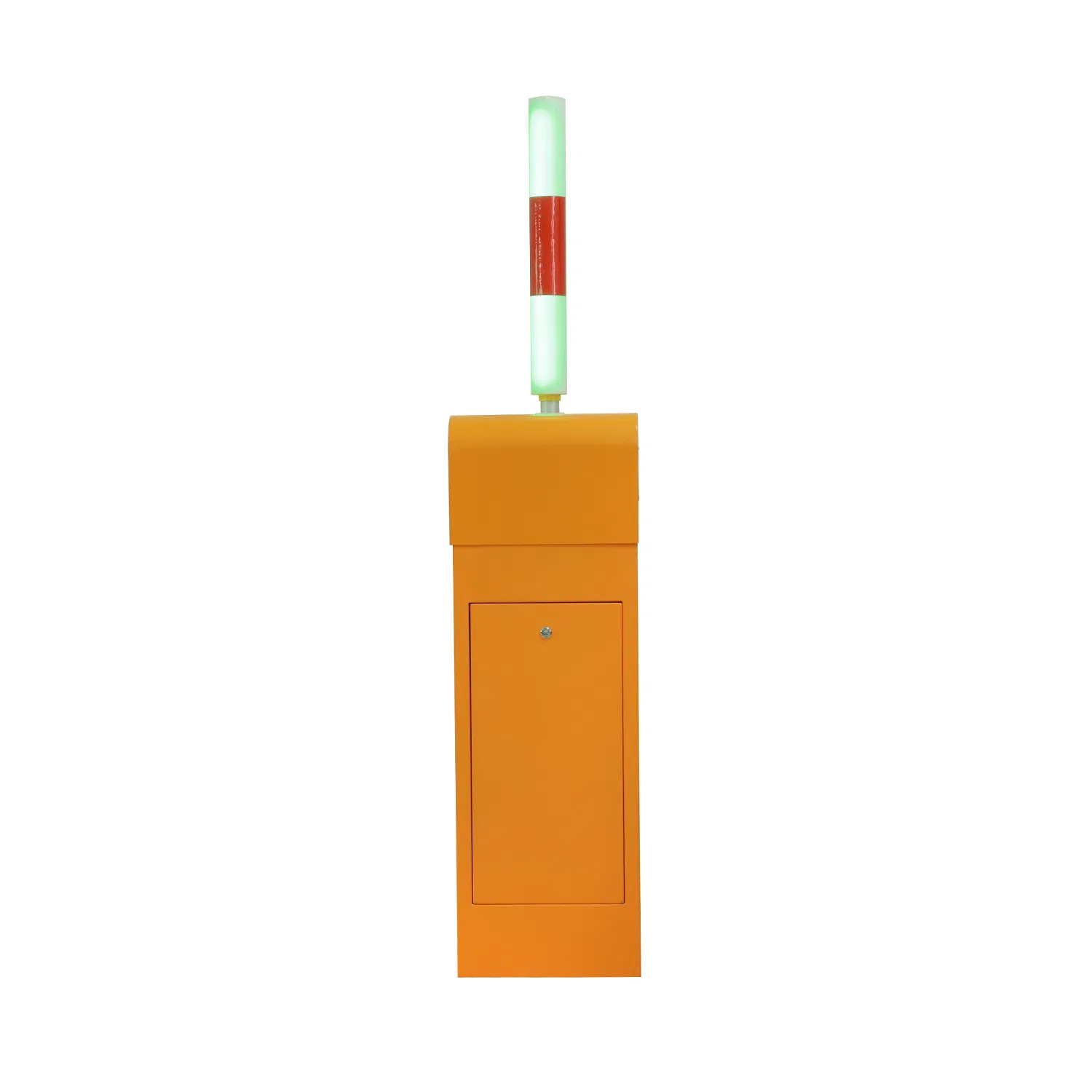

DC BRUSHLESS BARRIER GATE

Experience unmatched reliability with our advanced DC brushless barrier gate, the top solution for efficient, secure vehicle access. Featuring a state-of-the-art brushless DC motor, this gate offers a longer lifespan, reduced maintenance, and quieter operation than traditional AC motor gates.

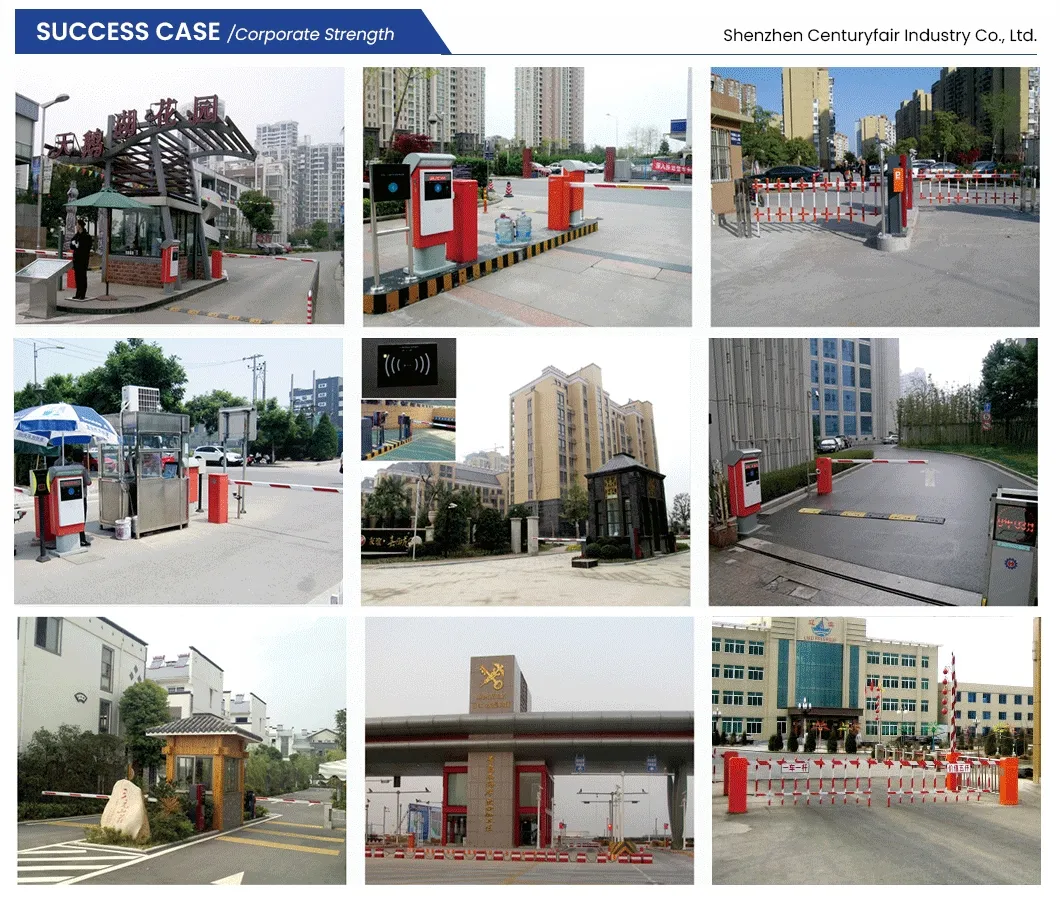

Robust design ideal for high-traffic areas like parking lots, communities, toll booths, and commercial properties, ensuring 24/7 smooth performance.

⚙️

BRUSHLESS DC MOTOR

High-torque brushless DC motor delivers smooth boom movement and eliminates brush wear for long-term reliability.

⚡

ADJUSTABLE SPEED

Digital motor driver allows speed adjustments (1.5s-5s) for site-specific safety or traffic optimization.

🌡️

ALL-WEATHER DESIGN

Engineered for flawless operation in various temperatures, ideal for extreme climates and heavy-duty use.

Technical Parameters

Output Power	120W
Rated Current	5A
Insulation Class	Class F
Humidity	≤90%
Altitude	≤1000m
Remote Control Distance	≤50m
Package Size	41.00cm * 38.50cm * 112.00cm
Package Gross Weight	40.00kg

Detailed Photos

🛠️

TOOL-FREE MAINTENANCE

Modular layout and quick-release panels enable inspections or part replacement in minutes, reducing downtime.

↔️

BI-DIRECTIONAL SUPPORT

Configurable for bidirectional operation with timing controls, optimizing traffic flow in diverse patterns.

🛡️

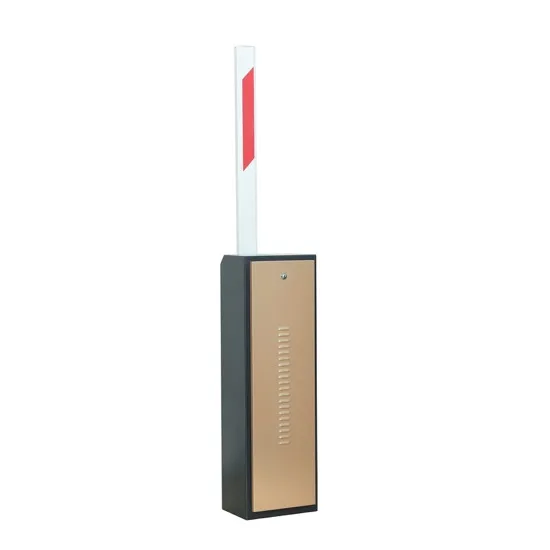

OBSTACLE DETECTION

Multiple detection zones offer adjustable sensitivity, ensuring safety and preventing environmental false triggers.

🏗️

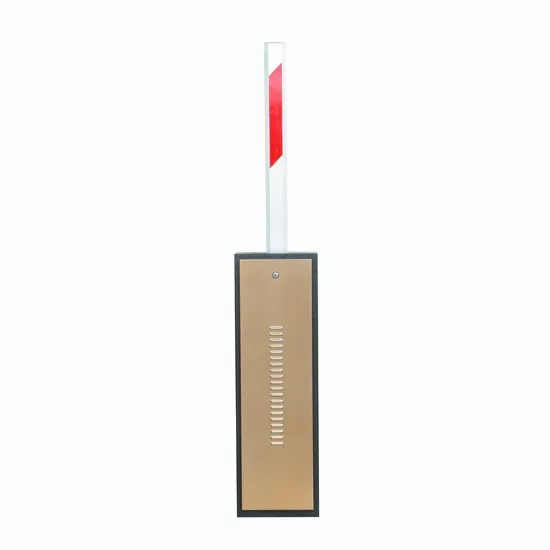

FLEXIBLE MOUNTING

Adapt to various site conditions and space constraints without losing performance.

Frequently Asked Questions

Q: What are the main advantages of a DC brushless motor in a barrier gate? A: DC brushless motors offer a longer service life (over 5 million cycles), higher efficiency, quieter operation, and require significantly less maintenance compared to traditional AC motors.

Q: Can the opening and closing speed be adjusted? A: Yes, the digital motor driver allows you to adjust the operating time between 1.5 seconds and 5 seconds to match your specific traffic needs.

Q: Is this barrier gate suitable for outdoor use in extreme weather? A: Absolutely. It is designed to operate in temperatures ranging from -25°C to +55°C and can handle humidity levels up to 90%.

Q: How does the obstacle detection feature work? A: The system features multiple detection zones with adjustable sensitivity. If an obstacle is detected during the closing cycle, the gate will instantly respond to prevent damage or injury.

Q: What is the maximum rod length supported? A: This model supports a boom or rod length of up to 6 meters, making it suitable for most standard and wide vehicle entrances.

Q: Is the maintenance of this gate difficult? A: No, it features a tool-free maintenance design with quick-release panels and a modular layout, allowing for fast inspections and easy part replacement.
