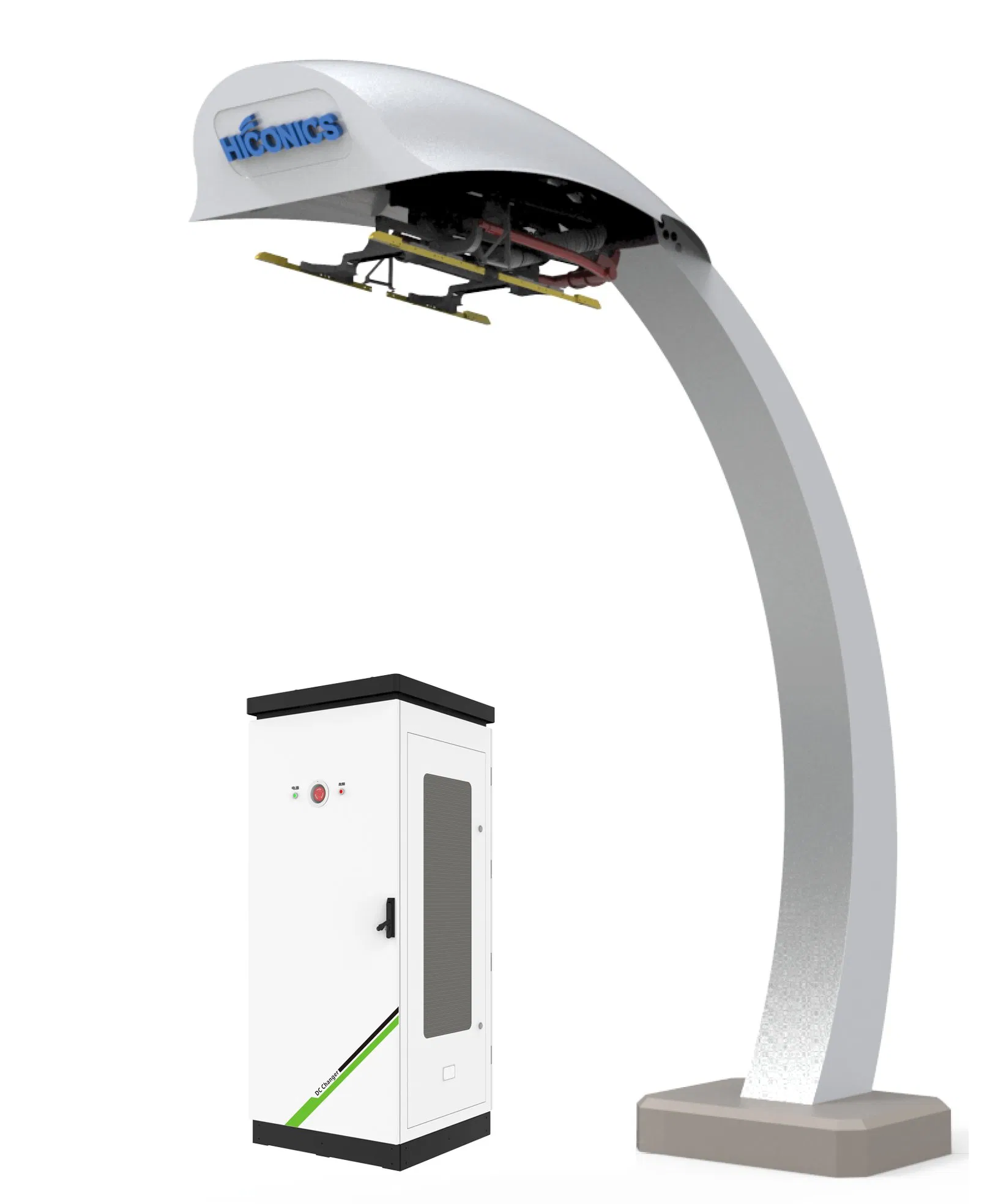

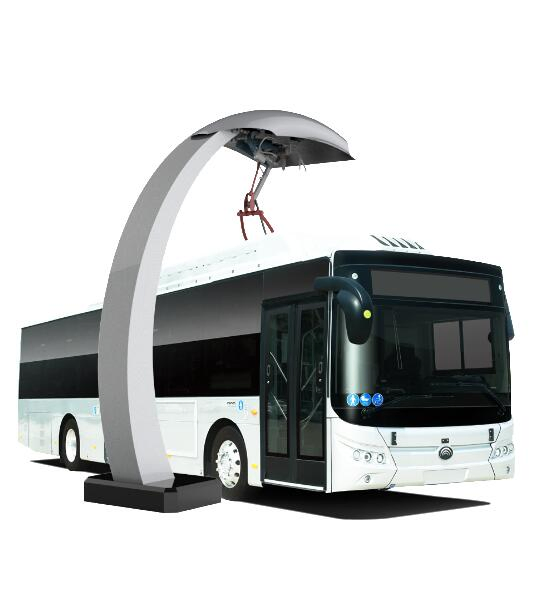

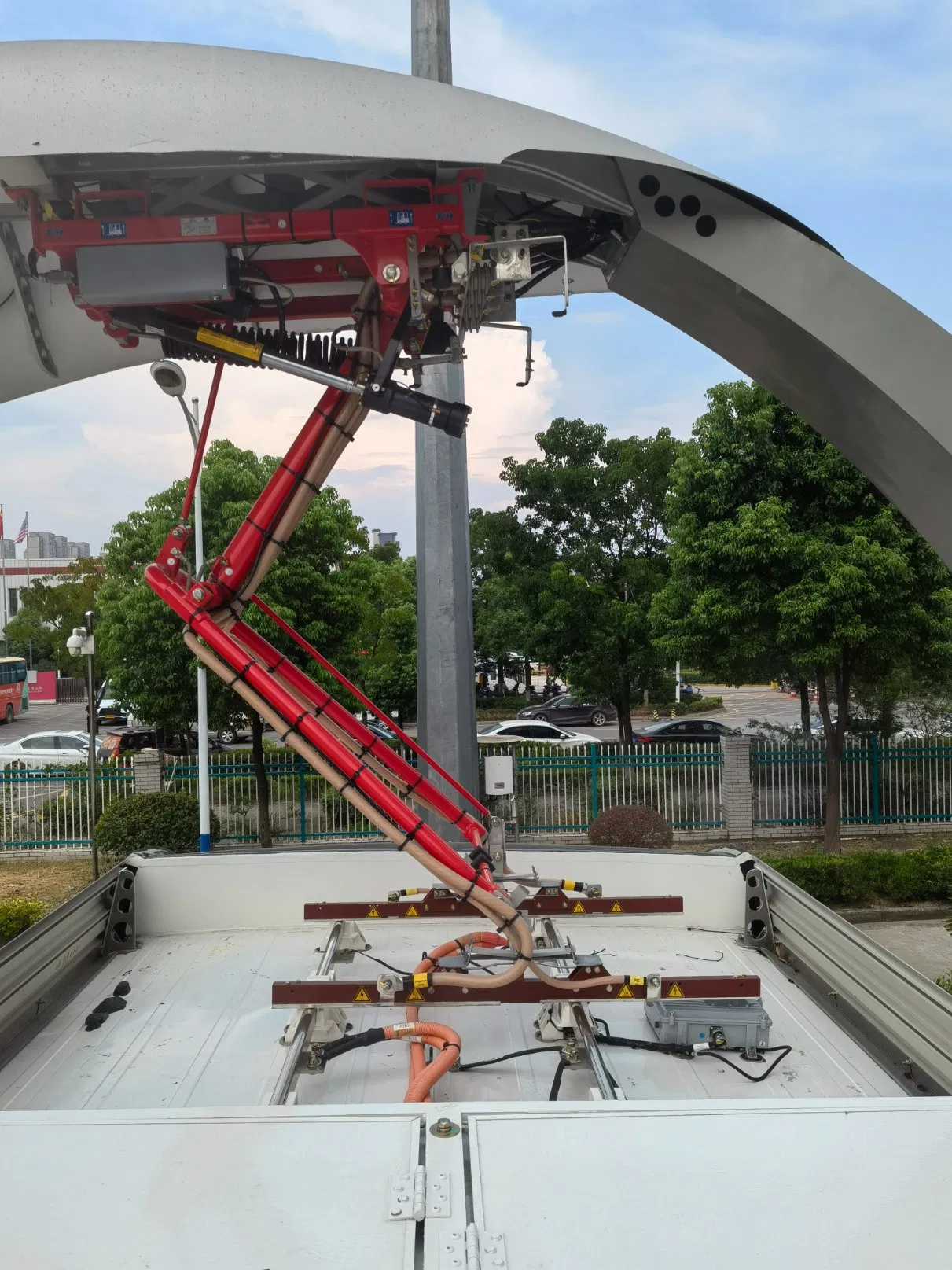

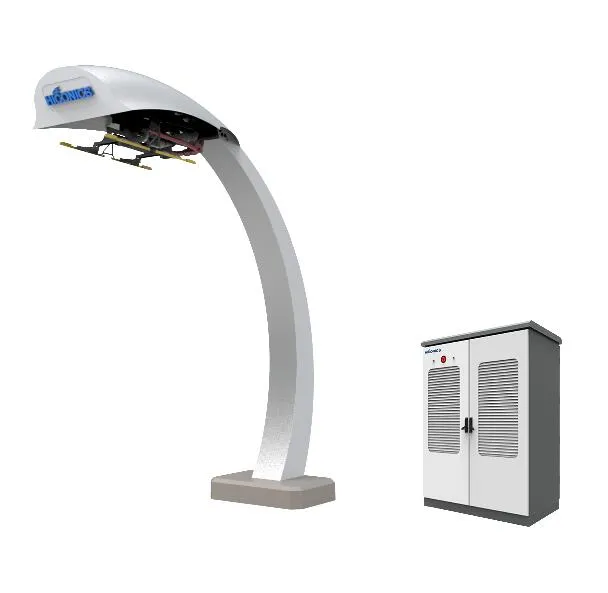

The HK series split type pantograph system is high-power quick charging equipment developed for pure electric buses. The system features both AC and DC input modes, consisting of a charging module cabinet and a high-performance charging interface.
Designed with a protection class of IP54 and mechanical strength greater than IK10, the system is waterproof, dustproof, and anti-corrosion, making it ideal for large parking lots and bus stations.
PLC carrier communication ensures accurate positioning and data interaction. Maximum output current can reach 800A to satisfy ultra-fast charging needs.
Separates the power unit from the charging interface for easier maintenance. High-quality electrical components ensure charging stability.
Equipped with overvoltage, undervoltage, short circuit, emergency stop, and leakage current protection functions.

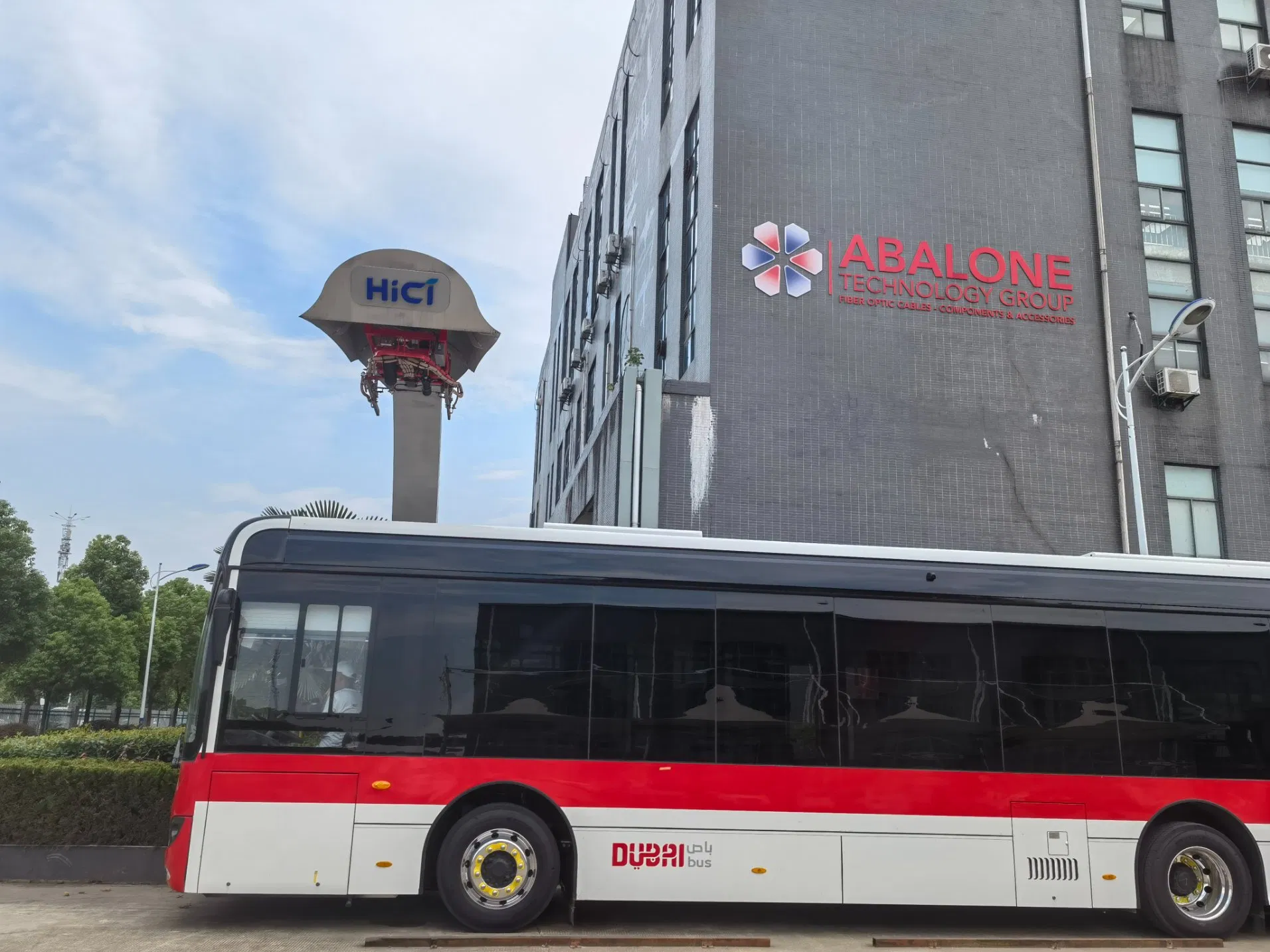

Supports both falling and rising type interfaces. Flexible AC/DC input selection to meet various site requirements.
| Item | Technical Requirements |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Efficiency | ≥0.95 (50% load or above) |
| IP Class | IP54 |
| Operation Temperature | -30ºC~+55ºC |
| Communication Protocol | OCPP 1.6 (JSON) Optional |

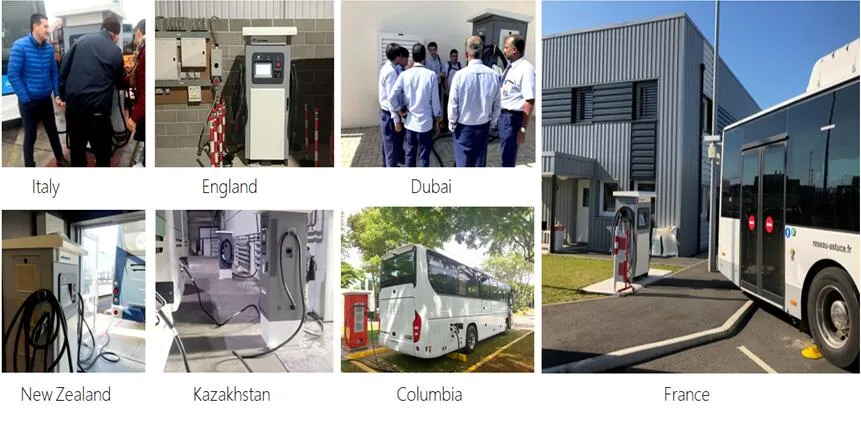

Our EV chargers are widely applied in over 200 cities and 27 countries, including England, France, Bulgaria, Australia, and Singapore. We provide comprehensive after-sales support:
