Model NO.: M-518TW
Structure: RFID Tag
Driving Type: Electric
Current Type: DC
Brand: Canbo
Power Voltage: AC/DC 12~30V
Connection: Wi-Fi, Bluetooth
Material: Plastic
Application: Garage, Industrial, Commercial Doors
Automatic Door Hand-free Access RFID Electronic Tag in Car

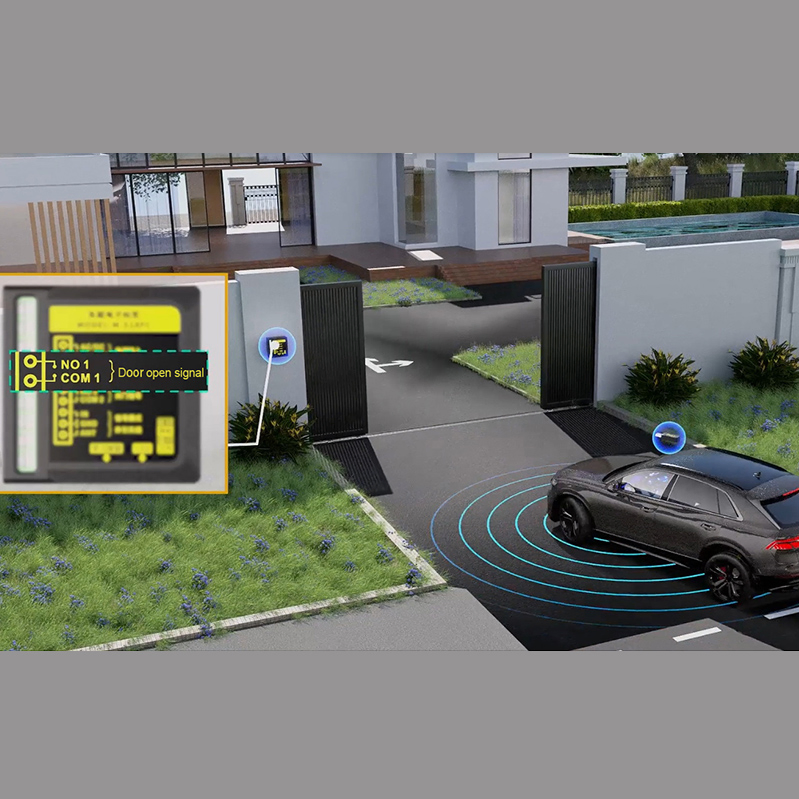

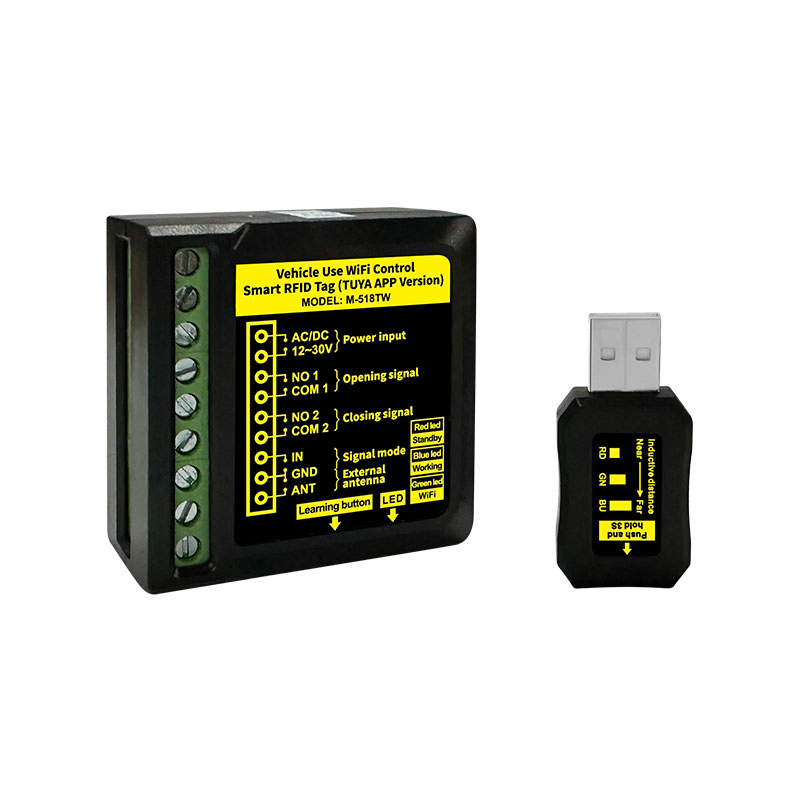

The M-518 Series is an advanced Smart RFID Tag system designed to provide authorized vehicles with completely automatic, hands-free entry through automatic doors and gates.
★

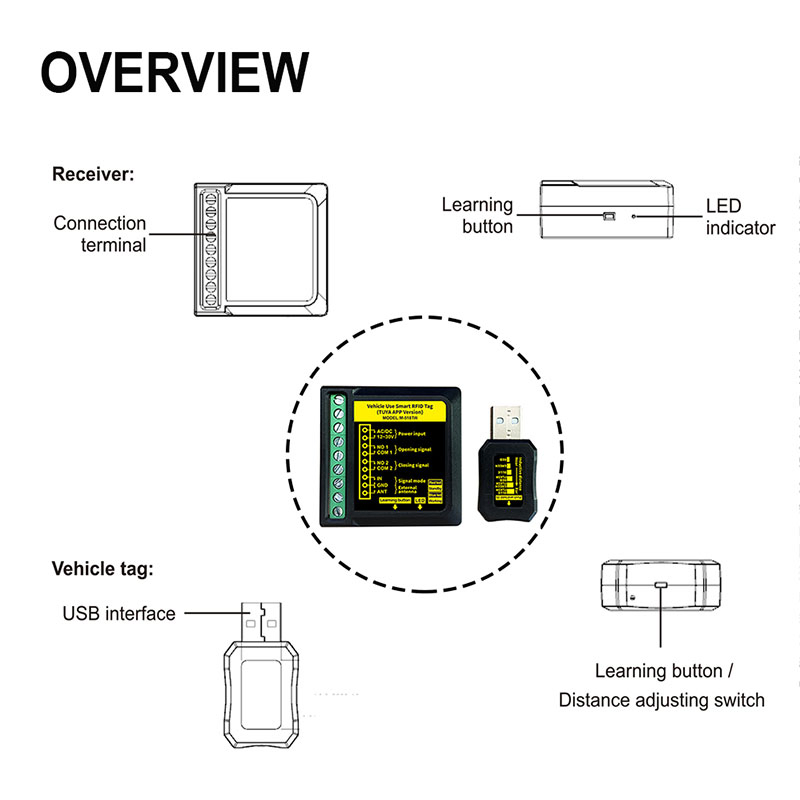

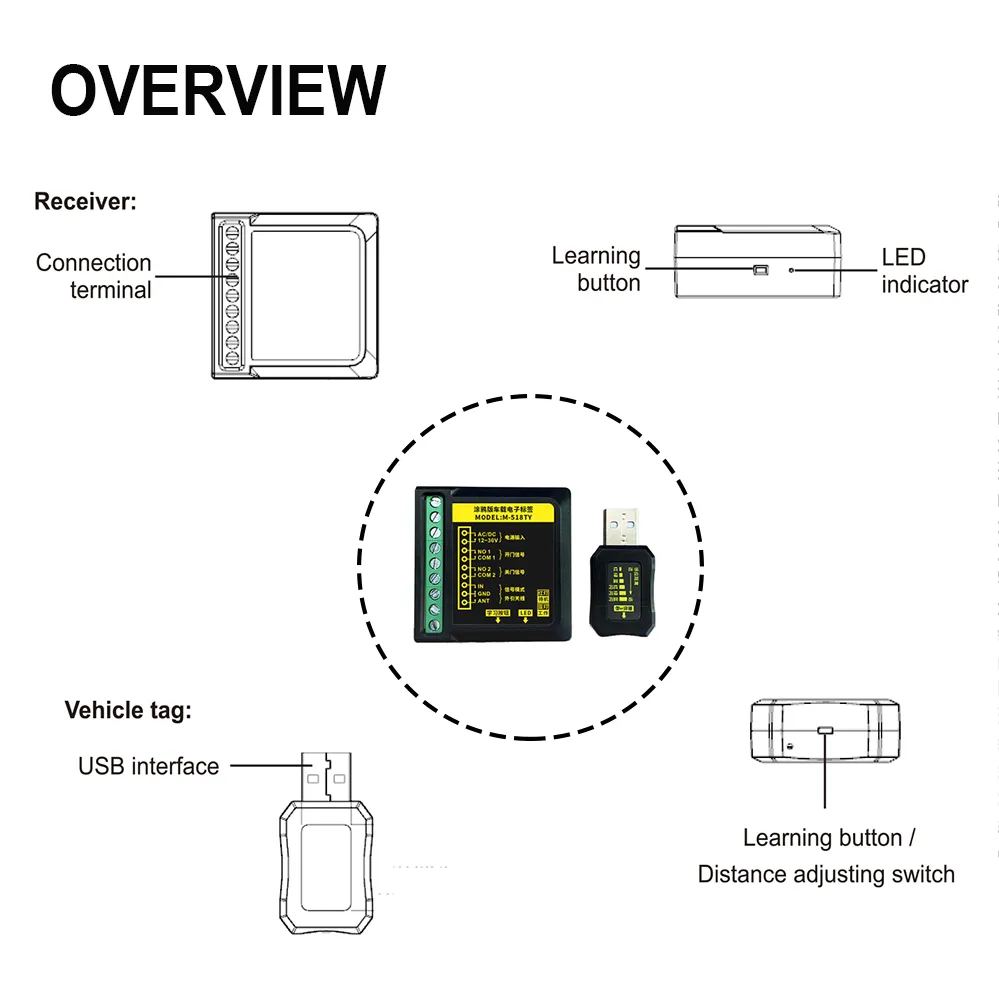

By pairing a compact receiver installed on your door controller with a USB-powered tag placed in the vehicle, the system enables a smooth, stop-free access experience within a robust 30-meter sensing distance. Ideal for factories, warehouses, home garages, and private villas.

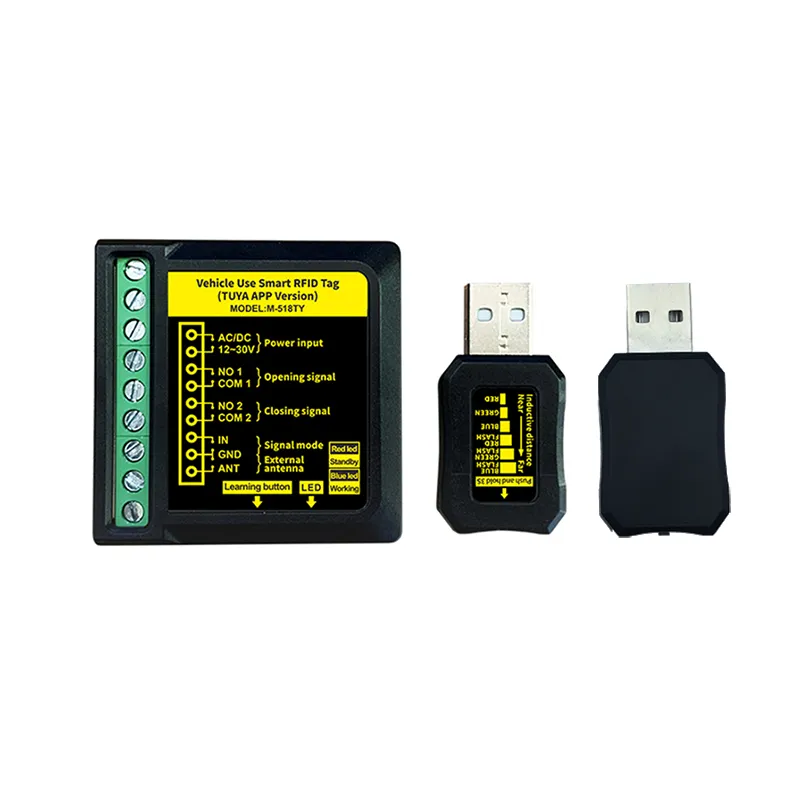

The M-518TY acts as an access authorization controller, functioning as both vehicle recognition and an automatic door sensor.
✔

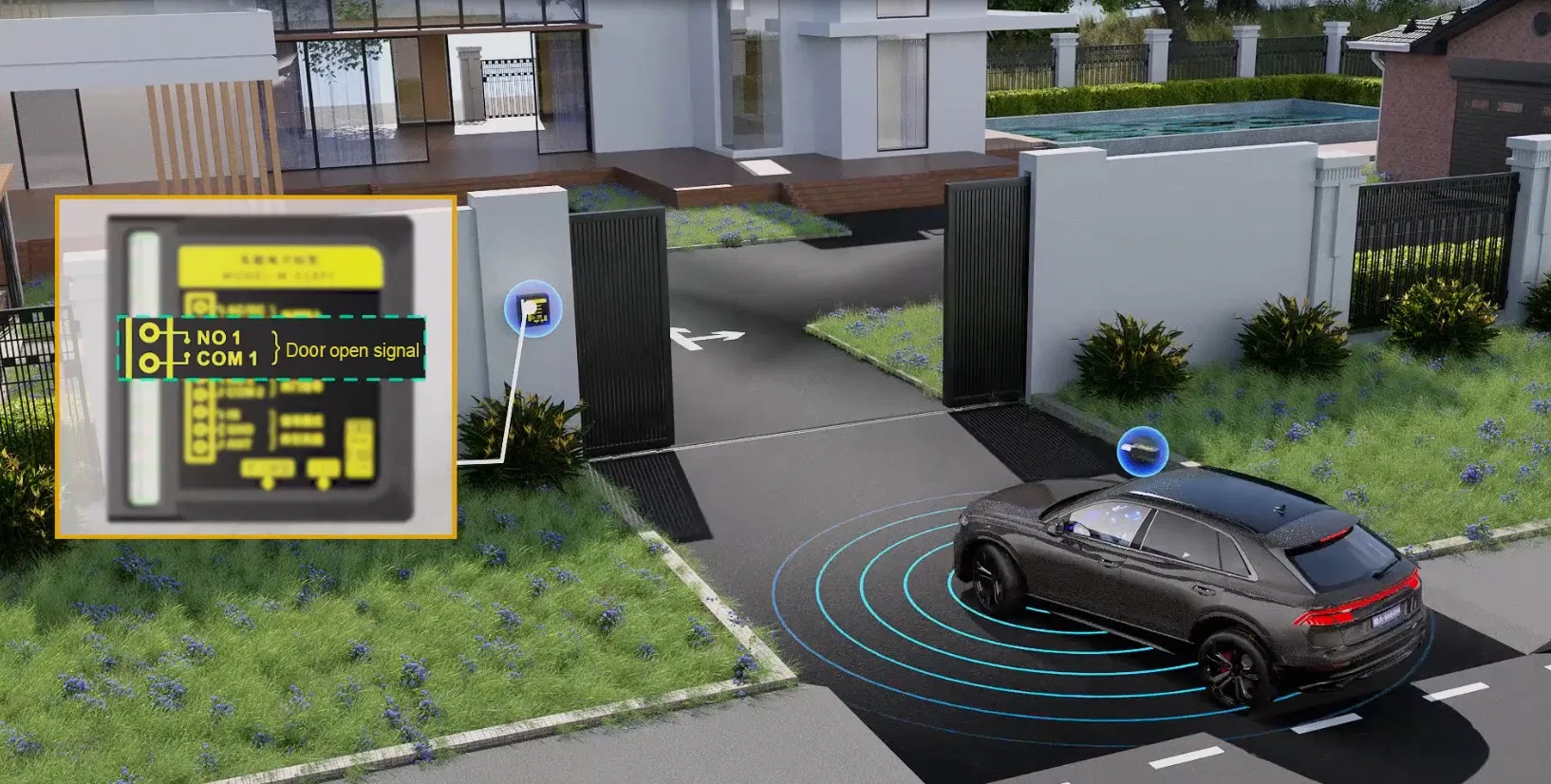

True Hands-Free Vehicle Access:
Authorized vehicles trigger the door automatically when approaching the preset range. No remotes or cards needed.
✔
Long & Adjustable Sensing Range:
Up to 30 meters of operating distance. Customizable 6-level adjustment to prevent false triggers.
✔

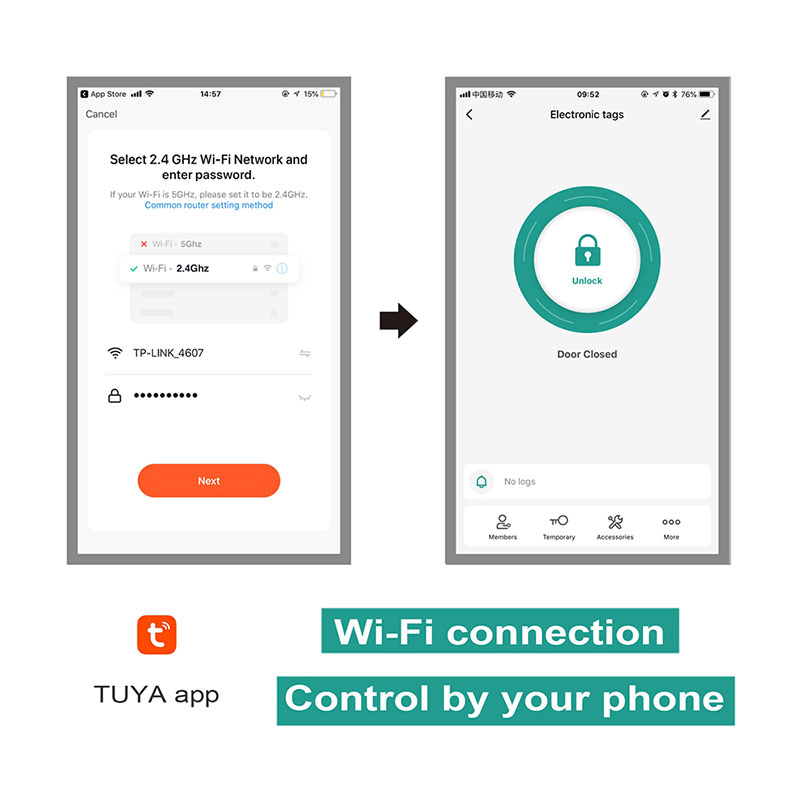

Mobile App Control:
Equipped with smartphone connectivity allowing remote door opening via application.

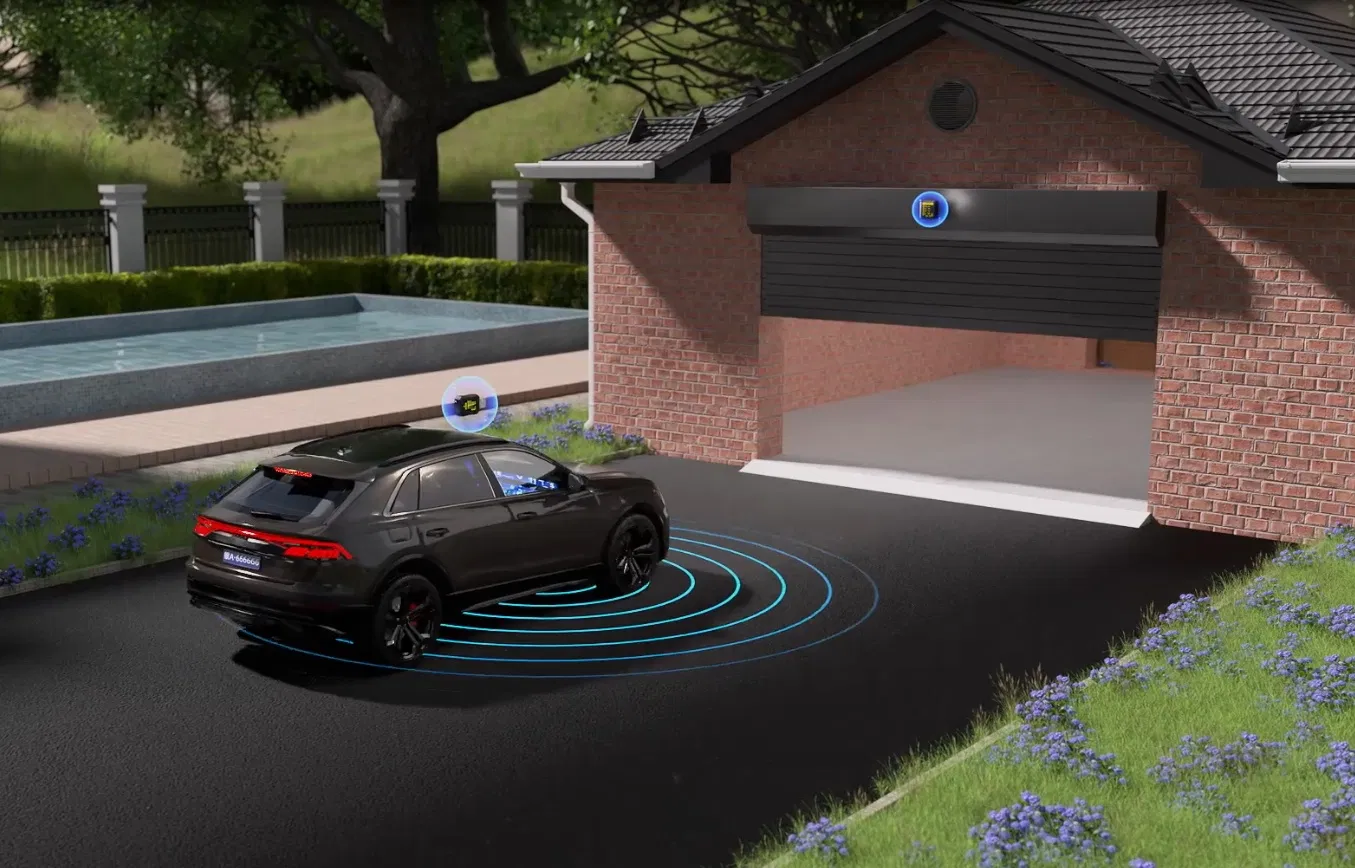

Installation & Applications

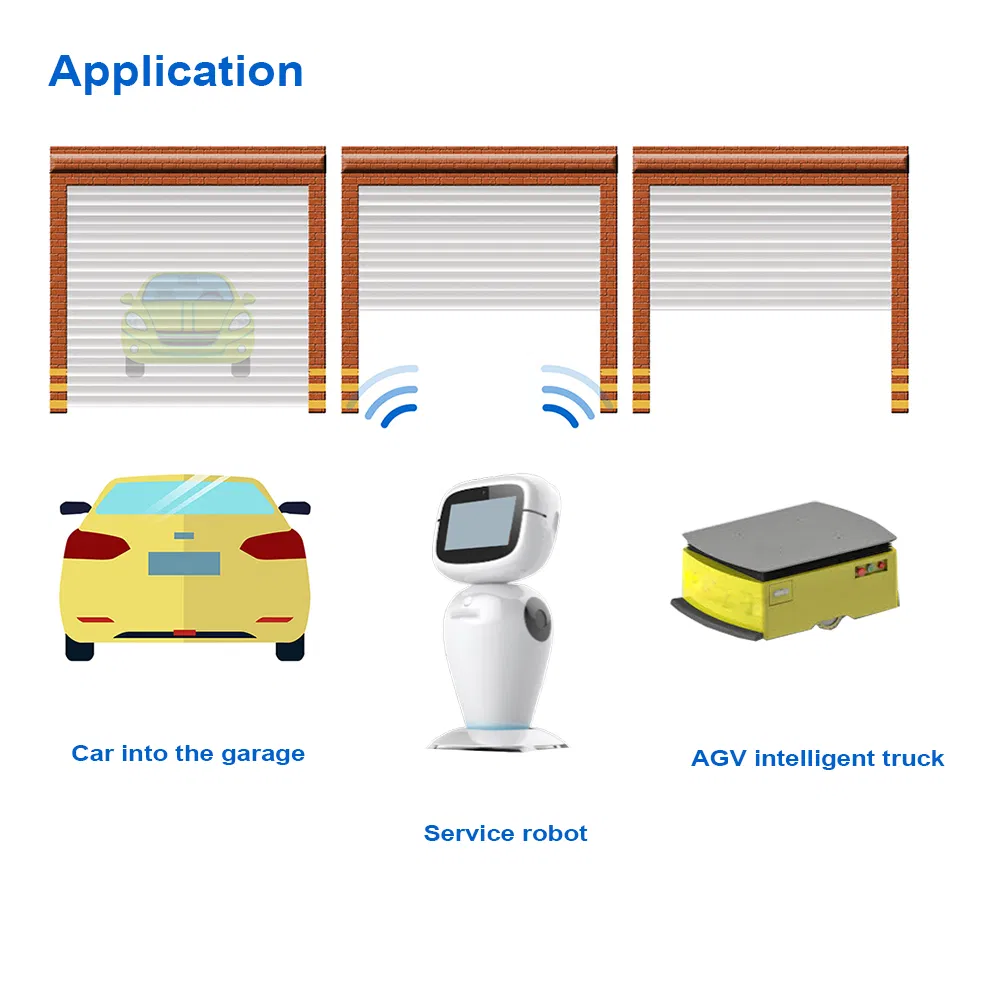

Ideal Applications:

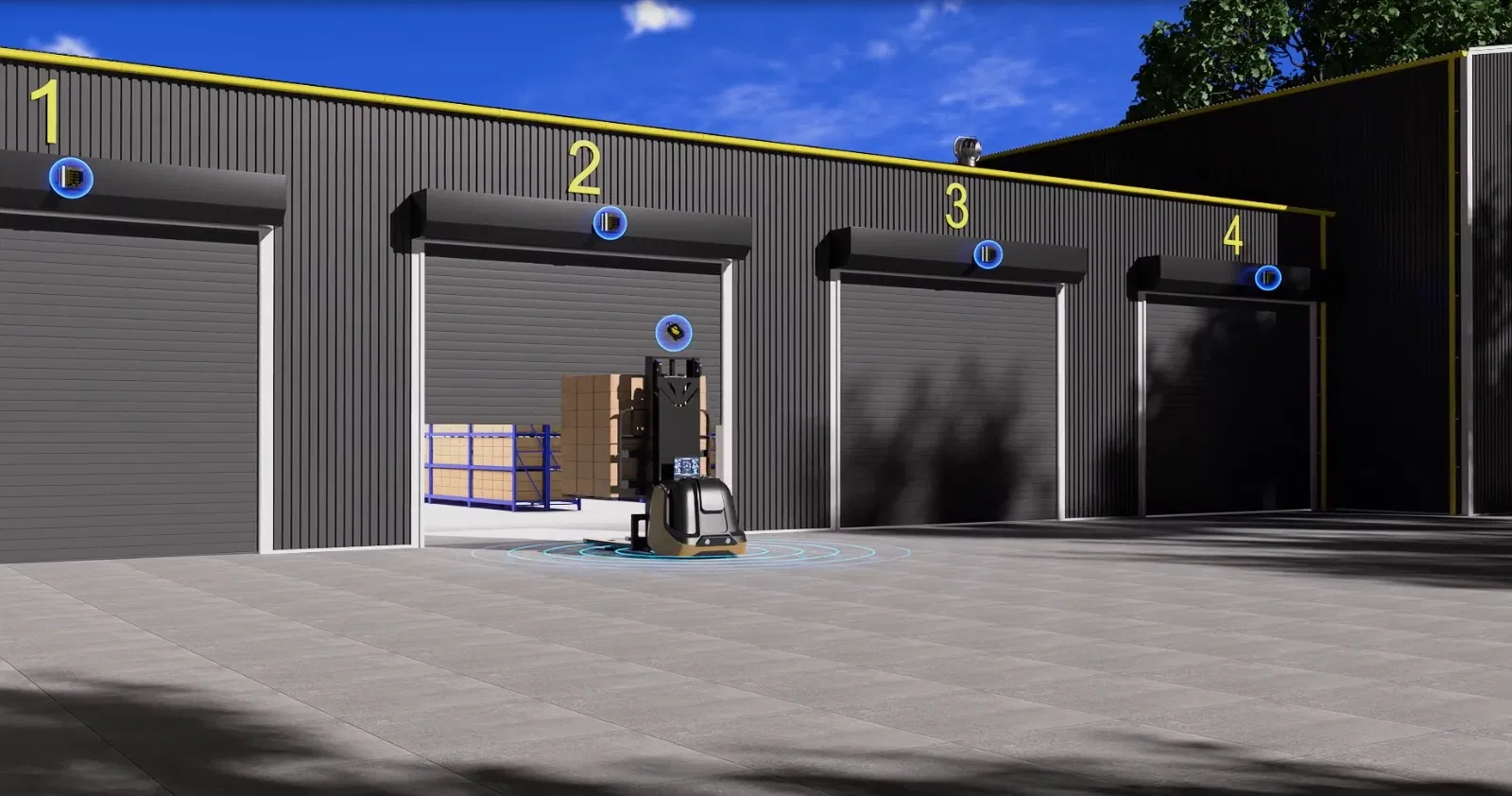

- Factory and Warehouse Roll-up Doors
- Secure Gated Community Entrances
- Automated Parking Lot Barriers
- AGV (Automated Guided Vehicle) Interaction Points
- Logistics and Distribution Centers
- Corporate and Industrial Plant Entrances

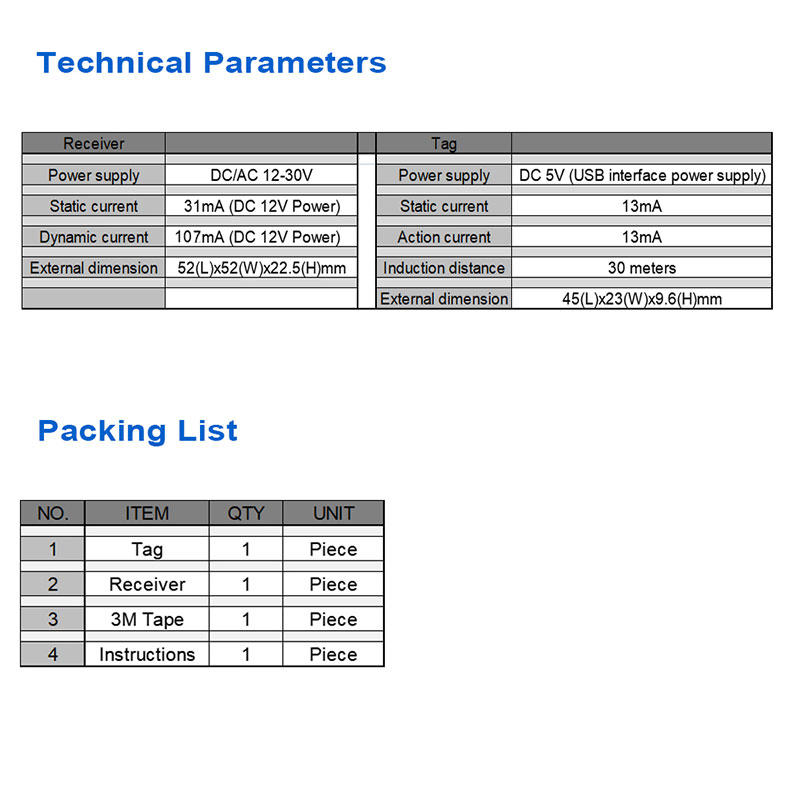

| Receiver Specifications |
| Power Input | AC/DC 12~30V |
| Static Current | 31mA (DC 12V) |
| Action Current | 107mA (DC 12V) |
| Dimension | 51.95(L) x 52(W) x 22.5(H)mm |
| Electronic Tag Specifications |
| Power Supply | DC 5V (USB Port) |
| Sensing Distance | Up to 30 Meters |
| Dimension | 45(L) x 23(W) x 9.6(H)mm |

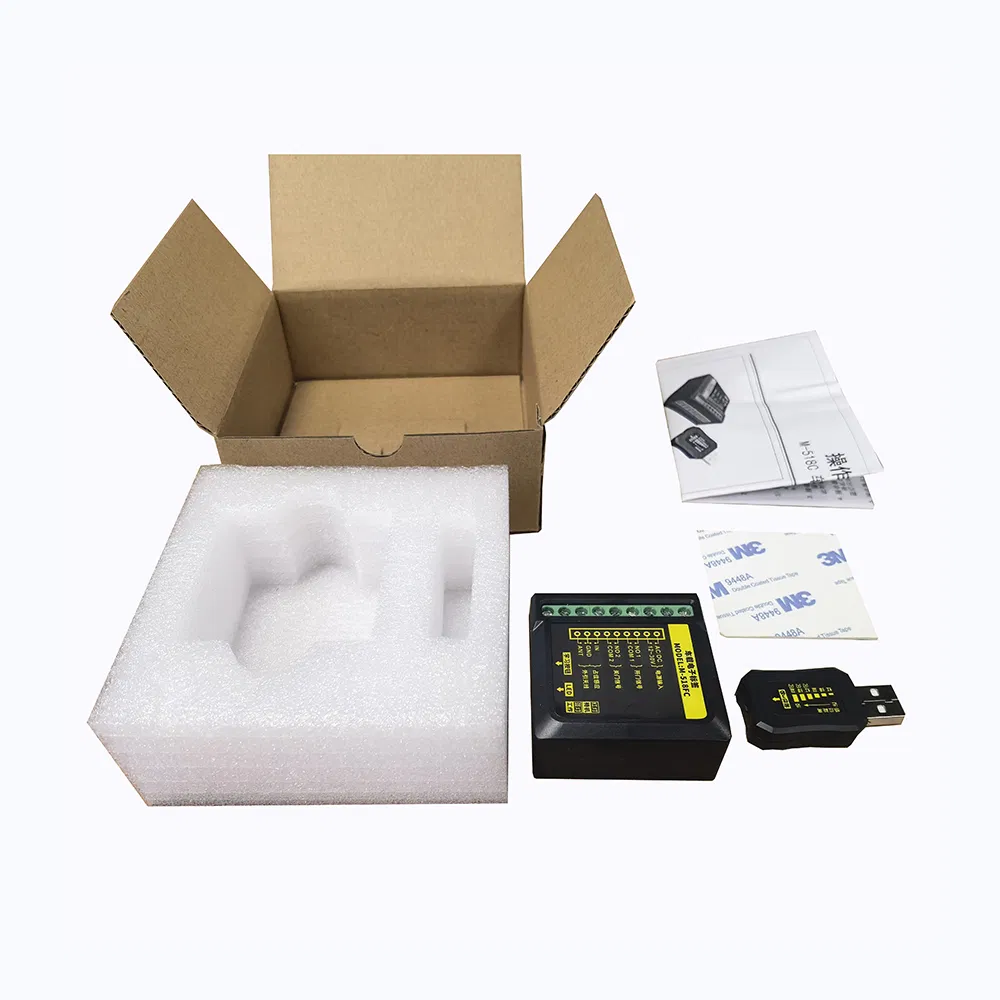

| Packing List | Tag, Receiver, 3M Tape, Instructions |

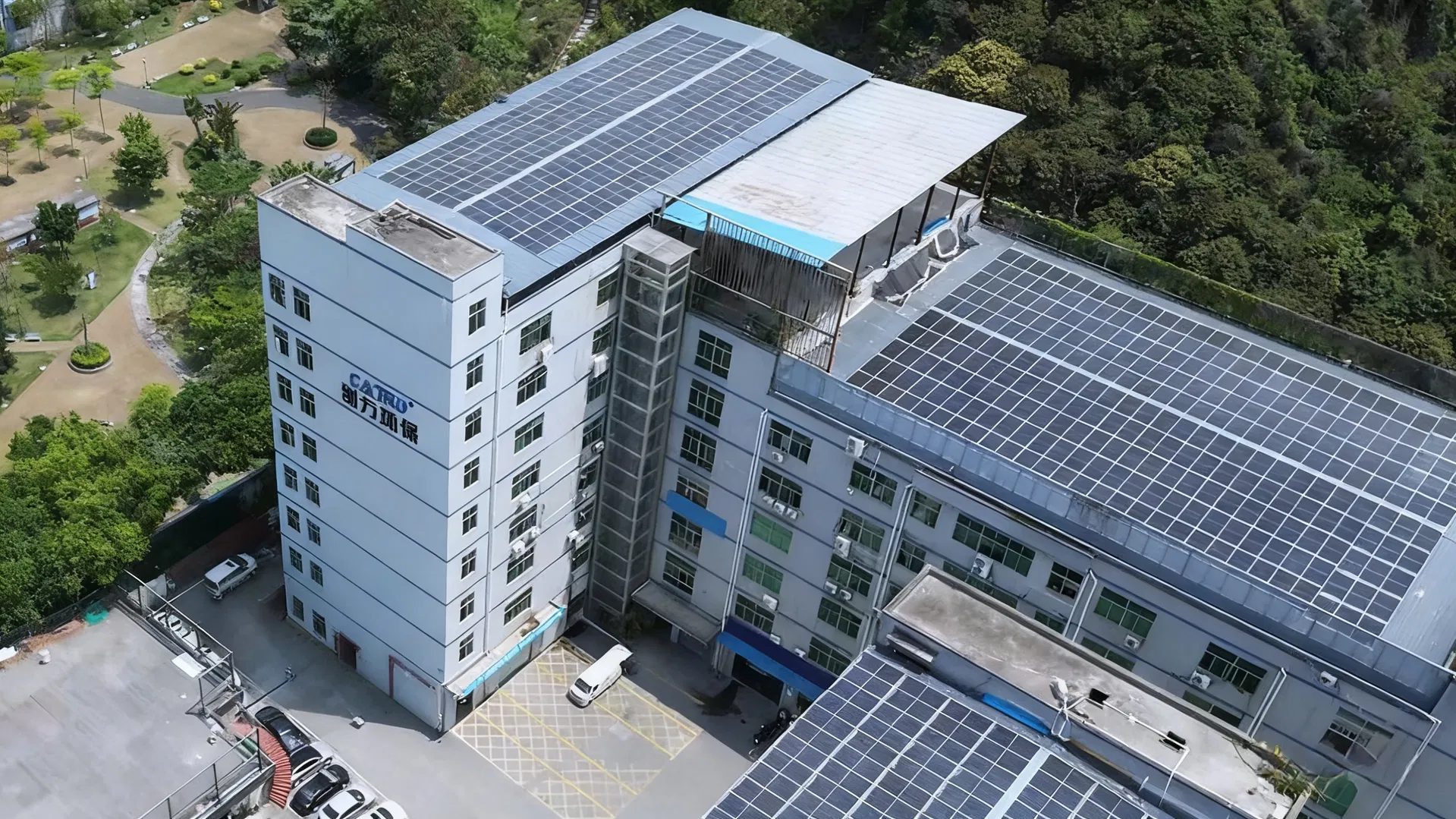

Operating since 2006, the facility is committed to R&D, manufacturing, and sales of automatic door control system products. The professional technical team integrates software/hardware technology, intelligent identification, and IoT technology.
Frequently Asked Questions
Q1: What is the maximum sensing distance?
The system provides a reliable sensing distance of up to 30 meters, allowing doors to open well before the vehicle reaches the entrance.
Q2: Can I adjust the activation range?
Yes, the system features a 6-level adjustable sensing range to suit different driveway layouts and prevent accidental triggers.
Q3: How is the vehicle electronic tag powered?
The electronic tag is powered via a standard DC 5V USB port, making it easy to plug into any vehicle's USB interface.
Q4: Is the installation complicated?
No, the installation is relatively simple. The package includes 3M tape for mounting and a detailed operation manual with wiring diagrams.
Q5: Can it be controlled by a smartphone?
Yes, the M-518TY model supports mobile APP connectivity, allowing you to open the door remotely using your phone.
Q6: What types of doors is this compatible with?
It is suitable for all types of automatic doors, including garage doors, industrial roll-up doors, commercial gated entrances, and parking barriers.
