Advanced Wattsaving EV Charging Station - Eco-Friendly Charging Solution From China

1 / 5

Advanced Wattsaving EV Charging Station - Eco-Friendly Charging Solution From China

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

WE X7

Location

Private Use

Interfaces

One Pile with One Charge

Trademark

WATTSAVING

Origin

China

🖼️

Product Showcase

⚡

Electrical Characteristics

Product Model	WE X7
Rated Input/Output Voltage	220VaC 1P+N+PE
Rated Input/Output Current	32A

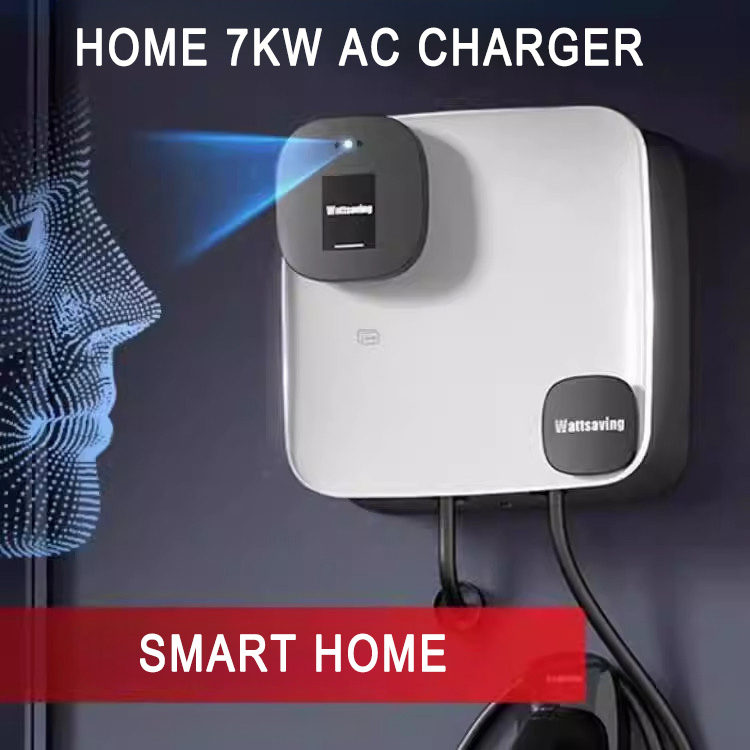

Output Power	7kW Max
Frequency	45-65HZ
Residual Current Detection	AC 30mA+DC 6mA
Human-Machine Interaction

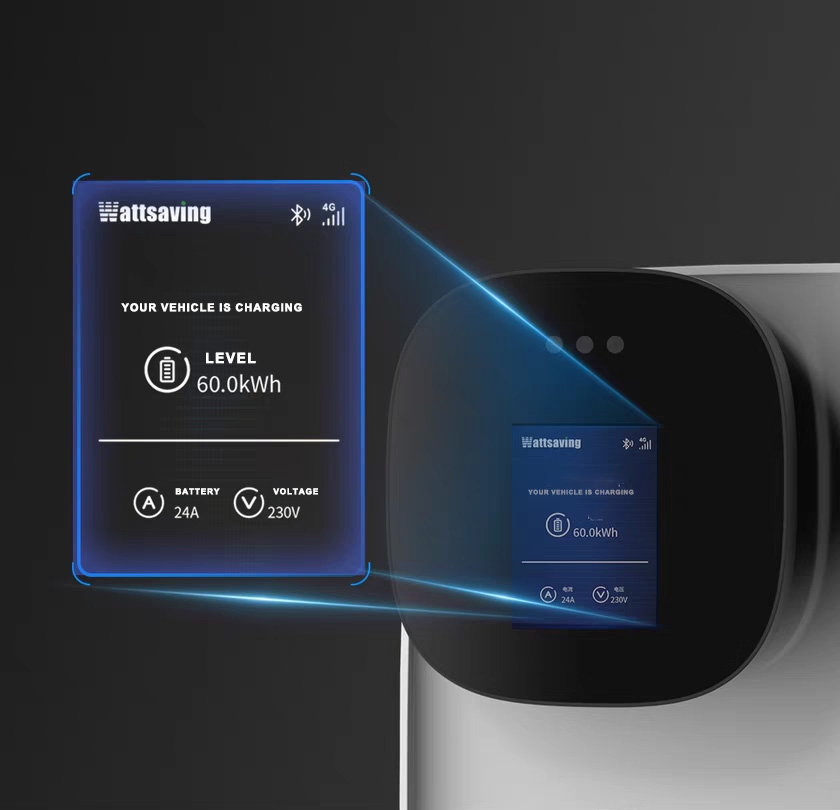

Display Function	2.8-inch LCD screen

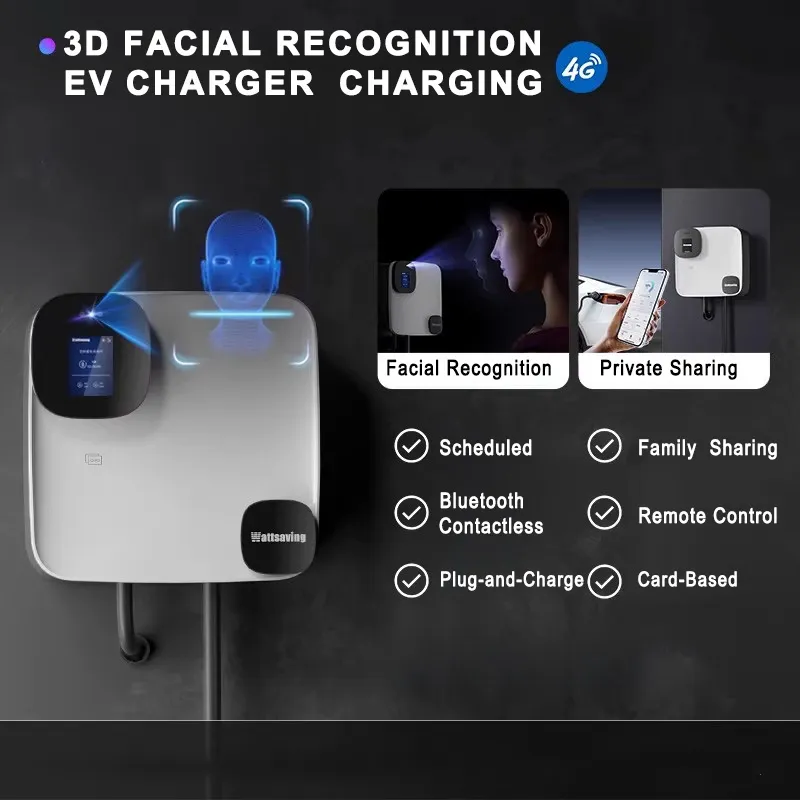

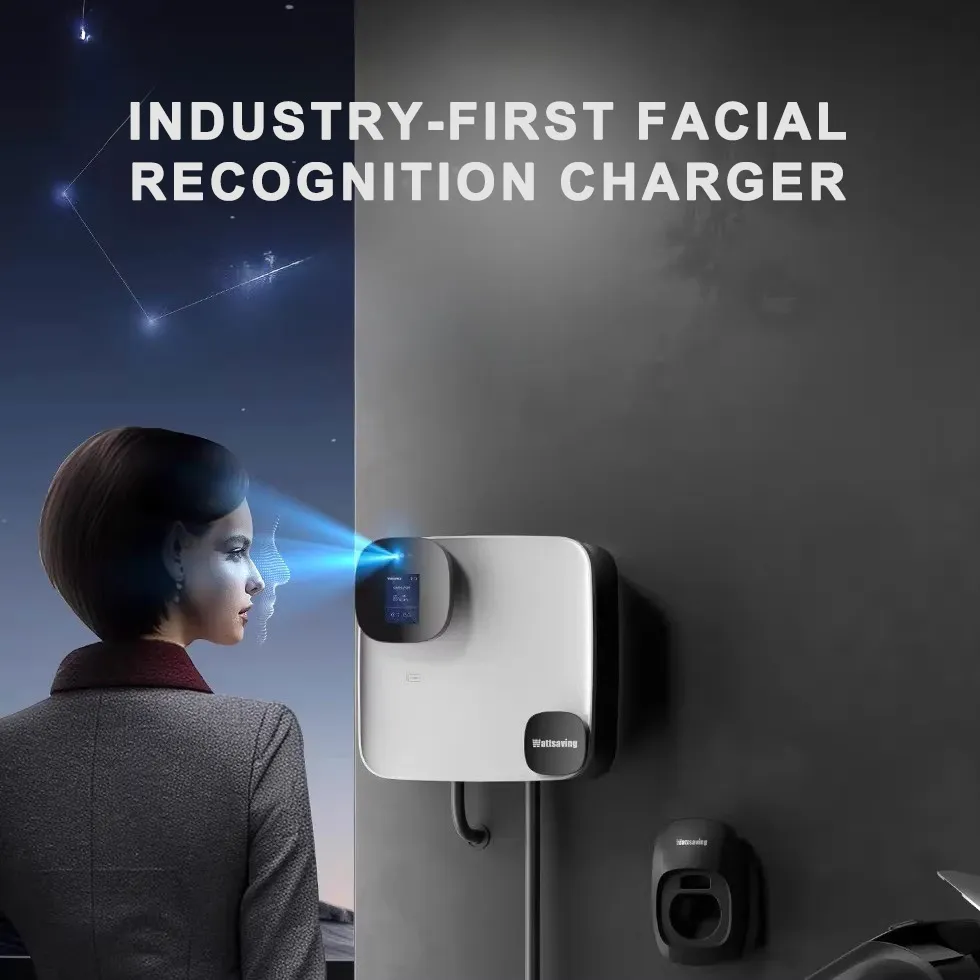

Startup Method	Face recognition / Scheduled / App / Contactless / Card swipe / Plug-and-charge
Appearance & Structure
Housing Material	PC: UV-resistant flame retardant rating UL94V-0
Dimensions (HxWxD)	290mm X 290mm X 120mm
Net Weight	6 kg
Cable Length	5 m
Operating Environment
Protection Rating	IP65 (Indoor/Outdoor)
Operating Temp	-30 °C to +55 °C

🌟

Core Features

🛡️ Smart and Secure Access Control

Features high brightness, energy saving, environmental protection, and easy installation. Suitable for schools, parks, factories, and squares with a waterproof rating of IP67.

🚀 Easy and Fast Charging

Designed for professional environments, ensuring high reliability and efficiency with CE certification and robust construction.

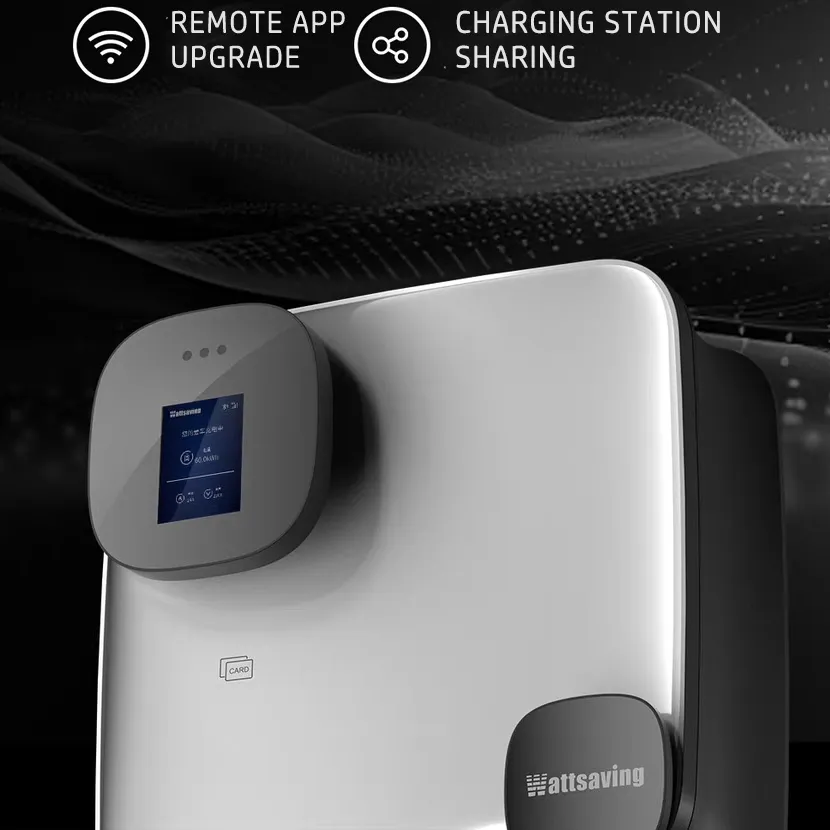

📱 Remote Control & Management

Start, stop, and monitor charging sessions anytime via mobile app or centralized system, improving convenience and operational efficiency.

👥 Multi-User Sharing

Ideal for households, offices, and fleet operations. Supports private and family sharing with easily manageable access rights.

❓

Frequently Asked Questions

Q1: What is the maximum output power of the WE X7?

The WE X7 provides a maximum output power of 7kW at a rated current of 32A.

Q2: Can this charging station be installed outdoors?

Yes, it features an IP65 protection rating, making it suitable for both indoor and outdoor installation.

Q3: What startup methods are supported?

It supports multiple methods including face recognition, scheduled charging, app control, contactless/card swipe, and plug-and-charge.

Q4: What safety protections are included?

It includes overcurrent, leakage (AC 30mA+DC 6mA), short-circuit, overvoltage, undervoltage, lightning, and flame retardant protections.

Q5: Is it suitable for multi-user scenarios?

Absolutely. It is designed for private and family sharing, making it ideal for households, residential communities, and offices.

Q6: What are the dimensions of the main unit?

The main unit dimensions are 290mm x 290mm x 120mm, weighing approximately 6 kg.
