Energy Storage Solution 220VAC Everexceed Shenzhen, China Electric Power UPS Backup

1 / 2

Energy Storage Solution 220VAC Everexceed Shenzhen, China Electric Power UPS Backup

Customization:	Available
Phase:	No
Type:	Hybrid

Send Inquiry

Product Description

💡 Technical Specifications

Model NO.CO50K-100E

ProtectionOver Voltage, Current, etc.

ApplicationHousehold, Office

ClassificationEnergy Storage Solution

Output Capacity220VAC

ColorWhite

Battery TypeLithium

Ingress ProtectionIP21

Inverter Warranty2 Years

Battery Warranty5 Years

Dimensions550x621x214mm

HS Code8504402000

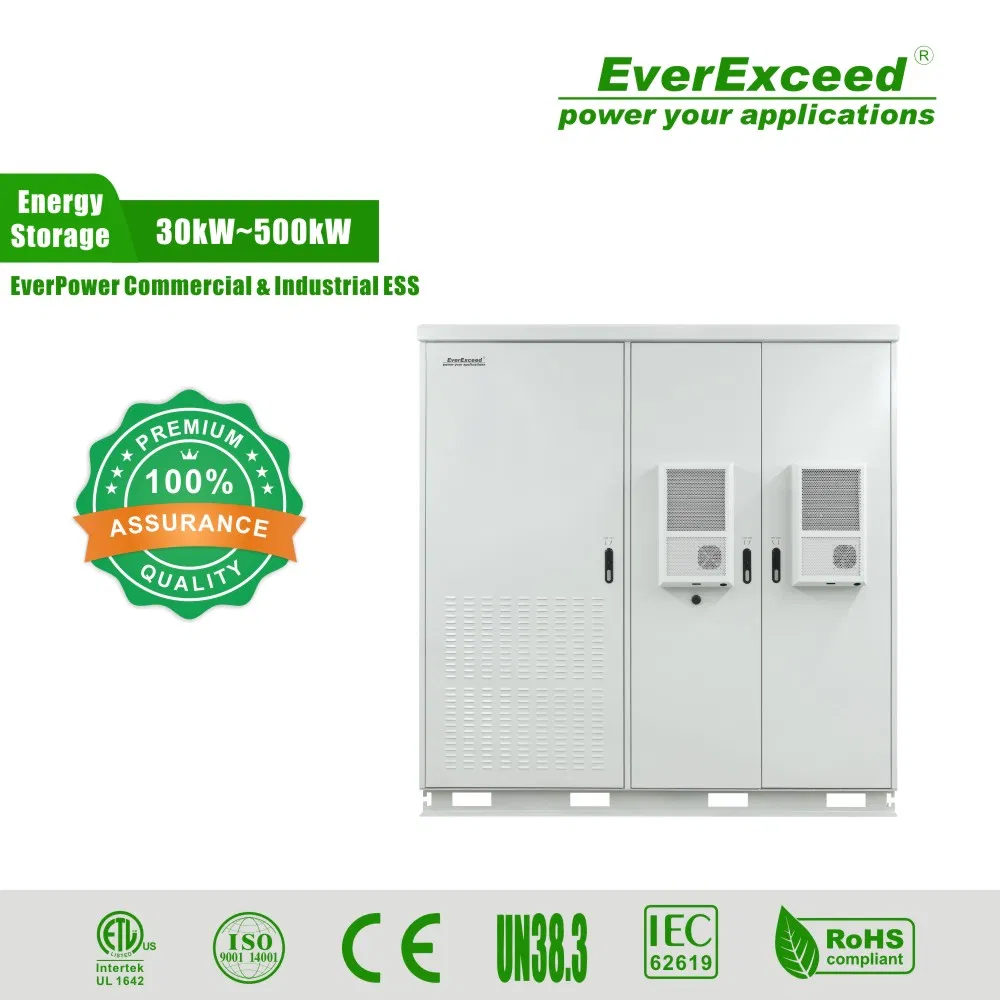

Commercial 50kw Energy Storage Solution for Over Voltage, Current, Short Circuit etc. Protection

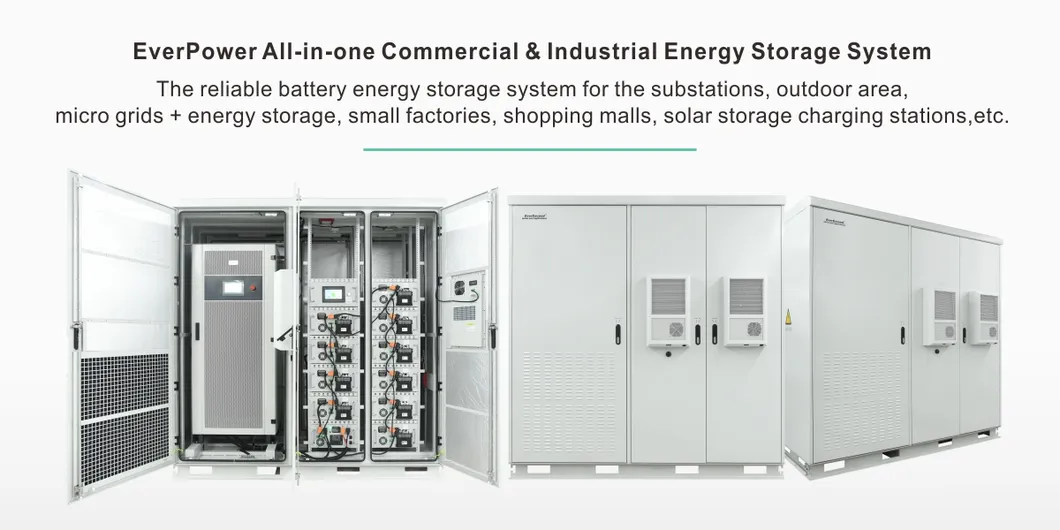

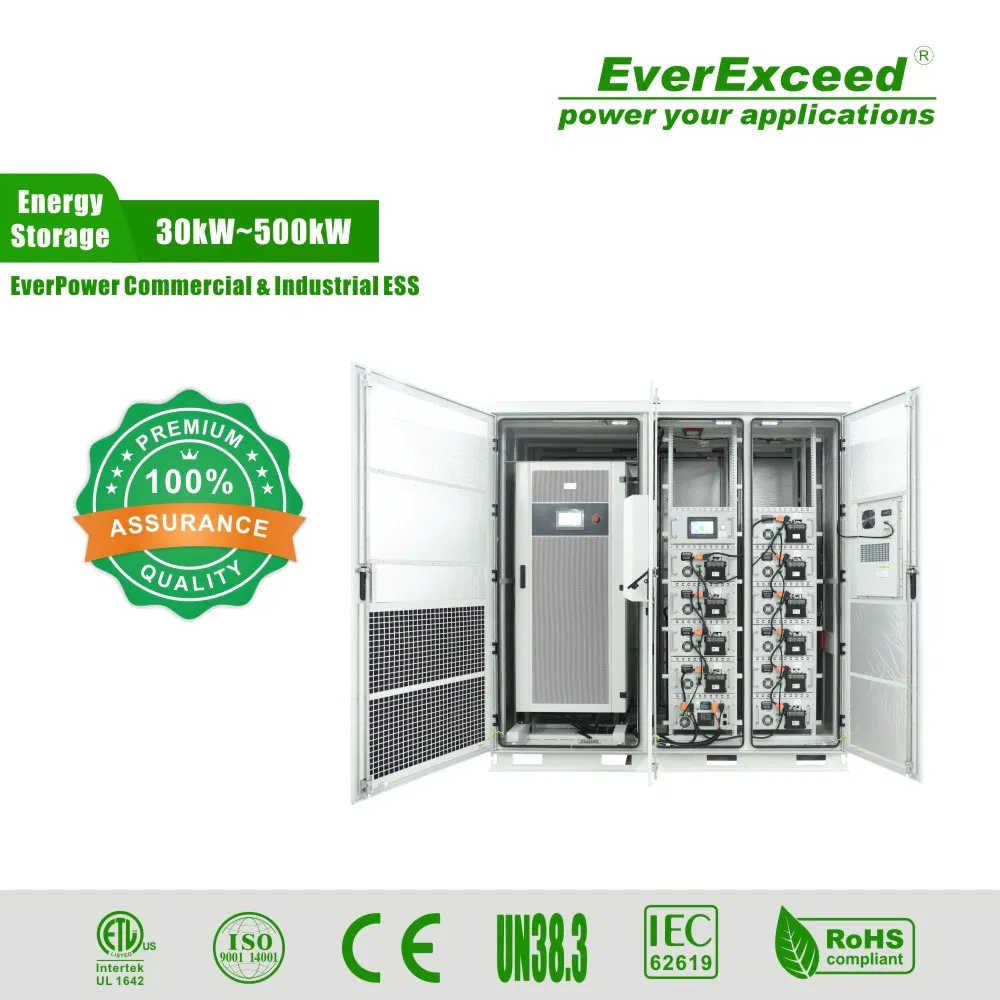

This commercial battery backup energy storage system is a high-power backup power supply solution. It offers 50KW, 100KW, 150KW, and 250KW power inverters integrated with a high-capacity LiFePO4 battery bank, ensuring extended backup time for critical loads.

⚙️ Core Technical Features

🔋 Wide Compatibility

Compatible with lead acid & lithium-ion batteries. Wide voltage range for diverse environments.

❄️ Cold Start Function

Supports off-grid cold start and multi-machine parallel operations.

🛡️ Multiple Protection

Overcharge, Overload, Short-circuit, and Temperature protection (High/Low).

⚡ Dual Power Backup

AC and DC dual backup ensures control system stability at all times.

📉 High Efficiency

Peak efficiency of 97.5% with intelligent temperature control systems.

📱 Smart Communication

Accepts BMS commands in real-time via RS485 and CAN interfaces.

📊 Energy Storage System Data

Model	CO30K-50E	CO30K-100E	CO50K-100E	CO100K-200E	CO150K-300E	CO250K-500E
PCS Performance
Rated AC Power	30KW	30KW	50KW	100KW	150KW	250KW
Max. Efficiency	96.30%	96.30%	96.50%	97.10%	97.10%	97.30%
Operating Temp.	-30ºC~55ºC
Battery Specifications
Battery Type	LiFePO4 battery
Battery Energy	53.76kWh	107.52kWh	107.52kWh	215.04kWh	301.06kWh	537.60kWh
Cycle Life	≥6000 at 80%DOD
General Info
Ingress Protection	IP55
Display	LCD touch-screen

☀️ Solar + Energy Storage Options

Solar Model	CO30K-PV	CO50K-PV	CO100K-PV	CO150K-PV	CO250K-PV	CO500K-PV
Max. PV Voltage	1000V
MPPT Range	250-850V
PV Input Power	60/120KW	60/120KW	120/180/240KW	120/180/240KW	300/360KW	600/720KW

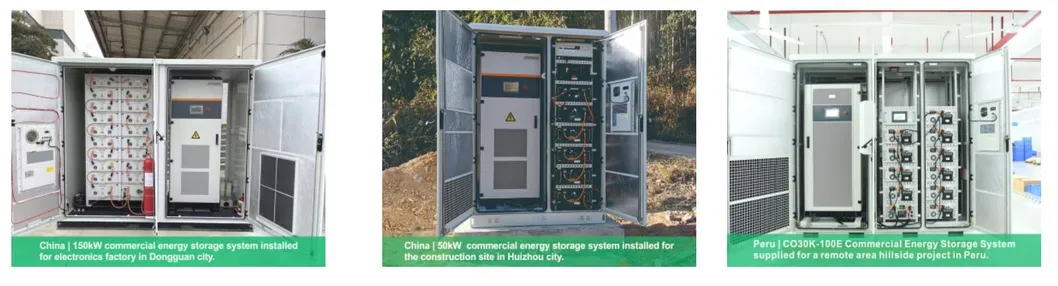

Successful Installation Cases:

📦 Logistics & Payment

Payment Methods	T/T, L/C, Cash, Western Union (Flexible terms available)
Delivery Options	Sea, Air, Train, or Truck transportation
Delivery Lead Time	Approximately 4 weeks (Ex-factory)
Packaging	Secure carton box on wooden pallets or wooden crates

❓ Frequently Asked Questions

🔸 What is the main purpose of this 50kw system?

It is designed as a high-power commercial energy storage and backup solution suitable for households, offices, and industrial applications to prevent data loss or equipment damage during power outages.

🔸 What type of batteries does the system use?

The system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) batteries, known for their long cycle life of over 6,000 cycles at 80% Depth of Discharge (DOD).

🔸 Can this system be used with solar panels?

Yes, we offer PV-compatible models (CO-PV series) that feature integrated MPPT controllers with a wide voltage range of 250V-850V for efficient solar energy harvesting.

🔸 What kind of protection features are included?

The system includes comprehensive protection against over-voltage, over-current, short circuits, overcharging, over-discharging, and extreme high or low temperatures.

🔸 Is the system suitable for outdoor use?

While the core unit has an IP21 rating, the general system configuration can reach up to IP55 ingress protection, making it resilient in various installation environments.

🔸 How can I monitor the system status?

The system is equipped with an LCD touch-screen for local monitoring and supports remote monitoring (EMS) via RS485 and CAN communication protocols.
