New Smart Network Wiegand 26/34 TCP/IP Access Control System Solution with 5 Socket Ports

1 / 5

New Smart Network Wiegand 26/34 TCP/IP Access Control System Solution with 5 Socket Ports

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

NS-T2/4net. access control system solution

Interface

USB

Reading Distance

100m

Application

Parking, Hospital, Library, Company, Bank, Store, Office

Communication

TCP/IP 10m/100m Adaptive(Extension RS485)

Input Format

Wiegand26/34 (Compatible Protocols)

Number of Inputs

16ea (4 Exit Button, 4 Door Sensor, 4 Wiegand)

Number of Outputs

5 Form-C Relay Output (4 Lock, 1 Alarm)

Max Users

20,000 Users

Event Buffers

70,000 Event Buffers

Production Capacity

10,000 PCS/Per Month

Product Description

🚀 New Smart Network Wiegand 26/34 TCP/IP Access Control Solution

Overview:

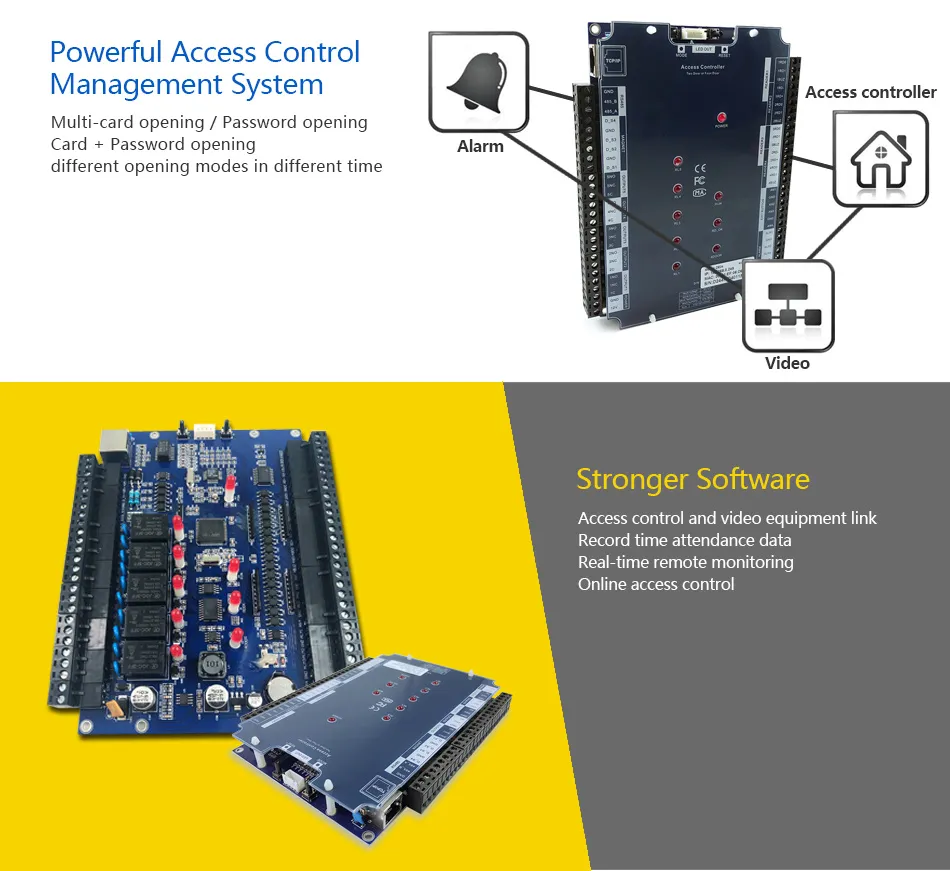

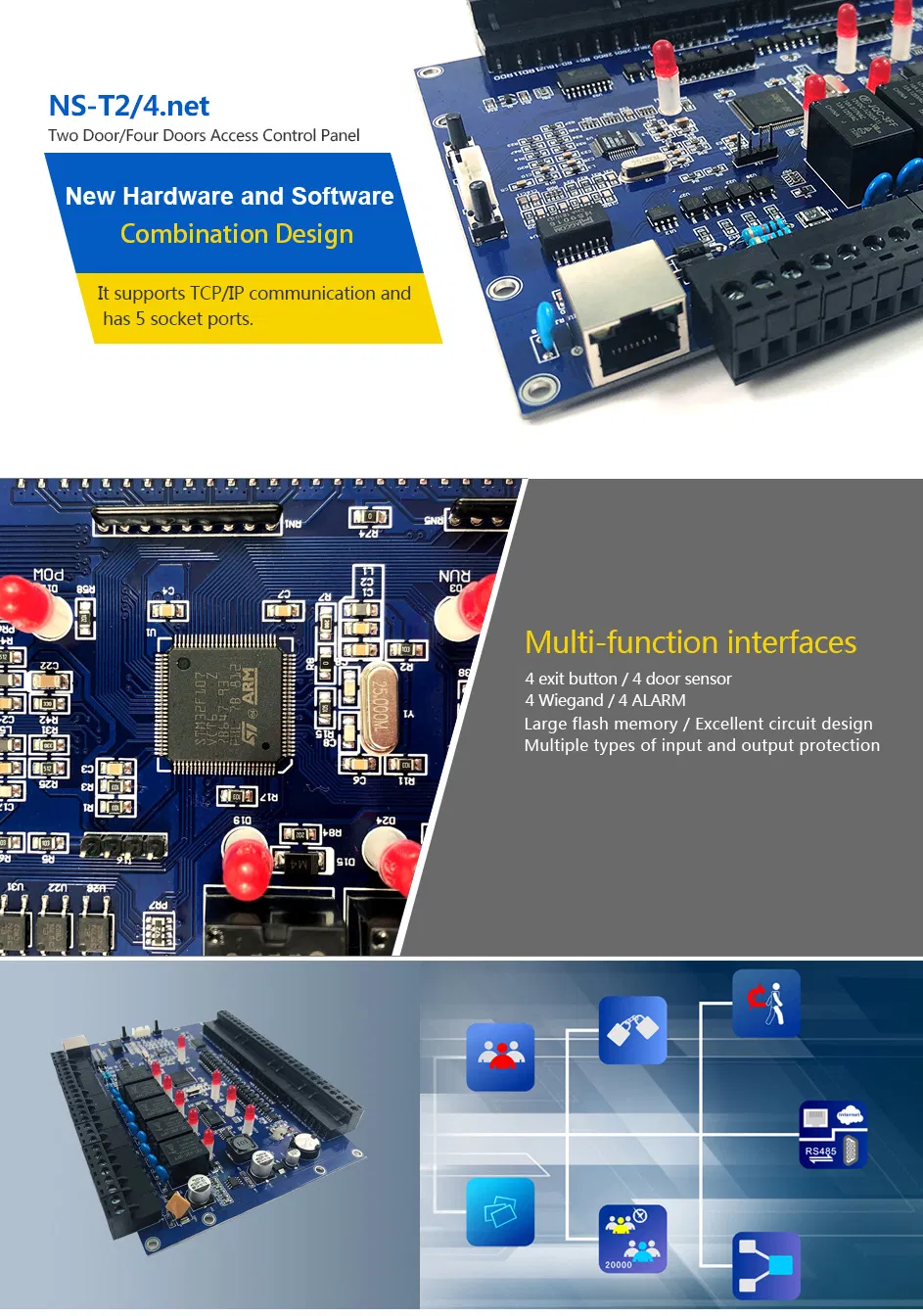

The NS-T2/4 is a network access control board featuring a new industrial standard design. It utilizes high-quality chips from renowned manufacturers and supports both TCP/IP and Extension RS485 communication. The system includes a variety of event linkage mechanisms, such as illegal card alarms and alarm-linked door openings. With multi-Wiegand interface input, it provides perfect single-door or multi-door management, supporting RFID cards, passwords, and bidirectional access.

Core Functions

Advanced Communication: Standard TCP/IP with multi-level lightning and surge protection.
Data Reliability: Large-capacity FLASH with optimized circuits ensures up to 10 years of data storage without power.
Identification Modes: Supports card, password, card + password, double card, and timing-based access.
System Linkage: Abundant reserved interfaces for illegal break-in alarms and fire linkage.
Advanced Access Rules: Features Anti-passback, Multi-door interlock, Threaten Code, and Remote Control.
Real-time Monitoring: Works with professional software for attendance statistics and video device linkage.

Technical Specifications

Parameter	Single/Two-door Board	Two/Four-door Board

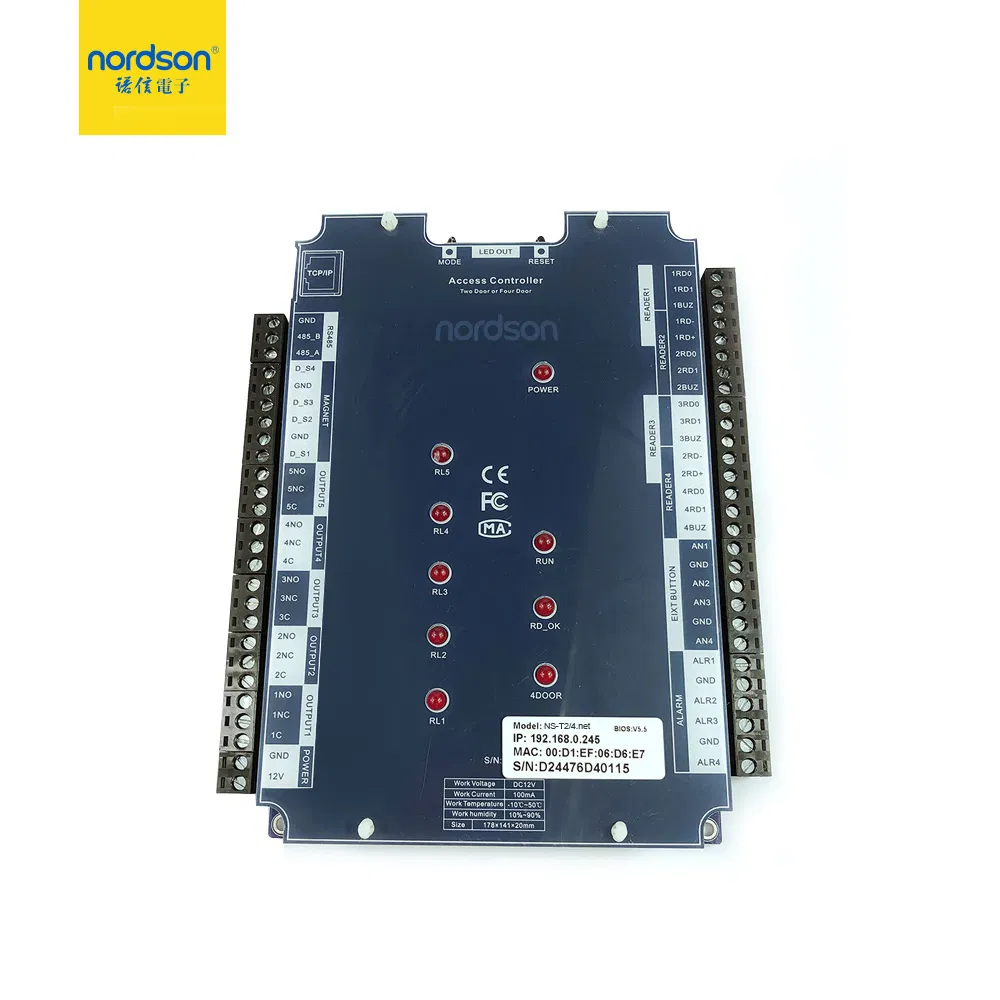

Model #	NS-T1/T2.net	NS-T2/T4.net
Communication	TCP/IP 10M/100M adaptive (Extension RS485)
PCB Size	L330xW288xH72mm	L273xW175xH72mm
Power Supply	DC12V/400mA
Readers Qty	2 pcs	4 pcs
Max Users	20,000 Users
Event Buffers	70,000 Event Buffers
Inputs	8ea	16ea
Outputs	3 FORM-C Relay	5 FORM-C Relay
Operating Temp	-10°C to 50°C

Frequently Asked Questions (FAQ)

Q1: How many users can this access control system store? A: The system can store up to 20,000 unique users and maintain 70,000 event buffers in its offline memory.

Q2: What happens to the data if the power goes out? A: The board is designed with large-capacity FLASH and circuit optimization that allows for up to 10 years of continuous data storage without external power.

Q3: Does the controller support remote management? A: Yes, it supports standard TCP/IP communication for real-time remote monitoring and control via management software.

Q4: What types of card readers are compatible with this board? A: It is compatible with any card reader using the Wiegand 26/34 protocol, including HID, EM, and Mifare technologies.

Q5: Can it trigger an alarm for illegal entry? A: Yes, the system has built-in linkage mechanisms for illegal card alarms, long-time door open alerts, and illegal break-in notifications.

Q6: What is the maximum distance between the reader and the controller? A: The maximum distance is 100 meters, though we suggest a distance of 80 meters for optimal performance.
