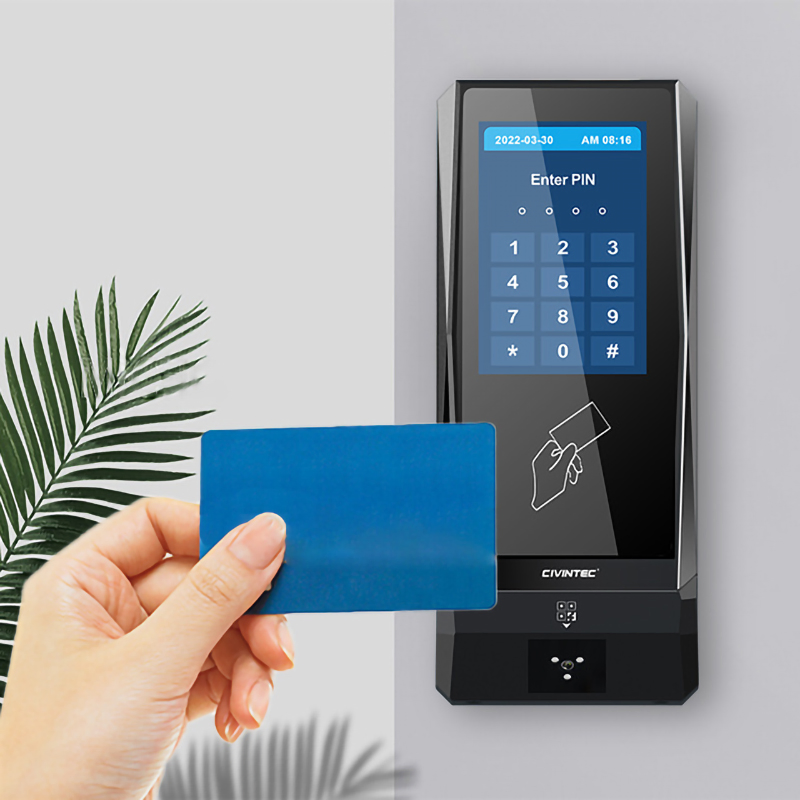

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags, ISO14443B |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |

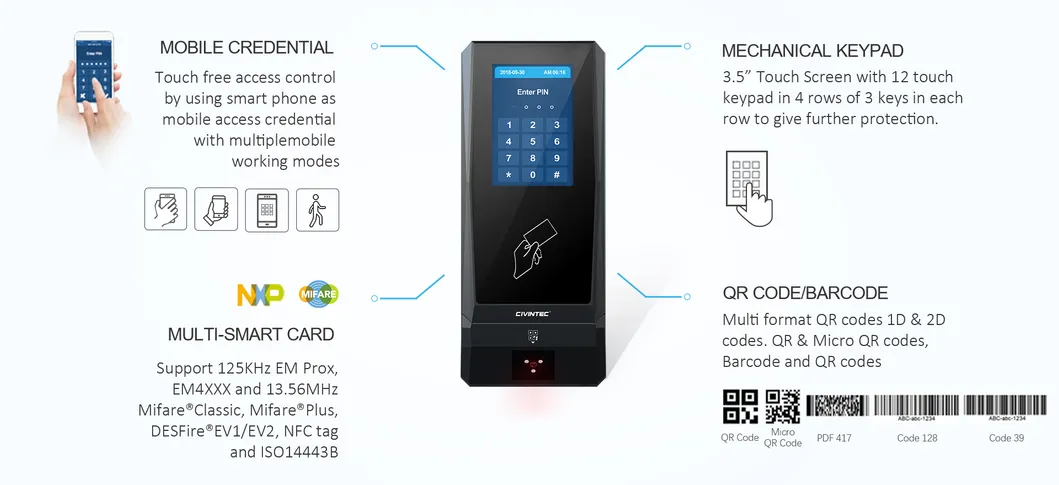

CT9 Pro incorporates 5-in-1 multiple access technologies, including touch keypad, dual-frequency RFID, BLE & NFC mobile access, and QR CODE scanning for visitor management.
Bio-directional communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and various IoT facilities.
Remotely controlled by cloud web-based software in real-time. Embedded relay output controls door access as granted or denied.
With IP65 ratings, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
Support for hardware, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
