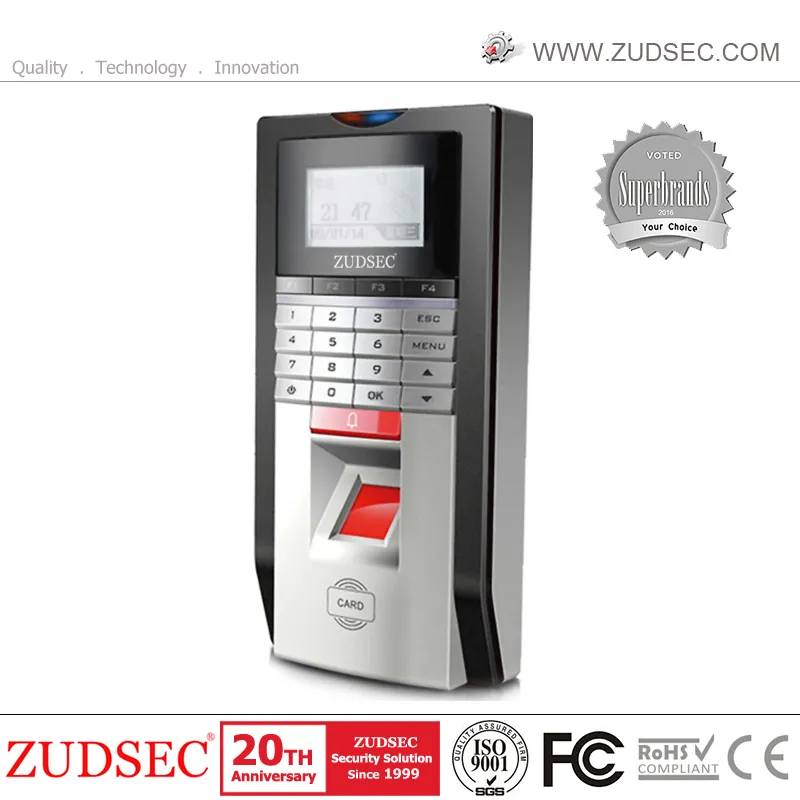

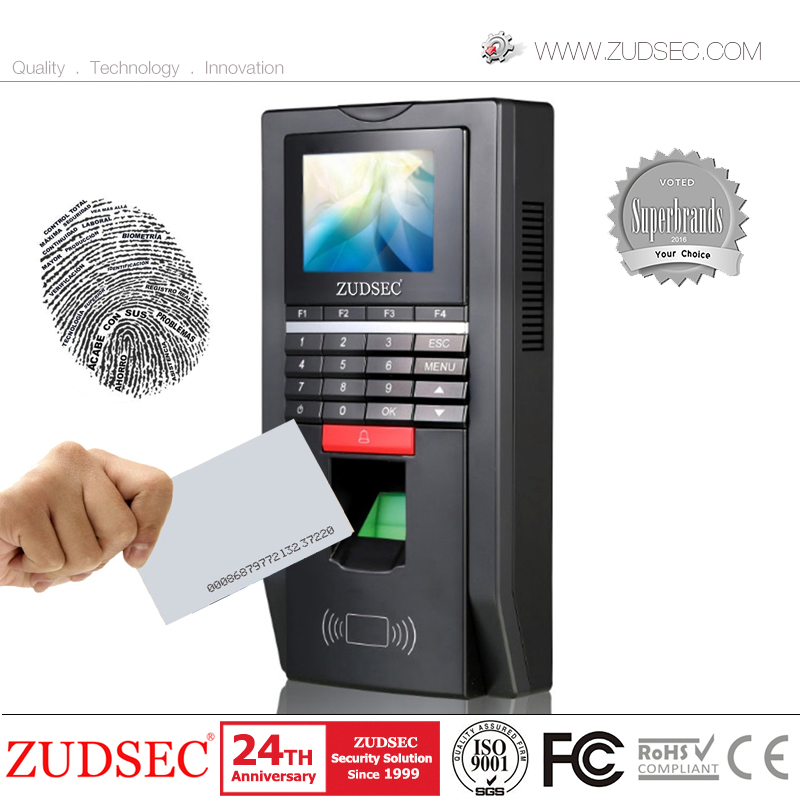

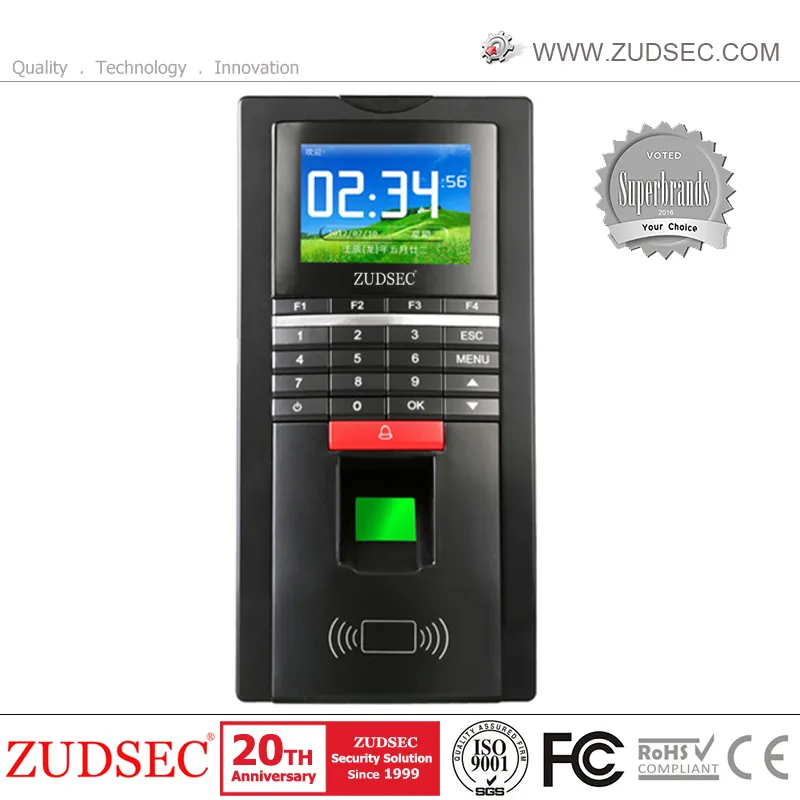

ZDTA-30AC is a professional & powerful fingerprint access control device with time attendance function. It features the most advanced fingerprint arithmetic in the world, automatically analyzing the tiny differences between the latest fingerprints versus previous ones and updating accordingly to ensure high accuracy and optimum recognition speed. RFID, Fingerprint, and Password mixed verification modes make access control more secure and flexible. It is ideal for wide areas including military bases, state-owned enterprises, banks, and schools.
The system contains two parts: the fingerprint time attendance terminal and the attendance management software. The terminal is used for enrolling user fingerprints and recording attendance, while the software manages records and data via USB, TCP/IP, or USB Flash Disk.
| Parameter | Specification |
|---|---|
| Model | ZDTA-30AC |
| LCD Screen | 2.4 inch (320*240) Black & White |
| Fingerprint Sensor | 500DPI (Optical sensor) |
| User Capacity | 2,000 |
| Records Capacity | 30,000 events |
| Identification Time | < 1 Second |

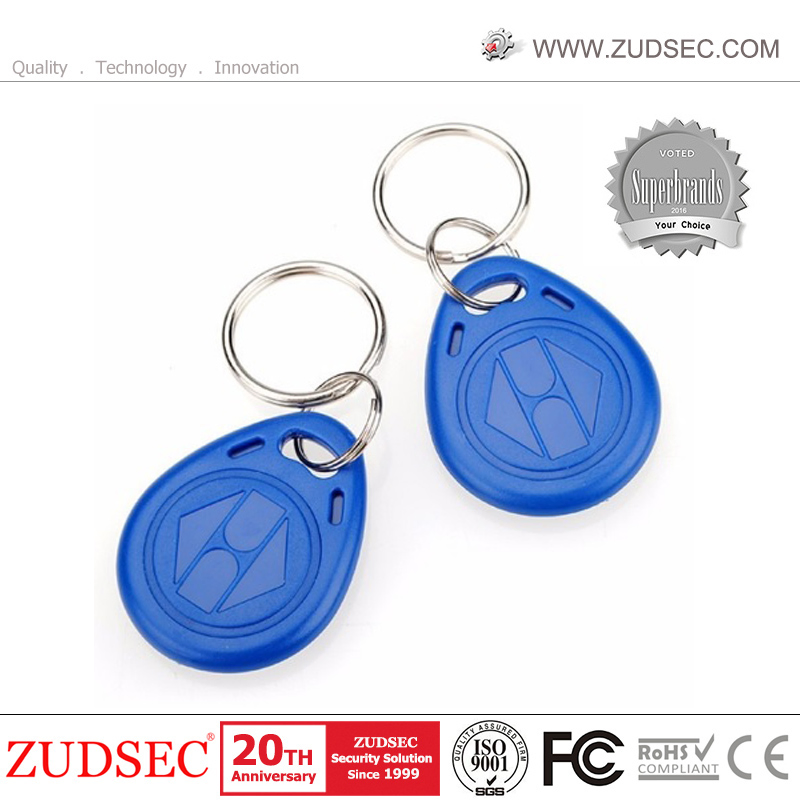

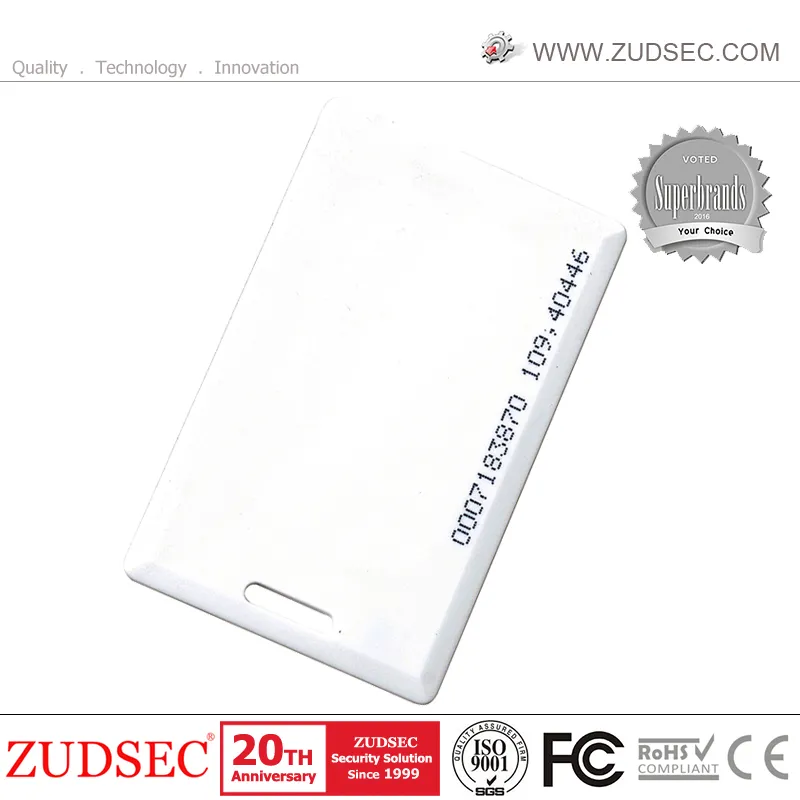

| Authentication Method | Fingerprint / RFID Card (125Khz) / Password |

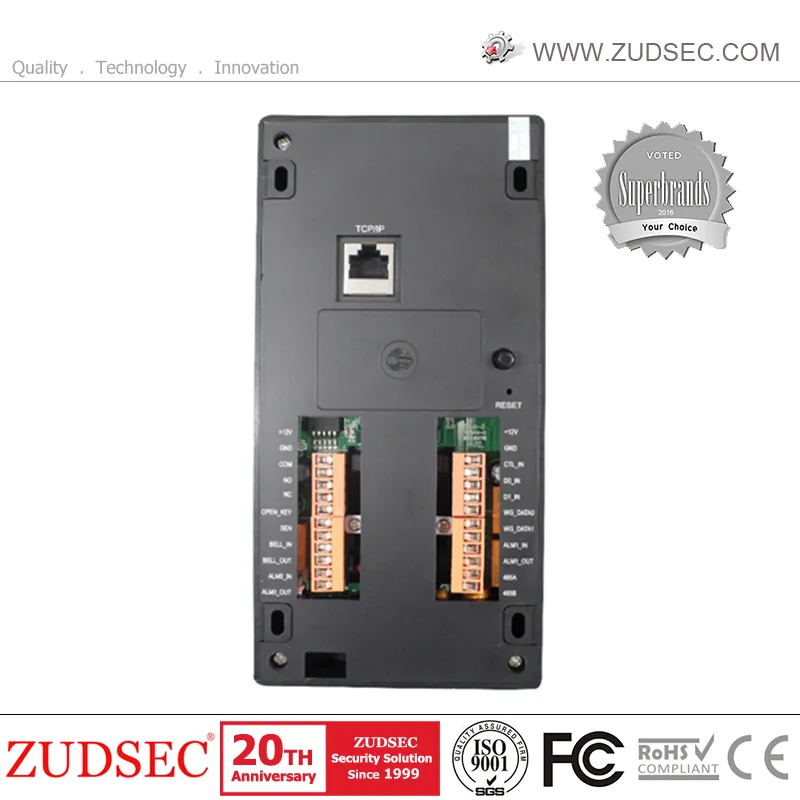

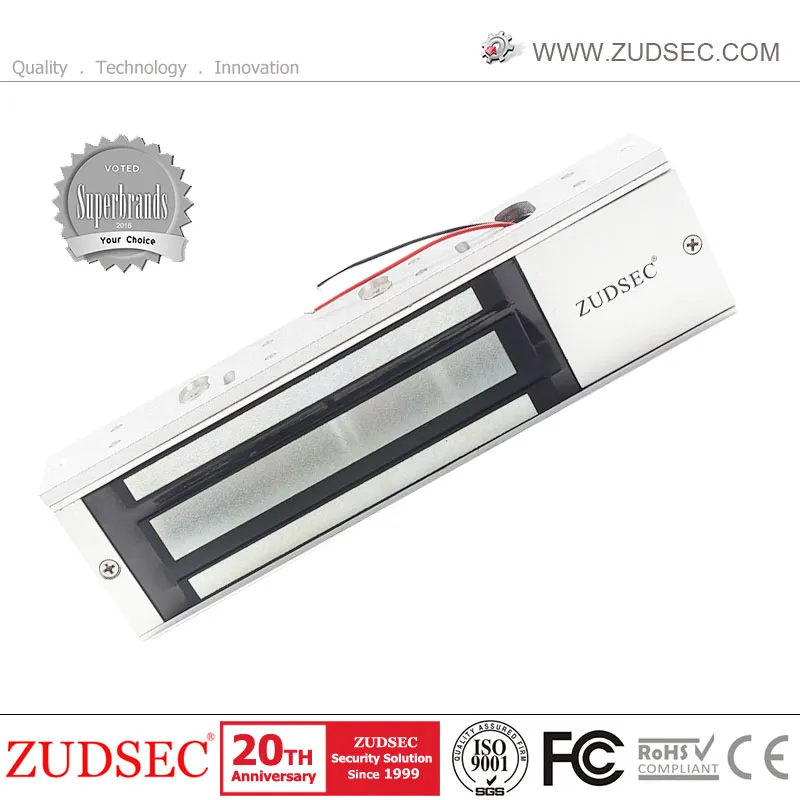

| Access Interface | Wiegand26/34, Door Lock, Siren, Release Button, Door Sensor |
| FRR / FAR | <1% / <0.0001% |
| Operating Environment | Temp: 0ºC-50ºC, Humidity: 80% |
| Dimensions | Terminal: 181*91*36mm |
| Weight | Terminal: 0.348Kg / Package: 1Kg |
