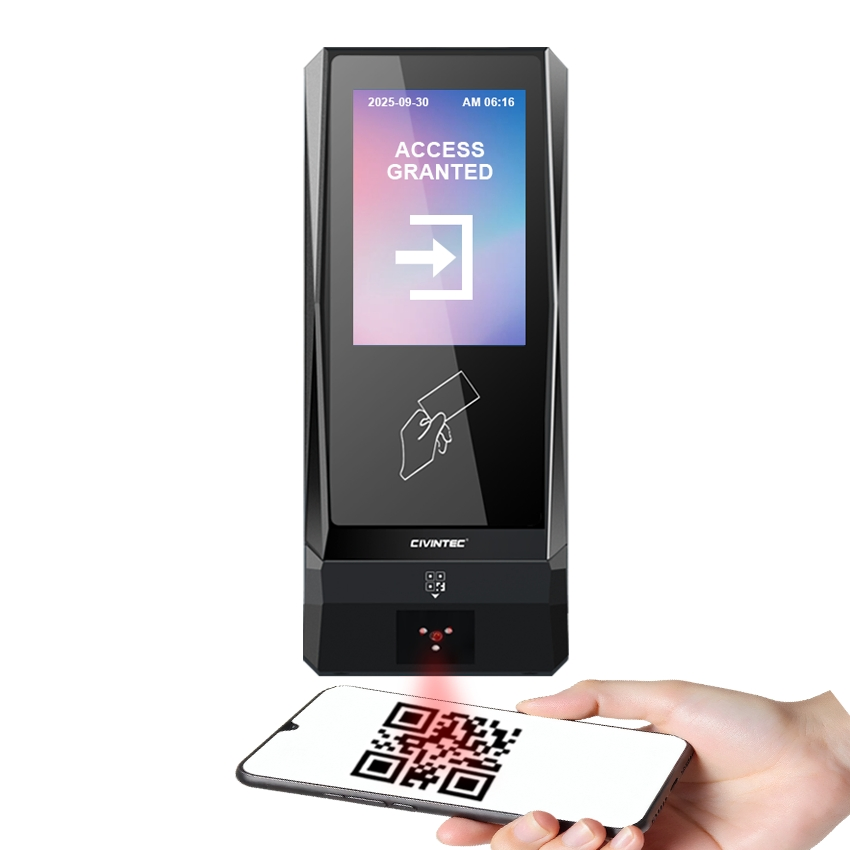

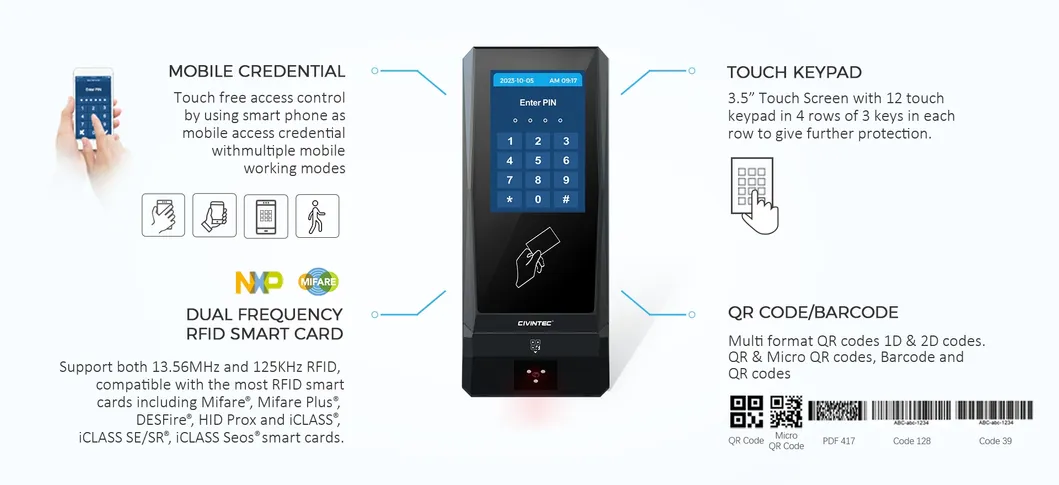

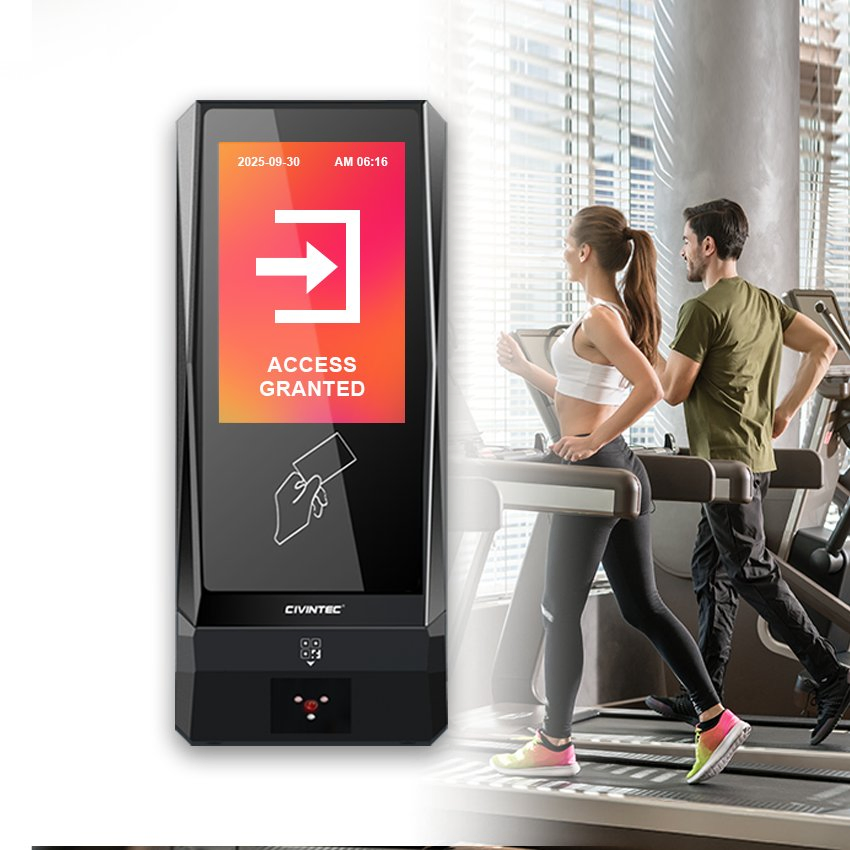

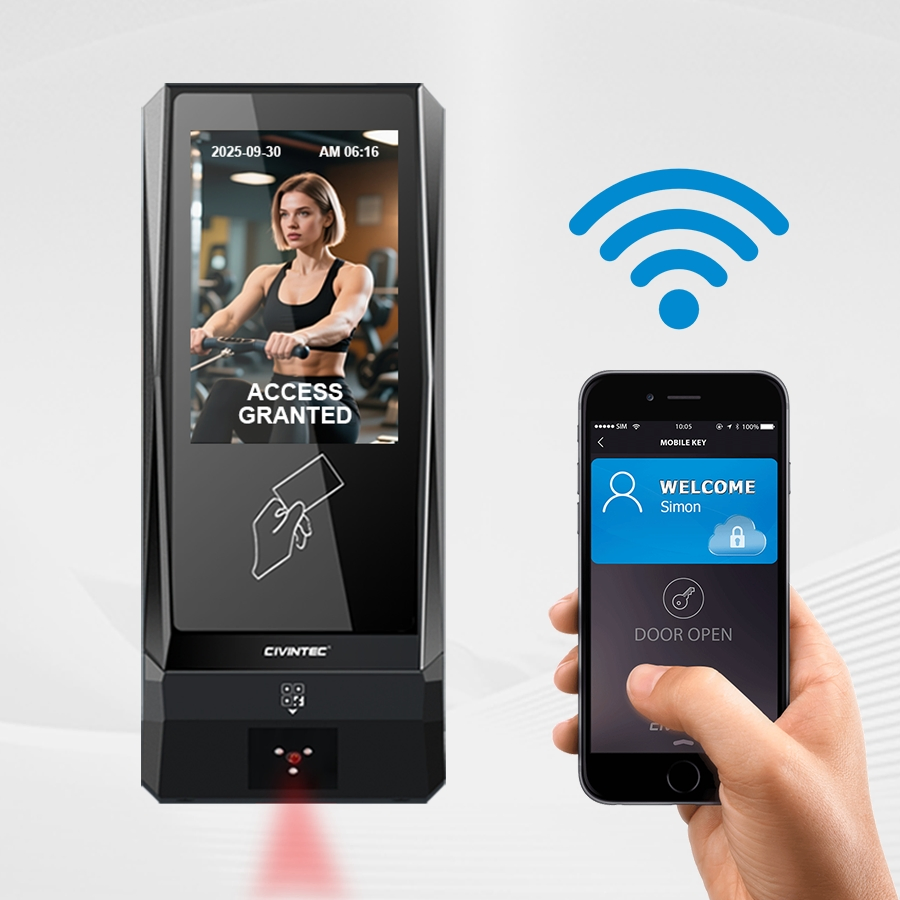

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |

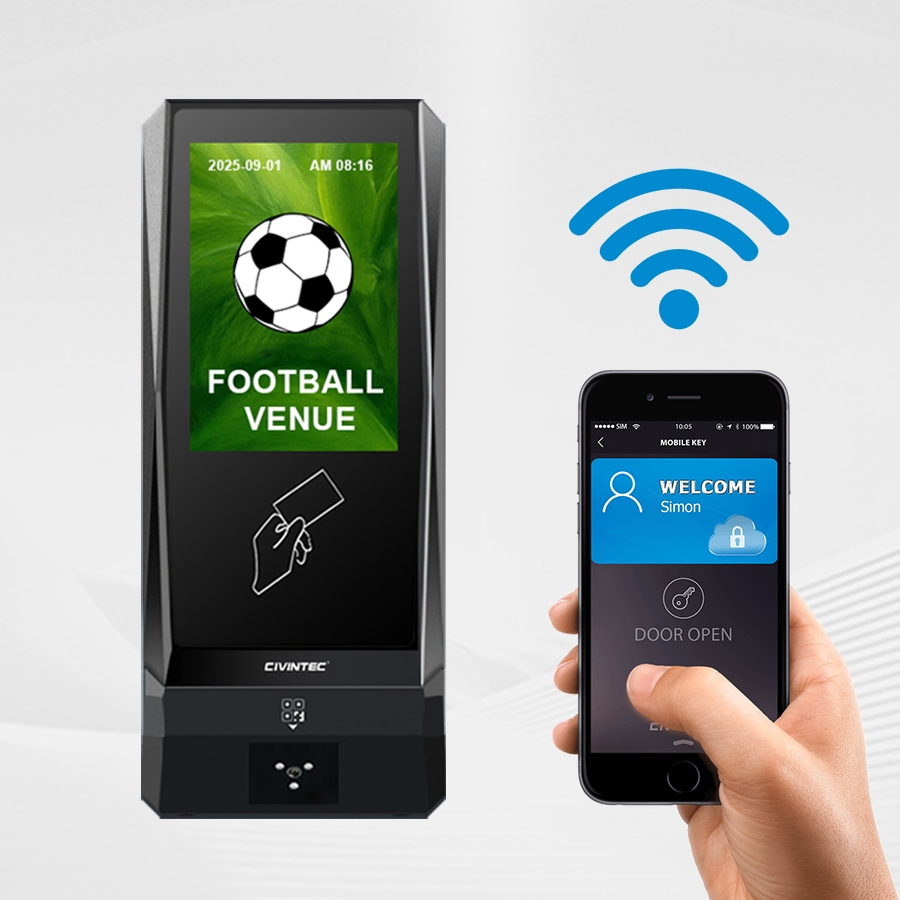

| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |

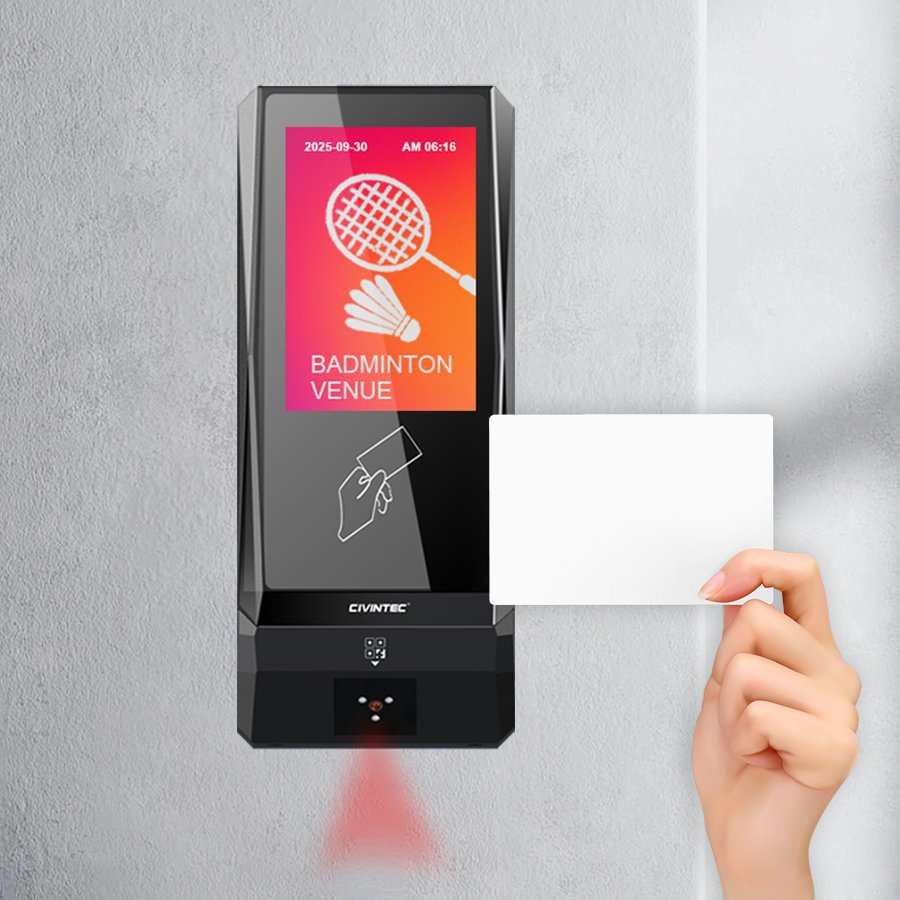

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1/EV2/EV3, NFC tags, ISO14443B, iCLASS Seos |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit |
| Capacity | 10,000 users / 50,000 logs |
We offer customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen.
